Westinghouse infrarød sauna model WES43-1600 brugermanual

1. Vigtige sikkerhedsoplysninger

Please read all instructions carefully before assembly and operation of your Westinghouse Infrared Sauna. Failure to follow these instructions may result in injury or damage to the product. Retain this manual for future reference.

• Kontakt en læge, før du bruger saunaen, hvis du har helbredsproblemer, er gravid eller tager medicin.
• Do not use the sauna under the influence of alcohol or drugs.
• Sørg for, at saunaen er placeret på en plan og stabil overflade.
• Hold børn og kæledyr væk fra saunaen under drift.
• Do not spray water directly onto the heaters or control panel.
• Always unplug the sauna from the power outlet before cleaning or maintenance.

2. Produktet er slutview

The Westinghouse Infrared Sauna Model WES43-1600 is designed for personal use, providing a comfortable and relaxing infrared heat experience. Familiarize yourself with the main components:

Figur 2.1: Front view of the Westinghouse Infrared Sauna, showcasing the glass door and exterior wood finish.

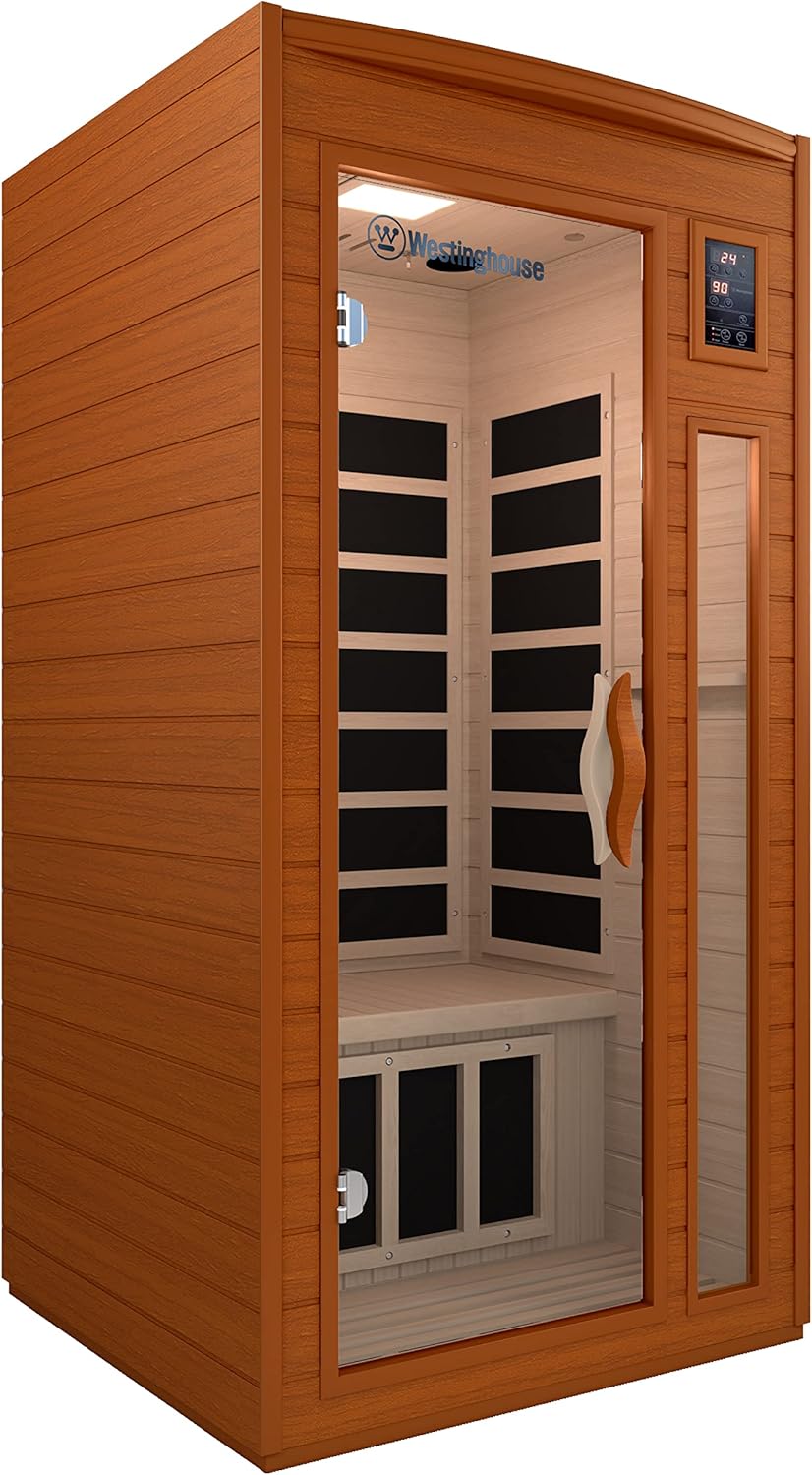

Figur 2.2: Vinklet view of the sauna, highlighting the wooden exterior and interior design.

Figur 2.3: Interior control panel for adjusting temperature and time settings.

Figur 2.4: Close-up of the interior ceiling light, providing illumination during use.

Figur 2.5: Example of a chromotherapy light panel, offering various color options.

Figur 2.6: Ceiling-mounted speaker for audio playback within the sauna.

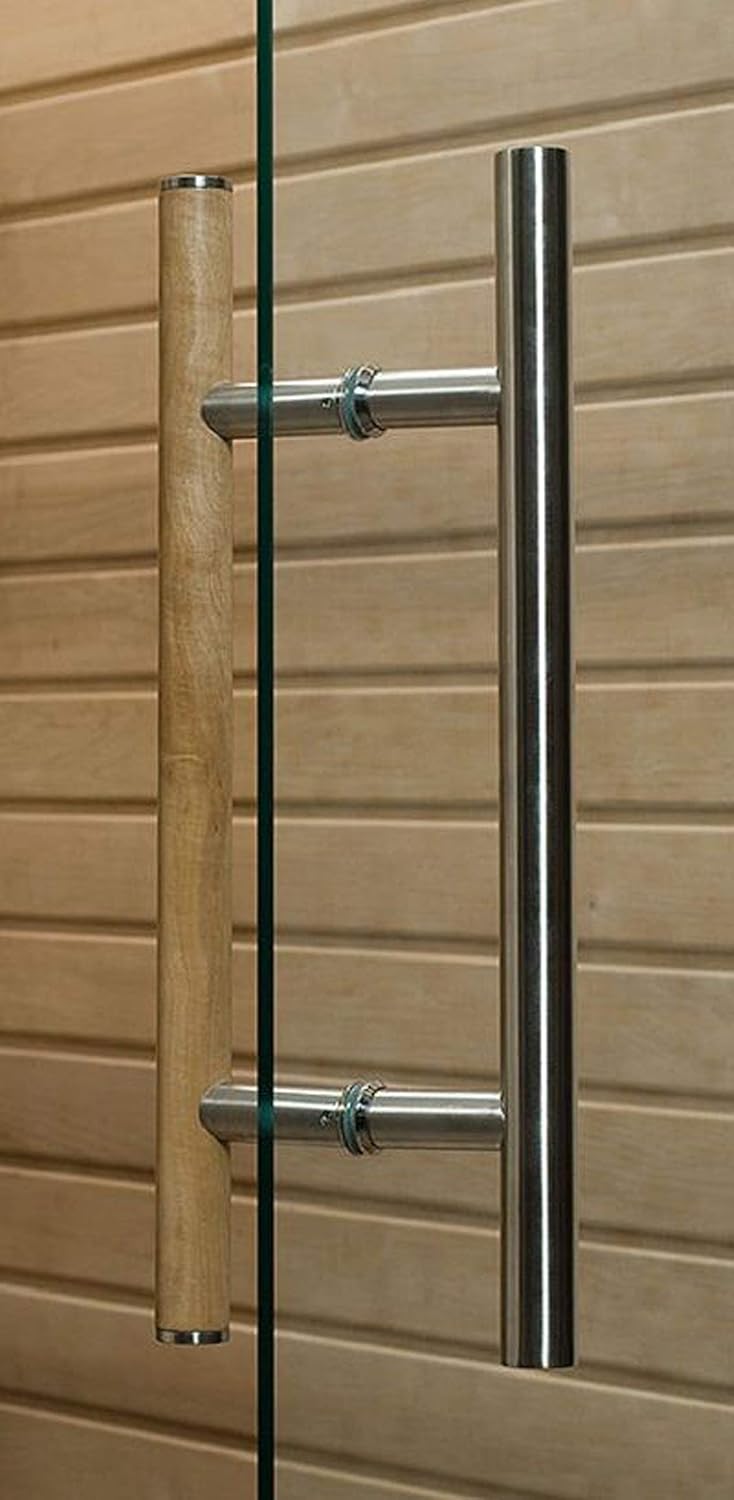

Figur 2.7: Detail of the sauna door handle, featuring both wooden and metal components.

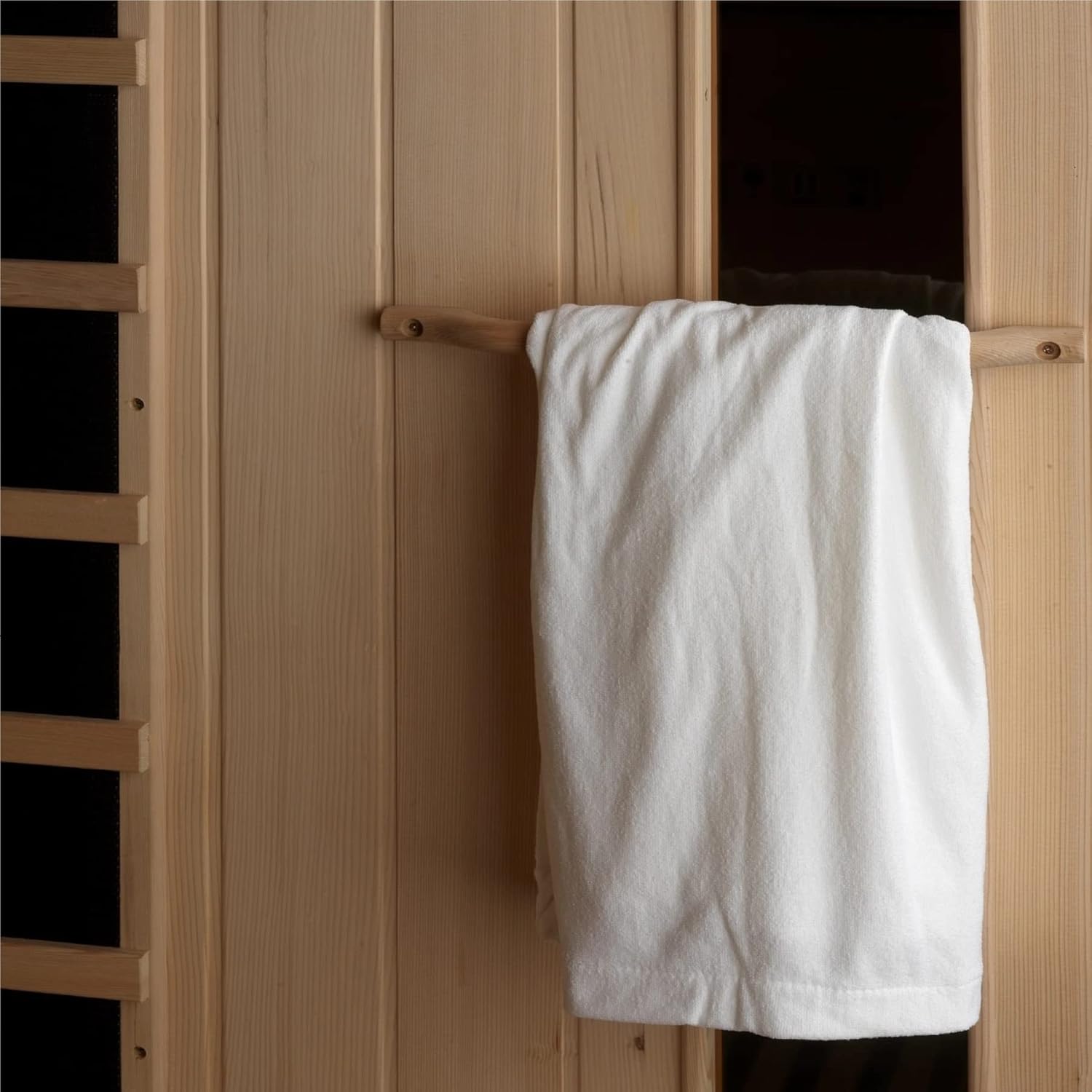

Figur 2.8: Interior wooden towel rack, shown with a white towel for convenience.

Figur 2.9: Interior wooden magazine rack for holding reading materials.

3. Opsætningsvejledning

Proper assembly is crucial for the safe and efficient operation of your sauna. It is recommended to have at least two people for assembly.

1. Udpakning: Pak forsigtigt alle komponenter ud, og kontroller dem med pakkelisten. Rapporter straks eventuelle manglende eller beskadigede dele.
2. Beliggenhed: Choose a dry, level indoor location with adequate ventilation. Ensure there is sufficient space around the sauna for assembly and access.
3. Basissamling: Place the sauna base panel on the chosen location.
4. Montering af vægpanel: Connect the back, side, and front wall panels according to the assembly diagrams provided in the separate assembly guide. Ensure all latches and connectors are securely fastened.
5. Bench and Heater Installation: Install the interior bench and ensure all infrared heaters are correctly positioned and connected.
6. Montering af tagpanel: Carefully place the roof panel on top of the assembled walls, ensuring all electrical connections for lighting and control panel are properly routed and connected.
7. Dør montering: Install the glass door, ensuring it swings freely and latches securely.
8. Elektrisk tilslutning: Plug the sauna into a dedicated, grounded electrical outlet that meets the power requirements specified in the specifications section. Do not use extension cords.

4. Betjeningsvejledning

Follow these steps to operate your infrared sauna:

1. Tænd: Ensure the sauna is plugged in. Press the 'Power ON/OFF' button on the control panel (Figure 2.3) to turn on the sauna.
2. Indstil temperatur: Use the 'Temperature' up/down arrows to set your desired temperature. The sauna will begin heating immediately.
3. Indstil tid: Use the 'Time' up/down arrows to set your desired session duration.
4. Forvarm: Allow the sauna to preheat for 10-15 minutes, or until it reaches your desired temperature.
5. Enter Sauna: Once preheated, enter the sauna and close the door securely.
6. Adjust Features:
   • Læser Lamp: Press the 'Reading Lamp' button to turn the interior light on or off.
   • Kromoterapi: If equipped, use the dedicated controls (refer to Figure 2.5 for visual reference) to select desired light colors or modes.
   • Audio System: If equipped with a speaker (Figure 2.6), connect your device via Bluetooth or auxiliary input and control playback from your device.
7. Afslut session: The sauna will automatically turn off after the set time expires. You can also press the 'START/STOP Work' button to end the session manually.
8. Køl ned: After your session, open the door slightly to allow the sauna to cool down before exiting.

5. Vedligeholdelse

Regular maintenance ensures the longevity and hygiene of your sauna.

• Rengøring af interiøret: After each use, wipe down the interior surfaces with a clean, damp cloth. For deeper cleaning, use a mild, non-abrasive cleaner specifically designed for wood. Do not use harsh chemicals.
• Rengøring af ydersiden: Wipe the exterior wood with a soft, dry cloth. Avoid excessive moisture.
• Glasdør: Rengør glaslågen med en standard glasrens.
• Hidsig: Do not attempt to clean the infrared heaters directly. Keep them free from obstructions.
• Ventilation: Ensure the sauna's ventilation openings are not blocked.
• Opbevaring: If storing for an extended period, ensure the sauna is clean, dry, and unplugged.

6. Fejlfinding

Hvis du støder på problemer med din sauna, kan du se følgende almindelige problemer og løsninger:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

7. Specifikationer

• Model: WES43-1600
• Mærke: Westinghouse
• Kapacitet: 1 person
• Varens vægt: 253 pund
• Pakkedimensioner: 72.4 x 37.8 x 14.7 tommer
• ASIN: B0C5RYFQHH
• Strømkrav: (Se produktetiketten for specifik volumen)tage og amperage)

8. Garanti og support

Your Westinghouse Infrared Sauna is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and limitations.

For technical assistance, replacement parts, or warranty claims, please contact Westinghouse customer support. Have your model number (WES43-1600) and purchase date available when contacting support.

Online support: Besøg det officielle Westinghouse webwebsted for ofte stillede spørgsmål og supportressourcer.

Kontaktoplysninger: Se din produktemballage eller Westinghouse-oplysningerne webhjemmeside for de mest aktuelle kontaktoplysninger til kundeservice.
