Brugervejledning til iiyama ProLite XB2481HSU-B5 Monitor

1. Introduktion

This manual provides essential information for the safe and efficient use of your iiyama ProLite XB2481HSU-B5 monitor. Please read this manual thoroughly before operating the product and retain it for future reference.

The iiyama ProLite XB2481HSU-B5 is a 23.8-inch Full HD (1920x1080) monitor featuring a VA panel, designed to provide stable color display from various viewing angles. It includes versatile ergonomic adjustments such as height, pivot, swivel, and tilt, along with multiple connectivity options.

2. Sikkerhedsoplysninger

• Placer altid skærmen på en stabil, plan overflade for at forhindre den i at falde ned.
• Bloker ikke ventilationsåbningerne. Sørg for tilstrækkelig plads omkring skærmen for korrekt luftgennemstrømning.
• Use only the power cord and adapters supplied with the monitor.
• Undgå at udsætte skærmen for ekstreme temperaturer, fugt eller direkte sollys.
• Forsøg ikke at reparere skærmen selv. Overlad al service til kvalificeret servicepersonale.
• Tag stikket ud af stikkontakten under tordenvejr eller når apparatet ikke bruges i længere perioder.

3. Pakkens indhold

Bekræft, at alle følgende varer er inkluderet i din produktpakke:

• iiyama ProLite XB2481HSU-B5 Monitor
• Stand Base (with fixing screw)
• Stå hals
• HDMI-kabel (1.5m)
• DisplayPort-kabel (1.8 m)
• USB-kabel (1.5m)
• Power Cord (1.8m, for AC100V)
• L-shaped Driver
• Safety & Quick Start Guide (includes Warranty Card)

4. Opsætning

4.1. Samling af skærm

Følg disse trin for at samle skærmstativet:

1. Placer forsigtigt skærmen med forsiden nedad på en blød, ren klud for at undgå ridser.
2. Attach the stand neck to the back of the monitor. Ensure it clicks securely into place or is fastened with screws if applicable.
3. Attach the stand base to the bottom of the stand neck. Secure it with the provided fixing screw using the L-shaped driver.

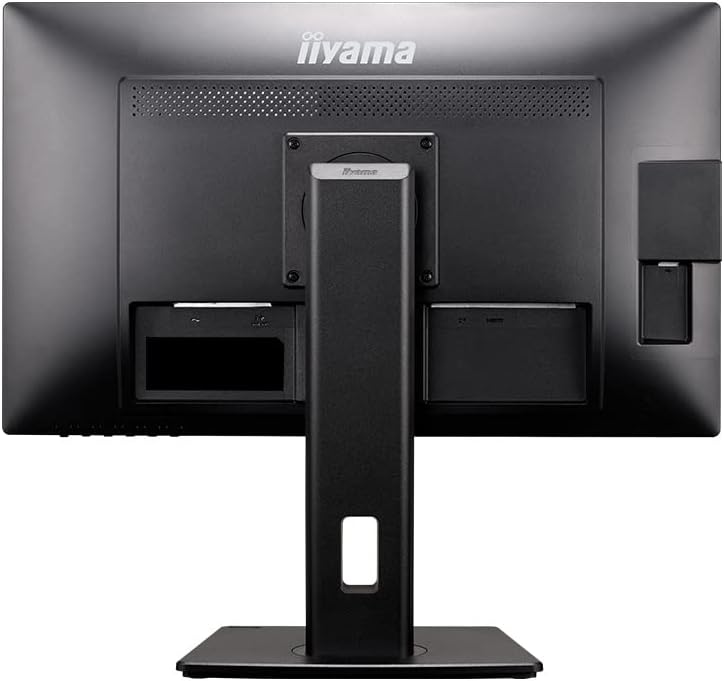

4.2. Tilslutningskabler

Tilslut de nødvendige kabler til de tilsvarende porte på skærmen og din computer:

• Videoforbindelse: Connect one end of the HDMI cable or DisplayPort cable to the monitor's input port and the other end to the corresponding output port on your computer.
• USB-forbindelse: Connect the USB cable from your computer to the monitor's upstream USB port to enable the monitor's USB hub functionality.
• Strømtilslutning: Connect the power cord to the monitor's AC input and then plug the other end into a grounded electrical outlet.

4.3. Tænd

Press the power button located on the front or bottom of the monitor to turn it on. The power indicator light will illuminate.

5. Betjening af monitoren

5.1. Skærmvisningsknapper (OSD)

The monitor features an On-Screen Display (OSD) menu for adjusting various settings. Use the control buttons, typically located on the bottom right bezel, to navigate the menu:

• Menu-knap: Åbner OSD-menuen.
• Navigationsknapper: Bruges til at navigere gennem menupunkter (op/ned, venstre/højre).
• Enter/Vælg-knap: Bekræfter et valg eller åbner en undermenu.
• Afslut-knap: Afslutter den aktuelle menu eller OSD.

5.2. Ergonomiske justeringer

The ProLite XB2481HSU-B5 offers several ergonomic adjustments for optimal viewkomfort:

• Højdejustering: The monitor can be adjusted vertically by 150mm. Gently push or pull the monitor panel up or down while holding the base for stability.
• Vip: The screen can be tilted upwards by 23 degrees and downwards by 5 degrees. Hold the top and bottom edges of the screen and gently adjust the angle.
• Drejelig: The monitor can swivel 45 degrees to the left and 45 degrees to the right. Rotate the monitor panel horizontally on its stand.
• Pivot: The screen can be rotated 90 degrees clockwise into portrait mode. Ensure the screen is at its highest position and tilted back slightly before pivoting to avoid contact with the desk.

5.3. Valg af input

To switch between HDMI and DisplayPort inputs, use the OSD menu or a dedicated input selection button if available on your monitor model.

6. Vedligeholdelse

6.1. Rengøring af skærmen

• Tag altid stikket ud af stikkontakten før rengøring.
• Brug let en blød, fnugfri klud damprengøres med vand eller et mildt, ikke-slibende skærmrensemiddel.
• Sprøjt ikke rengøringsmiddel direkte på skærmen.
• Avoid using harsh chemicals, solvents, or abrasive materials, as they can damage the screen and casing.

7. Fejlfinding

Hvis du støder på problemer med din skærm, kan du se følgende almindelige problemer og løsninger:

• Ingen strøm: Ensure the power cord is securely connected to both the monitor and a working electrical outlet. Check if the power indicator light is on.
• Intet billede: Verify that the video cable (HDMI or DisplayPort) is correctly connected to both the monitor and your computer. Ensure the correct input source is selected on the monitor.
• Flimrende eller forvrænget billede: Check the video cable for damage or loose connections. Try a different video cable or port. Ensure your computer's display resolution and refresh rate are compatible with the monitor's specifications.
• OSD-menuen vises ikke: Ensure the monitor is powered on. Press the Menu button firmly.
• Ingen lyd fra højttalerne: Check the audio settings in the OSD menu and on your computer. Ensure the volume is not muted and is set to an audible level.

If the problem persists after attempting these solutions, please contact iiyama support.

8. Specifikationer

Detailed technical specifications for the iiyama ProLite XB2481HSU-B5 monitor:

9. Garanti og support

9.1. Producentens garanti

The iiyama ProLite XB2481HSU-B5 monitor comes with a 3 års producentgaranti. Please refer to the Warranty Card included in your Quick Start Guide for full terms and conditions.

In case of initial defects or any issues covered under warranty, please contact iiyama support directly.

9.2. Kundesupport

For technical assistance, troubleshooting, or warranty claims, please contact iiyama customer support:

• Telefon: 03-3570-6374
• Webwebsted: iiyama Official Product Page (for reference and additional information)
