Pretul SOIN-101MP Mini Inverter Welder Brugervejledning

1. Introduktion

Thank you for choosing the Pretul SOIN-101MP Mini Inverter Welder. This compact and lightweight welding machine is designed for shielded metal arc welding (SMAW) processes, offering higher efficiency and lower power consumption compared to conventional welders. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new welder.

Please read this manual thoroughly before operating the machine and keep it for future reference.

2. Sikkerhedsoplysninger

ADVARSEL: Svejsning kan være farligt. Følg altid sikkerhedsforanstaltningerne for at forhindre alvorlig personskade eller død.

• Always wear appropriate personal protective equipment (PPE), including a welding helmet with proper shade, welding gloves, protective clothing, and safety shoes.
• Sørg for tilstrækkelig ventilation i arbejdsområdet for at undgå indånding af svejserøg.
• Beskyt dig selv og andre mod elektrisk stød. Rør ikke ved strømførende dele. Sørg for, at maskinen er korrekt jordforbundet.
• Be aware of fire and explosion hazards. Remove all flammable materials from the welding area. Have a fire extinguisher readily available.
• Arc rays can burn eyes and skin. Use proper eye and face protection.
• Do not operate the welder in wet conditions or near water.
• Afbryd strømmen, før du udfører vedligeholdelse eller justeringer.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er inkluderet i din pakke:

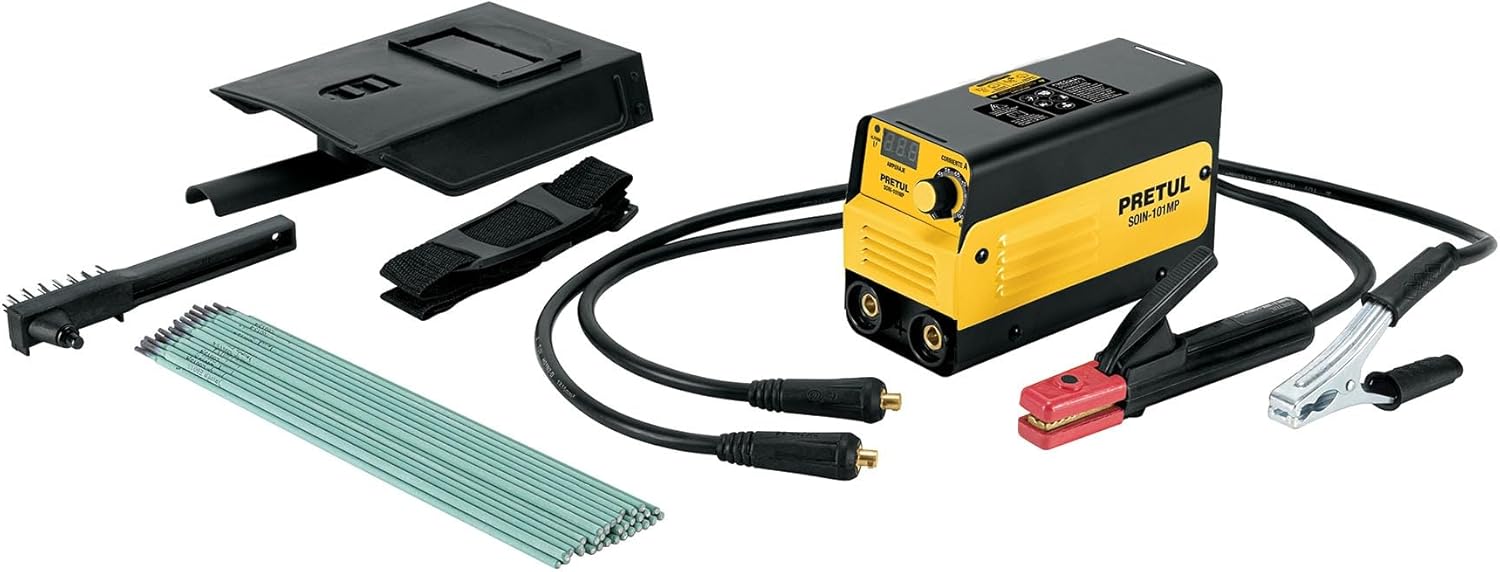

Image: The Pretul SOIN-101MP Mini Inverter Welder shown with all its included accessories: the welding machine, electrode holder cable, ground clamp cable, shoulder strap, protective welding mask, wire brush, power cable with plug, and a pack of welding electrodes.

• 1 x Pretul SOIN-101MP Mini Inverter Welder
• 1 x Electrode Holder Cable (2 m, #7 AWG / 10 mm²)
• 1 x Ground Clamp Cable (2 m, #7 AWG / 10 mm²)
• 1 x skulderrem
• 1 x Protective Welding Mask
• 1 x Wire Brush
• 1 x Power Cable with Plug
• 1 x 1 kg pack of 1/8" E6013-4 Electrodes

Image: A visual list of included accessories, detailing the ground clamp cable, electrode holder cable, strap, protective mask, wire brush, power cable, and electrodes.

4. Produktet er slutview

Familiarize yourself with the main components of your Pretul SOIN-101MP welder:

Billede: En detaljeret view of the welder, highlighting key components such as the electronic current adjustment control, power cable input, on/off switch, and quick-change terminals.

• Electronic Control for Current Adjustment: Digital display and knob for precise ampaldersindstilling.
• Strømkabelindgang: Connection point for the main power supply.
• Tænd/sluk-knap: Hovedstrømstyring til enheden.
• Quick-Change Terminals (Bornes): 3/8" terminals for connecting the electrode holder and ground clamp kabler.
• Køleventilator: Located internally to prevent overheating.

5. Opsætning

1. Placering: Place the welder on a stable, level surface in a well-ventilated area, away from flammable materials. Ensure there is sufficient space around the unit for air circulation.
2. Tilslut jordforbindelseamp: Tilslut jorden clamp cable to the appropriate quick-change terminal on the welder. Securely attach the ground clamp til emnet eller en ren, bar metaldel af svejsebordet, og sørg for god elektrisk kontakt.
3. Tilslut elektrodeholder: Connect the electrode holder cable to the other quick-change terminal on the welder. Insert the desired electrode into the electrode holder.
4. Strømtilslutning: Ensure the welder's ON/OFF switch is in the "OFF" position. Plug the power cable into a grounded 127 V, 1-phase power outlet.
5. Personligt beskyttelsesudstyr (PPE): Before turning on the welder, put on all necessary PPE, including your welding helmet, gloves, and protective clothing.

6. Betjeningsvejledning

1. Tænd: Flip the ON/OFF switch to the "ON" position. The digital display will illuminate.
2. Juster strøm: Use the current adjustment knob to set the desired amperage. The digital display will show the selected current. Refer to the electrode manufacturer's recommendations for appropriate current settings.
3. Valg af elektrode: This welder is designed for shielded metal arc welding (SMAW) and is compatible with the following electrode types:
   • 6013 (Up to 1/8")
   • 6011 (Up to 1/8")
   • 7018 (Up to 3/32")


   Image: A chart illustrating compatible electrode types (6013, 6011, 7018) and their recommended sizes for 1-phase operation with the SMAW process. It also indicates N/A for TIG tungsten.

4. Start svejsning: With the electrode in the holder and the ground clamp attached, strike an arc on the workpiece. Maintain a consistent arc length and travel speed for optimal weld quality.
5. Efter svejsning: After completing the weld, turn off the welder. Allow the machine to cool down before storing. Clean the workpiece and remove any slag.

7. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din svejsemaskines levetid og optimale ydeevne.

• Rensning: Periodically clean the exterior of the welder with a dry, soft cloth. Use compressed air to blow out dust and debris from the ventilation openings. Ensure the machine is unplugged before cleaning.
• Kabelinspektion: Regularly inspect all cables (power, electrode, ground) for cuts, fraying, or damaged insulation. Replace any damaged cables immediately.
• Terminaltjek: Ensure the quick-change terminals are clean and free of corrosion. Tighten connections as needed.
• Opbevaring: Opbevar svejsemaskinen et tørt og rent miljø, væk fra direkte sollys og ekstreme temperaturer.

8. Fejlfinding

9. Specifikationer

Image: The Pretul SOIN-101MP welder with dimensions indicated: 18 cm height, 25 cm depth, and 10 cm base width.

Tekniske egenskaber:

Image: A list of technical features including IGBT Inverter, Thermal Protect, Arc Force, Anti Stick, Hot Start, and Lift TIG, with brief descriptions.

• IGBT-inverterteknologi: Allows operation at any current level, providing stable and efficient welding.
• Thermal Protect: Thermal protection against overload, automatically shutting down the unit to prevent damage.
• Arc Force: Adjusts the optimal arc value and allows welding in different positions.
• Anti-klæbende: Prevents overheating and sticking of the electrode to the workpiece.
• Hot Start: Facilitates arc ignition, making it easier to start welding.
• Løft TIG: Facilitates arc ignition with the TIG process (Note: This model is primarily for SMAW, TIG functionality may require additional accessories not included).

10. Garanti og support

For warranty information and technical support, please refer to the documentation included with your product or contact Pretul customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

For further assistance, you may visit the official Pretul brand store on Amazon: Pretul Store
