Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your Doraimy Lighting 1 Light Hanging Indoor Kitchen Island Pendant Light. Please read thoroughly before beginning installation or use.
Sikkerhedsoplysninger
- Always turn off the main power supply at the circuit breaker before beginning any electrical installation.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Sørg for, at alle elektriske forbindelser er sikre og overholder lokale el-forskrifter.
- Overskrid ikke det maksimale wattage specified for the light bulb (60W).
- Håndter glaskomponenter forsigtigt for at forhindre brud.
- Denne lampe er kun beregnet til indendørs brug.
Hvad er der i æsken
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Shade (Glass)
- Mounting Hardware (including wire nuts)
- Canopy/Ceiling Plate
- Lamp Holder with Adjustable Cord
Billede: Alle komponenter er inkluderet i produktpakken.
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Doraimy belysning |
| Modelnummer | 3555-3799 |
| Dimensioner | 6.25"L x 6.25"W x 50"H (Adjustable) |
| Glass Shade Size | 6.22 cm L x 5.32 cm B |
| Baldakin størrelse | 4.75 cm L x 0.79 cm B |
| Materiale | Glas, Metal |
| Farve | Smokey Glass, Black Finish |
| Pære base | E26 (pære medfølger ikke) |
| Max Wattage | 60 Watts (LED 10W, Fluorescent 60W, Incandescent 60W) |
| Voltage | 110 volt (AC) |
| Installationstype | Hardwired, Semi Flush Mount |
| Kompatibilitet | Flat, Sloped, Slanted, and Vaulted Ceilings |
| Certificering | UL certificeret |

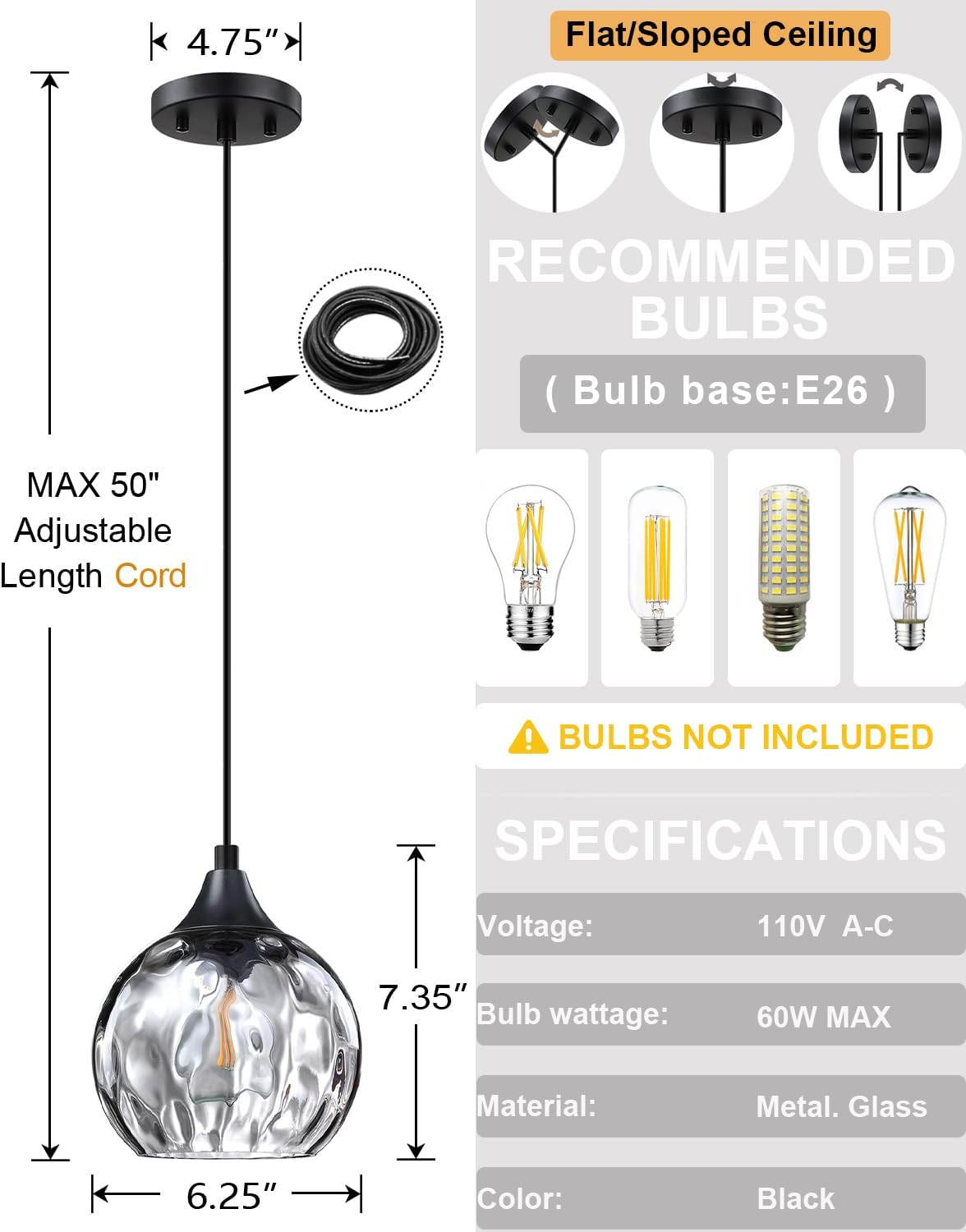

Image: Detailed dimensions and electrical specifications of the pendant light.
Opsætning og installation
Follow these steps for proper installation. It is recommended to have a second person assist during installation.
- Forbered til installation: Turn off power at the circuit breaker. Ensure the mounting surface is secure and can support the fixture's weight.
- Fastgør monteringsbeslag: Secure the mounting bracket to the junction box in the ceiling using the provided screws.
- Juster ledningslængde: The pendant light comes with a 50-inch adjustable cord. Determine the desired hanging length and adjust the cord by pushing it through the canopy. Secure the cord with the provided strain relief.
Image: Illustration of the adjustable cord feature, allowing customization of hanging length.
- Ledningsforbindelser: Connect the fixture's wires to the house wires using the provided wire nuts. Connect the black wire from the fixture to the black (live) wire from the ceiling, the white wire from the fixture to the white (neutral) wire from the ceiling, and the green (ground) wire from the fixture to the bare copper (ground) wire from the ceiling. Ensure all connections are tight and secure.
Billede: Nærbillede view of wire nuts used for secure electrical connections.
- Monter baldakinen: Carefully push the wired canopy up to the ceiling, aligning the holes with the mounting bracket. Secure the canopy with the decorative nuts or screws.
- Installer pæren: Screw an E26 base bulb (not included, max 60W) into the lamp holder.
- Fastgør glasskærmen: Carefully screw the glass shade onto the lamp holder until secure.
Video: An official installation guide demonstrating the assembly and mounting process for the pendant light.
Betjeningsvejledning
Once installed, restore power at the circuit breaker. The light fixture operates via a standard wall switch (not included). This fixture is fully dimmable when used with a compatible dimmer switch and dimmable E26 bulbs (both sold separately).
Image: Visual representation of the light fixture in an on and off state within a kitchen environment.
Opretholdelse
- Rensning: To clean the fixture, turn off the power and allow it to cool. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish or glass.
- Udskiftning af pære: Ensure power is off before replacing the bulb. Allow the old bulb to cool completely before removing. Screw in the new E26 bulb firmly.
- Inspektion: Kontrollér regelmæssigt alle forbindelser og monteringsudstyr for at sikre, at de forbliver fastgjorte.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet. Løse ledningsforbindelser. Defekt pære. | Tjek afbryderen. Sørg for, at alle ledningsforbindelser er sikre. Udskift pære. |
| Lyse flimrer. | Løs pære. Inkompatibel lysdæmper/pære. | Spænd pæren. Ensure dimmer and bulb are compatible and rated for dimming. |
| Glasskærmen er løs. | Shade not screwed on tightly. | Carefully tighten the glass shade onto the lamp holder. |
Garanti og support
This product comes with a limited warranty. For any questions, concerns, or assistance, please contact us through the Amazon message box. We are committed to providing a friendly purchase experience and will respond as soon as possible.
Manufacturer: leading lighting
