BENNING MM 2-3 True-RMS digitalt multimeter brugermanual

1. Introduktion

Thank you for choosing the BENNING MM 2-3 True-RMS Digital Multimeter. This device is designed for precise and reliable electrical measurements in various applications. This manual provides essential information for the safe and effective use of your multimeter, including setup, operation, maintenance, and troubleshooting.

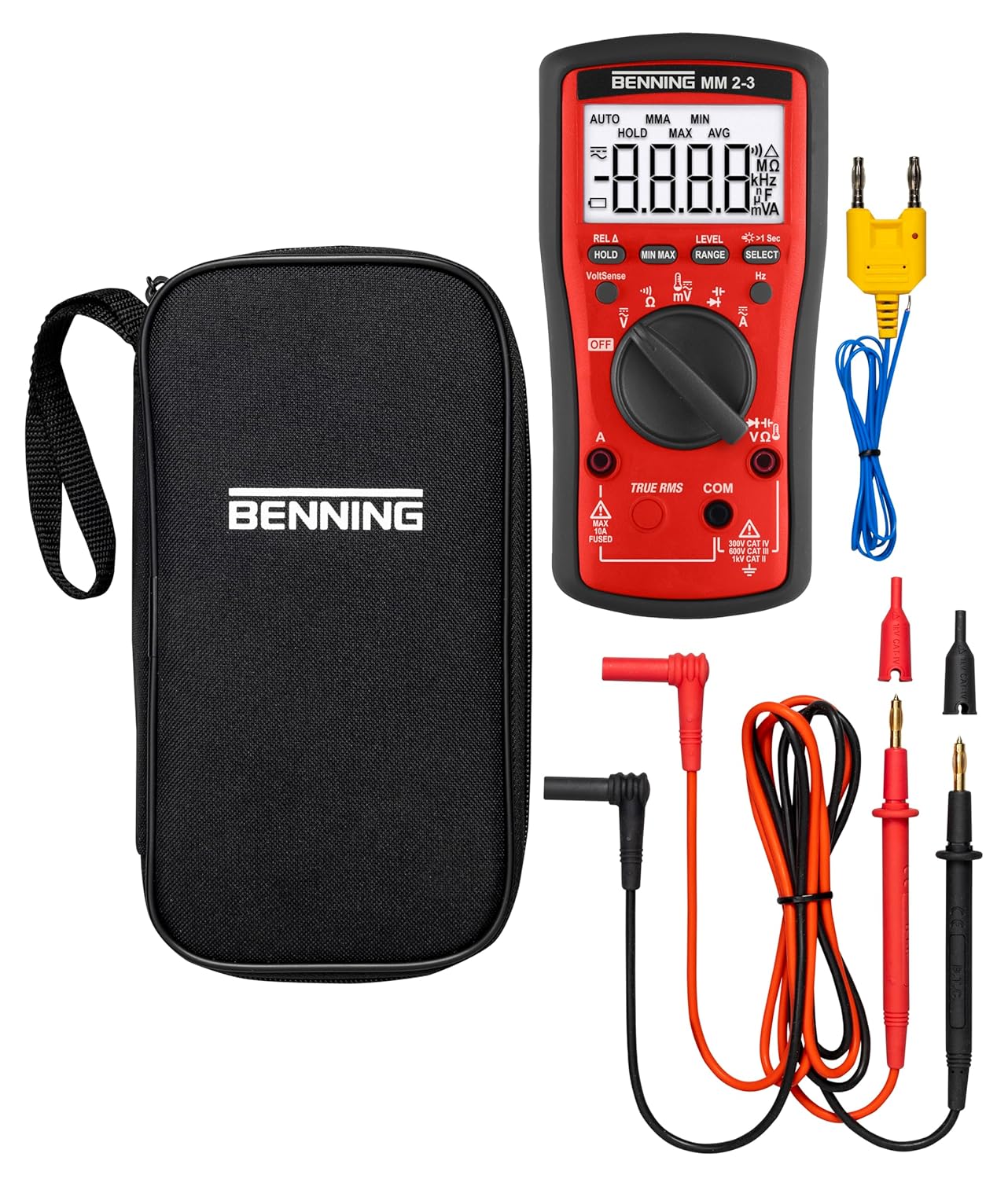

1.1 Hvad er der i æsken

• Benning MM 2-3 Digital Multimeter
• Testledninger
• Beskyttende taske
• Trådtemperatursensor
• 2 AAA-batterier (forinstalleret eller medfølger separat)

2. Sikkerhedsoplysninger

Always observe the following safety precautions to prevent personal injury and damage to the multimeter or equipment under test.

• Do not use the multimeter if it appears damaged or if the insulation on the test leads is compromised.
• Påfør ikke mere end den nominelle voltage, som markeret på multimeteret, mellem terminalerne eller mellem en hvilken som helst terminal og jord.
• Vær forsigtig, når du arbejder med voltagover 30V AC RMS, 42V peak eller 60V DC. Disse voluminertages udgør en stødfare.
• Afbryd altid strømmen til kredsløbet og aflade alle højspændingsledninger.tage capacitors before performing resistance, continuity, diode, or capacitance tests.
• Sørg for, at funktionskontakten er i den korrekte position for den ønskede måling, før du tilslutter testledningerne til kredsløbet.
• Do not operate the multimeter in explosive gas, vapor, or dust environments.
• Brug altid de korrekte terminaler, funktioner og måleområde til dine målinger.
• Udskift batteriet, så snart indikatoren for lavt batteri vises, for at sikre nøjagtige aflæsninger.

3. Produktet er slutview

The BENNING MM 2-3 is a robust True-RMS digital multimeter designed for professional use. It features a backlit digital display and offers precise measurements for various electrical parameters.

3.1 Nøglefunktioner

• TRUE RMS Voltage Measurement (up to 1000V)
• TRUE RMS Current Measurement (up to 10A, fused via 1kV HBC fuse)
• Resistance Measurement (up to 60 MΩ)
• Frequency Measurement (up to 50 kHz)
• Capacitance Measurement (up to 10 mF)
• Backlit Digital Display with 6,000 Digit Resolution
• MIN/MAX/Mean and Relative Value Measurement (REL)
• Socket Control (optical/acoustic) in A-input with Warning for fuse protection
• Display HOLD for storing the current measured value

3.2 Komponenter

4. Opsætning

4.1 Batteriinstallation

The BENNING MM 2-3 requires 2 AAA batteries. These are included with your purchase and may be pre-installed. If not, or if replacement is needed:

1. Sørg for, at multimeteret er slukket.
2. Find batteridækslet på bagsiden af ​​enheden.
3. Skru fastholdelsesskruen(e) af, og fjern dækslet.
4. Insert the 2 AAA batteries, observing the correct polarity (+/-) as indicated inside the compartment.
5. Sæt dækslet til batterirummet på igen, og fastgør det med skruen/skruerne.

4.2 Tilslutning af testledninger

Korrekt tilslutning af testledninger er afgørende for nøjagtige og sikre målinger.

1. Insert the black test lead to the "COM" (common) input jack.
2. For bdtage, resistance, frequency, capacitance, and diode measurements, insert the red test lead to the "VΩHz" input jack.
3. For current measurements (up to 10A), insert the red test lead to the "A" input jack.
4. Ensure all connections are firm and secure before taking any measurements.

5. Betjeningsvejledning

This section details how to use your BENNING MM 2-3 for various electrical measurements.

5.1 Tænd/sluk

• To turn the multimeter ON, rotate the central function dial from the "OFF" position to any desired measurement function.
• To turn the multimeter OFF, rotate the central function dial back to the "OFF" position.
• The multimeter features an auto-power-off function to conserve battery life. It will automatically shut down after a period of inactivity.

5.2 Funktionsvalg

Rotate the central dial to select the desired measurement function. Some positions may have multiple functions (e.g., AC/DC Voltage, Resistance/Continuity/Diode). Use the "SELECT" button to cycle through these functions.

5.2.1 Måling Voltage (AC/DC)

1. Set the function dial to the V~ (AC Voltage) eller V- (DC-volumentage) position. If both are on one position, use the "SELECT" button to choose AC or DC.
2. Connect the black test lead to the "COM" jack and the red test lead to the "VΩHz" jack.
3. Connect the test probes in parallel across the circuit or component you wish to measure.
4. Læs bindtage -værdi på displayet.

5.2.2 Measuring Current (AC/DC)

FORSIGTIGHED: Always connect the multimeter in series with the circuit when measuring current. Never connect it in parallel across a voltage source, as this will blow the fuse.

1. Set the function dial to the A~ (AC Current) or A- (DC Current) position. Use "SELECT" if needed.
2. Connect the black test lead to the "COM" jack and the red test lead to the "A" jack.
3. Open the circuit where you want to measure current and connect the multimeter in series.
4. Aflæs den aktuelle værdi på displayet.

5.2.3 Måling af modstand

FORSIGTIGHED: Sørg for, at kredsløbet er spændingsløst, og at alle kondensatorer er afladede, før modstanden måles.

1. Set the function dial to the Ω (Resistance) position.
2. Connect the black test lead to the "COM" jack and the red test lead to the "VΩHz" jack.
3. Connect the test probes across the component whose resistance you want to measure.
4. Læs modstandsværdien på displayet.

5.2.4 Måling af temperatur

The BENNING MM 2-3 includes a wire temperature sensor for temperature measurements.

1. Set the function dial to the temperature symbol (usually °C/°F).
2. Connect the wire temperature sensor to the appropriate input jacks (refer to the multimeter's markings, typically VΩHz and COM, or dedicated temperature inputs if present).
3. Place the sensor tip on or near the object whose temperature you wish to measure.
4. Read the temperature value on the display. Use the "SELECT" button to switch between Celsius and Fahrenheit if available.

5.2.5 Andre funktioner

• MIN/MAX/AVG: Press the "MIN MAX" button to record the minimum, maximum, and average readings over a period. Press again to cycle through values.
• REL (Relative Value): Press the "REL Δ" button to set the current reading as a reference value. Subsequent readings will be displayed as a difference from this reference.
• HOLDE: Tryk på "HOLD"-knappen for at fryse den aktuelle aflæsning på displayet. Tryk igen for at slippe.
• VoltSense: This non-contact voltage detection feature allows for quick checks of live AC voltage without direct contact. Refer to the specific instructions in the multimeter's full manual for detailed use.

6. Vedligeholdelse

Proper maintenance ensures the longevity and accuracy of your BENNING MM 2-3 multimeter.

6.1 Rengøring

Tør sagen af ​​med annonceamp en klud og et mildt rengøringsmiddel. Brug ikke slibemidler eller opløsningsmidler. Sørg for, at multimeteret er helt tørt før brug.

6.2 Udskiftning af batteri

Når indikatoren for lavt batteri vises på displayet, skal batterierne straks udskiftes for at opretholde målenøjagtigheden. Se afsnit 4.1 for instruktioner om batteriinstallation.

6.3 Udskiftning af sikringer

The current input (A) is protected by a 1kV HBC fuse. If the multimeter fails to measure current, the fuse may need replacement. Fuse replacement should only be performed by qualified personnel. Use only fuses of the specified type and rating (e.g., 10A, 1kV HBC).

7. Fejlfinding

If you encounter issues with your multimeter, refer to the table below for common problems and their solutions.

8. Specifikationer

Detailed technical specifications for the BENNING MM 2-3 Digital Multimeter.

9. Garanti og support

BENNING products are manufactured to high quality standards and are backed by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official BENNING webhjemmeside for detaljerede garantivilkår.

For technical support, service, or inquiries regarding your BENNING MM 2-3 Digital Multimeter, please contact BENNING customer service through their official webwebstedet eller kontaktoplysningerne på din produktemballage. Når du kontakter support, bedes du have dit modelnummer (044693) og købsoplysninger klar.
