iClever MD179 Multi-Device Wireless Mouse User Manual

1. Introduktion

This manual provides comprehensive instructions for the iClever MD179 Multi-Device Wireless Mouse. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and a seamless user experience. Please read this manual thoroughly before using the product.

2. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• iClever MD179 Wireless Mouse
• USB 2.4GHz Receiver (stored inside the mouse)
• USB-C ladekabel
• Brugervejledning (dette dokument)

3. Produktet er slutview

Familiarize yourself with the mouse's components and controls:

Figur 1: iClever MD179 Mouse Button Layout

1. Højreklik-knap: Standard højreklikfunktion.
2. Venstreklikknap: Standard venstreklikfunktion.
3. Scroll Wheel / Middle Click Button: For scrolling and middle-click actions.
4. Frem-knap: Navigerer fremad i web browsere eller file explorers (Windows only).
5. Tilbage knap: Navigerer baglæns i web browsere eller file explorers (Windows only).
6. DPI-knap: Justerer markørfølsomheden (DPI).
7. Tænd / sluk-kontakt: Placeret på undersiden af ​​musen for at tænde eller slukke den.
8. 2.4GHz / Bluetooth 1 / Bluetooth 2 Channel Indicator: Displays the active connection mode.

4. Opsætning

4.1 Opladning af musen

Before initial use, fully charge the mouse.

• Connect the provided USB-C cable to the charging port on the front of the mouse and to a USB power source (e.g., computer USB port, USB wall adapter).
• Opladningsindikatorlampen lyser under opladning og slukker, når den er fuldt opladet.
• A full charge typically provides up to 2 months of use, depending on usage.
• The mouse can be used wirelessly while it is charging.

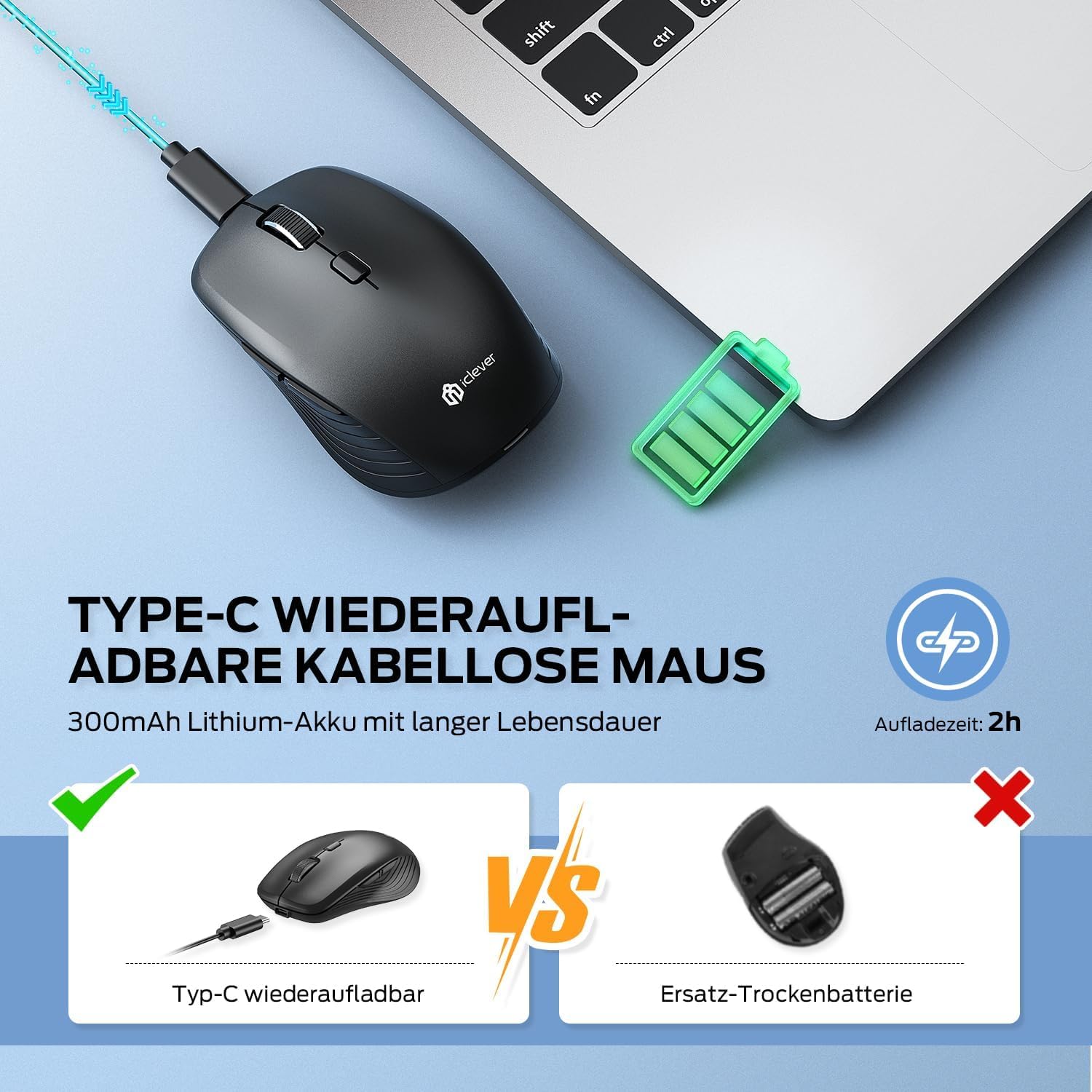

Figur 2: USB-C Rechargeable Feature

4.2 Tilslutning via 2.4 GHz trådløst netværk

For a stable and quick connection:

• Locate the USB 2.4GHz receiver. It is stored in a compartment under the magnetic top cover of the mouse. Gently lift the top cover to access it.
• Sæt USB-modtageren i en ledig USB-port på din computer.
• Tænd musen ved hjælp af tænd/sluk-knappen i bunden.
• Switch the connection mode to 2.4GHz (refer to the channel indicator on the bottom).
• Musen burde oprette forbindelse automatisk.

Figur 3: Tilslutningsmuligheder

4.3 Connecting via Bluetooth (BT1 / BT2)

The mouse supports two Bluetooth connections:

• Tænd musen ved hjælp af tænd/sluk-knappen i bunden.
• Switch the connection mode to either Bluetooth 1 (BT1) or Bluetooth 2 (BT2) using the channel switch button on the bottom. The indicator light will confirm the selected channel.
• Press and hold the channel switch button for 3-5 seconds until the indicator light flashes rapidly. This indicates the mouse is in pairing mode.
• On your device (PC, Mac, laptop, tablet), go to Bluetooth settings.
• Søg efter "iClever MD179" or a similar name in the list of available devices and select it to pair.
• Repeat these steps for a second Bluetooth device using the other Bluetooth channel (BT2).

Figur 4: Tilslutning til flere enheder

4.4 Skift mellem enheder

Sådan skifter du mellem tilsluttede enheder:

• Use the channel switch button on the bottom of the mouse to cycle between the 2.4GHz, Bluetooth 1, and Bluetooth 2 connections.
• The indicator light will confirm the currently active channel.

5. Betjeningsvejledning

Figur 5: Mouse in Use with Multiple Devices

5.1 DPI-justering

Adjust the cursor sensitivity to match your preference or task:

• Press the DPI switch button (button 6 in Product Overview) to cycle through the available DPI settings: 800, 1200, 1600, and 2400 DPI.
• The indicator light may flash briefly to confirm the DPI change.
• Higher DPI settings result in faster cursor movement across the screen.

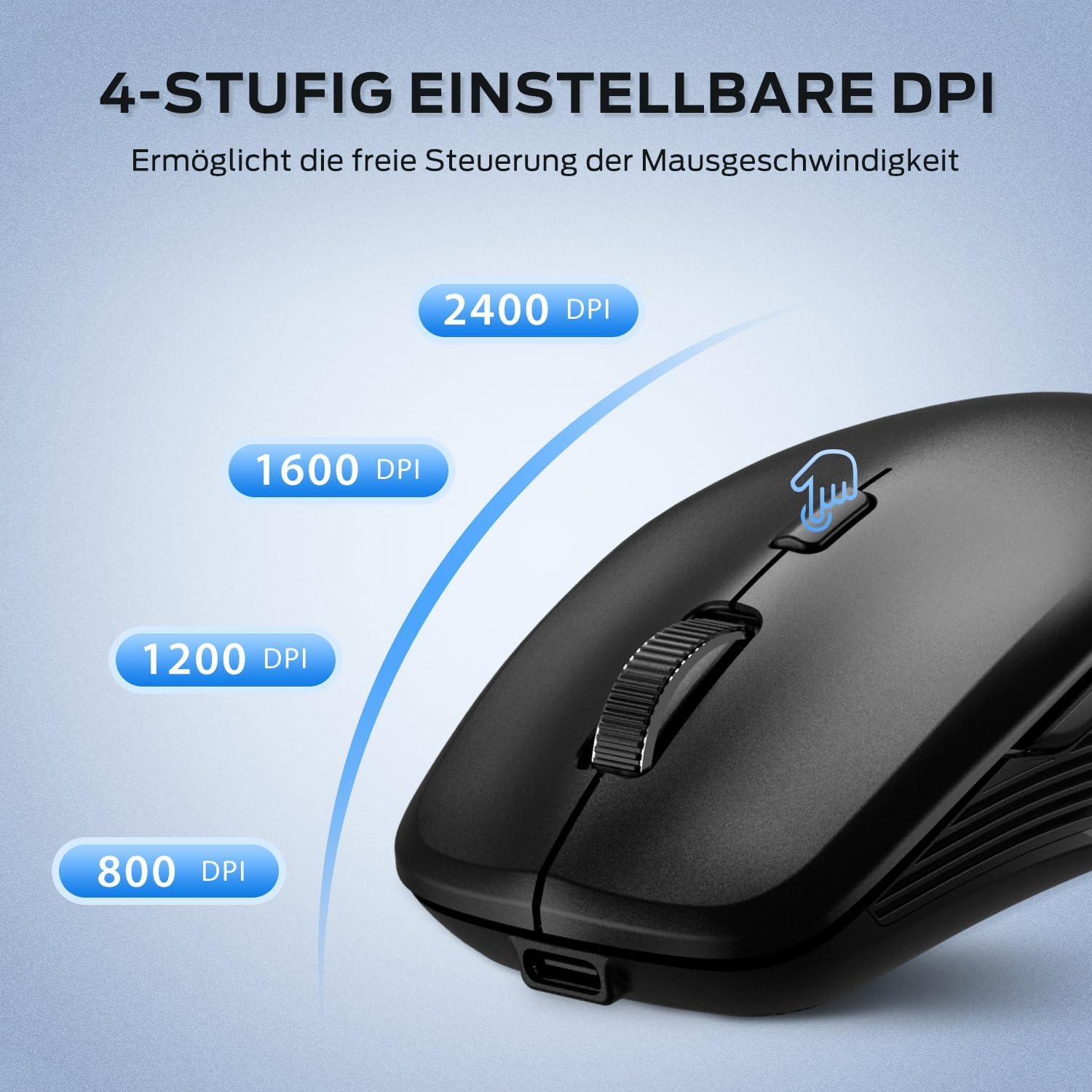

Figur 6: Justerbare DPI-indstillinger

5.2 Lydløs klikfunktion

The iClever MD179 mouse is designed with silent left and right click buttons to minimize noise, making it ideal for quiet environments such as libraries, offices, or late-night use at home.

Figur 7: Silent Click Benefits

5.3 Side Buttons (Forward/Back)

The forward and back buttons (buttons 4 and 5 in Product Overview) provide convenient navigation in web browsere og file explorers. Please note that these buttons are primarily functional on Windows operating systems. Their functionality may vary or require specific software configuration on macOS or other operating systems.

5.4 Strømstyring

The mouse incorporates features to optimize battery life:

• Automatisk dvaletilstand: The mouse will enter an automatic sleep mode after a period of inactivity to conserve power. Move the mouse or click any button to wake it up.
• TÆND/SLUK -kontakt: For extended periods of non-use, it is recommended to turn off the mouse completely using the ON/OFF switch (button 7 in Product Overview) located on the bottom.

6. Vedligeholdelse

6.1 Rengøring

To keep your mouse in optimal condition:

• Gently wipe the mouse surface with a soft, slightly damp klæde.
• Undgå at bruge skrappe kemikalier, slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen.
• Sørg for, at der ikke kommer væske ind i musens indre komponenter.
• Periodically clean the optical sensor on the bottom of the mouse with a dry cotton swab to ensure accurate tracking.

6.2 Pleje af batterier

Proper battery care extends the lifespan of your mouse:

• Charge the mouse regularly and avoid letting the battery fully deplete frequently.
• If storing the mouse for an extended period, charge it to approximately 50% and turn it off using the power switch.
• Avoid exposing the mouse to extreme temperatures, which can affect battery performance.

Figur 8: USB-modtagerlagring

7. Fejlfinding

If you encounter issues with your iClever MD179 mouse, refer to the following common solutions:

• Musen svarer ikke:
  • Ensure the mouse is powered on using the ON/OFF switch.
  • Kontrollér batteriniveauet, og oplad musen om nødvendigt.
  • For 2.4GHz connection: Verify the USB receiver is securely plugged into a working USB port and the mouse is set to 2.4GHz mode. Try a different USB port.
  • For Bluetooth connection: Ensure Bluetooth is enabled on your device, the mouse is in the correct Bluetooth mode (BT1/BT2), and it is paired correctly. Try removing the mouse from your device's Bluetooth list and re-pairing it.
  • Genstart din computer eller enhed.
• Markørbevægelsen er uregelmæssig eller langsom:
  • Rengør den optiske sensor på undersiden af ​​musen.
  • Sørg for at bruge musen på en passende overflade (ikke-reflekterende, ikke-gennemsigtig).
  • Adjust the DPI setting to a higher value using the DPI switch button if the cursor is too slow.
• Kan ikke skifte mellem enheder:
  • Ensure the channel switch button on the bottom of the mouse is pressed firmly.
  • Verify that each device is correctly connected to its respective channel (2.4GHz, BT1, BT2).

8. Specifikationer

9. Garanti og support

iClever products are designed for reliability and performance. For detailed warranty information, technical support, or service inquiries, please visit the official iClever webwebstedet eller kontakt deres kundesupport direkte. Gem din købskvittering til garantikrav.
