1. Introduktion
Tak for købetasing the DELight 30" Dimmable LED Ceiling Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.
This modern flush-mount LED ceiling light features a unique 4-ring design, adjustable brightness from 10% to 100%, and adjustable color temperature from 3000K (warm white) to 6500K (cool white). It is controlled via an included remote control or a standard wall switch, offering versatile lighting options for various indoor spaces.

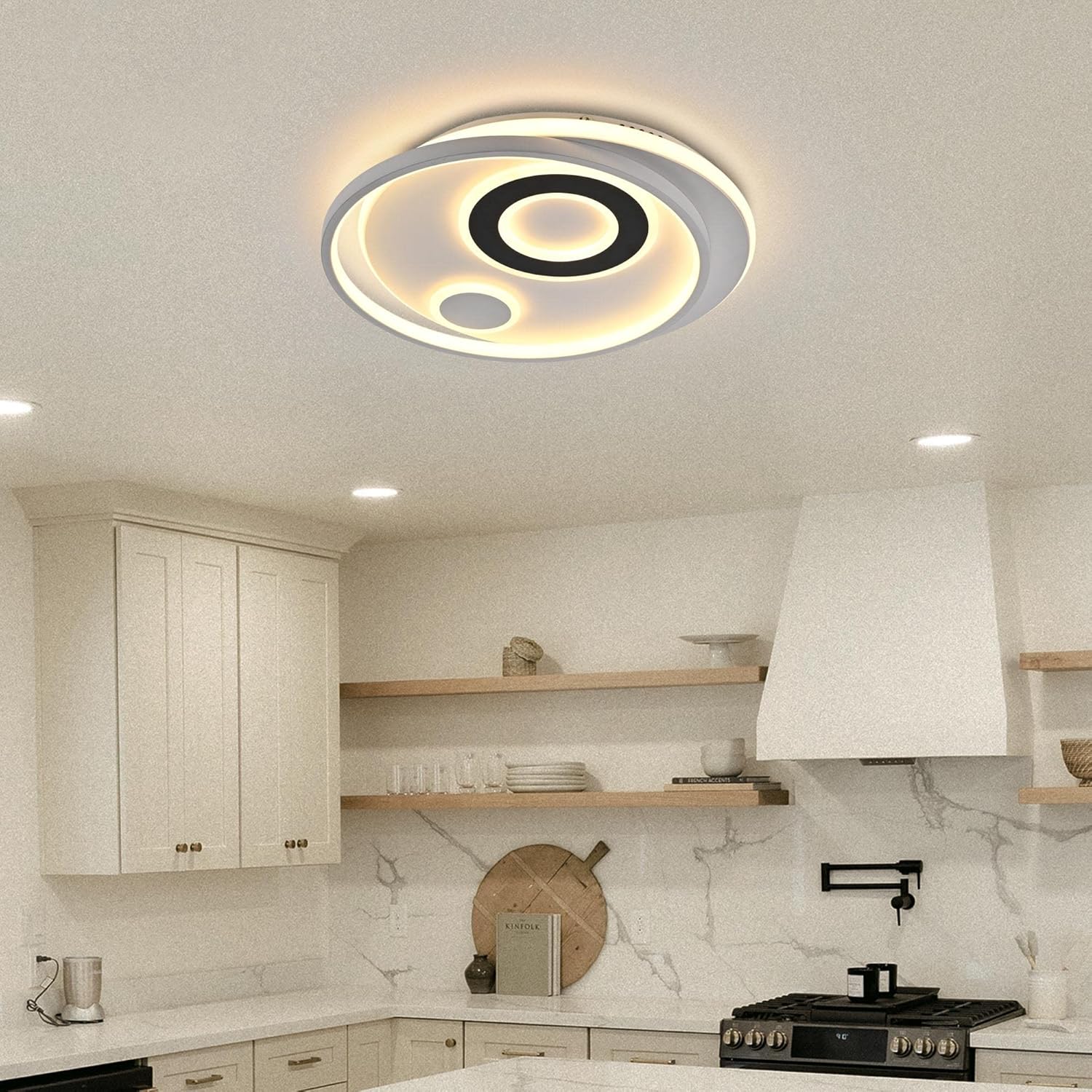

Image 1.1: DELight 30" Dimmable LED Ceiling Light with remote control.
2. Sikkerhedsoplysninger
ADVARSEL: To avoid electric shock, always turn off the power at the main circuit breaker or fuse box before beginning installation, servicing, or cleaning the fixture.
- Læs alle instruktioner omhyggeligt før installation.
- Installation must be performed by a qualified electrician or a person with adequate electrical knowledge.
- Sørg for, at forsyningen voltage is correct (AC 110-120V).
- Do not install on a wet surface or near water.
- Do not attempt to modify the fixture. Any modifications may void the warranty and pose a safety risk.
- Hold emballagemateriale utilgængeligt for børn.
3. Pakkens indhold
Carefully unpack your DELight LED Ceiling Light and ensure all components are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support for assistance.
- LED Ceiling Light Fixture (1 unit)
- Fjernbetjening (1 enhed)
- Monteringsudstyr (skruer, trådmøtrikker osv.)
- Instruktionsmanual (dette dokument)
Image 3.1: Key components including the sturdy aluminum frame, acrylic lampshade, high brightness LED beads, and remote control driver.
4. Opsætning og installation
This fixture is designed for flush-mount installation on standard electrical wiring. Professional installation is recommended.
Nødvendige værktøjer (ikke inkluderet):
- Skruetrækker (Phillips og Flathead)
- Trådstrippere
- Elektrisk tape
- Stige
- Voltage tester
Installationstrin:
- Sluk for strømmen: Locate the circuit breaker controlling the light fixture's power supply and turn it OFF. Verify power is off using a voltage tester.
- Forbered monteringsoverfladen: Ensure the ceiling junction box is securely installed and capable of supporting the fixture's weight (approximately 10 lbs).
- Fastgør monteringsbeslag: Secure the fixture's mounting bracket to the junction box using the provided screws.
- Foretag elektriske forbindelser: Connect the fixture's wires to the corresponding household wires:
- Tilslut den sorte ledning (fase) fra armaturet til den sorte ledning fra samledåsen.
- Tilslut den hvide ledning (neutral) fra armaturet til den hvide ledning fra samledåsen.
- Tilslut den grønne eller bare kobberledning (jord) fra armaturet til jordledningen fra samledåsen.
- Monter armaturet: Carefully align the fixture with the mounting bracket and secure it in place with the provided screws. Ensure no wires are pinched.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.
Billede 4.1: View of the fixture's underside, illustrating the mounting brackets and electrical connection points.
5. Betjeningsvejledning
Your DELight LED Ceiling Light can be operated using the included remote control or a standard wall switch.
Fjernbetjeningsfunktioner:
The remote control allows for comprehensive adjustment of the light's settings from up to 65 feet away.
- TIL/FRA: Turns the light fixture on or off.
- Justering af lysstyrke: Increase or decrease brightness from 10% to 100%.
- Farvetemperaturjustering: Cycle through or directly select color temperatures from 3000K (warm white) to 6500K (cool white).
- Sove mode: Activates a soft, low-brightness light setting suitable for relaxation or sleep.
- Hukommelsesfunktion: The light will remember the last brightness and color temperature setting when turned off and on via the remote.
Image 5.1: Remote control interface highlighting dimming, night light, and color temperature functions.
Image 5.2: Visual representation of the adjustable brightness and color temperature ranges.
Wall Switch Operation:
When operated with a standard wall switch, the fixture will typically cycle through preset color temperatures (e.g., 3000K, 4500K, 6500K) with each toggle of the switch. The memory function for brightness and color temperature may not apply when using a wall switch, depending on the switch type.
6. Vedligeholdelse
The DELight LED Ceiling Light is designed for long-term, low-maintenance operation. Regular cleaning will help maintain its appearance and light output.
Rensning:
- Sluk for strømmen: Sluk altid for strømmen til armaturet ved afbryderen inden rengøring.
- Støvning: Use a soft, dry cloth to gently wipe away dust from the fixture's surface.
- Rengøring af pletter: Til genstridige mærker, dampen a soft cloth with a mild, non-abrasive cleaner. Wipe gently and then dry immediately with a clean, dry cloth.
- Do not use harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish and acrylic components.
LED-levetid:
The integrated LED light source has an estimated lifespan of 50,000 hours, meaning it does not require bulb replacement under normal usage conditions.
7. Fejlfinding
If you encounter issues with your DELight LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply; loose wiring; faulty remote control. | Check circuit breaker. Verify all electrical connections are secure. Replace remote control batteries. |
| Fjernbetjening virker ikke. | Løse batterier; fjernbetjening uden for rækkevidde; interferens. | Replace batteries in the remote. Ensure you are within the 65 ft operating range. Remove any obstructions. |
| Lyset flimrer eller dæmpes uventet. | Unstable power supply; loose wiring; incompatible dimmer switch (if applicable). | Consult an electrician to check power supply. Verify wiring connections. Ensure any wall dimmer is LED-compatible. |
| Farvetemperatur eller lysstyrke kan ikke justeres. | Remote control issue; light in a fixed mode. | Ensure remote batteries are fresh. Try resetting the light by turning it off and on at the wall switch. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
8. Specifikationer
Detailed technical specifications for the DELight 30" Dimmable LED Ceiling Light (Model: 11MCL007-YWJ70W-07).
| Feature | Specifikation |
|---|---|
| Mærke | DELight |
| Modelnavn | 11MCL007-YWJ70W-07 |
| Størrelse | 30 inches (Diameter) - 70W |
| Produktdimensioner | 6.1 cm L x 75.4 cm B x 6.1 cm H (2.4" L x 29.7" B x 2.4" H) |
| Varens vægt | 10 pund (4.5 kg) |
| Materiale | Akryl, aluminium |
| Lyskildetype | LED |
| Wattage | 70W |
| Lysstrøm | 4000 lumen |
| Farvetemperatur | 3000K - 6500K (Justerbar) |
| Dæmpbar | Ja (10% - 100%) |
| Kontrolmetode | Fjernbetjening, vægkontakt |
| Installationstype | Flush Mount |
| Indendørs/Udendørs brug | Indendørs |
| Levetid | 50,000 timer |
| Montering påkrævet | Ja |
9. Garanti og support
For garantioplysninger eller teknisk support henvises til produktemballagen eller kontakt den forhandler, hvor produktet blev købt. Gem din købskvittering som købsbevis.
If you require further assistance or have questions not covered in this manual, please reach out to DELight customer service through their official channels or the platform where you purchased the product.
