1. Introduktion
The QSFPTEK S5300-48T6X is a high-performance Layer 3 aggregation Ethernet switch designed for demanding network environments. It features 48x GE RJ45 ports and 6x 10GE SFP+ uplinks, providing robust connectivity and high data throughput. This switch supports advanced features such as stacking, comprehensive Layer 3 functions, and various management options, making it suitable for next-generation IP metropolitan area networks, large-scale campus networks, and enterprise networks.
Figure 1: QSFPTEK S5300-48T6X Network Switch Overview
This image displays the QSFPTEK S5300-48T6X network switch from a front-top perspective, showcasing its compact metal housing and the arrangement of its numerous network ports.
2. Nøglefunktioner
- High Port Density: Equipped with 48x GE RJ45 Ports and 6x 10GE SFP+ uplink ports for versatile connectivity.
- Høj ydeevne: Features a forwarding rate of 162 Mpps, ensuring higher data throughput for demanding applications.
- Avanceret sikkerhed: Supports IEEE 802.1x, Radius, BDTacacs+, and other security protocols for robust network protection.
- Høj pålidelighed: Incorporates LACP, BFD, MSTP, ERPS, VRRP, and ISSU for enhanced network reliability and uptime.
- Comprehensive Management: Supports ACL, QinQ, QoS, ISSU, IPv6, VLAN, LACP, and can be managed via CLI, WEB, Telnet, SSH, SSL, and SNMP.
- Carrier-Grade Resilience: Industry-level EAPS and ERPS provide a 50ms recovery time for critical network operations.
- Redundant Power: Features 1+1 redundancy with AC 220V power supplies for continuous operation.
- Holdbart design: Constructed with a durable metal housing, double-sided cooling holes, low-power, and smart fan design for efficient heat dissipation and left-to-right airflow.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- QSFPTEK S5300-48T6X Network Switch
- Strømadapter
- Konsolekabel
- Mount Kit (for rack installation)
Figur 2: Medfølgende tilbehør
This image shows the accessories included with the switch: a power cable, a console cable, and mounting brackets with screws.
4. Fysisk overview
4.1 Frontpanel
Figur 3: Frontpanellayout
The front panel features 48 Gigabit Ethernet RJ45 ports, 6 10-Gigabit SFP+ uplink ports, and LED indicators for system status (SYS), power (PWR), and console (CON).
- GE RJ45 Ports (1-48): Standard Gigabit Ethernet ports for connecting network devices.
- 10GE SFP+ Uplink Ports (49-54): High-speed ports for fiber optic connections to core network devices or other switches.
- LED-indikatorer:
- SYS: Systemstatusindikator.
- PWR: Strømstatusindikator.
- CON: Console port status indicator.
- Konsolport: RJ45 port for local management via a console cable.
4.2 Bagpanel

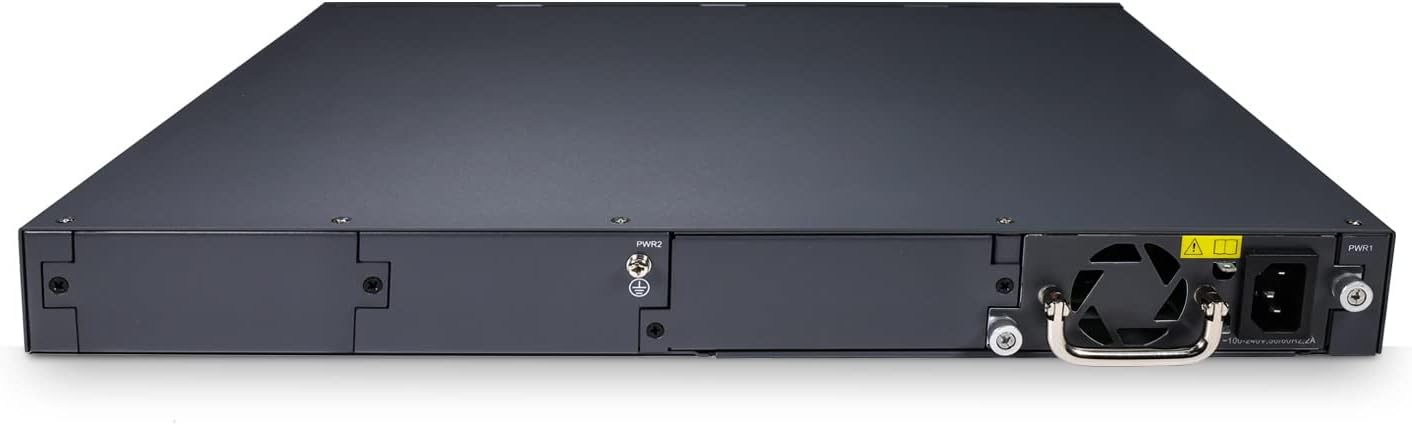

Figur 4: Layout på bagpanel
The rear panel includes two hot-swappable power supply bays (PWR1, PWR2) and cooling fan vents, designed for efficient heat dissipation and power redundancy.
- Power Supply Bays (PWR1, PWR2): Supports 1+1 redundant hot-swappable AC 220V power supplies.
- Køleventiler: Designed for efficient airflow and heat management.
5. Opsætningsvejledning
5.1 Før du begynder
- Sørg for, at installationsmiljøet er rent, tørt og godt ventileret.
- Maintain proper grounding for the switch to prevent electrical hazards.
- Verify that the power source matches the switch's voltage requirements (AC 220V).
- Keep the switch away from direct sunlight, heat sources, and strong electromagnetic interference.
5.2 Installation
The S5300-48T6X switch can be installed in a standard 19-inch equipment rack using the provided mount kit.
- Attach the mounting brackets to the sides of the switch using the screws provided in the mount kit.
- Align the switch with the rack rails and secure it using appropriate rack screws.
- Ensure there is adequate space around the switch for proper airflow and cable management.
5.3 Tilslutning af kontakten
- Strømtilslutning:
- Connect the power cable to the power supply unit(s) at the rear of the switch.
- Plug the other end of the power cable into a grounded AC 220V power outlet.
- If using redundant power supplies, connect both to separate power sources for maximum reliability.
- Netværksforbindelser:
- Connect your network devices (servers, workstations, other switches) to the GE RJ45 ports using standard Ethernet cables.
- For high-speed uplinks or fiber connections, insert compatible SFP+ transceivers into the 10GE SFP+ ports and connect fiber optic cables.
- Konsolforbindelse (valgfrit):
- To access the switch via CLI, connect the provided console cable from the switch's console port to a serial port on your computer.
- Configure your terminal emulation software (e.g., PuTTY, Tera Term) with the correct serial port settings (typically 9600 baud, 8 data bits, no parity, 1 stop bit, no flow control).
6. Betjening af kontakten
6.1 Indledende tænding
Once the power cables are connected, the switch will automatically power on. Observe the LED indicators on the front panel:
- PWR LED: Should illuminate steadily, indicating the switch is receiving power.
- SYS LED: Will blink during boot-up and then illuminate steadily once the system is operational.
- Port LED'er: Will indicate link status and activity for connected ports.
6.2 Administrationsadgang
The S5300-48T6X offers multiple management interfaces:
- Kommandolinjegrænseflade (CLI): Accessible via the console port or Telnet/SSH. Provides full control over switch configurations.
- Web- Baseret ledelse (WEB): Access the graphical user interface (GUI) via a web browser. This provides an intuitive way to configure and monitor the switch. The default IP address for management is typically 192.168.1.1 (please refer to the quick start guide or default settings for exact details).
- SNMP: For network management systems (NMS) integration, allowing centralized monitoring and management.
6.3 Grundlæggende konfiguration
After initial setup, you may need to configure basic network parameters:
- IP-adresse: Assign a static IP address to the switch for network accessibility.
- VLAN'er: Create and configure Virtual Local Area Networks to segment your network and improve security and performance.
- Linkaggregering (LACP): Kombinér flere fysiske links til et enkelt logisk link for øget båndbredde og redundans.
- Servicekvalitet (QoS): Prioritize critical network traffic to ensure optimal performance for applications like VoIP or video conferencing.
- Sikkerhedsindstillinger: Configure 802.1x, ACLs, and other security features to protect your network from unauthorized access.
Refer to the comprehensive CLI Command Reference Guide or Web Management User Guide for detailed configuration instructions.
7. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your QSFPTEK S5300-48T6X switch.
- Rensning: Periodically clean the exterior of the switch with a soft, dry cloth. Ensure ventilation openings are free from dust and debris. Do not use liquid cleaners.
- Firmwareopdateringer: Check the QSFPTEK official website regularly for firmware updates. Applying updates can improve performance, add new features, and fix bugs.
- Ventilator inspektion: Ensure the cooling fans are operating correctly and are not obstructed. Listen for unusual noises from the fans.
- Kabelstyring: Keep network and power cables neatly organized to prevent accidental disconnections and improve airflow.
- Miljøovervågning: Monitor the temperature and humidity of the operating environment to ensure it stays within recommended ranges.
8. Fejlfinding
This section provides solutions to common issues you might encounter with your switch.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Kontakten tænder ikke. | No power, faulty power cable, faulty power supply. | Check power cable connection. Verify power outlet. Test with a different power cable or power supply (if redundant). |
| Port LED is off, no link. | Incorrect cable, faulty cable, incorrect port, device off. | Ensure correct cable type (Ethernet for RJ45, fiber for SFP+). Check cable integrity. Verify connected device is powered on and functioning. Try a different port. |
| Kan ikke få adgang web ledelsesgrænseflade. | Incorrect IP address, network configuration issue, firewall. | Verify the switch's IP address. Ensure your computer is on the same subnet. Check firewall settings on your computer. Try accessing via console/CLI. |
| Langsom netværksydelse. | Network congestion, duplex mismatch, faulty cable, high CPU usage. | Check network traffic. Verify duplex settings on switch and connected devices. Inspect cables. Monitor switch CPU/memory usage. Consider QoS configuration. |
If the problem persists after attempting these solutions, please contact QSFPTEK technical support for further assistance.
9. Tekniske specifikationer
| Attribut | Specifikation |
|---|---|
| Modelnummer | 48T6X |
| Mærke | QSFPTEK |
| Antal havne | 48x GE RJ45, 6x 10GE SFP+ Uplink |
| Dataoverførselshastighed | 184 Gigabit pr. sekund (switchingkapacitet) |
| Videresendelsesrate | 162 Mpps |
| Interface Type | RJ45, SFP+ |
| Voltage | 220 Volt AC |
| Etui materiale | Metal |
| Produktdimensioner | 17.32 x 13.78 x 1.73 tommer |
| Varens vægt | 11.66 pund |
| Inkluderede komponenter | Adapter, Console Cable, Mount Kit |
| UPC | 772123356967 |
10. Garanti og support
QSFPTEK products are designed for reliability and performance. For information regarding the product warranty, please refer to the warranty policy available on the official QSFPTEK webwebstedet eller kontakt din lokale forhandler.
For technical support, troubleshooting assistance, or further inquiries, please visit the official QSFPTEK support page or contact their customer service team. When contacting support, please have your product model number (S5300-48T6X) and serial number ready.
