Triax TQT 400 Gold Universal Quattro LNB (Model 304873) Brugsanvisning

1. Introduktion

This manual provides essential information for the proper installation, operation, and maintenance of your Triax TQT 400 Gold Universal Quattro LNB (Low Noise Block). Please read these instructions carefully before proceeding with installation to ensure optimal performance and longevity of the product.

2. Produktet er slutview

The Triax TQT 400 Gold is a high-performance Universal Quattro LNB designed for receiving satellite signals. It is specifically engineered for use in multi-switch satellite systems, allowing distribution of signals from a single satellite to multiple receivers. This LNB is compatible with standard 40 mm diameter feed support parabolic antennas.

Key features include high gain, excellent decoupling, and optimized phase noise for superior signal quality. The gold-plated F-connectors ensure reliable contact and enhanced durability. The LNB is built to be weather-resistant, providing consistent performance in various environmental conditions.

Triax TQT 400 Gold Universal Quattro LNB, front view — Figur 1: Forside view of the Triax TQT 400 Gold Universal Quattro LNB, showing its compact design and the four output ports.

3. Funktioner

Universal Quattro LNB: Designed for multi-switch systems, capable of receiving signals from various satellites (e.g., Astra, Eutelsat, Türksat).
Høj ydeevne: Offers high gain, high decoupling, and optimized phase noise for excellent signal reception.
Gold-Plated F-Connectors: Ensures superior electrical contact and corrosion resistance for long-term reliability.
Vejrbestandigt design: Built to withstand outdoor elements, ensuring durability and consistent operation.
4K & UHD Ready: Compatible with modern high-definition satellite broadcasts.
LTE/4G/5G Protected: Designed with protection against interference from cellular networks.
Standard 40mm Feed Support: Compatible with most parabolic satellite dishes.

4. Specifikationer

Parameter	Værdi
Fabrikant	Triax
Model Type	TQT 400 Gold Universal Quattro LNB
Artikelnummer	304873
Antal udgange	4 (for multi-switch)
Feed Diameter	40 mm
Input Frequency (GHz)	10.7 - 12.75
Local Oscillator (GHz)	9.75/10.60
Conversion Gain (dB)	53 ~ 68
Noise Figure (typ. dB)	0.3
Nuværende forbrug (mA)	240
Farve	Grå (RAL 9002)
Protection Housing	Ja

Triax TQT 400 Gold LNB label with technical specifications — Figure 2: Product label displaying model number, noise figure, and frequency range.

Triax TQT 400 Gold LNB packaging side with detailed specifications — Figure 3: Packaging detail showing input frequency, local oscillator, conversion gain, noise figure, and current consumption.

5. Opsætning og installation

Proper installation is crucial for optimal performance of your Quattro LNB. This LNB is designed for use with a multi-switch system.

5.1 Sikkerhedsforanstaltninger

Always disconnect power to all associated equipment before installation.
Exercise caution when working at heights. Use appropriate safety gear.
Ensure all connections are secure and weather-sealed to prevent moisture ingress.

5.2 Mounting the LNB

Ensure your parabolic antenna is securely mounted and correctly aligned to the desired satellite.
Insert the Triax TQT 400 Gold LNB into the 40 mm feed support clamp of your satellite dish.
Adjust the LNB's skew (rotation) as required for your geographical location to maximize signal quality. Secure the LNB firmly in the clamp once adjusted.

5.3 Connecting to a Multi-Switch

The Quattro LNB has four outputs, each carrying a specific band and polarization combination (High/Vertical, High/Horizontal, Low/Vertical, Low/Horizontal). These outputs must be connected to the corresponding inputs on a compatible multi-switch.

Triax TQT 400 Gold LNB with labeled F-connectors — Figur 4: Nærbillede view of the LNB's four gold-plated F-connectors, labeled for High/Vertical, High/Horizontal, Low/Vertical, and Low/Horizontal bands.

Identify the four output ports on the LNB. They are typically labeled (e.g., HIGH/V, HIGH/H, LOW/V, LOW/H).
Using high-quality coaxial cables with F-connectors, connect each LNB output to the corresponding input on your multi-switch. Ensure the connections are tight and secure.
It is recommended to use weather-sealing boots or self-amalgamating tape over the F-connections to protect them from moisture.
Connect the multi-switch outputs to your satellite receivers.

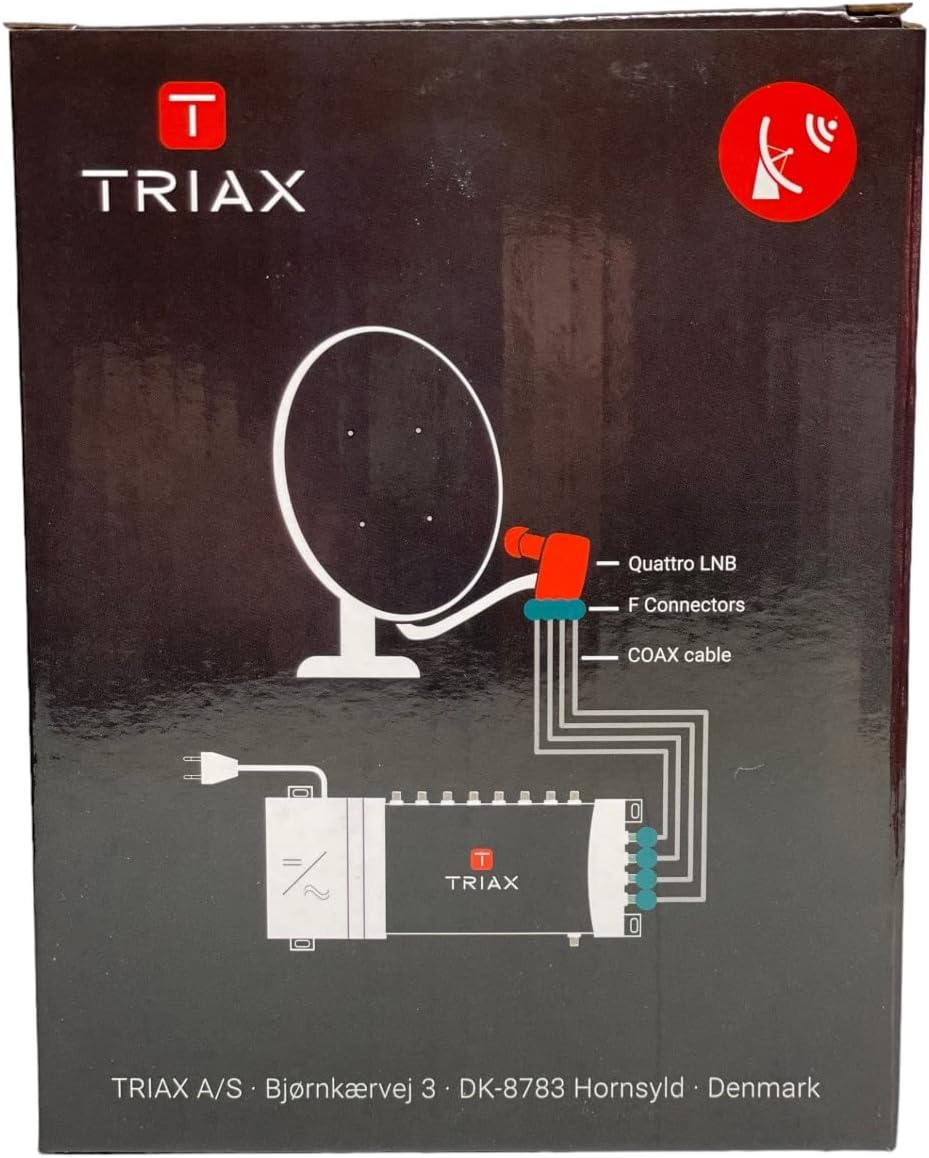

Diagram showing satellite dish, Quattro LNB, F-connectors, coaxial cables, and multi-switch connection — Figure 5: System diagram illustrating the connection of the Quattro LNB to a satellite dish and a multi-switch for signal distribution.

6. Betjening

Once installed and connected to a multi-switch and satellite receiver, the Triax TQT 400 Gold LNB operates automatically. It converts the high-frequency satellite signals received by the dish into lower-frequency signals that can be transmitted through coaxial cables to the multi-switch and then to your satellite receiver(s).

The LNB receives signals across the 10.7 - 12.75 GHz frequency range and uses local oscillators at 9.75 GHz and 10.60 GHz to down-convert these signals. Your satellite receiver will then process these signals to display television channels and other satellite services.

7. Vedligeholdelse

The Triax TQT 400 Gold LNB is designed for minimal maintenance. However, periodic checks can help ensure continued optimal performance:

Visuel inspektion: Annually inspect the LNB and its connections for any signs of physical damage, corrosion, or loose cables.
Renhed: Ensure the LNB's feedhorn (the part facing the dish) is free from dirt, debris, snow, or ice, which can obstruct signals. Use a soft, damp cloth if cleaning is necessary. Do not use abrasive cleaners.
Forbindelsesintegritet: Verify that all F-connectors are tight and that any weather-sealing is intact.

8. Fejlfinding

If you experience issues with your satellite reception, consider the following troubleshooting steps:

Intet signal / Svagt signal:
- Check all cable connections from the LNB to the multi-switch and from the multi-switch to the receiver. Ensure they are secure and not damaged.
- Verify that the satellite dish is correctly aligned to the satellite. Even slight movements can affect signal quality.
- Ensure the LNB's skew (rotation) is correctly set.
- Check for any obstructions in the line of sight between the dish and the satellite (e.g., new trees, buildings).
- Inspect the LNB for visible damage.
Intermitterende signal:
- This can often be caused by loose connections or degraded cabling. Re-tighten all F-connectors and inspect cables for wear.
- Check for water ingress at connections. Re-seal if necessary.
Picture Freezing or Pixelation:
- This indicates a weak or noisy signal. Re-check dish alignment and LNB skew.
- Ensure there are no sources of electromagnetic interference near the LNB or cables.

If problems persist after performing these checks, consult a qualified satellite technician.

9. Garanti og support

Warranty information for the Triax TQT 400 Gold Universal Quattro LNB is typically provided with the product at the time of purchase. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions.

For technical support or further assistance, please visit the official Triax website or contact their customer service department. Keep your product model number (304873) and purchase details readily available when seeking support.
