MEGA MOTION Z29

MEGA MOTION Hoverboard Z29 Brugermanual

Model: Z29 | Brand: MEGA MOTION

1. Vigtige sikkerhedsoplysninger

Before operating your MEGA MOTION Hoverboard Z29, please read all safety instructions carefully. Failure to follow these instructions may result in serious injury or damage to the product.

  • Beskyttelsesudstyr: Always wear appropriate safety gear, including a helmet, knee pads, and elbow pads, when riding the hoverboard.
  • Tjek før kørsel: Before each use, inspect the hoverboard for any signs of damage, loose parts, or unusual noises. Ensure the wheels are clear of obstructions.
  • Vægtgrænser: The hoverboard is designed to support a minimum weight of 20 kg and a maximum weight of 100 kg. Do not exceed these limits.
  • Aldersanbefaling: This hoverboard is recommended for children aged 8-12 years. Adult supervision is advised for younger riders.
  • Batterisikkerhed: The hoverboard features a built-in battery overload protection system and a low battery reminder. Do not attempt to modify or tampmed batteriet.
  • Advarsel om hastighed: Be aware of the overspeed warning. Reduce speed immediately if the warning activates.
  • Miljømæssig brug: Suitable for both outdoor and indoor use on flat, stable surfaces. Avoid riding on wet, slippery, or uneven terrain.
Child wearing helmet and pads on a hoverboard
Always wear protective gear when riding the hoverboard.

2. Produktet er slutview

The MEGA MOTION Hoverboard Z29 is a self-balancing scooter designed for enjoyable and safe personal transportation. It features durable construction, intelligent controls, and integrated entertainment options.

  • Design: Equipped with 6.5-inch aluminum alloy hubs for durability and impact resistance. Made from high-quality ABS + PC material with a unique anti-slip pedal.
  • Belysning: Features bright headlights for enhanced visibility during night riding.
  • Motorisk system: Powered by dual motors, providing a smooth and responsive ride.
  • Bluetooth-højttaler: Integrated wireless Bluetooth speaker allows you to connect your smartphone and enjoy music while riding.
MEGA MOTION Hoverboard Z29 in green with lights
The MEGA MOTION Hoverboard Z29 features a vibrant design and integrated lighting.
Diagram showing hoverboard dimensions and weight capacity
Product dimensions: 584mm length, 178mm height. Max load: 100kg.
Diagram showing the internal dual motor system of the hoverboard
The hoverboard is equipped with a powerful dual motor intelligent drive system, offering up to 15-degree climbing capacity and a max speed of 15 KM/H.
Diagram showing the hoverboard's battery and charging time
Features a large capacity battery with stable output, including an engine safety control system and built-in battery overload protection. Charging time is approximately 2-3 hours.
Hoverboard with Bluetooth logo and music notes
Enjoy high fidelity Bluetooth audio by connecting your smartphone to the integrated speaker.

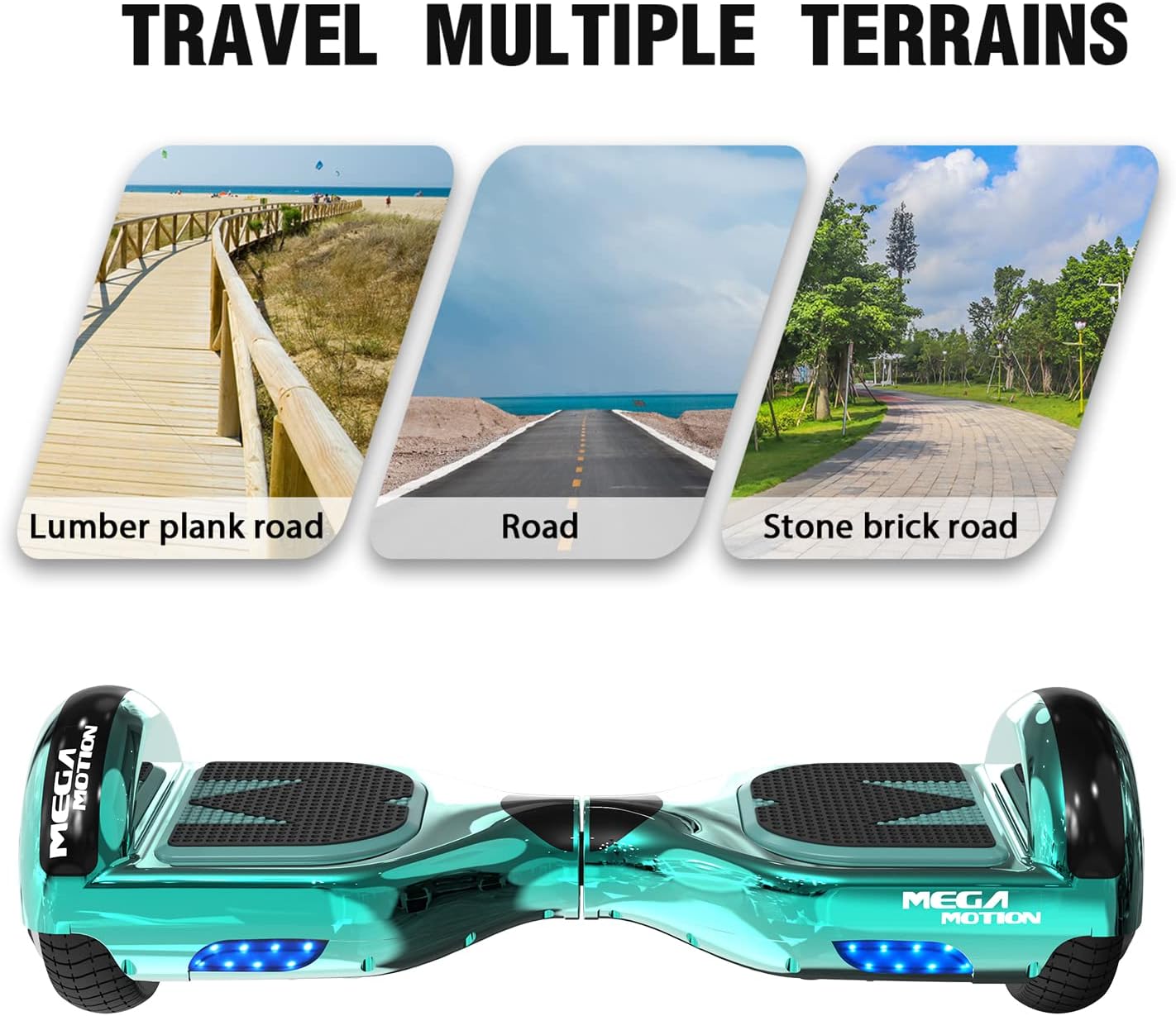

Hoverboard shown on different terrains: lumber plank road, road, stone brick road
The hoverboard is designed to travel across multiple terrains, including roads and stone brick paths.

3. Opsætning

Before your first ride, ensure the hoverboard is fully charged.

  • Indledende opladning: Connect the charger to the hoverboard's charging port and then to a power outlet. The indicator light on the charger will change when charging is complete.
  • Tænd: Press the power button to turn on the hoverboard. The indicator lights will illuminate.

4. Betjeningsvejledning

Mastering the hoverboard takes practice. Always start in a safe, open area.

  1. Montering: Place one foot lightly on a pedal, then slowly place the other foot on the other side. Ensure your body is balanced.
  2. Forward/Backward Movement: Gently lean your body forward or backward to control your movement. The intelligent induction system will respond to your weight shifts.
  3. Drejning: To turn, slightly incline your center of gravity to the left or right.
  4. Afmontering: Step off the hoverboard one foot at a time, ensuring it is stable before fully dismounting.
  5. Bluetooth-forbindelse: Activate Bluetooth on your smartphone and search for the hoverboard's Bluetooth name (usually 'MEGA MOTION' or similar). Pair to play music through the built-in speaker.
Three steps illustrating how to ride a hoverboard
Step-by-step guide to operating the hoverboard: 1. Mount one foot at a time. 2. Lean to move. 3. Incline to turn.

5. Vedligeholdelse

Proper maintenance ensures the longevity and performance of your hoverboard.

  • Rensning: Brug en blød, damp cloth to wipe down the exterior of the hoverboard. Do not use harsh chemicals or abrasive cleaners. Avoid direct water spray.
  • Opbevaring: Store the hoverboard in a cool, dry place away from direct sunlight and extreme temperatures.
  • Batteripleje: If you do not use the hoverboard for an extended period, it is recommended to charge it once a month to prevent damage to the battery life.
  • Dæktryk: Ensure tires are properly inflated (if applicable, for solid tires, check for wear and tear).

6. Fejlfinding

If you encounter issues with your hoverboard, refer to the following common problems and solutions:

ProblemMulig årsagLøsning
Hoverboard tænder ikkeLavt batteri; Tænd/sluk-knappen er ikke trykket korrekt indCharge the hoverboard; Press the power button firmly
Indikatorlamper blinkerSystem error; Overload; Low batteryRefer to the specific error code (if available); Reduce load; Charge battery
Bluetooth forbinder ikkeBluetooth not enabled on device; Hoverboard not in pairing modeEnsure Bluetooth is on; Restart hoverboard and device; Check for 'MEGA MOTION' in device list
Reduceret ydeevne/hastighedLow battery; Overweight; Riding on uneven terrainCharge battery; Ensure rider is within weight limits; Ride on flat surfaces

For persistent issues or problems not listed here, please contact MEGA MOTION customer support.

7. Specifikationer

FeatureDetalje
ModelnummerZ29
MærkeMEGA MOTION
Hjulstørrelse6.5 tommer
Maksimal vægtanbefaling100 kilo
BatteritypeLithium
RammematerialeABS, aluminiumslegering
Hjul materialeAluminium
FarveGrøn
Særlige funktionerAnti-slip, Battery
Anbefalede anvendelserUdendørs, Indendørs
Pakkedimensioner61 x 21 x 20.5 cm
Varens vægt7.76 kilo

8. Garanti og support

For any questions regarding your MEGA MOTION Hoverboard Z29, including operation, maintenance, or troubleshooting, please contact our customer support team. We are committed to providing professional assistance.

Please refer to your purchase documentation for specific warranty details and terms.
