Generelle sikkerhedsoplysninger
Læs alle sikkerhedsinstruktioner omhyggeligt, inden du bruger apparatet. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.
- Sørg for, at strømforsyningen matcher voltage requirements of the appliance (12V/24V DC, 110-240V AC).
- Brug ikke apparatet, hvis netledningen er beskadiget.
- Hold apparatet væk fra varmekilder og direkte sollys.
- Ensure proper ventilation around the appliance. Do not block the ventilation openings.
- Do not immerse the appliance in water or expose it to rain.
- Opbevares utilgængeligt for børn.
- Avoid placing corrosive materials or liquids inside the appliance.
- When using in a vehicle, ensure the appliance is securely fastened to prevent movement during transit.
Produkt overview
The Setpower FC15 is a versatile portable refrigerator and freezer designed for various applications including car, RV, truck, camping, and travel. It features a powerful compressor for fast cooling and low power consumption.
Nøglefunktioner:
- Hurtig afkøling: Achieves 32°F (0°C) from 77°F (25°C) within 15 minutes, and down to -4°F (-20°C) in about an hour.
- Bredt temperaturområde: Operates between -4°F (-20°C) and 68°F (20°C).
- Lavt strømforbrug: Average energy consumption of only 55W.
- Kompakt kapacitet: 15.8 quart (15 Liter) capacity, capable of holding up to 20 cans of 335ml cola.
- Støjsvag drift: Operates below 42dB, ensuring quiet use.
- 3-Level Voltage Batteribeskyttelse: Protects vehicle battery from being overloaded or short-circuited (H/M/L settings).
- Aftagelig 2-vejs dør: Allows convenient access and reversible lid orientation.
- Durable Handles: Built-in handles for easy portability.
- Expansion Holes: Four expansion holes for accessories like cup holders, umbrella holders, and bottle openers.
Komponenter:
The Setpower FC15 includes the main portable freezer unit, a DC power cord, and an AC adapter. Additional accessories such as a cup holder, umbrella holder, and bottle opener are also included.
Billedbeskrivelse: A black and grey Setpower FC15 portable refrigerator is shown with its included accessories: a DC power cord, an AC adapter, a cup holder, an umbrella holder, and a bottle opener.
Billedbeskrivelse: A diagram illustrating the 15.8 quart (15 liter) capacity of the Setpower FC15, showing it can hold 20 cans of 350ml cola, 8 bottles of 550ml water, or 6 bottles of 750ml red wine. Dimensions are also provided: 24.2 inches long, 13.1 inches wide, and 10.5 inches high.
Opsætning
Udpakning og placering:
Carefully remove the appliance from its packaging. Place the refrigerator on a stable, level surface, ensuring adequate ventilation around all sides. Avoid placing it in direct sunlight or near heat sources.
Strømtilslutning:
The FC15 can be powered by either DC (12V/24V) or AC (110-240V) power sources.
- DC-strøm (køretøj): Connect the provided DC power cord to the appliance's DC input port and then to your vehicle's 12V/24V outlet (cigarette lighter socket).
- AC Power (Home/Wall Outlet): Connect the provided AC adapter to the appliance's AC input port, then plug the adapter into a standard 110-240V AC wall outlet.
Billedbeskrivelse: A diagram showing three power connection options for the Setpower FC15: 1) Solar panel to battery to AC adapter or DC cord, 2) 110-240V AC wall outlet via AC adapter, and 3) 12V/24V DC vehicle outlet via DC cord.
Første gang tændt:
Once connected to a power source, the digital display on the control panel will illuminate. Press the power button to turn on the appliance.
Betjeningsvejledning
Kontrolpanel:
The control panel is located on the top of the appliance and features a digital display, power button, and temperature adjustment buttons (+ and -).
Billedbeskrivelse: Nærbillede views of the Setpower FC15's control panel with digital display, lid latch, heat dissipation hole, and an expansion hole for accessories.
Temperaturindstilling:
Brug + og - buttons to set your desired temperature. The display will show the current internal temperature. The appliance can function as either a refrigerator (32°F to 50°F / 0°C to 10°C) or a freezer (-4°F to 32°F / -20°C to 0°C).

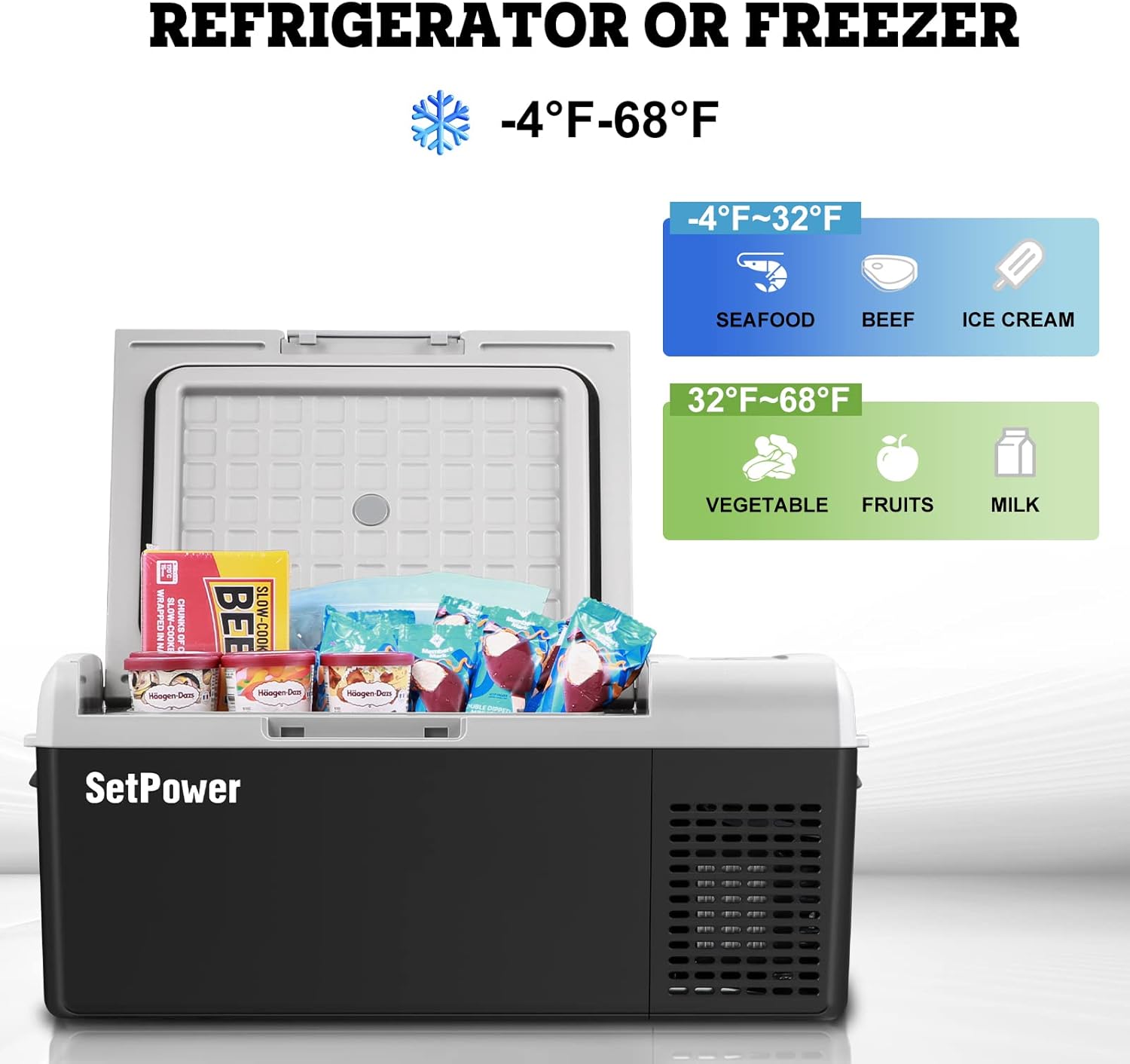

Billedbeskrivelse: An illustration showing the Setpower FC15 functioning as both a refrigerator (32°F-68°F for vegetables, fruits, milk) and a freezer (-4°F-32°F for seafood, beef, ice cream). The interior is shown with various food items.
Batteribeskyttelsestilstand:
The FC15 features three levels of battery protection (H - High, M - Medium, L - Low) to prevent excessive discharge of your vehicle's battery. To adjust this setting:
- Press and hold the power button for 3 seconds until "Pr" appears on the display.
- Press the power button again to cycle through H, M, and L settings.
- Release the button when your desired setting is displayed. The setting will be saved automatically.
Note: Forkert beskyttelsesindstilling eller lav effekt voltage may cause an E1 error. Lower the battery protection setting or recharge the battery if this occurs.
Billedbeskrivelse: A table detailing the cut-off and cut-in voltages for High, Medium, and Low battery protection modes for both 12V DC and 24V DC systems. An image of the cooler in a vehicle trunk with dogs is also shown, implying outdoor use.
Betjening af låget:
The lid is removable and can be oriented in two ways for convenient access. Simply lift the lid from its hinges to remove and reattach as needed.
Billedbeskrivelse: An illustration demonstrating how the Setpower FC15's lid can be removed and reattached to open from either side, providing more convenient access to the contents.
Støjniveau:
The FC15 operates at a low noise level, typically below 42dB, comparable to a quiet library environment. This ensures minimal disturbance during use.
Billedbeskrivelse: A graphic comparing the noise level of the Setpower FC15 (42dB) to other common sounds like leaves (20dB), normal chat (55dB), and music (70dB), emphasizing its quiet operation.
Stability and Tie-down Points:
The refrigerator maintains excellent performance even at a 40° tilt angle, making it suitable for bumpy roads or inclines. It features four expansion holes on both sides that can be used as tie-down points to firmly secure the unit in a vehicle (ropes not included).
Billedbeskrivelse: An illustration showing the Setpower FC15's ability to operate at a 40-degree tilt and images of the cooler secured in a vehicle trunk using ropes through its tie-down points.
Opretholdelse
Rensning:
Rengør jævnligt apparatet indvendigt og udvendigt med adamp cloth and mild detergent. Do not use abrasive cleaners or sharp objects.
afrimning:
If ice builds up on the interior walls, it can reduce cooling efficiency. To defrost:
- Sluk for apparatet, og afbryd det fra strømkilden.
- Fjern alt indhold.
- Allow the ice to melt naturally. You can place a towel inside to absorb water.
- Once defrosted, wipe the interior dry before restarting the appliance.
Fejlfinding
Refer to the following common issues and solutions before contacting customer support:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Apparatet tænder ikke | No power supply; Damaged power cord; Low battery voltage (vehicle) | Check power connection; Replace damaged cord; Adjust battery protection setting or recharge battery. |
| Dårlig køleydelse | Blocked ventilation; Excessive ice buildup; High ambient temperature; Overloaded with warm items | Ensure clear vents; Defrost appliance; Operate in cooler environment; Pre-chill items before loading. |
| E1 fejlkode | Lav voltage-beskyttelse udløst | Lower battery protection setting (L mode) or recharge vehicle battery. |
| Overdreven støj | Unstable surface; Blocked fan | Place on a stable surface; Clear any obstructions from the fan. |
Specifikationer
| Feature | Detalje |
|---|---|
| Model | FC15 |
| Kapacitet | 15.8 Quarts (15 liter) |
| Temperaturområde | -4°F til 68°F (-20°C til 20°C) |
| Strømforbrug | Gennemsnitlig 55W |
| Voltage | 12V/24V DC, 110-240V AC |
| Støjniveau | Under 42dB |
| Varens vægt | 22.4 pund |
| Produktdimensioner | 24 x 13 x 10.5 tommer |
Garanti og support
Setpower offers comprehensive support for the FC15 Portable Refrigerator Electric Cooler:
- Kompressor garanti: 3 års teknisk support på kompressoren.
- Garanti for andre dele: 1 year warranty for other parts.
- Kundeservice: For any product questions or assistance, please contact Setpower customer support.
Billedbeskrivelse: A graphic highlighting Setpower's 3-year warranty and 24-hour customer service, alongside images of manufacturing and certification documents.
