Pxwaxpy Bærbar Oplader HX90X8 Brugermanual

Indledning

This manual provides comprehensive instructions for the safe and efficient use of your Pxwaxpy Portable Charger, model HX90X8. Please read this manual thoroughly before operating the device and retain it for future reference.

Image: The Pxwaxpy Portable Charger HX90X8, a compact purple device, shown connected to a smartphone, illustrating its primary function.

Produkt overview

The Pxwaxpy HX90X8 is a 13800mAh ultra-compact portable power bank designed for charging various electronic devices. It features built-in charging cables, multiple output ports, and an LCD display for battery status.

Nøglefunktioner:

• Indbyggede kabler: Includes one USB-C cable and one cable compatible with iPhone devices, eliminating the need for external cables.
• Høj kapacitet: 13800mAh battery provides multiple charges for most smartphones.
• Flere udgange: Features two built-in cables, one USB-A output port, and one USB-C output/input port, allowing simultaneous charging of up to four devices.
• LCD-skærm: Digital display shows the accurate remaining battery percentage.
• PD hurtig opladning: Supports Power Delivery (PD) fast charging for compatible devices.
• Pass-through opladning: Allows the power bank to be recharged while simultaneously charging other devices.

Image: A diagram highlighting the various output options of the power bank, including the built-in USB-C and iPhone-compatible cables, a USB-A port, and a USB-C input/output port.

Image: The Pxwaxpy portable charger demonstrating its universal compatibility by charging four different devices simultaneously: an iPhone, a Samsung smartphone, an iPad, and wireless earbuds.

Opsætning

Første opladning af powerbanken:

1. Before first use, fully charge the Pxwaxpy HX90X8 power bank.
2. Connect the included USB-A to USB-C charging cable to the USB-C input/output port on the power bank.
3. Plug the other end of the USB-A cable into a compatible USB wall adapter (not included) or a computer's USB port.
4. The LCD display will show the charging progress, indicating 100% when fully charged.

A full charge typically takes several hours. It is recommended to charge the power bank completely before its initial use to optimize battery performance.

Betjeningsvejledning

Opladning af dine enheder:

Powerbanken tilbyder flere måder at oplade dine elektroniske enheder på:

• Brug af indbyggede kabler:
  1. Locate the appropriate built-in cable (USB-C for Android devices or iPhone-compatible cable for Apple devices).
  2. Gently pull out the desired cable from its storage slot.
  3. Tilslut kablet til din enheds opladningsport.
  4. The power bank will automatically begin charging your device. The LCD display will show the power bank's remaining charge.
• Using USB-A or USB-C Ports:
  1. Connect your device's charging cable (not included) to either the USB-A output port or the USB-C output/input port on the power bank.
  2. Tilslut den anden ende af kablet til din enhed.
  3. Opladningen starter automatisk.

You can charge up to four devices simultaneously using a combination of the built-in cables and the external ports.

Genopladning af Power Bank:

To recharge the Pxwaxpy HX90X8:

1. Connect the included USB-A to USB-C charging cable to the USB-C input/output port on the power bank.
2. Plug the USB-A end into a power source, such as a wall adapter or computer USB port.
3. The LCD display will show the charging status.

The power bank supports pass-through charging, meaning it can be recharged while simultaneously charging your devices.

LCD-skærm:

Det integrerede LCD-display viser den resterende batteriprocenttage of the power bank, allowing you to monitor its charge level accurately.

Opretholdelse

• Rensning: Brug en blød, tør klud til at rengøre overfladen på powerbanken. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Opbevaring: Store the power bank in a cool, dry place away from direct sunlight, extreme temperatures, and moisture.
• Batteripleje: To prolong battery life, fully charge the power bank at least once every three months, even if not in regular use. Avoid completely draining the battery frequently.
• Håndtering: Do not drop, disassemble, or attempt to repair the power bank yourself. This can damage the device and void the warranty.

Fejlfinding

Enheden oplader ikke:

• Ensure the power bank has sufficient charge (check LCD display).
• Kontroller, at opladningskablet er korrekt tilsluttet til både powerbanken og din enhed.
• Prøv et andet kabel eller en anden port på powerbanken.
• Sørg for, at din enheds opladningsport er ren og fri for snavs.

Powerbanken oplades ikke:

• Check the connection of the USB-C charging cable to both the power bank and the power source.
• Ensure the wall adapter or USB port you are using is functional.
• Prøv en anden USB-vægadapter eller strømkilde.

Langsom opladning:

• Ensure you are using a compatible fast-charging cable and adapter for your device and the power bank.
• Opladning af flere enheder samtidigt kan reducere opladningshastigheden for individuelle enheder.
• Miljøfaktorer (f.eks. ekstreme temperaturer) kan påvirke opladningseffektiviteten.

LCD-skærmen virker ikke:

• Tryk kort på tænd/sluk-knappen for at aktivere displayet.
• If the power bank is completely discharged, the display may not light up until it receives some charge.

Specifikationer

Image: A visual representation of the power bank's compact size, displaying its dimensions (12cm x 6.2cm x 2.6cm) in comparison to a typical smartphone.

Sikkerhedsoplysninger

For at sikre sikker drift og forhindre skader på enheden eller personskade, bedes du overholde følgende sikkerhedsforanstaltninger:

• Udsæt ikke powerbanken for ekstreme temperaturer (over 60 °C/140 °F eller under 0 °C/32 °F), direkte sollys eller ild.
• Undgå kontakt med vand eller andre væsker.
• Tab ikke, punkter ikke eller adskil ikke enheden.
• Opbevares utilgængeligt for børn.
• Må ikke anvendes, hvis powerbanken er beskadiget, hævet eller utæt.
• Bortskaf powerbanken i henhold til lokale regler for elektronisk affald.
• Indbyggede beskyttelser: The device includes intelligent chips for protection against over-charge, over-voltage, over-current, short circuit, and over-heat.
• Godkendt flyselskab: This portable charger meets standard international aviation limits and can be taken on planes in carry-on luggage.

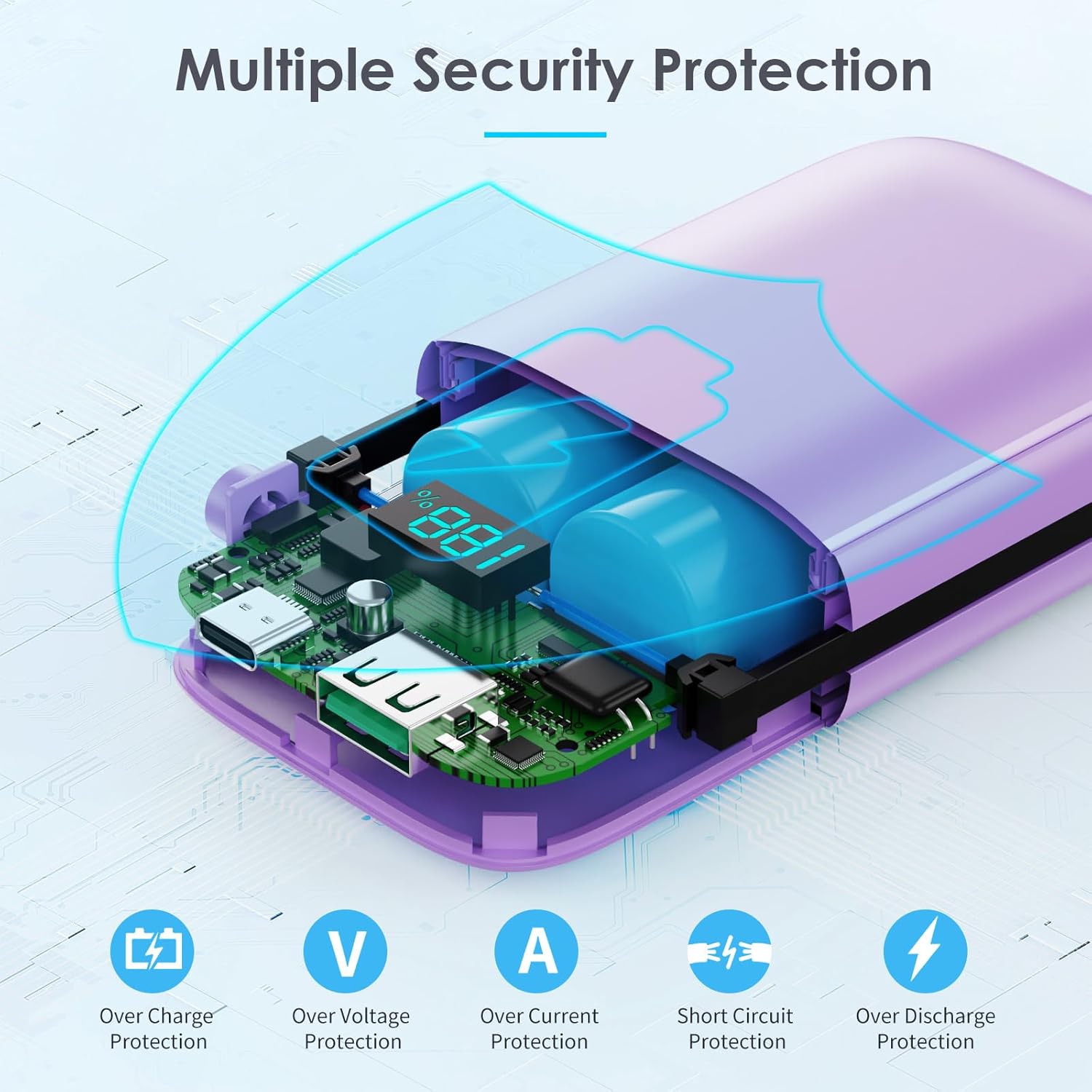

Billede: En intern view diagram of the power bank, highlighting its integrated safety features such as protection against over-charge, over-voltage, over-current, short circuit, and over-discharge.

Garanti og support

The Pxwaxpy Portable Charger HX90X8 comes with an 18 måneders garanti. For technical support or warranty claims, please contact Pxwaxpy customer service. Lifetime technical support is provided for this product.

For further assistance, please refer to the contact information provided on the product packaging or the official Pxwaxpy webwebsted.
