1. Introduktion og overview
This manual provides essential information for the safe and efficient operation of your Bosch Serie | 6 NoFrost Refrigerator, model KGN49LB30U. This appliance features a bottom freezer, a sleek glass door, and advanced technologies like NoFrost, Multi Airflow-System, VitaFresh Plus, and SuperCooling to ensure optimal food preservation.
Figur 1: Forside view of the Bosch KGN49LB30U refrigerator with its black glass door.
2. Sikkerhedsoplysninger
Before operating your new refrigerator, please read this manual thoroughly. Keep these instructions for future reference. Failure to follow these safety guidelines may result in electric shock, fire, or injury.
- Sørg for, at apparatet er korrekt jordforbundet for at forhindre elektrisk stød.
- Do not damage the refrigerant circuit. If damage occurs, avoid open flames and ventilate the room thoroughly.
- Hold ventilationsåbninger fri af forhindringer.
- Brug ikke mekaniske anordninger eller andre midler til at fremskynde afrimningsprocessen, ud over dem, der anbefales af producenten.
- Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.
- Tag stikket ud af stikkontakten før rengøring eller vedligeholdelse.
3. Opsætning og installation
3.1 Udpakning
Fjern forsigtigt al emballage. Undersøg apparatet for eventuelle skader under transporten. Anmeld eventuelle skader til din forhandler med det samme.
3.2 Placering
- Stil køleskabet på en fast, plan overflade.
- Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 5-10 cm from walls and other furniture.
- Avoid placing the refrigerator near direct sunlight, heat sources (e.g., oven, radiator), or in extremely cold environments.
- The appliance dimensions are approximately 67 cm (Depth) x 70 cm (Width) x 203 cm (Height).
Figur 2: Dimensionel overview of the Bosch KGN49LB30U refrigerator.
3.3 Elektrisk tilslutning
Connect the appliance to a dedicated 240 Volt, 50 Hz grounded power outlet. Do not use extension cords or multiple socket adapters.
3.4 Indledende rengøring
Rengør køleskabets inderside med et mildt rengøringsmiddel og varmt vand inden første brug. Tør grundigt efter.
3.5 Indledende drift
After plugging in, allow the refrigerator to run for at least 4-6 hours before loading it with food. This allows the internal temperature to stabilize.
3.6 Medfølgende komponenter
Your refrigerator comes with the following accessories:
- 2 x cold accumulators
- 3 x egg trays
- 1 x ice cube tray with lid
- 1 x bottle holder in door tray
4. Betjeningsvejledning
4.1 Kontrolpanel
The electronic control panel is located on the exterior of the upper door. It allows you to adjust temperatures and activate special functions for both the refrigerator and freezer compartments.
Figure 3: Detail of the refrigerator's digital control panel.
4.2 Temperaturindstillinger
Use the control panel to set the desired temperatures. Recommended settings are typically +4°C for the refrigerator and -18°C for the freezer.
4.3 Specialfunktioner
- SuperCooling: Quickly lowers the refrigerator temperature to chill newly added food items.
- SuperFreeze: Rapidly freezes fresh food to preserve nutrients and texture.
- VitaFresh Plus: Specialized drawers designed to keep fruits and vegetables fresh for longer by maintaining optimal humidity and temperature.
- VarioZone: Flexible freezer compartment with removable glass shelves for customizable storage space.
4.4 NoFrost-teknologi
The NoFrost system prevents ice build-up in the freezer compartment, eliminating the need for manual defrosting. Cold, dry air circulates evenly to prevent frost formation.
4.5 Multi Airflow-System
This system ensures even distribution of cold air throughout the refrigerator compartment, maintaining consistent temperatures and reducing temperature fluctuations.

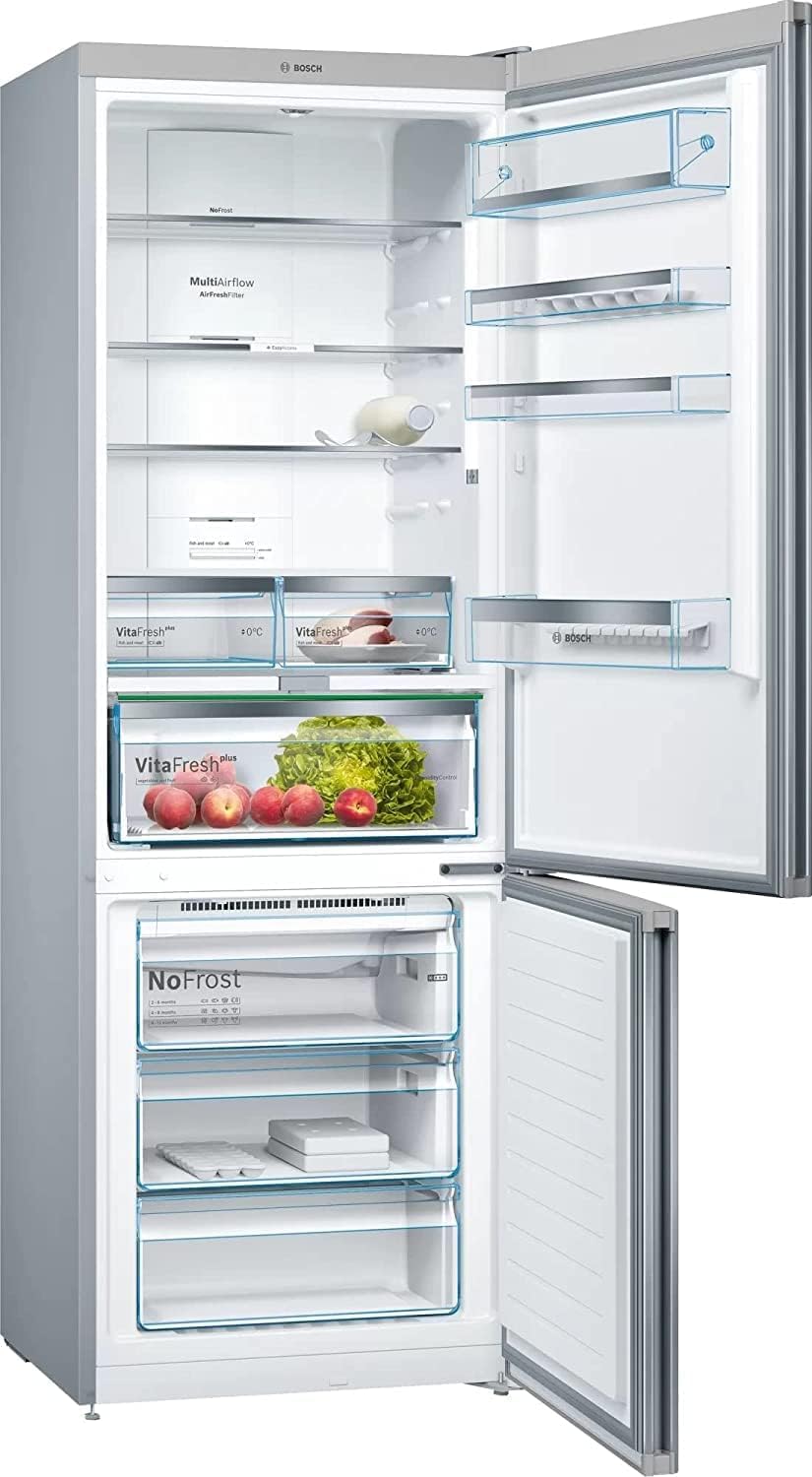

Figur 4: Interiør view of the Bosch KGN49LB30U, highlighting storage and features.
5. Vedligeholdelse og rengøring
5.1 Generel rengøring
- Tag altid stikket ud af stikkontakten før rengøring.
- Clean the interior and exterior surfaces with a soft cloth and a mild, non-abrasive detergent. Avoid harsh chemicals or abrasive cleaners.
- Wipe the glass door with a soft, damp cloth and dry immediately to prevent streaks.
- Rengør dørtætningerne regelmæssigt for at sikre en tæt forsegling.
5.2 Optøning
The NoFrost system automatically defrosts the freezer compartment, so manual defrosting is not required. Any water from the defrost cycle is evaporated automatically.
5.3 AirFreshfilter
The AirFreshfilter helps to neutralize odors inside the refrigerator. Refer to the full product manual for specific instructions on filter replacement or maintenance, if applicable.
5.4 Power Outage
I tilfælde af en magt outage, keep the refrigerator doors closed to maintain the internal temperature for as long as possible. The cold accumulators provided can help extend storage time in the freezer.
6. Fejlfinding
Før du kontakter service,view følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleskabet køler ikke | Power supply issue, temperature setting too high, door left open, excessive food load. | Check power connection, adjust temperature, ensure door is closed, reduce food load temporarily. |
| Usædvanlige lyde | Appliance not level, items touching back wall, normal operating sounds (e.g., refrigerant flow). | Level the appliance, reposition items, understand that some sounds are normal. |
| Vand på gulvet/indeni | Blocked drain hole, door not sealing properly. | Clear drain hole, check door seal for obstructions or damage. |
| Døren lukker ikke ordentligt | Obstruction, uneven appliance, damaged door seal. | Remove obstruction, level appliance, inspect and clean/replace door seal. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte Bosch kundesupport.
7. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | BOSCH |
| Model info | KGN49LB30U |
| Produktmål (D x B x H) | 67 x 70 x 203 cm |
| Varens vægt | 75 kilo |
| Nettokapacitet | 435 liter |
| Køleskab Friske fødevarer Kapacitet | 330 liter |
| Fryser kapacitet | 105 liter |
| Effektivitetsvurdering | A |
| Årligt energiforbrug | 219 kilowatttimer pr. år |
| Installationstype | Frit stående |
| Formfaktor | Frysebund |
| Farve | Sort |
| Voltage | 240 volt |
| Wattage | 100 watt |
| Optøningssystem | Automatisk (NoFrost) |
| Dørmaterialetype | Glas |
| Number of Shelves (Fridge) | 3 |
| Antal grøntsagsskuffer/skuffer | 2 |
| Certificering | CE |
8. Garanti og support
Your Bosch refrigerator is covered by a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions. For technical assistance, service requests, or further inquiries, please contact Bosch customer support.
Bosch's Hotline for Support: 15196
Du kan også besøge den officielle Bosch website for more information and to locate authorized service centers.
