CAME 8K01MV-017 800N 24V Garage Door Motor Kit Instruction Manual

1. Produktet er slutview

The CAME 8K01MV-017 VER08DES motorization kit is designed to automate residential garage doors. This system is suitable for both sectional and up-and-over garage doors with a surface area of up to 12 square meters. The kit includes an 800N motor equipped with integrated LED courtesy lighting, a slowdown function for smooth operation, and an obstacle detection system for enhanced safety.

Operating on 24V, the motor ensures increased safety and allows for continuous operation during power outages when connected to a compatible backup battery (sold separately). The kit also features a 1 001AF43S radio card and a 4-channel remote control, along with all necessary mounting accessories and a comprehensive instruction guide for straightforward installation. Please note that the CA001V06001 guide rail is sold separately. The radio card operates on the 433.92 MHz frequency.

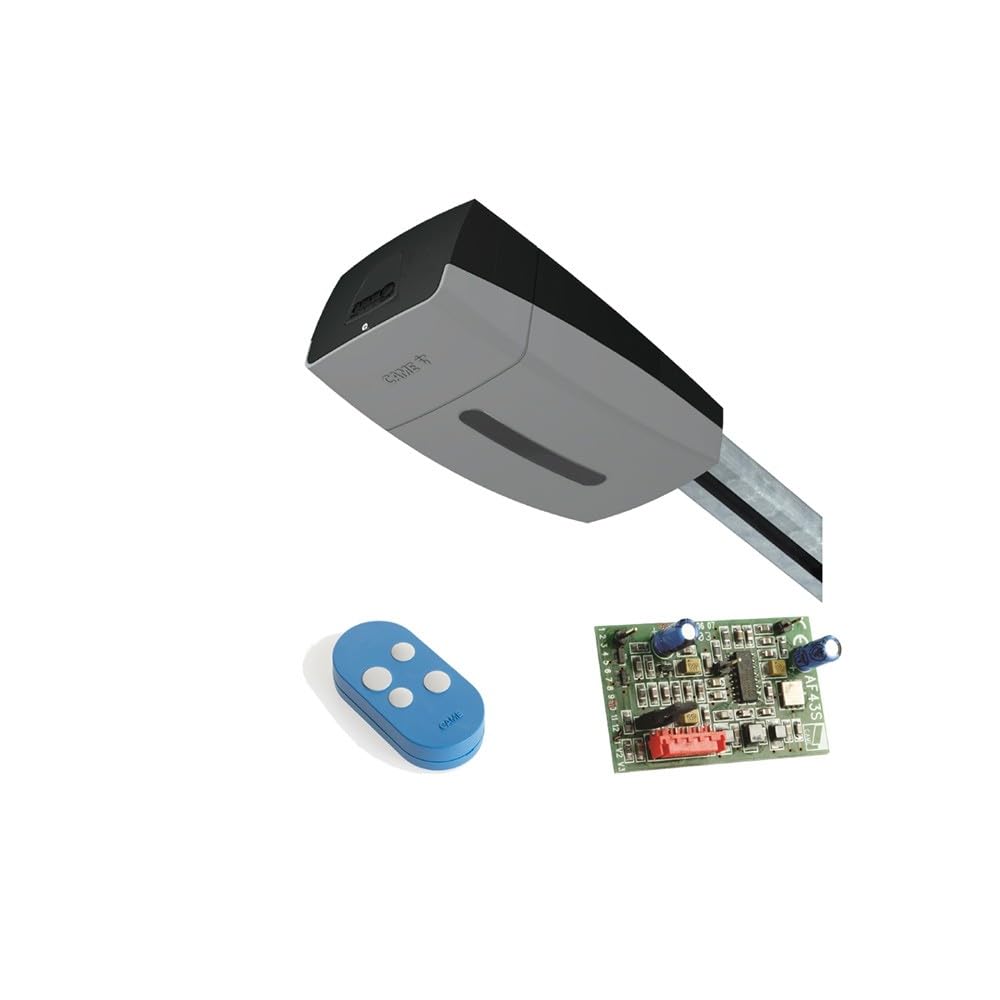

This image displays the main components of the CAME 8K01MV-017 garage door motor kit. It features the grey and black motor unit, a blue 4-button remote control, and a green circuit board representing the radio card.

2. Nøglefunktioner

• Motorisering: 800N traction force for reliable door operation.
• Strømforsyning: 24V DC motor for enhanced safety and compatibility with backup battery systems.
• Sikkerhedsfunktioner: Integrated slowdown function and obstacle detection system.
• Belysning: Built-in LED courtesy lighting.
• Kompatibilitet: Suitable for sectional and up-and-over garage doors up to 12 m².
• Radiosystem: Includes 1 001AF43S radio card operating at 433.92 MHz.
• Fjernbetjening: Supplied with a 4-channel remote control (806TS-0121).
• Indtrængningsbeskyttelse: IP 44 rating for protection against solid objects and splashing water.

3. Komponenter inkluderet

The CAME 8K01MV-017 kit typically includes the following items:

• 1 x 801MV-0060 Motor with integrated control unit and encoder.
• 1 x 806TS-0121 4-channel remote control.
• 1 x 001AF43S plug-in radio card (Blue).
• Set of mounting accessories.
• Instruction guide.

Note: The CA001V06001 guide rail is sold separately and is required for complete installation.

4. Opsætning og installation

Installation of the CAME 8K01MV-017 garage door motor kit requires careful attention to detail and adherence to safety guidelines. It is recommended that installation be performed by a qualified professional.

1. Forberedelse: Ensure the garage door is in good working condition and properly balanced. Verify that the CA001V06001 guide rail (sold separately) is correctly installed and aligned.
2. Motor montering: Securely mount the 801MV-0060 motor unit according to the detailed instructions provided in the included guide.
3. Elektrisk tilslutning: Connect the motor to the 230V AC power supply, ensuring all wiring complies with local electrical codes. The motor operates at 24V DC.
4. Radio Card Installation: Insert the 001AF43S plug-in radio card into the designated slot on the motor's control unit.
5. Justering af grænsekontakt: Configure the opening and closing limit switches to ensure the door stops at the correct positions.
6. Tilslutning af sikkerhedsanordning: Connect and test any additional safety devices, such as photocells (if applicable), to the control unit.
7. Programmering af fjernbetjening: Program the 806TS-0121 4-channel remote control to the motor's radio receiver.

Always refer to the comprehensive instruction guide for detailed step-by-step procedures, wiring diagrams, and safety warnings specific to your installation.

5. Betjeningsvejledning

The CAME 8K01MV-017 garage door motor system is operated primarily using the provided 4-channel remote control.

• Åbning/lukning: Press the designated button on the 806TS-0121 remote control to initiate the opening or closing cycle of the garage door. A second press during movement will stop the door.
• Forhindringsdetektion: If an obstruction is detected during the closing cycle, the door will automatically stop and reverse to its fully open position. During the opening cycle, the door will stop if an obstruction is detected.
• Høflighedslys: The integrated LED courtesy light will illuminate during door operation and remain on for a short period afterward to provide illumination.
• Manuel udgivelse: In case of a power failure or system malfunction, locate the manual release mechanism on the motor unit to disengage the motor and operate the door manually. Refer to the instruction guide for the exact location and procedure.

6. Vedligeholdelse

Regular maintenance ensures the longevity and safe operation of your CAME garage door motor kit.

• Visuel inspektion: Periodically inspect the entire system, including the motor unit, guide rail, cables, springs, and door panels, for any signs of wear, damage, or loose components.
• Renhed: Keep the guide rails and the area around the obstacle detection sensors clean and free from debris.
• Safety Test: Regularly test the obstacle detection system by placing an object in the door's path during the closing cycle to ensure it reverses correctly.
• Smøring: Lubricate moving parts of the garage door (hinges, rollers, springs) as recommended by the garage door manufacturer. Avoid lubricating the guide rail where the motor trolley runs unless specifically instructed.
• Batterier til fjernbetjening: Udskift fjernbetjeningens batterier efter behov for at sikre pålidelig drift.

For detailed maintenance schedules and specific procedures, consult the complete instruction guide.

7. Fejlfinding

If you encounter issues with your CAME garage door motor kit, consider the following basic troubleshooting steps:

• Ingen strøm: Check the main power supply to the motor unit. Ensure the circuit breaker has not tripped.
• Fjernbetjeningen virker ikke: Verify that the remote control batteries are not depleted. Ensure the remote is within range and properly programmed.
• Door Not Moving: Check for any physical obstructions in the door's path or within the guide rail. Ensure the manual release is not engaged.
• Døren vender uventet: This often indicates an obstruction or a misaligned safety sensor. Clean the sensors and ensure they are properly aligned.
• Usædvanlige lyde: Inspect the garage door hardware (springs, cables, rollers) for wear or damage.

For more complex issues or persistent problems, refer to the detailed troubleshooting section in your instruction guide or contact CAME technical support.

8. Specifikationer

9. Garanti og support

The CAME 8K01MV-017 800N 24V Garage Door Motor Kit comes with a manufacturer's warranty of 3 år.

For technical assistance, warranty claims, or further product information, please refer to the contact details provided in the full instruction guide included with your kit. You may also visit the official CAME website for support resources and authorized service centers.
