ASD 6 Inch Commercial Canless LED Downlight User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your ASD 6 Inch Commercial Canless LED Downlight. Designed for commercial and residential applications, this fixture offers adjustable power and color temperature settings, ensuring optimal lighting for various environments. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

Billede 1.1: Overview of the ASD 6 Inch Commercial Canless LED Downlight (8-pack).

2. Sikkerhedsoplysninger

Always follow basic safety precautions when installing and operating electrical equipment to reduce the risk of fire, electric shock, and personal injury.

• Afbryd strømmen ved afbryderen før installation eller service.
• Sørg for, at forsyningen voltage is compatible with the fixture (120-277V).
• All wiring connections must be made in accordance with local and national electrical codes. If you are unsure about wiring, consult a qualified electrician.
• Do not modify or alter the fixture in any way.
• Do not install in areas with excessive vibration or heat sources.
• This fixture is suitable for Wet locations, but avoid direct water immersion.
• The fixture is IC Rated, meaning it is safe for direct contact with insulation.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• LED Commercial Downlight Fixture
• 3 ledninger
• Template for 6-1/8" (156 mm) hole cutting

4. Produktfunktioner

The ASD 6 Inch Commercial Canless LED Downlight is engineered with advanced features for superior performance and versatility:

• Adjustable CCT & Wattage: Equipped with a simple switch to select from 5 color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) and multiple wattage options (10W, 15W, 22W) depending on the downlight size.
• Bred anvendelse: Ideal for hallways, corridors, retail spaces, offices, and other indoor residential or commercial areas, including those requiring wet location suitability.
• Energieffektivitet: Long lifespan of 50,000 hours and significant energy savings compared to incandescent fixtures.
• IC Rated Canless Solution: No separate can or housing required, simplifying installation.
• 0-10V Dimmable: Designed to operate on 120-277V circuits with a 0-10V dimmable driver for smooth dimming control.
• Høj CRI 90+: Provides rich and natural color rendering, enhancing the visual appeal of illuminated spaces.

Image 4.1: Key features of the downlight, highlighting its adjustability, color rendering, and safety ratings.

Image 4.2: Illustration of CRI 90+ providing rich and natural colors in an indoor setting.

Image 4.3: The IC Rated canless solution allows for direct contact with insulation, simplifying installation.

Image 4.4: The fixture is rated for wet locations, making it suitable for environments like swimming pools.

5. Specifikationer

Detailed technical specifications for the ASD 6 Inch Commercial Canless LED Downlight:

Image 5.1: Detailed product specifications including dimensions, power options, color temperatures, and brightness.

6. Opsætning og installation

Følg disse trin for sikker og korrekt installation:

1. Forbered åbningen: Use the provided template to cut an appropriate sized hole in the ceiling. The recommended template size for installation is 6-1/8" (156 mm).
2. Ledningsforbindelser: Secure the safety latch onto a structural part of the original fixture housing above the ceiling. Connect the wires using the included wire nuts: Black to Black (Live), White to White (Neutral), and Green to Green (Ground). Ensure all connections are secure.
3. Adjust Settings (Pre-Installation): Before inserting the fixture into the mounting surface opening, choose your desired power (wattage) and color temperature (CCT) using the simple switches located on the fixture. Refer to Section 7 for details on these adjustments.
4. Monter armaturet: Fold up the two spring mounting tabs. Carefully insert the fixture into the prepared hole. As the fixture is placed into the mounting surface, the spring-loaded clips will engage, ensuring a snug fit.
5. Sikre armaturet: Ensure that the spring mounting tabs have securely mounted the fixture so that the front trim is flush against the mounting surface. The safety cable further secures the fixture and eliminates the possibility of an incident during installation.

Image 6.1: Visual guide for the installation process, from cutting the hole to securing the fixture.

7. Betjeningsvejledning

Your ASD LED Downlight features adjustable power and color temperature settings to customize your lighting experience.

7.1 Color Temperature (CCT) Adjustment

The fixture allows you to select from five distinct color temperatures:

• 2700K: Blød hvid
• 3000K: Varm hvid
• 3500K: Neutral White
• 4000K: Cool White
• 5000K: Dagslys

To change the CCT, locate the CCT selection switch on the side of the fixture. Slide the switch to your desired color temperature setting before final installation into the ceiling.

7.2 Wattage Justering

The downlight also features adjustable wattage settings, allowing you to control the brightness and energy consumption:

• 10W: Cirka 900 lumen
• 15W: Cirka 1300 lumen
• 22W: Cirka 1850 lumen

For at skifte hvadtage, find vandtage selection switch on the side of the fixture. Slide the switch to your desired power setting before final installation.

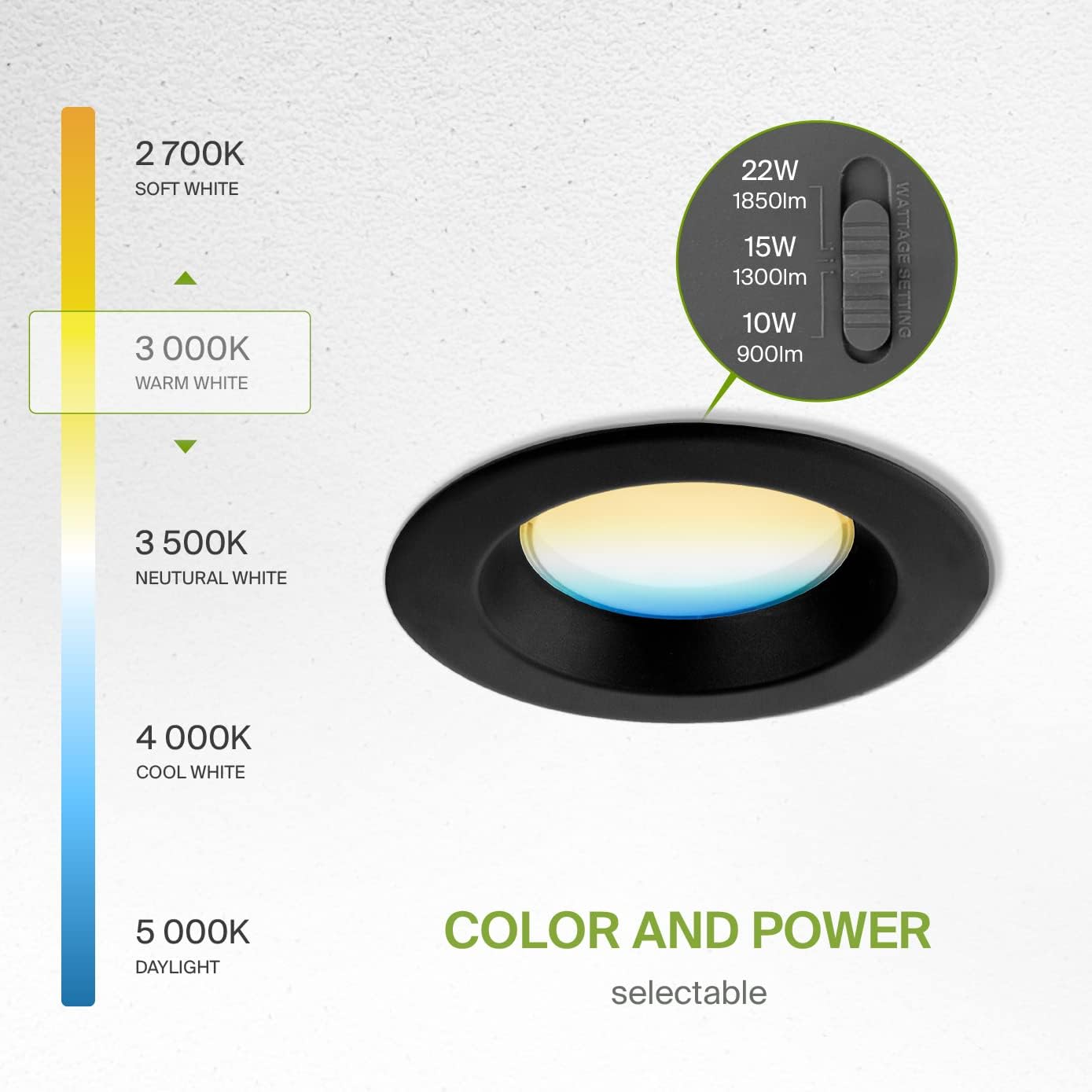

Image 7.1: Visual representation of the color and power selection switches on the downlight.

7.3 Dæmpningsfunktionalitet

This fixture is designed for 0-10V dimming. To utilize the dimming feature, you must connect it to a compatible 0-10V dimmable driver and control system. Standard residential dimmers (e.g., leading-edge or trailing-edge dimmers) are not compatible with this fixture's dimming capabilities and may cause flickering or damage.

8. Vedligeholdelse

The ASD LED Downlight requires minimal maintenance. Follow these guidelines to ensure its longevity and performance:

• Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør armaturet af med en blød, tør eller let fugtet klud.amp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
• Inspektion: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician or contact customer support.
• Ingen dele, der kan serviceres af brugeren: The LED light source is integrated and not user-replaceable. Do not attempt to open or repair the fixture.

9. Fejlfinding

If you encounter issues with your LED Downlight, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact ASD customer support for assistance.

10. Garanti og support

ASD tilbyder en 5 års garanti for this LED Commercial Canless Downlight, guaranteeing top quality products and safety. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical support, or any questions regarding your product, please contact ASD customer support. Our team is committed to responding to your concerns within 24 hours.

Kontaktoplysninger:
Please refer to the ASD official webwebstedet eller din købsdokumentation for at få de seneste kontaktoplysninger til kundesupport.

Certificeringer:
This product is UL and ENERGY STAR certified, ensuring high standards of safety and energy efficiency.
