1. Vigtige sikkerhedsoplysninger
Læs alle instruktioner, før du bruger dette apparat, for at mindske risikoen for brand, elektrisk stød eller personskade. Gem denne manual til senere brug.
Elektrisk sikkerhed
- Ensure the refrigerator is connected to a grounded 120V, 60Hz, 15 Amp dedicated electrical outlet.
- Brug ikke forlængerledninger eller ujordede adaptere.
- Tag stikket ud af apparatet, før du rengør eller udfører vedligeholdelse.
Generel sikkerhed
- Dette apparat er kun beregnet til husholdningsbrug.
- Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.
- Hold ventilationsåbninger fri af forhindringer.
- Beskadig ikke kølemiddelkredsløbet.
- Brug ikke elektriske apparater inde i madopbevaringsrummene, medmindre de er af den type, der anbefales af producenten.
- Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
2. Opsætning og installation
Udpakning
Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging responsibly. Ensure no parts are missing or damaged. Keep plastic bags away from children.
Placering
- Place the refrigerator on a flat, stable surface strong enough to support its weight when fully loaded.
- Sørg for mindst 10 cm plads bagpå og i siderne for korrekt luftcirkulation.
- Avoid direct sunlight or heat sources (e.g., stove, heater) to ensure efficient operation.
- The dimensions of the refrigerator are approximately 29"D x 29.5"W x 69"H. Ensure adequate clearance for door opening.
Figure 1: Refrigerator Dimensions
Nivellering
Adjust the leveling feet at the bottom front of the refrigerator to ensure it is level. This prevents vibration and ensures proper door sealing.
Indledende rengøring
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and a mild detergent solution. Rinse thoroughly and dry.
3. Betjeningsvejledning
Tænder
After installation, plug the refrigerator into the dedicated power outlet. Allow the appliance to run for at least 2-4 hours before placing food inside to ensure it reaches the desired temperature.
Temperaturkontrol
The refrigerator features an adjustable electronic control panel located on the inside of the right door. Use this panel to set the desired temperature for both the refrigerator and freezer compartments.
Figur 2: Elektronisk kontrolpanel
- Køleskabstemperatur: Press the 'Fridge' button to cycle through temperature settings. Recommended setting is 37°F (3°C).
- Fryser temperatur: Press the 'Freezer' button to cycle through temperature settings. Recommended setting is 0°F (-18°C).
- Låsefunktion: Press and hold the 'Lock' button for 3 seconds to lock or unlock the control panel.
Internal Storage Features
The refrigerator is designed with various storage options to organize your food efficiently.
Figure 3: Refrigerator Interior with Storage
- Justerbare glashylder: Three glass shelves can be adjusted to accommodate items of various heights. To adjust, lift the shelf slightly and pull it out. Reinsert at the desired height.
- Klar-View Crisper skuffer: Two crisper drawers are located at the bottom of the fresh food compartment, designed to maintain optimal humidity for fruits and vegetables.
- Dørbeholdere: Six door bins provide convenient storage for bottles, jars, and condiments.
- Fryseskuffer: Two pull-out freezer drawers offer organized storage for frozen items. The frost-free defrost system prevents ice buildup, eliminating the need for manual defrosting.

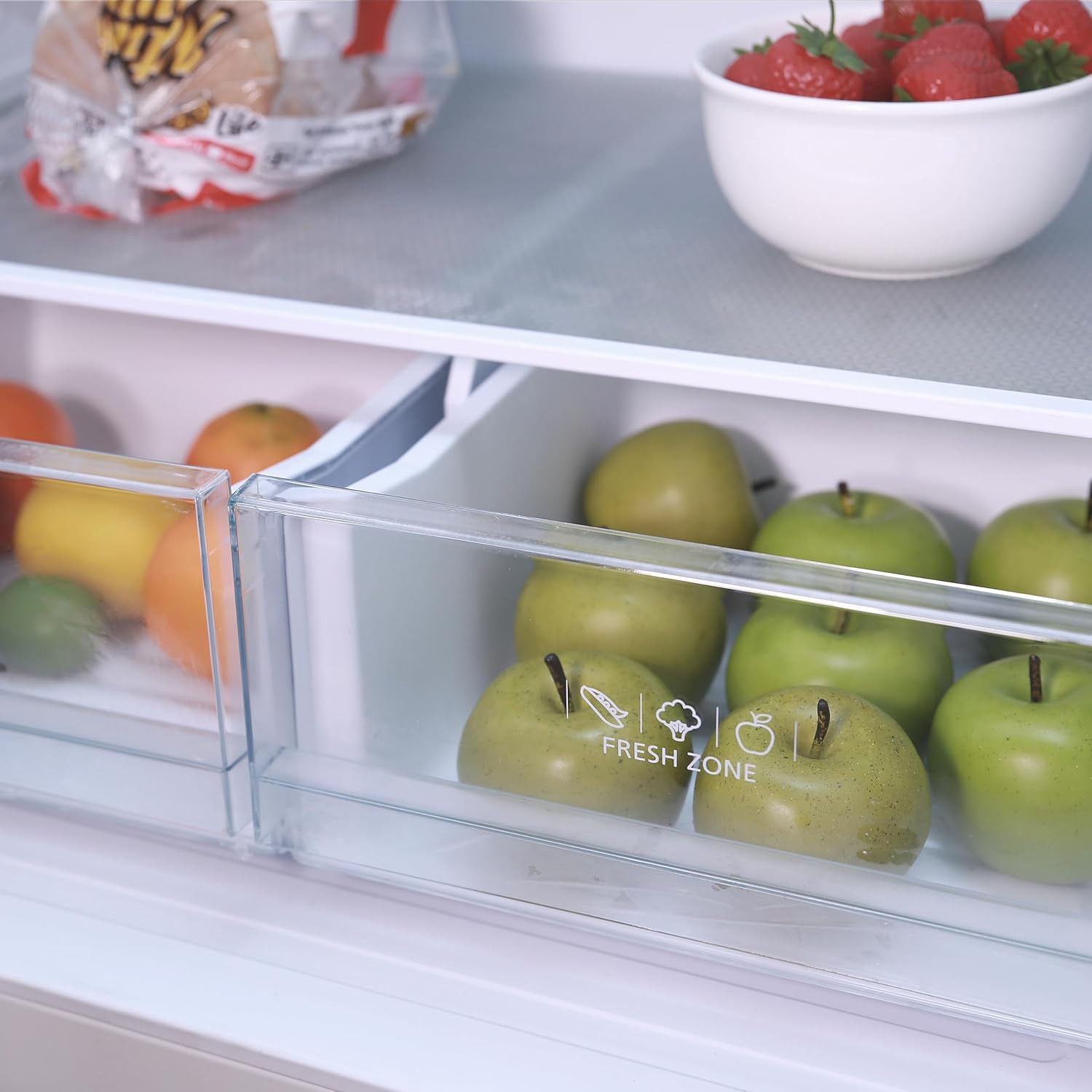

Figure 4: Crisper Drawers
Figure 5: Freezer Drawer
4. Vedligeholdelse og pleje
Rensning
Regular cleaning helps maintain the efficiency and appearance of your refrigerator.
- Ydre: Wipe with a soft cloth and mild detergent. For stainless steel surfaces, use a stainless steel cleaner.
- Indre: Clean with a solution of baking soda and warm water (1 tablespoon baking soda to 1 quart water). Avoid harsh chemicals or abrasive cleaners.
- Dørpakninger: Rengør dørpakningerne regelmæssigt for at sikre en tæt forsegling.
- Aftagelige dele: Shelves, crisper drawers, and door bins can be removed for easier cleaning. Wash with mild soap and water, then dry thoroughly.
Power Outage
I tilfælde af en magt outage, keep the refrigerator doors closed to maintain internal temperature for as long as possible. Avoid opening the doors unnecessarily.
Feriepleje
- Short Vacations (less than 3 weeks): Leave the refrigerator operating normally.
- Long Vacations (more than 3 weeks): Remove all food, unplug the appliance, clean thoroughly, and leave the doors ajar to prevent odors and mold growth.
5. Fejlfindingsvejledning
Før du kontakter service,view dette afsnit for almindelige problemer og løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleskabet fungerer ikke | Ikke tilsluttet; afbryder udløst; strømafbrydelsetage | Check power cord; reset circuit breaker; check household power supply |
| Temperaturen er ikke kold nok | Temperature setting too high; door left open; excessive food load; poor ventilation | Adjust temperature setting; ensure doors are closed; allow space for air circulation; reduce food load if excessive |
| Usædvanlige lyde | Refrigerator not level; items vibrating inside; normal operating sounds | Level the appliance; rearrange items; gurgling/hissing sounds are normal for refrigerant |
| Vand på gulvet | Drain tube clogged; door not sealing properly | Clear drain tube; check door gasket for obstructions or damage |
| Dørene lukker ikke helt | Food packages obstructing; door gasket dirty/damaged; refrigerator not level | Rearrange food; clean/replace gasket; level the appliance |
6. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | West Bend |
| Modelnummer | WB1750FDBMLSS |
| Kapacitet (i alt) | 17.5 Kubikfod |
| Køleskab Friske fødevarer Kapacitet | 12.4 Kubikfod |
| Fryser kapacitet | 5.1 Kubikfod |
| Mål (D x B x H) | 29 x 29.5 x 69 tommer |
| Varens vægt | 192 pund |
| Installationstype | Frit stående |
| Optøningssystem | Frostfri |
| Voltage | 120 volt |
| Wattage | 190 watt |
| Årligt energiforbrug | 327 kilowatttimer pr. år |
| Farve | Metallisk |
| Type hylde | Glashylder |
| Inkluderede komponenter | (3) Glass Shelves, (2) Crisper Drawers, (6) Door Bins, (2) Freezer Drawers |
7. Garanti og support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official West Bend webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
For additional assistance, you may contact West Bend customer service directly. Contact details are typically available on the manufacturer's webwebsted eller i produktemballagen.
