Brugermanual til BPXX Bluetooth termisk etiketprinter

1. Introduktion

This manual provides comprehensive instructions for the setup, operation, and maintenance of your BPXX Bluetooth Thermal Label Printer (Model XP-D463B). This printer is designed for efficient and high-quality printing of various labels, including shipping labels, for both personal and business use. It supports both Bluetooth and USB connectivity, offering flexibility across multiple operating systems and devices.

Image 1.1: The BPXX Bluetooth Thermal Label Printer, showcasing its compact design and wireless printing capability with a smartphone.

2. Hvad er der i æsken

Kontroller venligst, at alle følgende komponenter er inkluderet i din pakke:

• BPXX Bluetooth and USB Thermal Printer
• Hurtig installationsvejledning
• OTG adapter
• U Disk (USB flash drive containing drivers and detailed manual)
• USB kabel
• Strømledning
• Strømadapter

Image 2.1: Contents of the BPXX Thermal Label Printer package.

3. Opsætning

3.1. Strømtilslutning

1. Tilslut strømadapteren til printerens strømindgang.
2. Sæt netledningen i en passende stikkontakt.
3. Press the power button on the printer to turn it on. The indicator light should illuminate.

3.2. Indlæsning af etiketter

The printer supports labels up to 4.1 inches in width and features auto label size detection.

1. Åbn printerdækslet.
2. Adjust the label guides to match the width of your labels.
3. Insert the labels into the printer, ensuring the print side is facing up. The printer will automatically feed a few labels to detect the size and calibrate.
4. Luk printerdækslet forsvarligt.

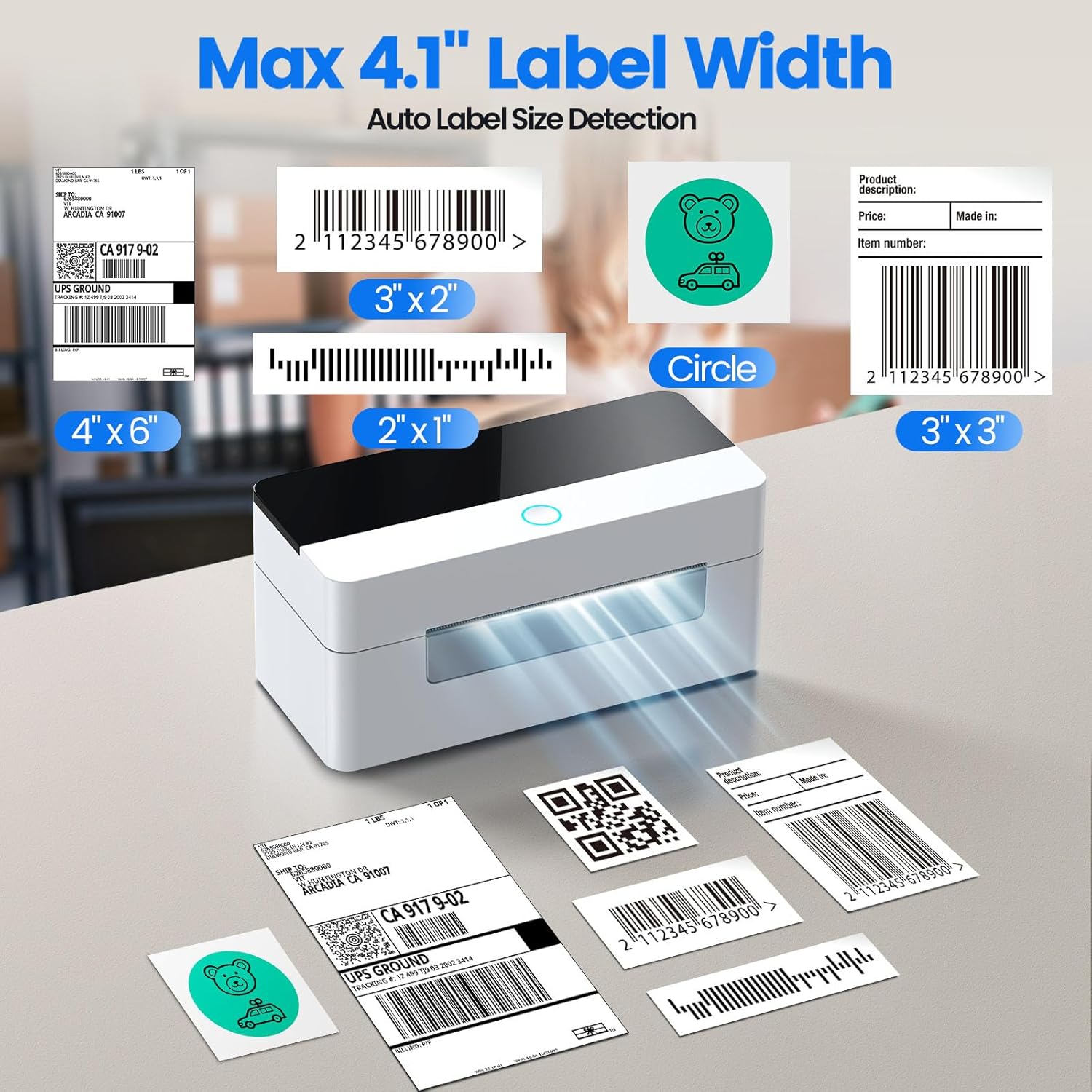

Image 3.1: The printer supports a maximum label width of 4.1 inches and various label types.

3.3. Driver Installation & Connectivity

The included U Disk contains the necessary drivers and a detailed installation guide video. It is highly recommended to use this U Disk for initial setup.

1. Insert the provided U Disk into your computer's USB port.
2. Follow the instructions in the installation guide video or PDF on the U Disk to install the printer drivers for your operating system (Windows, Mac OS, Linux, ChromeOS).

3.3.1. Bluetooth Connection (for iOS, Android, Windows)

For wireless printing, connect via Bluetooth:

1. Download the "4Barcode" app from your device's app store (iOS/Android) or ensure Bluetooth is enabled on your Windows PC.
2. Open the "4Barcode" app or go to your device's Bluetooth settings.
3. Søg efter and select the BPXX printer (Model XP-D463B) to pair.
4. Once paired, you can print directly from the app or your device's print function.

3.3.2. USB Connection (for Windows, Mac OS, Linux, ChromeOS)

For wired printing, use the USB cable:

1. Connect one end of the provided USB cable to the printer's USB port.
2. Connect the other end of the USB cable to your computer's USB port.
3. Ensure the printer drivers are installed as per section 3.3.
4. Your computer should recognize the printer, and you can select it from your printing options.

Image 3.2: Connectivity options: Bluetooth for phones/tablets and USB for various computer operating systems.

4. Betjeningsvejledning

The BPXX Thermal Label Printer offers fast and clear printing for various applications.

4.1. Udskrivning af en etiket

1. Ensure the printer is powered on and labels are properly loaded.
2. Prepare your label design or shipping information using your preferred software or the "4Barcode" app.
3. Select the BPXX printer from your device's print dialogue.
4. Adjust print settings (e.g., label size, orientation) as needed to match your label stock.
5. Initiate the print command. The printer will quickly produce your label at a speed of up to 152mm/s (72 sheets of 4x6 labels per minute).

Image 4.1: High-speed and high-definition printing capabilities.

4.2. Print Quality

The D463B thermal label printer provides a high-definition printing resolution of 203dpi, ensuring clear and sharp images, texts, and barcodes without ink stains. The intelligent temperature adjustment feature helps maintain stable operation and prolongs the print head's lifespan.

5. Vedligeholdelse

5.1. Cleaning the Print Head and Rubber Roller

Regelmæssig rengøring sikrer optimal udskriftskvalitet og forlænger printerens levetid.

1. Sluk printeren, og tag netledningen ud.
2. Åbn printerdækslet.
3. Use a cotton swab dipped in 100% alcohol to gently clean the print head (the heated element that creates the image) and the rubber roller (the roller that feeds the labels).
4. Allow the components to dry completely before closing the cover and turning the printer back on.

5.2. Replacing the Label Roll and Printer Head

The BPXX printer features an easy-load and replaceable design for both the label roll and the printer head, simplifying maintenance and extending product longevity.

Image 5.1: Easy-Load and Replaceable Design for label roll and printer head.

Refer to the detailed manual on the included U Disk for specific instructions on replacing these components.

6. Fejlfinding

If you encounter issues with your BPXX Thermal Label Printer, try the following solutions:

7. Specifikationer

Image 7.1: Compact dimensions of the BPXX Thermal Label Printer.

8. Garanti og support

For warranty information, technical support, or further assistance, please refer to the detailed User Manual provided on the included U Disk. You may also visit the official BPXX store on Amazon for additional resources and contact information.
