IINE Wireless Pro Controller Instruction Manual

1. Introduktion

This manual provides detailed instructions for the IINE Wireless Pro Controller, designed for use with Nintendo Switch, Switch OLED, and Switch Lite consoles. Please read this manual carefully before use to ensure proper operation and to maximize your gaming experience.

Image 1: The IINE Wireless Pro Controller, featuring a gold and green design with various buttons and joysticks.

2. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning for at sikre, at alle varer er til stede:

• 1 x IINE Wireless Pro Controller
• 1 x USB-C opladningskabel
• 1 x Brugsanvisning (dette dokument)

Image 2: Visual representation of the controller and its packaging, indicating the included items.

3. Controllerlayout

Gør dig bekendt med knapperne og funktionerne på din IINE Wireless Pro Controller:

• Venstre analoge pind: Til bevægelse og kamerastyring.
• Højre analoge pind: Til kamerastyring og sigtning.
• Retningstastatur (D-pad): For menu navigation and specific in-game actions.
• A/B/X/Y-knapper: Handlingsknapper.
• V/H-knapper: Skulderknapper.
• ZL/ZR-knapper: Udløserknapper.
• Minus (-) knap: Select/Back button.
• Plus (+) knap: Start/Pause knap.
• Hjemknappen: Returns to the Switch Home menu.
• Skærmbillede-knap: Tager skærmbilleder.
• Turbo (T) Button: Activates/deactivates Turbo function.
• NFC Sensor: For Amiibo functionality (located near the center of the controller).
• USB-C-port: Til opladning og kabelforbindelse.
• Indikatorlys: Vis forbindelsesstatus og batteriniveau.

4. Opsætning og tilslutning

4.1 Første parring med Nintendo Switch

1. On your Nintendo Switch console, go to the HOME Menu.
2. Select "Controllers" > "Change Grip/Order".
3. While on the "Change Grip/Order" screen, press and hold the Hjem-knap on the IINE Pro Controller for 3-5 seconds until the indicator lights start flashing rapidly.
4. Når controlleren er parret, vil den/de tilsvarende afspillerindikatorlampe på controlleren lyse konstant.

4.2 Reconnecting to Nintendo Switch

If the controller has been previously paired, simply press the Hjem-knap to wake it up. It will automatically attempt to reconnect to the last paired Switch console.

4.3 Kabelforbindelse

You can connect the controller to your Nintendo Switch dock using the provided USB-C cable. Ensure "Pro Controller Wired Communication" is enabled in the Switch System Settings (System > Controllers and Sensors > Pro Controller Wired Communication).

4.4 PC Steam Connection

The controller also supports PC Steam. Connect the controller to your PC via the USB-C cable. Your PC should recognize it as a gamepad. You may need to configure controller settings within Steam's Big Picture Mode or specific game settings.

Image 3: The controller shown alongside various Nintendo Switch models and a PC monitor, illustrating its broad compatibility.

5. Betjeningsvejledning

5.1 Wake Up Function

When the Switch console is in sleep mode, press the Hjem-knap on the controller to wake up the console and automatically reconnect the controller.

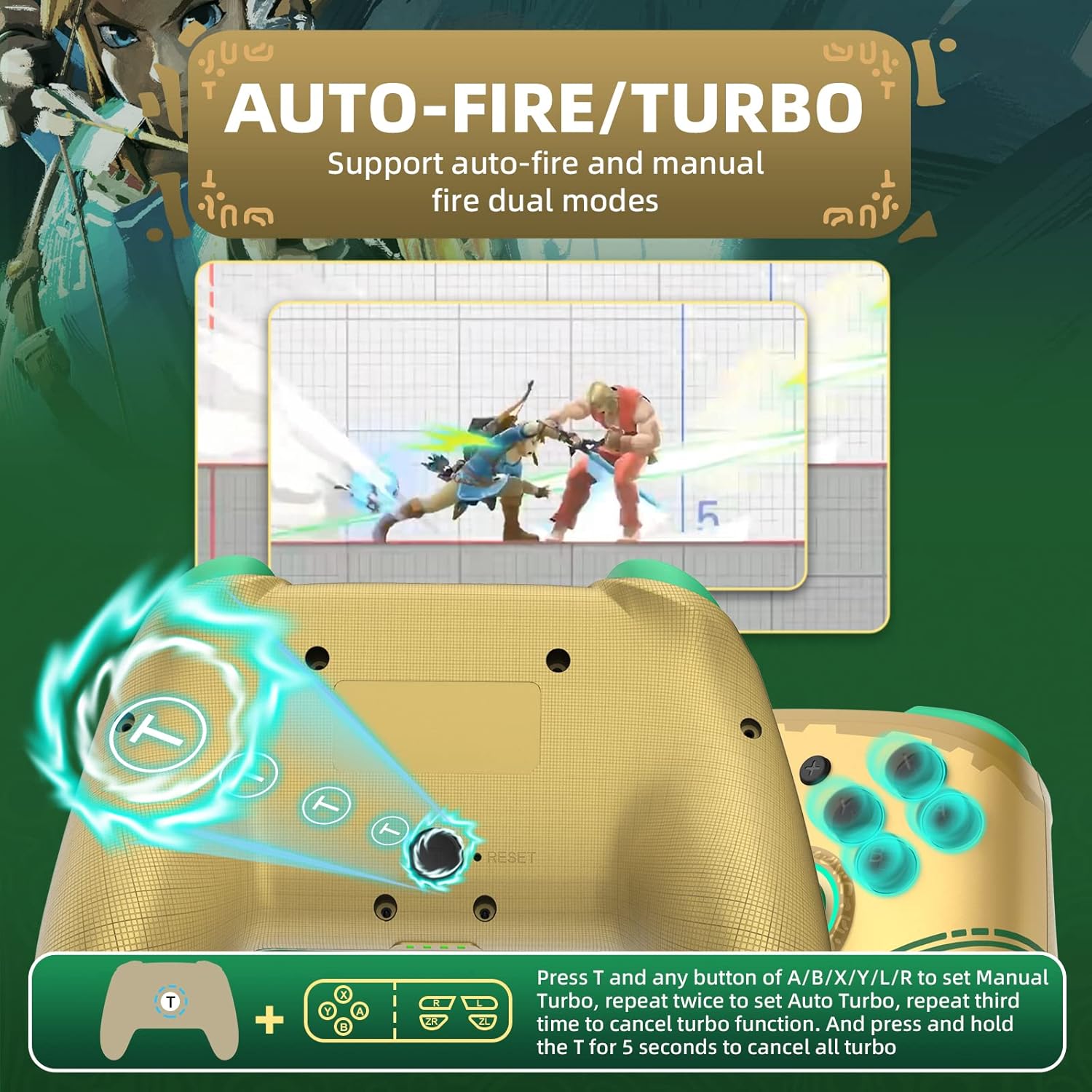

5.2 Turbofunktion

The Turbo function allows for rapid, automatic pressing of a button. It supports both auto-fire and manual fire dual modes.

• To set Manual Turbo: Tryk og hold på T knap, then press any of the A/B/X/Y/L/R/ZL/ZR buttons once. The button will now activate Turbo when held down.
• To set Auto Turbo: Tryk og hold på T knap, then press the desired A/B/X/Y/L/R/ZL/ZR button twice. The button will now continuously activate Turbo without needing to be held.
• To cancel Turbo for a specific button: Tryk og hold på T knap, then press the desired A/B/X/Y/L/R/ZL/ZR button a third time.
• To cancel all Turbo functions: Tryk og hold på T knap i 5 sekunder.

Image 4: Diagram illustrating the button combinations for setting and canceling the Turbo function on the controller.

5.3 Vibrationsjustering

The controller features dual vibration feedback with 5 adjustable levels (0%, 30%, 50%, 70%, 100%).

• To adjust vibration intensity: Tryk og hold på T knap, og tryk derefter på Directional Button Up to increase vibration or Directional Button Down to decrease vibration.
• Standardvibrationsniveauet er 50 %.

Image 5: Graphic showing the T button and directional buttons used to adjust the vibration intensity, with a scale from 0% to 100%.

5.4 RGB Light Adjustment

The controller features RGB lighting around the analog sticks, which can be customized.

• To change monochromatic light color: Tryk og hold på T knap, og tryk derefter på Venstre Analog Stick (L3) once. Repeat to cycle through colors.
• To activate colorful light mode: Tryk og hold på T knap, then double-press the Venstre Analog Stick (L3).
• Sådan justeres lysstyrken: Tryk og hold på T knap, og tryk derefter på Højre analog stick (R3) for at justere lysstyrkeniveauer.

Image 6: Instructions for changing the RGB light color and adjusting brightness using the T button and analog stick presses.

5.5 NFC/Amiibo Function

The controller supports NFC functionality for scanning Amiibo figures and cards.

• Ensure the NFC function is enabled in your game or Switch system settings.
• Place your Amiibo figure or card over the NFC sensor area, typically located near the center of the controller, between the analog sticks.
• The console will register the Amiibo data.

Image 7: Graphic highlighting the NFC area on the controller, indicating support for Amiibo scanning.

5.6 Motion Control (6-Axis Gyro)

The built-in 6-axis gyroscope provides precise motion control for compatible games, enhancing gameplay through features like visual angle adjustment, direction control, and aim shooting.

Image 8: Illustrations demonstrating the 6-axis gyro functionality for visual angle adjustment, direction control, and aim shooting in games.

6. Opladning af controlleren

The controller is equipped with a 600mAh high-capacity rechargeable battery.

• Connect the provided USB-C charging cable to the USB-C port on the controller.
• Connect the other end of the cable to a USB power source (e.g., Nintendo Switch dock, USB wall adapter, computer USB port).
• The indicator lights on the controller will show charging status. They will typically blink while charging and turn solid or off when fully charged.
• A full charge usually takes approximately 2-3 hours.

7. Vedligeholdelse

• Hold controlleren tør og væk fra fugt.
• Undgå at udsætte controlleren for ekstreme temperaturer.
• Rengør controlleren med en blød, tør klud. Brug ikke skrappe kemikalier eller slibende materialer.
• Store the controller in a safe place to prevent damage from drops or impacts.

8. Fejlfinding

• Controller does not connect:
  • Sørg for, at controlleren er opladet.
  • Repeat the initial pairing process (Section 4.1).
  • Ensure the Switch console is updated to the latest firmware.
  • Try connecting the controller via USB-C cable to the Switch dock.
  • Reset the controller by inserting a thin object into the small reset hole (if present, usually on the back).
• Buttons or joysticks are unresponsive:
  • Kontroller, om controlleren er korrekt tilsluttet.
  • Test the controller in Switch's "Calibrate Control Sticks" or "Test Input Devices" settings.
  • Ensure no debris is obstructing the buttons or sticks.
• Vibration is not working:
  • Check the vibration adjustment settings (Section 5.3) to ensure it's not set to 0%.
  • Bekræft, at det spil, du spiller, understøtter vibrationsfeedback.
• NFC/Amiibo not detected:
  • Ensure the Amiibo is placed correctly over the NFC sensor.
  • Verify that the game or Switch system settings have NFC enabled.

9. Specifikationer

10. Garanti og support

For warranty information or technical support, please refer to the official IINE webwebstedet eller kontakt deres kundeservice direkte. Behold din købskvittering som købsbevis.

For further assistance, you may visit the IINE Store on Amazon: IINE Official Store
