Indledning
This manual provides essential information for the proper installation, operation, and maintenance of your wet sounds REV 10 B-SXM V2 Revolution Series 10" Black Tower Speaker. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Figur 1: wet sounds REV 10 B-SXM V2 Revolution Series Tower Speaker. This image displays the speaker's sleek black finish and the distinctive grille design, highlighting its robust construction.
Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af produktet:
- Ensure all power connections are secure and correctly polarized before applying power.
- Udsæt ikke højttaleren for ekstreme temperaturer eller direkte sollys i længere perioder.
- Avoid disassembling the speaker. Refer all servicing to qualified personnel.
- Use appropriate mounting hardware and techniques to secure the speaker, especially in marine or vehicle environments, to prevent detachment during operation.
- Protect wiring from sharp edges and moving parts to prevent shorts or damage.
Produktegenskaber
The wet sounds REV 10 B-SXM V2 speaker is engineered for high-performance audio in demanding environments. Key features include:
- RMS effekt: 300 watt
- Spidseffekt: 600 watt
- Impedans: 4 Ohm
- Frekvensrespons: 20Hz - 20kHz
- Følsomhed: 92dB @ 1W/m
- Højttalertype: Tower højttaler
- Subwoofer diameter: 10 tommer
- Monteringstype: Clamp Mount (TC3 Swivel X Mount)
- Forbindelse: Kablet
- Lydudgangstilstand: Stereoanlæg

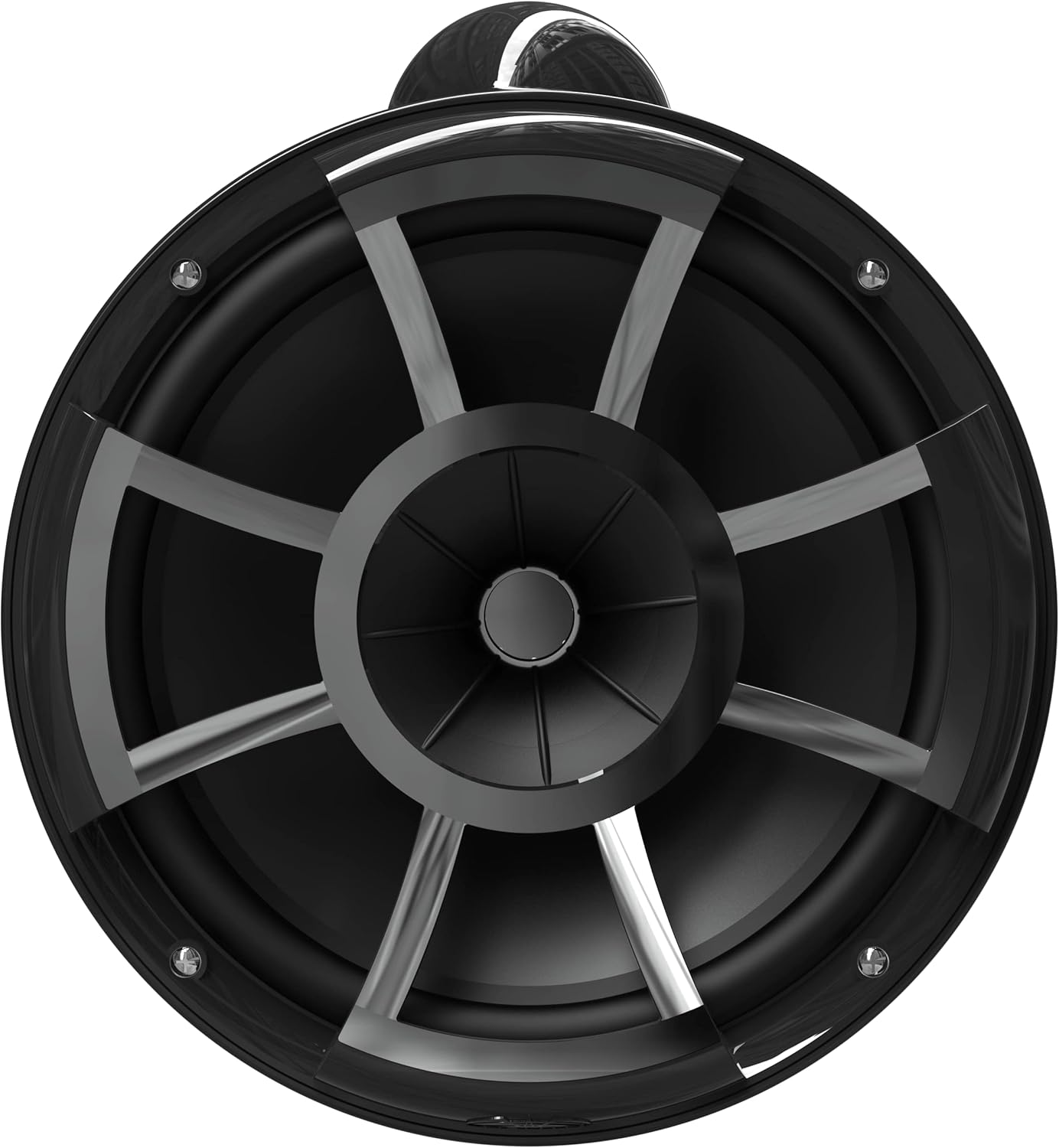

Figur 2: Front view of the REV 10 B-SXM V2 speaker. This image provides a clear view of the speaker's cone and grille, showcasindens design og konstruktion.
Komponenter inkluderet
The package for your REV 10 B-SXM V2 Tower Speaker includes:
- One (1) wet sounds REV 10 B-SXM V2 Revolution Series 10" Black Tower Speaker
- TC3 Swivel X Mount
- Necessary mounting hardware (screws, washers, etc.)
- Wiring harness (if applicable, for power and audio connections)
- Brugervejledning (dette dokument)
Opsætning og installation
Proper installation is crucial for the performance and safety of your speaker. It is recommended that installation be performed by a qualified professional.
1. Montering af højttaleren
- Vælg monteringssted: Choose a secure location on your boat, UTV, or other vehicle that can support the speaker's weight (approximately 30 lbs) and provide optimal sound dispersion. Ensure the location allows for the TC3 Swivel X Mount's rotation.
- Fastgør montering: Securely attach the TC3 Swivel X Mount to the chosen surface using the provided hardware. Ensure the mount is firmly tightened to prevent vibration or movement.
- Attach Speaker to Mount: Carefully align the speaker with the TC3 Swivel X Mount and secure it according to the mount's instructions. Double-check all connections to ensure the speaker is stable and will not detach during vehicle operation.

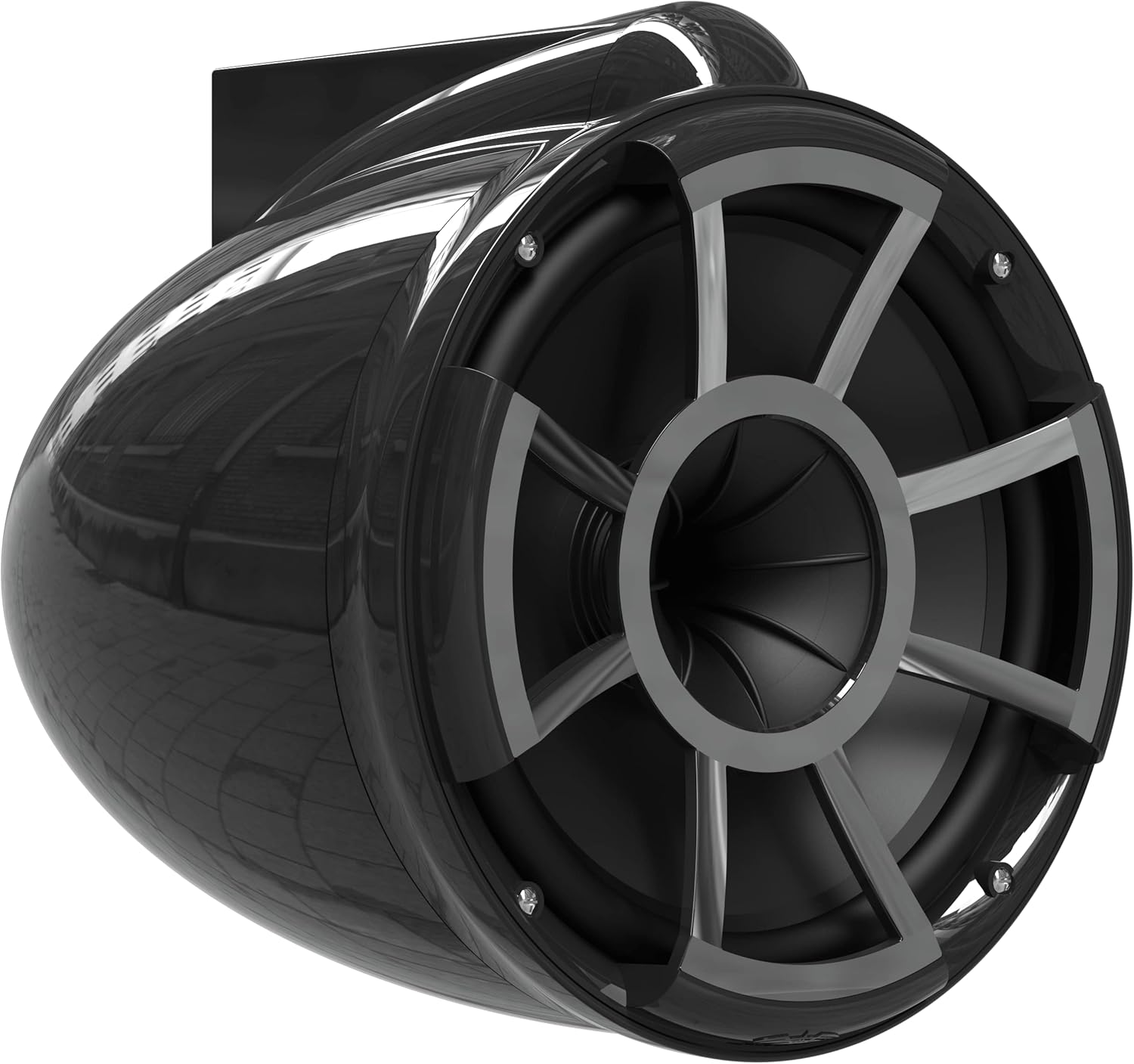

Figur 3: Vinklet view of the REV 10 B-SXM V2 speaker, showing the integrated mounting bracket. This perspective helps visualize how the speaker attaches to its mount.
2. Ledningsforbindelser
Connect the speaker to your audio system (amplifier, head unit) following these guidelines:
- Strømledninger: Connect the speaker's power wires to an appropriate ampSørg for, at amplifier can handle a 4-ohm load and provides sufficient RMS power (300W per speaker).
- Lydsignal: Connect the audio input wires from your head unit or audio source to the amplifers input.
- Jording: Ensure a proper ground connection for both the speaker and the amplifier to prevent noise and ensure stable operation.
- Kabelstyring: Route all cables away from heat sources, sharp objects, and moving parts. Use cable ties to secure wiring.
Betjeningsvejledning
Once installed and wired, operate your wet sounds REV 10 B-SXM V2 speaker as follows:
- Tænd: Turn on your audio system's head unit and amplivligere.
- Lydstyrkekontrol: Adjust the volume using your head unit's or ampkontroller på apparatet. Start ved lav lydstyrke og øg den gradvist til et behageligt lytteniveau.
- Valg af lydkilde: Select your desired audio source (e.g., radio, Bluetooth, auxiliary input) from your head unit.
- Lydjustering: Utilize your audio system's equalizer or tone controls to fine-tune the bass, treble, and midrange to your preference.
- Drejejustering: The TC3 Swivel X Mount allows you to adjust the speaker's direction for optimal sound projection. Loosen the swivel mechanism, adjust the speaker, and then re-tighten securely.
Opretholdelse
Regular maintenance will help preserve the appearance and performance of your speaker:
- Rensning: Brug en blød, damp cloth to wipe down the speaker enclosure. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners or solvents.
- Vedligeholdelse af gitter: Periodically inspect the speaker grille for debris. Clean gently with a soft brush if necessary.
- Tilslutningskontrol: Annually, inspect all wiring connections for corrosion or looseness. Re-tighten or clean as needed.
- Monteringshardware: Check mounting bolts and screws periodically to ensure they remain tight, especially after prolonged use in vibrating environments.
Fejlfinding
Hvis du støder på problemer med din højttaler, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd | Ingen strøm til amplifier; loose wiring; incorrect audio source selected; amplifer i beskyttelsestilstand. | Check amplifier power and fuses. Verify all wiring connections. Select correct audio source. Reset amplifer, hvis den er i beskyttelsestilstand. |
| Forvrænget lyd | Volume too high; improper gain settings on amplifier; damaged speaker wire; impedance mismatch. | Reducer lydstyrken. Juster amplifier gain settings. Inspect speaker wires for damage. Ensure amplifier impedance matches speaker. |
| Intermitterende lyd | Loose wiring connections; faulty audio cable; ampoverophedning af lieren. | Check and secure all wiring. Replace audio cables if damaged. Ensure adequate ventilation for amplivligere. |
| Speaker Detachment/Vibration | Løst monteringsudstyr. | Re-tighten all mounting bolts and screws on the TC3 Swivel X Mount. |
If the problem persists after attempting these solutions, please contact wet sounds customer support.
Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnavn | REV-10-B-SXM-V2 |
| RMS-strøm | 300 watt |
| Peak Power | 600 watt |
| Impedans | 4 Ohm |
| Frekvensrespons | 20Hz - 20kHz |
| Følsomhed | 92dB @ 1W/m |
| Højttaler type | Tårn |
| Subwoofer diameter | 10 tommer |
| Produktmål (D x B x H) | 28" D x 14" B x 18" H |
| Varens vægt | 30 pund |
| Monteringstype | Clamp Monter |
| Forbindelsesteknologi | Kablet |
| Farve | MULTICOLOR (Black) |
| UPC | 814820028188 |
Garantioplysninger
The wet sounds REV 10 B-SXM V2 Revolution Series Tower Speaker comes with a Begrænset garanti. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and duration of your warranty, please refer to the warranty card included with your product or visit the official wet sounds webwebsted. Gem din købsbevis til garantikrav.
Støtte
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact wet sounds customer support:
- Webwebsted: www.wetsounds.com (Tjek venligst den officielle webwebsted for de seneste kontaktoplysninger og supportressourcer.)
- Telefon: Refer to the wet sounds webwebsted for regionale kontaktnumre.
- E-mail: Refer to the wet sounds webwebsted for support-e-mailadresser.
When contacting support, please have your product model number (WETREV10B-SXMV2) and purchase date available.
