Produkt overview
The Blue Wave Laguna 15-ft Round 48-in Deep Swimming Pool Package is designed for seasonal use, offering a complete backyard pool solution without the need for in-ground installation. This pool features durable construction and essential accessories for a refreshing swimming experience.

Image: Complete Blue Wave Laguna pool package, including the round pool, ladder, filter system, and maintenance tools.
Nøglefunktioner:
- Heavy-Gauge PVC Liner & Steel Frame: Constructed with a reinforced polyester mesh interior and a corrosion-resistant, powder-coated steel frame for enhanced durability and stability.
- Nem montering: Features snap-together T-frame construction for quick and effortless setup without specialized tools.
- High-Efficiency Pool Filter: Includes the EZ Clean 100 filter system, pre-loaded with CottonTail media for superior water clarity, and compatible with Type C filter cartridges.
- Komplet pakke: Comes with an A-frame ladder, pool cover, and a maintenance kit for comprehensive pool care.
- Dimensioner: 15-ft diameter x 48-in height, with a 4,770-gallon capacity.

Image: Infographic highlighting key features: Heavy-Gauge PVC, Fade Resistant Materials, Rust Resistant, and 4,770 Gallons Water Capacity.

Image: Diagram showing the pool's dimensions (15 ft diameter, 48 in height) and structural components: Steel Frames, T-Frame Connectors, and Polyester Mesh.
Opsætning og montering
Proper site preparation and careful assembly are crucial for the stability and longevity of your Blue Wave Laguna pool. Follow these steps to ensure a smooth setup process.
1. Site Selection and Preparation:
- Choose a level, firm surface free of sharp objects, rocks, or debris. The area should be larger than the pool's diameter (15 ft).
- Ensure the site is away from overhead power lines, trees, and structures that could cause damage or shade the pool excessively.
- Clear and level the ground. A slight slope can cause uneven water distribution and stress on the pool structure.
- Consider placing a ground cloth or tarp (not included) under the pool liner for added protection.
2. Pool Frame Assembly:
- Pak alle komponenter ud, og verificer dem i forhold til delelisten i din separate samlevejledning.
- Lay out the pool liner in the chosen area, ensuring it is centered and free of wrinkles.
- Assemble the steel frame components by snapping them together. The T-frame connectors provide secure joints. Refer to the detailed diagrams in your assembly manual for specific connections.
- Ensure all vertical and horizontal beams are correctly inserted and locked into place.
3. Liner Installation and Filling:
- Once the frame is assembled, carefully pull the liner up and over the top rails, ensuring it is evenly distributed and taut.
- Begin filling the pool with water. As the water level rises, smooth out any wrinkles from the center outwards.
- Do not overfill the pool. The water level should be maintained at the recommended height, typically below the top rail.
4. Filter System and Ladder Installation:
- Install the EZ Clean 100 filter system according to its dedicated instructions. Connect the hoses to the pool's inlet and outlet ports.
- Ensure the filter system is placed on a stable, level surface near the pool and connected to a GFCI-protected electrical outlet.
- Assemble the A-frame ladder. Place it securely against the pool wall, ensuring both sides are firmly on the ground. The ladder is designed for safe entry and exit, supporting up to 672 lbs.

Image: The sturdy A-frame ladder with a platform, designed for safe and easy access to the pool.
Operation
Operating your Blue Wave Laguna pool involves maintaining water quality and ensuring the filter system runs efficiently.
1. Filter System Operation:
- The EZ Clean 100 filter system is crucial for keeping your pool water clean. Run the filter for at least 8-12 hours daily, or as needed based on usage and water clarity.
- The system comes pre-loaded with CottonTail media, which provides excellent filtration. You can also use a Type C filter cartridge if preferred.
- Regularly check the filter for debris and clean or replace the media as instructed in the filter system's manual.

Image: Components of the EZ Clean 100 Filter System, including the filter unit, hoses, and CottonTail filter media.

Image: Infographic detailing the benefits of the EZ Clean 100 Filter System: Crystal Clear Water and Flowxtreme Cotton Tails Filter Balls for superior purification.
2. Vandkemi:
- Test your pool water regularly (daily or every other day) for pH, chlorine, and alkalinity levels using a pool test kit (not included).
- Maintain pH levels between 7.4 and 7.6 for optimal comfort and chemical effectiveness.
- Add appropriate pool chemicals as needed to balance the water chemistry. Always follow chemical manufacturer's instructions carefully.
3. Pool Cover Usage:
- Brug det medfølgende poolovertræk, når poolen ikke er i brug, for at forhindre snavs i at trænge ind i vandet og for at reducere fordampning.
- Ensure the cover is securely fastened to prevent it from blowing off in windy conditions.

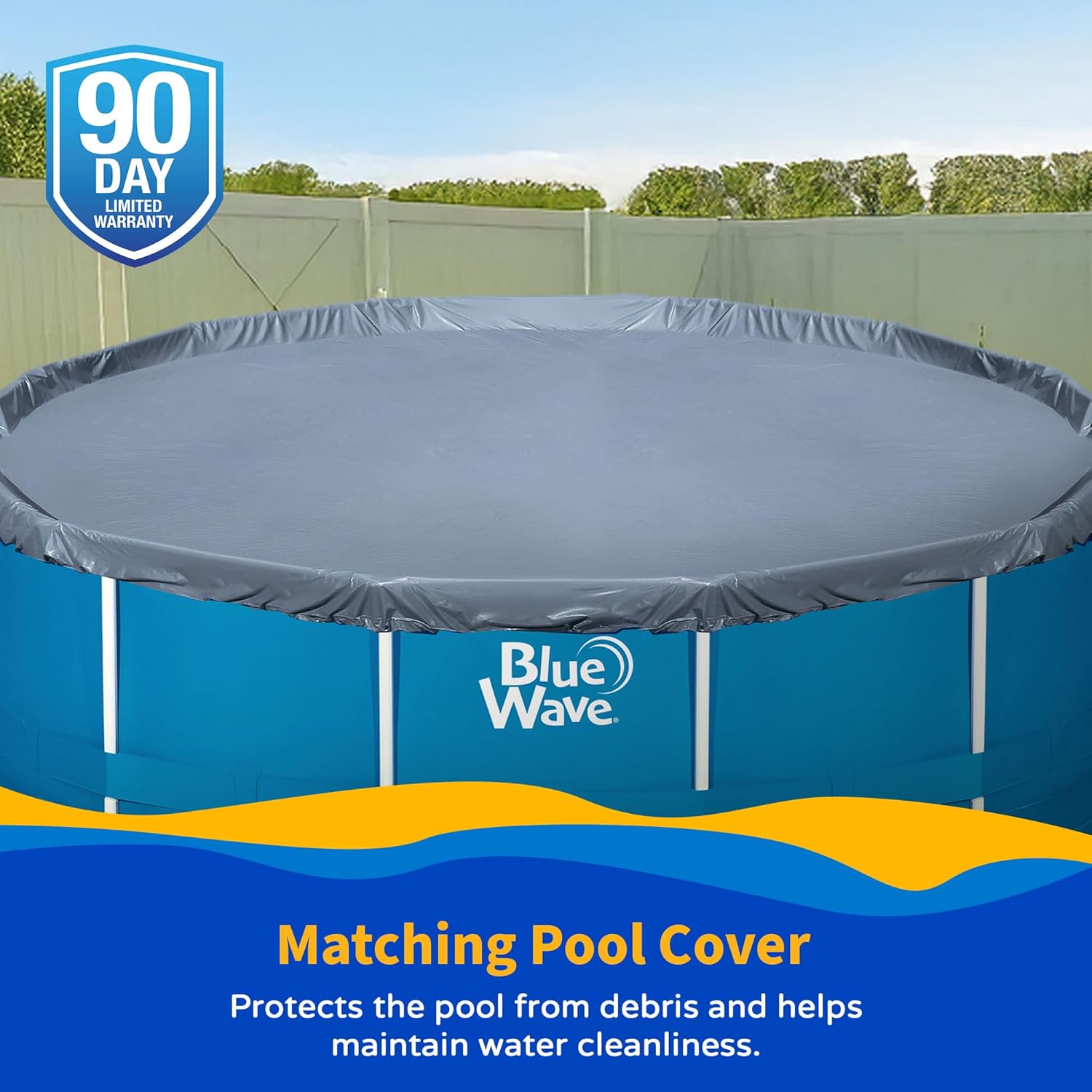

Image: The Blue Wave Laguna pool with its matching grey pool cover installed, protecting the water from debris.
Opretholdelse
Regelmæssig vedligeholdelse vil forlænge din pools levetid og sikre rene og sikre svømmeforhold.
1. Daily/Weekly Cleaning:
- Use the included skimmer net to remove leaves, insects, and other floating debris from the water surface.
- Utilize the vacuum head and telescopic pole to clean the pool floor and walls. The leaf bagger vacuum can assist with larger debris.
- Brush the pool walls and floor regularly to prevent algae growth and remove stubborn dirt.

Image: The complete maintenance kit, including a leaf bagger vacuum, vacuum head, skimmer net, and telescopic pole.
2. Filtervedligeholdelse:
- Clean or replace the filter media (CottonTail or Type C cartridge) as recommended by the filter system's manual, typically every 1-2 weeks depending on usage.
- Backwash the filter if applicable, or rinse cartridges thoroughly with a garden hose until clean.
3. Winterization (Seasonal Use):
- Before freezing temperatures arrive, drain the pool completely.
- Clean the liner and frame thoroughly. Allow all components to dry completely to prevent mold or mildew.
- Disassemble the frame and store all components in a dry, protected area, away from extreme temperatures and pests.
- Store the filter system, ladder, and maintenance kit indoors.
Fejlfinding
This section addresses common issues you might encounter with your Blue Wave Laguna pool.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Vandet er uklart eller grønt. | Utilstrækkelig filtrering, ukorrekt kemisk balance, algevækst. | Run filter longer (12-24 hours). Test and adjust water chemistry (chlorine, pH). Shock the pool. Clean or replace filter media. |
| Filter system not circulating water. | Clogged filter, air in system, pump malfunction, kinked hoses. | Clean or replace filter media. Bleed air from the system. Check hose connections for kinks or blockages. Ensure pump is plugged in and GFCI is not tripped. |
| Pool losing water. | Evaporation, splash-out, leak in liner or connections. | Normal evaporation occurs. Check for visible leaks around connections and liner. Patch small holes in liner with a repair kit (not included). |
| Liner wrinkles at bottom. | Ujævnt terræn, foringen ikke udjævnet under påfyldning. | Difficult to correct once filled. Ensure ground is perfectly level before setup. Smooth liner from center outwards during initial filling. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Blå Bølge |
| Modelnummer | NB19909 |
| UPC | 672875009978 |
| Form | Rund |
| Produktdimensioner | 180"L x 180"B x 48"H (15 fod i diameter x 48 tommer i højden) |
| Kapacitet | 4,770 gallons |
| Materiale | Metal (Frame), Heavy-Gauge PVC with Polyester Mesh (Liner) |
| Farve | Blå |
| Varens vægt | 137.8 pund |
| Inkluderede komponenter | Pool, A-frame ladder, EZ Clean 100 filter system (with CottonTail media), pool cover, vacuum head, leaf skimmer, telescopic pole. |
| Montering påkrævet | Ja |
Garanti og support
The Blue Wave Laguna 15-ft Round Above Ground Swimming Pool is backed by a 90 dages begrænset garanti. This warranty covers manufacturing defects and ensures the product meets quality standards for a specified period from the date of purchase.
For warranty claims, technical assistance, or replacement parts, please contact Blue Wave customer support directly. Keep your proof of purchase readily available.
For further assistance, you may visit the official Blue Wave webwebstedet eller se kontaktoplysningerne på din produktemballage.
Vigtige sikkerhedsoplysninger: This product contains small parts and may pose a choking hazard. Please refer to all safety warnings and guidelines provided in the product packaging and accompanying documentation, including Proposition 65 warnings where applicable.
