VIVOSUN 3700 GPH dykpumpe brugsanvisning

1. Introduktion

This manual provides essential information for the safe and efficient operation of your VIVOSUN 3700 GPH Submersible Water Pump. Please read all instructions carefully before installation and use. This pump is designed for various water circulation applications including ponds, waterfalls, fish tanks, statuary, and hydroponic systems.

2. Sikkerhedsinstruktioner

WARNING: To reduce the risk of electric shock, fire, or injury, please follow these guidelines:

• Always plug the pump into a properly grounded receptacle.
• To reduce the risk of electric shock, install only on a circuit protected by a ground fault circuit interrupter (GFCI).
• This pump is not designed for use in swimming pools or marine environments.
• Do not run the pump dry. Ensure the pump is fully submerged in water during operation.
• Before performing any maintenance or cleaning, always unplug the pump from the power source.
• Inspect the power cord for any damage before each use. Do not use if the cord is frayed or damaged.

3. Produktet er slutview

3.1 Komponenter og funktioner

The VIVOSUN 3700 GPH Submersible Water Pump is engineered for durability and performance. Key components and features include:

• Solid konstruktion: The shaft and drive ring are made from silicon carbide material, reducing attrition and increasing levetid.
• Overbelastningsbeskyttelse: The pump is designed with built-in overload protection for enhanced safety and longevity.
• Ultra-stille drift: Operates at a low noise level (30-40dB).
• Energieffektiv: 300W power consumption with a high output of 3700 GPH (13875 LPH).
• Detachable Filter & Barrier Bag: Effectively prevents clogging and extends pump life.
• Adjustable Outlet Direction: Allows for flexible water flow positioning.
• Lang strømledning: A 20-foot power cord provides ampnå.
• Spout Adapters: Includes 3 adapters suitable for various water pipe sizes.
• Justerbar slange Clamps: Ensures a secure and leak-free connection for hoses.
• Sugekopper: Four strong suction cups firmly secure the pump for stability.
• Bærbart håndtag: Integrated handle for easy transport and positioning.

Figure 1: VIVOSUN 3700 GPH Submersible Water Pump with accessories including hose clamps, barrier bag, and various spout adapters.

Figure 2: The pump features a detachable inlet mesh cover designed to prevent large debris from entering and clogging the pump, ensuring continuous high flow.

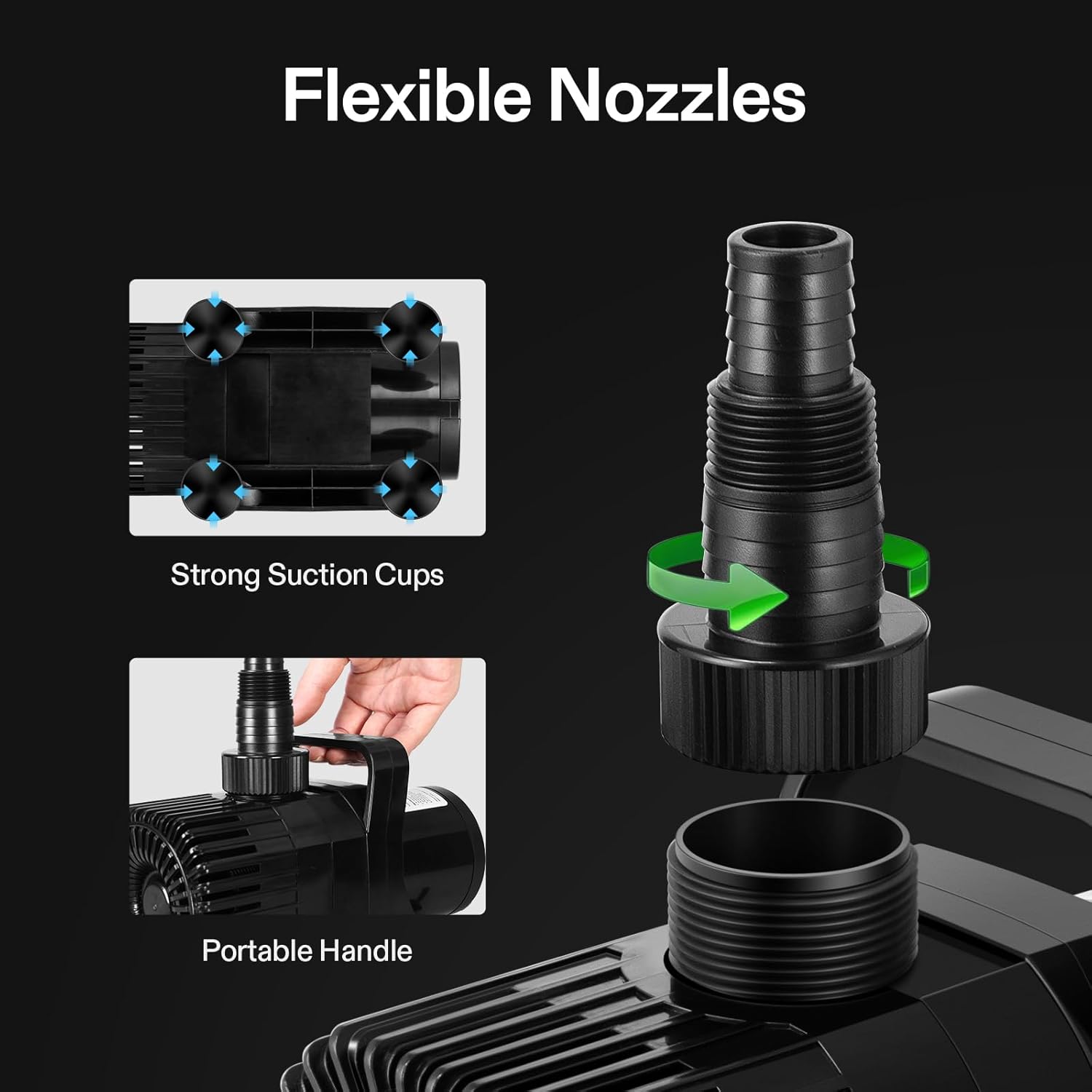

Figure 3: Illustrates the pump's flexible nozzles for varied connections, strong suction cups for stable placement, and a portable handle for easy relocation.

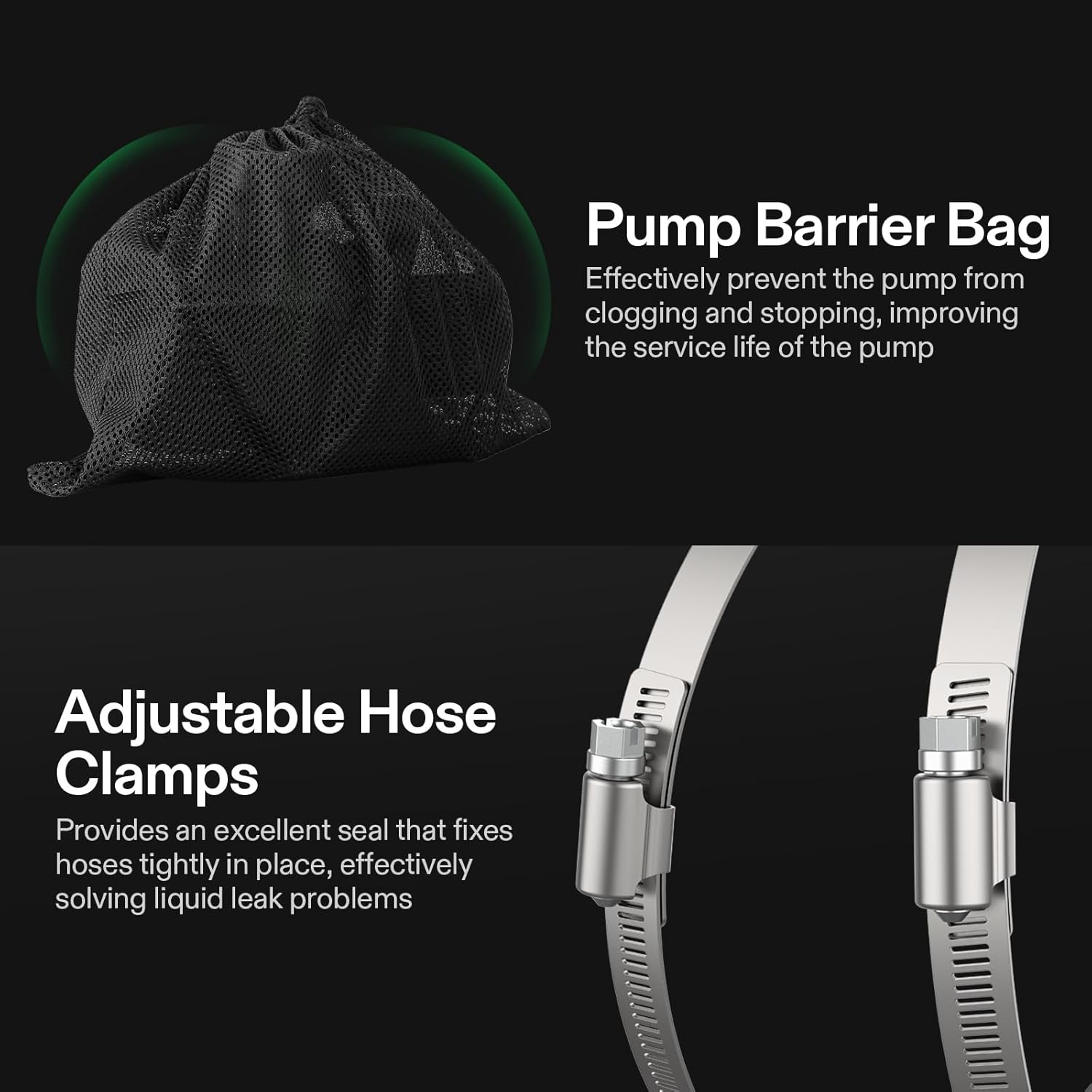

Figure 4: Details the pump barrier bag, which protects against clogging, and adjustable hose clamps for secure hose connections.

Figur 5: En eksploderet view diagram highlighting key features such as the handle, motor, silicone suction cups, water outlets for both submerged and land use, and the water filter.

4. Opsætningsvejledning

Follow these steps for proper installation of your VIVOSUN submersible pump:

1. Vælg placering: Select a suitable location for the pump. It can be used fully submerged in water or inline (for land use). Ensure the location allows for easy access for maintenance and is within reach of a grounded power outlet.
2. Attach Spout Adapter: Select the appropriate spout adapter for your hose size. Screw the adapter onto the pump's outlet.
3. Tilslut slange: Attach your water hose to the spout adapter. Secure the connection using the provided adjustable hose clamp for at forhindre lækager.
4. Positioner pumpe: If using submerged, place the pump at the desired depth in your pond, fish tank, or reservoir. The suction cups on the base will help secure it to a smooth surface. If using inline, ensure the pump is placed on a stable, level surface.
5. Install Barrier Bag (Optional but Recommended): For submerged use, place the pump inside the provided barrier bag. This fine mesh bag helps prevent larger debris from entering the pump, reducing the frequency of internal cleaning. Secure the drawstring of the bag around the power cord and hose connection.
6. Strømtilslutning: Ensure all connections are secure and the pump is properly positioned before plugging the 20-foot power cord into a grounded GFCI-protected electrical outlet.

5. Betjeningsvejledning

Once the pump is properly set up and connected to a power source, operation is straightforward:

1. Opstart: Plug the pump into the electrical outlet. The pump will begin operating immediately, circulating water.
2. Overvågning: Observe the water flow to ensure it is consistent and meets your requirements. The pump is designed for continuous operation.
3. Nedlukning: For at stoppe pumpen skal du blot tage stikket ud af stikkontakten.

This pump is versatile and can be used for:

• Ponds and Waterfalls: For circulation and creating water features.
• Fish Tanks and Aquariums: To maintain water movement and filtration.
• Statuary: For circulating water in decorative fountains.
• Hydroponic Systems: For nutrient solution circulation.

Figure 6: Demonstrates the multiple usage scenarios for the VIVOSUN submersible pump, including ponds, fountains, aquariums, hydroponics, and irrigation systems.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger pumpens levetid.

1. Afbryd strømmen: Always unplug the pump before any maintenance.
2. Clean Inlet Mesh Cover: The detachable inlet mesh cover should be regularly inspected and cleaned to remove any accumulated debris (leaves, algae, etc.) that could restrict water flow.
3. Clean Barrier Bag: If using the barrier bag, remove it and clean any trapped debris. The fine mesh is designed to be tear-resistant and prevent clogging.
4. Inspekter impeller: Periodically remove the pump's cover to access the impeller. Clean any debris or mineral buildup from the impeller and its housing. The silicon carbide components are designed for wear resistance.
5. Tjek forbindelser: Ensure all hose connections and electrical cords are secure and free from damage.
6. Winterization (for outdoor use): In freezing temperatures, remove the pump from the water, clean it thoroughly, and store it in a frost-free location.

7. Fejlfinding

Hvis du støder på problemer med din pumpe, kan du se følgende almindelige problemer og løsninger:

8. Specifikationer

Detailed technical specifications for the VIVOSUN 3700 GPH Submersible Water Pump:

Figure 7: A visual representation of the pump's dimensions and the various spout adapter sizes included.

9. Garanti og support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official VIVOSUN webwebsted. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
