LOKITHOR J402 Jump Starter Brugermanual

1. Introduktion

This manual provides essential information for the safe and effective use of your LOKITHOR J402 Jump Starter. Please read this manual thoroughly before operating the device and retain it for future reference. The LOKITHOR J402 is a powerful and versatile portable lithium car battery booster pack designed to jump-start vehicles with up to 9.0L gasoline and 7.0L diesel engines. It also functions as a power bank with 100W two-way fast charging capabilities and features a smart digital screen for real-time monitoring.

Figure 1.1: LOKITHOR J402 Jump Starter Unit and Accessories

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden og køretøjet:

• Kortslut ikke jumperen clamps. Ensure positive (+) and negative (-) terminals do not touch.
• Do not expose the device to extreme temperatures outside the operating range (-4°F to 140°F).
• Keep the device away from moisture and water, although it is IP65 water-resistant, prolonged submersion should be avoided.
• Forsøg ikke at skille enheden ad eller ændre den. Overlad al service til kvalificeret personale.
• Sørg for tilstrækkelig ventilation under brug og opladning.
• Opbevares utilgængeligt for børn.
• Always connect the positive (red) clamp to the positive (+) battery terminal and the negative (black) clamp to the negative (-) battery terminal or a suitable ground point on the vehicle chassis.
• Afbryd clamps in reverse order: negative first, then positive.

Figure 2.1: Integrated Safety Protection Technologies

3. Produktet er slutview

3.1 Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• J402 Portable Lithium Car Battery Jump Starter
• LO-CLAMP-Pro (Jump start clamps)
• 12V adapter
• Brugermanual
• USB-C til USB-C kabel
• USB-A til USB-C kabel

Figur 3.1: Hvad er der i æsken

3.2 Nøglefunktioner

• Kraftig ydeevne: 3000A peak current, capable of up to 60 jump-starts on a full charge. Suitable for 9.0L gas and 7.0L diesel engines.
• Intelligent Multi-Protection: Real-time batteri voltage detection, Spark-Proof, Reverse-Charge, Over-Charge, Over-Current, Short-Circuit, Reverse-Polarity, Low-Temp, High-Temp, Over-Voltage, and Over-Load Protection.
• 100W Two-way Fast Charging: Fully recharges in approximately 54 minutes. Can provide enough charge to start a car in just 3 minutes.
• Udvidet standby: Up to 48-month standby time due to ultra-low self-discharge rate.
• Holdbart design: IP65 water-resistant and 94V0 flame retardant enclosure, designed to withstand harsh environments (-4°F to 140°F).
• Multifunktionel: Functions as a jump starter, power bank for USB-C devices, and features a 300 lumen LED flashlight with multiple modes (lighting, SOS, strobe).

Figur 3.2: Nøglepræstationsindikatorer

3.3 Kontrolpanel og indikatorer

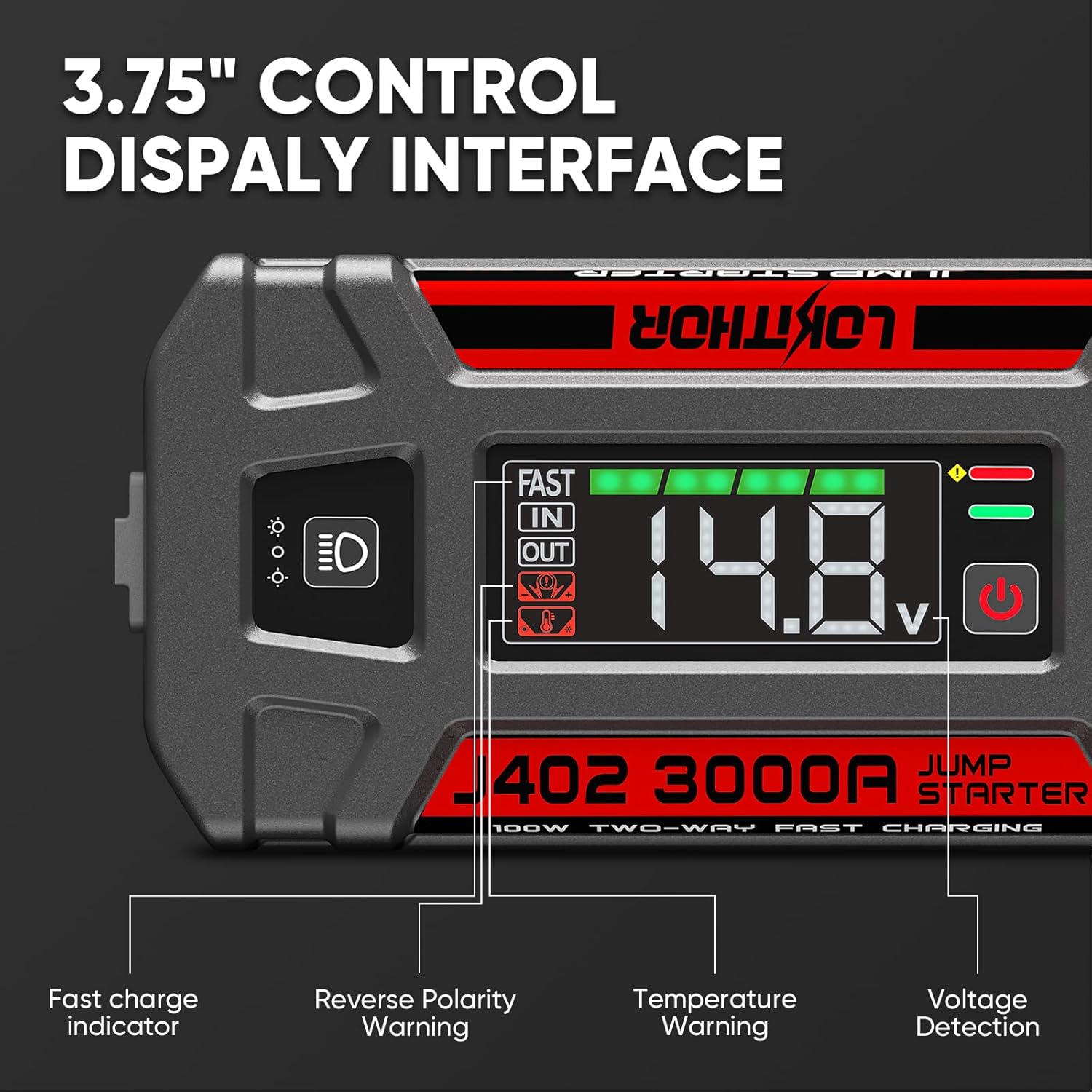

The J402 features a 3.75-inch digital display interface that provides real-time information about the device's status.

Figure 3.3: Control Display Interface

• Indikator for hurtig opladning: Indicates when fast charging is active.
• IN/OUT Indicators: Shows whether the device is charging (IN) or discharging (OUT).
• Reverse Polarity Warning: Alerts if clamps er forbundet forkert.
• Temperaturadvarsel: Indicates if the device temperature is outside safe operating limits.
• Voltage Detektion: Viser realtids voltage af det tilsluttede batteri.
• Batteriindikator: Shows the internal battery level of the jump starter.
• LED Light Power Button: Aktiverer den indbyggede lommelygte.
• Power knap: Tænder/slukker enheden.

4. Opsætning

4.1 Indledende opladning

Before first use, fully charge your LOKITHOR J402. Use the provided USB-C to USB-C cable and a compatible 100W USB-C power adapter (not included) for fastest charging. The digital display will show the charging status.

4.2 Connecting Clamps

Ensure the jump starter is turned off before connecting the clamps. Insert the jumper cable connector firmly into the jump starter's output port. The unit is designed with an integrated spark-proof system for safety.

Figure 4.1: Integrated Spark-Proof Design

5. Betjeningsvejledning

5.1 Jumpstart af et køretøj

Follow these steps to jump-start your vehicle:

1. Ensure the LOKITHOR J402 is sufficiently charged.
2. Tilslut den røde (positive, +) polamp til den positive pol på køretøjets batteri.
3. Tilslut den sorte (negative, -) polamp to the negative terminal of the vehicle's battery or a solid, unpainted metal part of the engine block/chassis.
4. Turn on the LOKITHOR J402. The display will show the battery voltage.
5. Start dit køretøj.
6. Once the vehicle starts, immediately disconnect the black (negative) clamp først, derefter den røde (positive) clamp.
7. Turn off the LOKITHOR J402.

Force Start Function (for batteries below 8V)

Hvis køretøjets batteri voltage is extremely low (below 8V), the normal jump-start procedure may not work. In this case, use the force start function:

1. Tilslut clamps som beskrevet ovenfor.
2. Long press the 'Power' button and the 'LED Light' button simultaneously until the green indicator flashes.
3. Start your vehicle within 30 seconds.
4. Immediately disconnect the clamps after the vehicle starts.

Figure 5.1: Jump Start Procedures

5.2 Brug som powerbank

The LOKITHOR J402 can charge various electronic devices via its USB-C (100W max) and USB-A (18W max) output ports.

• Connect your device to the appropriate USB port using a compatible cable.
• The device will automatically begin charging.

Figure 5.2: Multi-Device Charging Capability

5.3 Brug af LED-lommelygten

The built-in 300 lumen LED flashlight offers multiple modes for various situations:

• Sådan tænder/slukker du: Long press the LED light power button.
• To cycle modes: Short press the LED light power button. Modes include: Continuous Lighting, SOS (Morse code), and Strobe.

Figure 5.3: LED Flashlight Modes and Uses

6. Opladning af enheden

The LOKITHOR J402 supports 100W two-way fast charging, allowing for quick recharges.

6.1 Fast Charging via USB-C

For optimal charging speed, use the provided USB-C to USB-C cable with a 100W compatible power adapter.

• Connect the USB-C cable to the J402's USB-C port and to a power adapter.
• En fuld opladning tager cirka 54 minutter.
• A 3-minute charge can provide enough power for a single jump start.

Figure 6.1: 100W Two-Way Fast Charging

6.2 Charging via 12V Adapter

You can also charge the J402 using the provided 12V adapter in your vehicle's cigarette lighter socket.

• Connect the 12V adapter to the J402's input port and then to your vehicle's 12V accessory socket.
• This method is convenient for charging on the go.

Figure 6.2: Charging Anytime, Anywhere

7. Vedligeholdelse

• Opbevaring: Store the LOKITHOR J402 in a cool, dry place away from direct sunlight and extreme temperatures.
• Batteripleje: To maintain optimal battery health, recharge the unit every 3-6 months, even if not in use. The device boasts an ultra-low self-discharge rate, allowing for up to 48 months of standby time.
• Rensning: Use a soft, dry cloth to clean the exterior of the device. Do not use harsh chemicals or abrasive materials.
• Inspektion: Regularly inspect the jumper clamps and cables for any signs of damage or wear. Replace if necessary.

Figure 7.1: Extended Standby Time

Figure 7.2: IP65 Waterproof Level Assembly Design

8. Fejlfinding

The LOKITHOR J402 is equipped with a self-inspection system that displays error codes for various conditions. Refer to the table below for common issues and their solutions.

Figur 8.1: Visning af fejlkode

9. Specifikationer

10. Garanti og support

10.1 Garantioplysninger

The LOKITHOR J402 Jump Starter comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. Please retain your proof of purchase for warranty claims.

10.2 Kundesupport

If you encounter any issues or have questions regarding your LOKITHOR J402 Jump Starter, please do not hesitate to contact LOKITHOR customer service. Our team is available to provide lifetime service support.

For contact information, please refer to the official LOKITHOR website or the contact details provided on your product packaging.
