1. Introduktion
Thank you for choosing the ZOKOP Portable Evaporative Cooler. This 3-in-1 unit functions as an evaporative air cooler, air purifier, and humidifier, designed to provide a comfortable environment in various settings. It features a powerful fan, a large water tank, and convenient controls for ease of use. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
Image: The ZOKOP Portable Evaporative Cooler, showcasing its sleek design, front air vents, and a remote control. Blue airflow lines indicate its cooling function.
2. Vigtige sikkerhedsinstruktioner
For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:
- Læs alle instruktioner, før du bruger dette apparat.
- Sørg for, at strømforsyningen voltage matches the rating label on the appliance (110V/60Hz).
- Do not operate the cooler with a damaged cord or plug. If the cord or plug is damaged, contact customer support.
- Do not place the cooler near heat sources, open flames, or in direct sunlight for extended periods.
- Always unplug the cooler from the power outlet before filling or emptying the water tank, cleaning, or performing any maintenance.
- Køleren, ledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
- Keep the cooler out of reach of children and pets. Close supervision is necessary when the appliance is used by or near children.
- Bloker ikke luftindtag eller -udtag. Sørg for tilstrækkelig plads omkring enheden for korrekt luftgennemstrømning.
- Use the cooler only on a flat, stable surface to prevent tipping and water spillage.
- Do not use the cooler in bathrooms or other excessively humid environments where it could come into contact with water.
- If you do not add water, do not press the "Cool" button. The unit can be used as a fan without water.
3. Pakkens indhold
Kontroller venligst pakkens indhold ved åbning. Hvis der mangler eller er beskadigede dele, skal du straks kontakte kundesupport.
- 1 x ZOKOP Evaporative Air Cooler Unit
- 1 x fjernbetjening
- 4 x Wheels (2 locking, 2 non-locking)
- 2 x isposer
- 1 x brugsanvisning
4. Produktkomponenter
Familiarize yourself with the main parts of your evaporative cooler:
- Kontrolpanel (øverst)
- Air Outlet Louvers (Front)
- Water Tank (Bottom, 10.56 Gallon / 40 Liter capacity)
- Water Level Indicator (Front of water tank)
- Water Inlet (Top)
- Air Filter / Cooling Pad (Sides/Rear)
- Casters / Wheels (Bottom)
- Drain Hole (Back)
- Built-in Handle (Top rear)
Billede: Nærbillede view of the cooler's top water tank for filling and the transparent bottom water tank, indicating its 10.56 Gallon capacity.
Image: The cooler with its overall dimensions (19.29" x 14.37" x 38.19") and detailed views of the portable handle and flexible 360-degree rolling wheels.
5. Opsætning og første brug
5.1 Montering af hjulene
- Carefully unbox the evaporative cooler and place it on its side or upside down on a soft surface to avoid scratching.
- Locate the four wheels provided. Two wheels have locking mechanisms, and two do not.
- Insert the stem of each wheel into the designated holes on the bottom of the cooler. Push firmly until they click into place.
- Return the cooler to an upright position. Ensure the locking wheels are positioned at the front for easy access.
5.2 Filling the Water Tank and Adding Ice Packs
For cooling and humidifying functions, water must be added to the tank.
- Ensure the cooler is unplugged from the power outlet.
- Open the water inlet cover located on the top of the unit.
- Pour clean, cool water into the tank. Monitor the water level indicator on the front of the unit. Do not exceed the "MAX" line. The tank capacity is approximately 10.56 Gallons (40 Liters).
- For enhanced cooling, place the two provided ice packs (after freezing them) into the top water tank compartment.
- Luk vandindtagsdækslet forsvarligt.
Image: The top compartment of the cooler with its lid open, revealing two blue ice packs placed inside, ready to enhance cooling.
5.3 Placering
Place the cooler on a firm, level surface. For optimal cooling, position the unit near an open window or door to allow fresh air intake and exhaust of humid air.
6. Betjeningsvejledning
Your ZOKOP Evaporative Cooler can be operated using the touch control panel on the top of the unit or the included remote control.

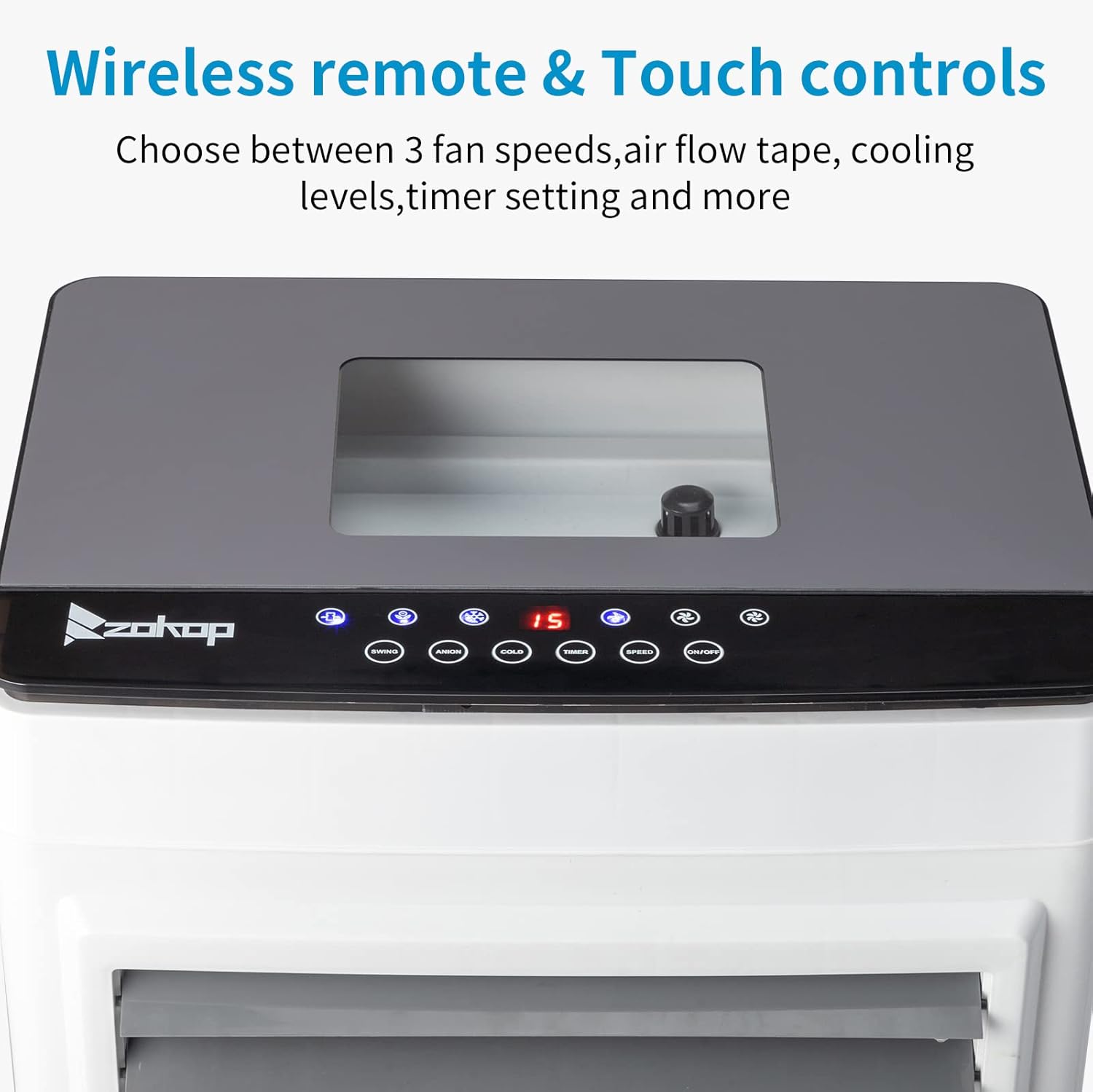

Image: A close-up of the cooler's top control panel with LED display and touch buttons, alongside its wireless remote control.
6.1 Kontrolpanel og fjernbetjeningsfunktioner
| Knap/funktion | Beskrivelse |
|---|---|
| MAGT | Tænder eller slukker enheden. |
| HASTIGHED | Skifter mellem ventilatorhastigheder: Lav, Mellem, Høj. |
| MODE | Selects operating mode: Normal, Natural, Sleep. |
| KØL / FUGT | Activates or deactivates the water pump for evaporative cooling/humidifying. Requires water in the tank. |
| SWING | Activates or deactivates automatic horizontal oscillation (100°). Vertical airflow (120°) is adjusted manually. |
| TIMER | Sets the auto-off timer from 1 to 8 hours. Each press adds 1 hour. |
6.2 driftstilstande
- Normal tilstand: Provides a constant fan speed based on your selection (Low, Medium, High).
- Naturlig tilstand: Simulerer naturlig brise ved at variere ventilatorhastigheden periodisk.
- Sove mode: Gradually decreases fan speed over time to provide quiet operation for sleeping.
Image: Visual representation of the three operating modes (Natural, Normal, Sleep) and their corresponding fan speed levels (Low, Medium, High).
Image: The cooler demonstrating its wide-angle airflow adjustment, with illustrations for 100-degree automatic horizontal swing and 120-degree manual vertical adjustment.
7. Vedligeholdelse og rengøring
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your evaporative cooler.
7.1 Generel rengøring
- Tag altid stikket ud af stikkontakten før rengøring.
- Tør de udvendige overflader af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Sprøjt ikke vand direkte på enheden.
7.2 Rengøring af vandtank
- Tag stikket ud af køleren.
- Drain any remaining water from the tank using the drain hole located at the back of the unit.
- Rengør vandtankens inderside med en blød klud og et mildt rengøringsmiddel. Skyl grundigt med rent vand.
- Lad tanken lufttørre helt, før du genopfylder eller opbevarer enheden.
- Regularly clean the water tank to prevent mold and mildew growth, especially if using the humidifying function frequently.
7.3 Air Filter / Cooling Pad Cleaning
The air filter and cooling pad should be cleaned periodically, depending on usage and air quality.
- Tag stikket ud af køleren.
- Carefully remove the air filter/cooling pad from the side or rear of the unit (refer to product diagram for exact location).
- Rinse the filter/pad under running water to remove dust and debris. For stubborn dirt, use a soft brush and mild soap.
- Allow the filter/pad to air dry completely before reinserting it into the unit. Do not use the cooler without the filter/pad properly installed.
7.4 Opbevaring
- Before storing, ensure the water tank is completely empty and dry.
- Clean all components as described above.
- Store the cooler in a cool, dry place, away from direct sunlight and extreme temperatures.
- Dæk enheden til for at beskytte den mod støv.
8. Fejlfinding
If you encounter issues with your evaporative cooler, please refer to the following table before contacting customer support.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Ikke tilsluttet; Fejl på stikkontakt; Tænd/sluk-knap ikke trykket ind. | Ensure the power cord is securely plugged into a working outlet. Press the POWER button. |
| Ingen kølende effekt. | Water tank is empty; COOL function not activated; Cooling pad is dry or dirty. | Fill the water tank. Press the COOL button. Clean or wet the cooling pad. |
| Svag luftstrøm. | Air inlets/outlets blocked; Fan speed set too low; Air filter dirty. | Clear any obstructions. Increase fan speed. Clean the air filter. |
| Usædvanlig støj. | Unit not on a level surface; Water pump running dry; Debris in fan. | Place on a flat surface. Check water level and refill if necessary. Unplug and inspect for debris. |
| Vandlækage. | Water tank overfilled; Unit tilted; Drain plug not secure. | Do not overfill past MAX line. Ensure unit is level. Check drain plug. |
| Fjernbetjening virker ikke. | Batterier døde eller forkert isat; Blokering mellem fjernbetjening og enhed. | Udskift batterierne. Sørg for frit udsyn til enhedens modtager. |
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Model | ESC-45P-4R (10.56 Gal) |
| Farve | Grå/hvid |
| Materiale | Plast |
| Nominel voltage | 110V / 60Hz |
| Nominel effekt | 120W |
| Vandtankkapacitet | 10.57 gallons (40 liter) |
| Luftstrøm (CFM) | 2650 CFM |
| Luftstrøm (m³/h) | 4500 m³/t |
| Dækningsområde | Op til 320 kvadratmeter |
| Vindtilstande | Natural, Normal, Sleep |
| Blæserhastigheder | Høj, Medium, Lav |
| Timer | 1-8 timer |
| Horisontal oscillation | 100° Automatisk |
| Lodret luftstrømsjustering | 120° Manuel |
| Produktdimensioner | 19.29" D x 14.37" W x 38.19" H (49 x 36.5 x 97 cm) |
| Produktets vægt | 27.5 lbs (12.5 kg) |
| Ledningslængde | 4.92 fod (150 cm) |
| Støjniveau | 9 dB |
10. Garanti og kundesupport
For any questions, concerns, or issues not covered in this manual, please contact ZOKOP customer support. Please have your product model number (ESC-45P-4R) and purchase information ready when contacting support.
Specific warranty details may vary. Please refer to the warranty card included with your purchase or contact customer support for more information.
