ELECOM DE-C35L-5000BK Carabiner-Integrated Mobile Battery User Manual

Indledning

Tak for købetasing the ELECOM DE-C35L-5000BK Carabiner-Integrated Mobile Battery. This portable power bank is designed for convenience and durability, featuring a built-in carabiner, cable holder, and simple stand. It offers a 5000mAh capacity with 12W Type-C output, and is rated IP44 for dust and water resistance.

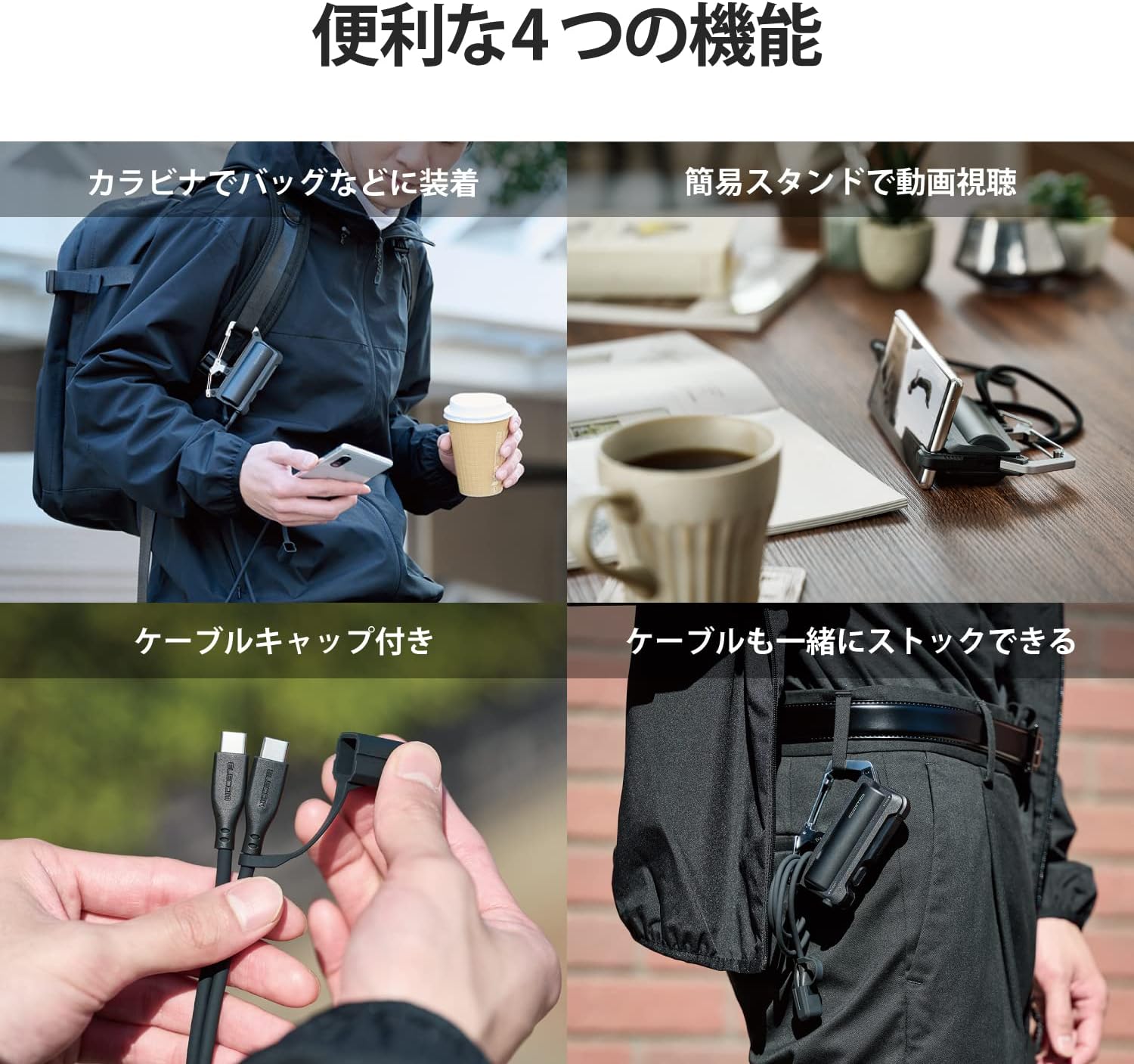

Nøglefunktioner omfatter:

• Carabiner Integration: Easily attach the battery to your bag or belt for convenient carrying.
• Integrated Cable Holder: Keeps your charging cable neatly stored with the battery.
• Simple Stand Function: A built-in stand allows for hands-free viewing of videos.
• IP44 støv- og vandtæthed: Provides protection against dust and splashes, suitable for outdoor use in light rain.
• Stødabsorbering: Lithium-ion battery is encased in a silicone cushion to protect against impacts from accidental drops.
• Høj kapacitet: 5000mAh battery capacity, capable of charging a typical smartphone approximately 1.6 times.
• 12W Type-C Output: Delivers up to 2.4A output for efficient charging.

Opsætning

Initial Charging of the Mobile Battery

The mobile battery is approximately 70% charged at the time of factory shipment. For optimal performance, it is recommended to fully charge the battery before its first use.

1. Connect the included USB Type-C to USB Type-C cable to the mobile battery's USB Type-C port.
2. Connect the other end of the cable to a compatible AC charger (5V/2.4A or higher recommended).
3. The battery will be fully charged in approximately 2 hours and 10 minutes when using a 5V/2.4A AC charger.

Tilslutning til enheder

This mobile battery is compatible with iPhones, smartphones, tablets, and other small electronic devices that charge via a USB port.

• For USB Type-C devices, use the included USB Type-C to USB Type-C cable.
• For iOS devices (e.g., iPhone), a separate Lightning cable is required (not included).

Betjeningsvejledning

Opladning af eksterne enheder

1. Connect your device to the mobile battery using the appropriate cable.
2. The battery will automatically begin charging your device.
3. The battery can charge an 1800mAh smartphone approximately 1.6 times, and a 3000mAh smartphone approximately 0.9 times.

Kontrol af batteriniveau

The remaining battery level can be checked using the 4-stage LED indicator lights.

Using the Carabiner

The integrated carabiner allows you to easily attach the mobile battery to your backpack, belt, or other gear for hands-free carrying.

Using the Cable Holder and Cap

The battery features an integrated cable holder to keep the included USB Type-C cable organized. A connector cap is also provided to protect the cable's connector when not in use.

Using the Simple Stand

A simple stand is built into the battery, allowing you to prop up your smartphone for convenient video viewing while on the go.

• The stand supports smartphones up to 11mm thick. Note that some smartphone cases may prevent proper use even if the phone itself is within the thickness limit.

Opretholdelse

To ensure the longevity and optimal performance of your mobile battery, please follow these maintenance guidelines:

• Regelmæssig rengøring: Wipe the battery with a soft, dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive materials.
• Opbevaring: Opbevar batteriet på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Afbryd forbindelsen, når den ikke er i brug: Always disconnect the charging cable from the battery when it is not in use. Leaving the cable connected can lead to battery discharge over time.
• Carabiner Screw Check: Periodically check the carabiner screw for looseness. If it becomes loose, tighten it to prevent damage or loss.
• Undgå fald og stød: While the battery has shock absorption, repeated drops or severe impacts can still cause damage. Handle with care.

Fejlfinding

If you encounter issues with your ELECOM mobile battery, please refer to the following common solutions:

• Batteri oplades ikke:
  • Ensure the charging cable is securely connected to both the battery and the AC adapter.
  • Verify that the AC adapter is functioning correctly and provides sufficient power (5V/2.4A or higher recommended).
  • Try using a different USB Type-C cable or AC adapter.
• Device Not Charging from Battery:
  • Check if the mobile battery itself is sufficiently charged (refer to the LED indicator).
  • Ensure the cable connecting the device to the battery is securely attached and undamaged.
  • Prøv at bruge et andet opladningskabel til din enhed.
  • Bekræft, at din enhed er kompatibel med USB-opladning.
• Langsom opladning:
  • Ensure both the mobile battery and your device are not being used heavily during charging.
  • Verify that the AC adapter used to charge the mobile battery meets the recommended specifications (5V/2.4A).
• LED Indicators Not Lighting Up:
  • The battery may be completely discharged. Connect it to an AC adapter for charging.
  • Kontakt kundesupport, hvis problemet fortsætter.

Specifikationer

Garanti

This ELECOM mobile battery comes with a 1 års garanti from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.

Støtte

For product inquiries or technical assistance, please contact ELECOM Customer Support:

• Telefon: 0570-084-465
• FAX: 0570-050-012
• Driftstider: 10:00 - 19:00 (Året rundt)

Battery Recycling Information:

This product is subject to collection by the General Incorporated Association JBRC. You can recycle this battery at cooperating local governments or participating stores (e.g., electronics retailers, home centers). Please check the JBRC website for collection points in your area.
