MLOVE BV800 Bluetooth-højttaler Brugsanvisning

1. Introduktion

The MLOVE BV800 is a versatile and portable Bluetooth speaker designed for a wide range of audio experiences. It features wireless connectivity, FM radio, and support for Micro SD cards and USB memory, making it an ideal companion for music on the go. This manual provides detailed instructions to help you set up, operate, and maintain your BV800 speaker.

Figure 1.1: MLOVE BV800 Bluetooth Speaker

This image shows the MLOVE BV800 Bluetooth Speaker from a front-side angle, highlighting its compact design, extendable antenna, digital display, control buttons, and integrated lanyard.

2. Sikkerhedsoplysninger

Læs og følg disse sikkerhedsretningslinjer for at sikre sikker betjening og forlænge din højttalers levetid:

• Udsæt ikke højttaleren for ekstreme temperaturer, direkte sollys eller høj luftfugtighed.
• Undgå at tabe eller udsætte højttaleren for kraftige stød.
• Du må ikke selv adskille, reparere eller ændre højttaleren. Overlad al service til kvalificeret personale.
• Hold højttaleren væk fra vand og væsker, på trods af dens vandtæthedsklassificering, for at forhindre beskadigelse af interne komponenter.
• Use only the provided USB Type-C charging cable for charging.
• Bortskaf batteriet ansvarligt i henhold til lokale regler.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• 1x MLOVE BV800 Bluetooth Speaker
• 1x USB Type-C Charging Cable/Data Cable
• 1 x snor
• 1x Brugsanvisning (dette dokument)

4. Produktfunktioner og komponenter

Nøglefunktioner

• Trådløs forbindelse: Easy connection with electronic devices wirelessly, offering a working range of 8-10 meters (30 feet).
• Super bærbart design: Mini size (120x78x35.7mm, 195g) for convenience, easily slips into a bag or pocket, includes a lanyard.
• Håndfri opkald: Built-in microphone allows for easy call management.
• Multifunktionel afspilning: Features FM radio, speakerphone function, and supports Micro SD card & USB memory playback.
• Lang batterilevetid: Built-in 1800 mAh rechargeable lithium polymer battery provides up to 12 hours of playback at 50% volume.
• Lyd af høj kvalitet: Equipped with a 40mm full-range loudspeaker and large runway-type low-frequency amplifiers, powered by a Class D amplifier with 8W output.

Internal Components and Audio Technology

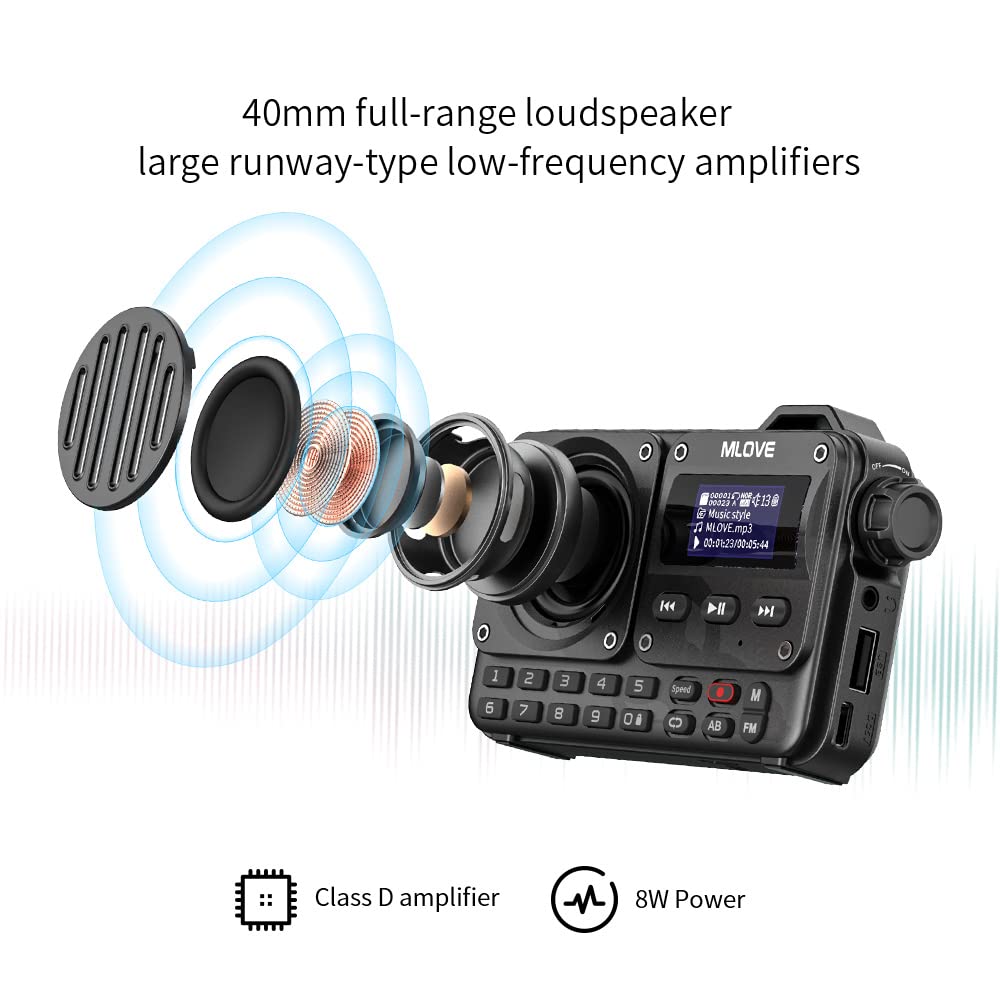

Figure 4.1: Internal Audio Components

This diagram illustrates the internal 40mm full-range loudspeaker and low-frequency amplifiers, highlighting the Class D amplifier and 8W power output for enhanced sound quality.

Tilslutningsmuligheder

Figure 4.2: Available Connectivity Modes

This image displays the various connectivity options supported by the BV800 speaker, including Bluetooth 5.0, FM Radio, USB Flash Drive, Micro SD Card, and USB Sound Card functionality.

Digital Keypad and Display

Figure 4.3: Digital Keypad and HD LED Screen

This image highlights the speaker's digital keypad for direct input and its clear HD LED screen display, providing essential information during operation.

5. Opsætning

5.1 Opladning af højttaleren

Before first use, fully charge the speaker. Connect the provided USB Type-C cable to the speaker's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The charging time is approximately 3 hours for a full charge.

5.2 Indledende tænding

Press and hold the Power button (usually marked with a power symbol) for a few seconds until the display lights up and you hear an audible prompt, indicating the speaker is powered on.

6. Betjeningsvejledning

6.1 Bluetooth -parring

1. Ensure the speaker is powered on and in Bluetooth mode. If not, press the 'M' (Mode) button to switch to Bluetooth mode. The display will show a Bluetooth icon, and the speaker will enter pairing mode.
2. Aktiver Bluetooth på din mobilenhed, og søg efter tilgængelige enheder.
3. Select "MLOVE BV800" from the list of found devices.
4. Once paired, the speaker will confirm with an audible prompt, and the Bluetooth icon on the display will become solid.

6.2 FM-radiofunktion

Figur 6.1: FM-radiofunktionalitet

This image illustrates the FM radio capabilities of the BV800, showing the speaker on a shelf with visual cues for automatic and semi-automatic station search, and various FM frequencies.

1. Press the 'M' (Mode) button to switch to FM Radio mode. The display will show the FM frequency.
2. Forlæng antennen for bedre modtagelse.
3. Automatisk stationssøgning: Press and hold the Play/Pause button (▶▶) to initiate an automatic scan for available FM stations. The speaker will save all found stations.
4. Manuel indstilling: Use the Previous (◀◀) and Next (▶▶) buttons to manually tune to specific frequencies or navigate through saved stations.

6.3 Micro SD Card and USB Playback

1. Insert a Micro SD card or USB memory stick (with supported audio files) i den respektive plads på højttaleren.
2. The speaker will automatically switch to the corresponding playback mode (SD or USB) and begin playing audio files. If it doesn't, press the 'M' (Mode) button to cycle through modes until you reach the correct one.
3. Brug knapperne Afspil/Pause, Forrige og Næste til at styre afspilningen.

6.4 Håndfri opkald

Figur 6.2: Håndfri opkaldsfunktion

This image demonstrates the hands-free calling capability of the BV800 speaker, showing a person using the speaker for a two-way conversation with 360-degree sound pickup and clear audio.

Når du er tilsluttet din smartphone via Bluetooth:

• Besvar opkald: Tryk én gang på Afspil/Pause-knappen for at besvare et indgående opkald.
• Afslut opkald: Tryk på Afspil/Pause-knappen én gang under et opkald for at afslutte det.
• Afvis opkald: Tryk og hold knappen Afspil/Pause nede for at afvise et indgående opkald.
• Genopkald sidste nummer: Double-press the Play/Pause button to redial the last dialed number.

6.5 Using the Digital Keypad

The digital keypad (0-9) on the front of the speaker can be used for direct input, particularly useful in FM radio mode for direct frequency input or in music playback modes for track selection (if supported by the file system).

6.6 Earphone Playback

Figure 6.3: Earphone Playback

This image shows a woman enjoying music through headphones connected to the MLOVE BV800 speaker, demonstrating its support for any 3.5mm earphone for private listening.

The BV800 supports any standard 3.5mm earphone. Simply plug your earphones into the designated earphone jack on the speaker to enjoy private listening.

7. Vedligeholdelse og pleje

• Rensning: Brug en blød, tør klud til at rengøre højttalerens overflade. Brug ikke slibende rengøringsmidler, alkohol eller kemiske opløsningsmidler.
• Opbevaring: Når højttaleren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys.
• Batteripleje: For at forlænge batteriets levetid, skal højttaleren oplades mindst én gang hver tredje måned, hvis den ikke bruges regelmæssigt.

8. Fejlfinding

If you encounter issues with your MLOVE BV800 speaker, refer to the following table for common problems and solutions:

9. Tekniske specifikationer

10. Garantioplysninger

The MLOVE BV800 Bluetooth Speaker comes with a Begrænset garanti. Please refer to the warranty card included in your package for specific terms, conditions, and duration of the warranty. Keep your purchase receipt as proof of purchase for any warranty claims.
