Indledning
This user manual provides comprehensive instructions for the safe and efficient operation, assembly, and maintenance of your BURCHDA R5pro Electric Fat Tire Mountain Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your e-bike. Keep this manual for future reference.
Sikkerhedsoplysninger
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. Be aware of your surroundings and ride defensively. Avoid riding in adverse weather conditions or on slippery surfaces.
- Udfør altid en inspektion før kørslen.
- Betjen ikke e-cyklen under påvirkning af alkohol eller stoffer.
- Sørg for, at alle komponenter er forsvarligt fastgjort før hver tur.
- Be cautious when riding at night; use the integrated lights and consider additional reflective gear.
- Overskrid ikke den maksimale lastekapacitet på 180 kg.
Opsætning og montering
The BURCHDA R5pro e-bike arrives approximately 95% pre-assembled. The remaining assembly steps are straightforward and require minimal tools, which are included.
Udpakning og indledende inspektion
Carefully remove the e-bike and all components from the packaging. Inspect for any shipping damage. Retain the packaging for future transport or storage.
Image: The BURCHDA R5pro Electric Fat Tire Mountain Bike in its unfolded state, showcasing its robust frame, fat tires, and integrated rear rack.
Komponentsamling
- Montering af styr: Attach the handlebar to the stem and secure it firmly. Ensure the brake levers and shifter are in comfortable positions.
- Pedalfastgørelse: Identify the left (L) and right (R) pedals. Thread them into the crank arms carefully. Note that the left pedal has a reverse thread.
- Forhjul (hvis afmonteret): Secure the front wheel into the fork dropouts. Ensure the quick-release skewer or axle nuts are tightened correctly.
- Montering af skærm og bagagebærer: Attach the front and rear fenders, and the rear rack, using the provided hardware.
Installation og opladning af batteri
The 48V 17.5Ah lithium battery is removable for convenient charging. Locate the battery compartment, typically integrated into the frame. Insert the battery and lock it into place with the key. For initial use, fully charge the battery for 5-6 hours using the provided charger. The charger's indicator light will change when charging is complete.
Justeringer
- Sædehøjde: Adjust the seat post to a height that allows for a slight bend in your knee when the pedal is at its lowest point. The minimum seat height is 34.2 inches (86.9 cm).
- Styrhøjde: Adjust the handlebar height for a comfortable riding posture.
- Dæktryk: Ensure tires are inflated to the recommended pressure, typically found on the tire sidewall. The 26 x 4.0 inch fat tires provide excellent traction and shock absorption.
Image: A detailed diagram illustrating the dimensions of the BURCHDA R5pro e-bike, including overall length, height, and adjustable seat height, along with recommended rider height and load capacity.
Betjeningsvejledning
Tænd/sluk
For at tænde elcyklen skal du trykke på tænd/sluk-knappen på LCD-displayet og holde den nede. For at slukke skal du trykke på den samme knap og holde den nede, indtil displayet slukker.
LCD display funktioner
The intelligent LCD display provides real-time information about your ride.
- Hastighed: Viser den aktuelle kørehastighed.
- Afstand: Shows trip distance or total odometer.
- Batteriniveau: Angiver resterende batteriopladning.
- Pedal Assist niveau: Shows the current level of motor assistance (0-5 levels).
- Fejlkoder: Displays diagnostic information if an issue occurs.

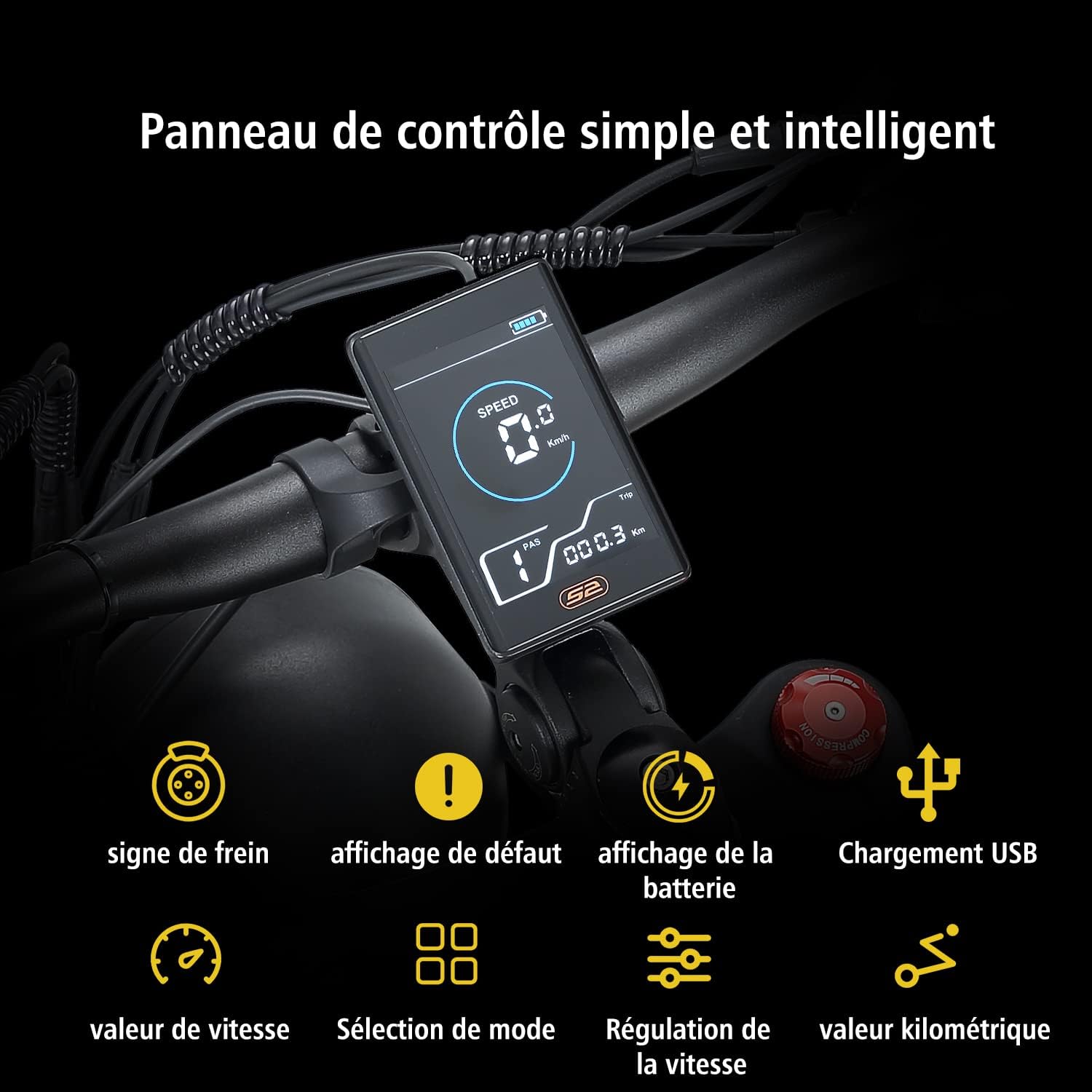

Billede: Et nærbillede view of the intelligent LCD display on the BURCHDA R5pro, showing speed, distance, battery level, and various icons for brake signal, fault display, battery charge, USB charging, speed value, mode selection, speed regulation, and mileage value.
Pedal Assist Modes and Throttle
The R5pro offers multiple riding modes:
- Pedalassistent (PAS): The motor provides assistance as you pedal. Adjust the assist level using the controls on the handlebar. Higher levels provide more power.
- Full Electric (Throttle): Use the thumb throttle to engage the motor without pedaling. This mode is ideal for quick acceleration or when you need a break from pedaling.
- Manual (Pedal Only): Kør cyklen som en traditionel cykel uden motorassistance.
Gearskifte
The e-bike is equipped with an 8-speed Shimano gear system. Use the shifter on the handlebar to change gears. Shift to lower gears for climbing hills and higher gears for flat terrain or downhill riding. Shift gears smoothly to avoid strain on the drivetrain.
Image: A close-up of the Shimano 8-speed gear shifter on the BURCHDA R5pro handlebar, indicating the current gear selection.
Bremsesystem
The BURCHDA R5pro features high-quality hydraulic disc brakes for reliable stopping power. Apply both brake levers simultaneously for effective and controlled braking. Avoid sudden, hard braking, especially at high speeds.
Image: A composite image showing detailed features of the BURCHDA R5pro, including the hydraulic disc brakes, bright LED headlight, removable battery, and rear warning light.
Foldemekanisme
The R5pro features a convenient folding design for easy transport and storage. Locate the quick-release levers on the frame and handlebar stem. Follow the instructions to safely fold and unfold the bike. Ensure all locking mechanisms are fully engaged before riding.
Opretholdelse
Regelmæssig vedligeholdelse sikrer din elcykels levetid og sikre drift.
- Batteripleje:
- Oplad batteriet regelmæssigt, selvom det ikke er i brug, for at bevare dets sundhedstilstand.
- Opbevar batteriet på et køligt, tørt sted.
- Undgå at aflade batteriet helt ofte.
- Dæktryk: Check tire pressure before each ride. The 26 x 4.0 inch fat tires require specific pressure for optimal performance and comfort.
- Bremseinspektion: Regularly check brake pads for wear and ensure brake levers provide firm and responsive braking. Adjust or replace as needed.
- Kædesmøring: Hold kæden ren og smurt for at sikre jævne gearskift og forhindre slid.
- Generel rengøring: Rengør cyklen regelmæssigt med reklameamp klud. Undgå højtryksspuling direkte på elektriske komponenter.
- Kontrol af fastgørelseselementer: Kontrollér regelmæssigt alle bolte, møtrikker og hurtigkoblingsgreb for fastspænding.
Billede: Et nærbillede view of the 26 x 4.0 inch fat tire and front disc brake of the BURCHDA R5pro, highlighting its robust design for various terrains.
Image: An illustration of the front suspension system of the BURCHDA R5pro, indicating its shock-absorbing capabilities for a smoother ride.
Fejlfinding
This section addresses common issues you might encounter with your BURCHDA R5pro e-bike.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Elcyklen tænder ikke. | Batteriet er ikke opladet, batteriet er ikke isat korrekt, strømkablet er løst. | Oplad batteriet, sørg for, at batteriet er helt isat og låst, og kontroller alle kabelforbindelser. |
| Motoren hjælper ikke. | Pedal assist level is 0, brake levers engaged, motor error. | Increase PAS level, ensure brake levers are fully released, check LCD for error codes. |
| Bremserne føles svage. | Worn brake pads, air in hydraulic line, misaligned calipers. | Inspect and replace brake pads, consult a bike mechanic for hydraulic system bleeding or caliper adjustment. |
| Gearskiftet går ikke jævnt. | Beskidt kæde, forkert justeret gearskifter, strakt kabel. | Clean and lubricate chain, adjust derailleur, or replace shifter cable. |
For issues not listed here or if solutions do not resolve the problem, please contact BURCHDA customer service.
Specifikationer
| Feature | Detalje |
|---|---|
| Model | R5pro |
| Motor | 48V Brushless Geared Motor |
| Batteri | 48V 17.5Ah aftageligt litiumbatteri |
| Opladningstid | 5-6 timer |
| Rækkevidde (ren elektrisk) | 55-60 km (ca. 34-37 miles) |
| Rækkevidde (Pedalassistent) | 80-100 km (ca. 50-62 miles) |
| Bremser | Hydrauliske skivebremser |
| Gear | 8-Speed Shimano System |
| Dæk | 26 x 4.0 tommer fede dæk |
| Rammemateriale | 6061 aluminiumslegering |
| Affjedring | Forgaffel affjedring |
| Vægt | 34 kg (ca. 74.9 lbs) |
| Max belastningskapacitet | 180 kg (ca. 396 lbs) |
| Dimensioner (udfoldet) | 199.9 x 113.03 x 70.1 cm (ca. 78.7 x 44.5 x 27.6 tommer) |
| Inkluderede komponenter | Lock & Helmet, Rack & Headlight, Tool Bag, Phone Holder & Charger, Bike Pump & Fenders |
Garanti og support
BURCHDA stands behind the quality of its products. Your R5pro e-bike comes with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions.
For any questions, technical assistance, or warranty claims, please do not hesitate to contact BURCHDA customer service. Our team is ready to assist you with any issues you may encounter.
Contact information can typically be found on the BURCHDA official webwebstedet eller på din købsdokumentation.
