1. Introduktion
This manual provides essential information for the proper installation, operation, and maintenance of your Bafang 8fun G062 48V 1000W Cassette Rear Hub Motor. Designed for robust performance, this motor is ideal for fat bikes, beach buggies, and snow bikes, offering significant power and efficiency. Please read this manual thoroughly before attempting any installation or operation to ensure safety and optimal performance.
Figur 1.1: Overview of the Bafang 8fun G062 48V 1000W Cassette Rear Hub Motor. This image displays the main body of the motor with its integrated axle and electrical cable connection.
2. Produktfunktioner og komponenter
The Bafang 8fun G062 motor is engineered for high performance and durability in challenging environments. Key features include:
- Nominel effekt: 1000W, providing substantial power for various terrains.
- Voltage: 48V system compatibility.
- Dropout Width: Specifically designed for 190mm installation widths (OLD), common in fat bikes.
- Bremsekompatibilitet: Supports disc brakes for reliable stopping power.
- Flywheel Type: Cassette type for versatile gearing options.
- Topdrejningsmoment: 85 N.m, ensuring strong acceleration and climbing ability.
- Effektivitet: Greater than 80%, optimizing battery usage.
- Støjniveau: Less than 55 dB, for a quieter riding experience.
2.1 Pakkeliste
Ved udpakning skal du kontrollere, at alle komponenter er til stede og ubeskadigede:
- Bafang RM G062 48V1000W 190mm cassette FAT rear hub motor (1 piece)
- 800mm motor cable (1 piece)
Figure 2.1: The Bafang 48V 1000W 190mm hub motor, highlighting its compact design and the attached electrical cable. The image also shows the text '48V 1000W 190mm' indicating key specifications.
Figur 2.2: Et nærbillede view of the motor's electrical connector, showing the pin configuration for secure and reliable power transmission.
3. Opsætning og installation
Proper installation is crucial for the safe and efficient operation of your hub motor. If you are not confident in performing the installation yourself, it is highly recommended to seek assistance from a qualified bicycle mechanic.
3.1 Kontrol før installation
- Ensure your bicycle's rear dropout width is 190mm to match the motor's specifications.
- Verify that your bicycle frame is compatible with disc brakes, as this motor is designed for disc brake systems.
- Confirm that your cassette (not included) is compatible with the motor's cassette body.
- Gather all necessary tools, including wrenches, a cassette removal tool, and a torque wrench.
3.2 Montering af motoren
- Remove your existing rear wheel from the bicycle frame.
- Install your cassette onto the motor's cassette body. Ensure it is securely tightened according to the cassette manufacturer's specifications.
- Carefully insert the motor into the rear dropouts of your bicycle frame, ensuring the axle sits flush and the disc brake rotor aligns with the caliper.
- Install the axle nuts and washers. Tighten them securely, preferably using a torque wrench to the manufacturer's recommended torque specifications for bicycle axles.
- Mount your disc brake rotor onto the motor's disc brake mount if not already pre-installed.
Figur 3.1: En detaljeret view of the motor's cassette body, where the bicycle's cassette is mounted. This component facilitates the integration with the bike's drivetrain.

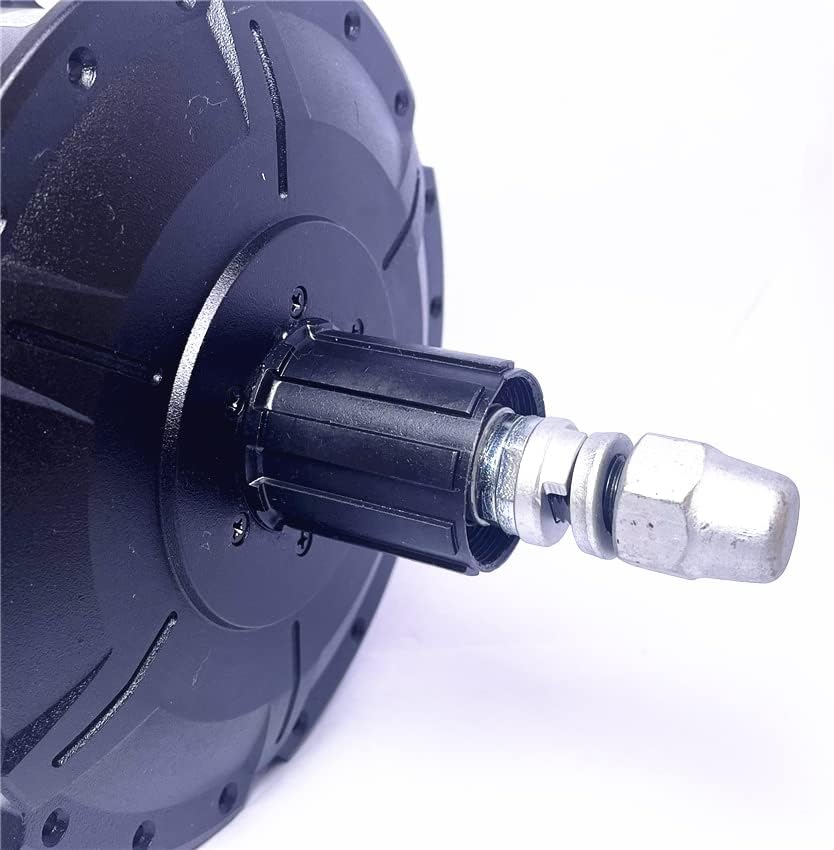

Figure 3.2: Another perspective of the motor's axle and the cassette interface, showing the robust construction designed for secure wheel mounting.
3.3 Tilslutningskabler
- Connect the motor cable to your e-bike controller's motor phase wires and hall sensor wires. Ensure correct polarity and secure connections.
- Route the motor cable safely along the bicycle frame, securing it with cable ties to prevent snagging or damage.
- Perform a functional test of the motor with your e-bike system before riding.
Figure 3.3: This image shows the cable entry point into the motor housing, designed for secure and weather-resistant connection of the motor cable.
4. Betjening
The Bafang G062 motor operates as part of a complete e-bike system, including a battery and controller. Once properly installed and connected, the motor will provide assistance based on the input from your e-bike's throttle or pedal-assist system (PAS).
- Strømforsyning: The motor delivers smooth and consistent power, with a peak torque of 85 N.m, suitable for climbing hills and accelerating quickly.
- Effektivitet: With an efficiency rating of over 80%, the motor effectively converts electrical energy into mechanical power, extending your ride range.
- Støj: The motor operates quietly, with a noise level typically below 55 dB, ensuring a pleasant riding experience.
Always refer to your e-bike controller and display manual for specific instructions on how to activate and control the motor's power levels and modes.
5. Vedligeholdelse
Regular maintenance will prolong the life and ensure the optimal performance of your Bafang hub motor.
- Rensning: Keep the motor housing clean from dirt, mud, and debris. Use a damp cloth to wipe down the exterior. Avoid using high-pressure washers directly on the motor or electrical connections.
- Kabelinspektion: Periodically check all electrical cables and connectors for signs of wear, fraying, or corrosion. Ensure all connections are secure.
- Akselmøtrikker: Regularly check the tightness of the axle nuts to ensure the wheel is securely fastened to the frame.
- Miljøforhold: The motor is designed to operate within a temperature range of -20℃ to 40℃. While it has an IP65 rating for dust and water ingress protection, avoid submerging the motor in water.
- Professionel service: For internal motor issues or complex repairs, it is recommended to consult with a professional e-bike technician. Do not attempt to open the motor housing unless you are qualified.
6. Fejlfinding
Dette afsnit indeholder grundlæggende fejlfindingstrin til almindelige problemer. Kontakt kundesupport ved mere komplekse problemer.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Motoren leverer ikke strøm | Løse elektriske forbindelser Lavt batteri voltage Controller problem | Check all motor cable connections to the controller and battery. Sørg for, at batteriet er fuldt opladet. Consult your controller manual or contact support. |
| Usædvanlig støj fra motoren | Løse komponenter Indvendig skade Fremmed genstand | Check axle nuts and disc brake rotor for tightness. Stop riding immediately and contact professional service if noise persists or is severe. Inspect for any debris caught near the motor. |
| Motoren går ud periodisk | Løse forbindelser Overophedning Controller fejl | Sikre alle elektriske forbindelser. Allow motor to cool down if ridden hard. Check controller for error codes or consult its manual. |
7. Tekniske specifikationer
Detailed specifications for the Bafang RM G062 1000.DC motor:
Figure 7.1: A comprehensive table detailing the core data, mounting parameters, further specifications, and dimensions of the Bafang RM G062 motor.
| Specifikation | Værdi |
|---|---|
| Model | RM G062 1000.DC |
| Installationsposition | Baghjul |
| Nominel voltage | 48V |
| Nominel effekt | 1000W |
| Installation Widths (OLD) / Dropout | 190 mm |
| Reduktionsforhold | 1:5 |
| Brake Type Compatibility | Skivebremse |
| Flywheel Type | Kassette |
| Farve | Sort |
| Topdrejningsmoment | 85 Nm |
| Driftstemperatur | -20℃ til 40℃ |
| Støj (dB) | <55 |
| Effektivitet (%) | > 80 |
| Vægt | 4.8 kg |
| IP-vurdering | IP65 |
| Certificeringer | ROHS / CE |
8. Garantioplysninger
Warranty terms and conditions for the Bafang 8fun G062 motor are provided by the seller or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. The warranty typically covers manufacturing defects under normal use. Damage resulting from improper installation, misuse, neglect, or unauthorized modifications is generally not covered.
For specific warranty details, please refer to the documentation included with your purchase or contact the HALLOMOTOR customer service directly.
9. Kundesupport
If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you require further assistance with installation or operation, please contact the seller or HALLOMOTOR customer support.
- When contacting support, please have your product model (RM G062 1000.DC) and purchase information readily available.
- Providing a detailed description of the issue, including any symptoms or error codes, will help expedite the support process.
