JONATHAN Y Aldrin 50-inch Ceiling Fan

Indledning

This manual provides detailed instructions for the safe installation, operation, and maintenance of your JONATHAN Y Aldrin 50-inch Ceiling Fan (Model JYL9715A). Please read all instructions carefully before beginning installation and retain this manual for future reference.

Image: The JONATHAN Y Aldrin 50-inch Ceiling Fan in black, featuring three sleek blades and accompanied by its remote control.

Sikkerhedsoplysninger

ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende forholdsregler:

• Læs alle instruktioner, før du installerer ventilatoren.
• Sørg for, at installationsstedet er strukturelt solidt og kan bære ventilatorens vægt (ca. 8.36 lbs).
• Al ledningsføring skal være i overensstemmelse med nationale og lokale el-forskrifter. Hvis du ikke er bekendt med ledningsføring, skal du kontakte en kvalificeret elektriker.
• Afbryd strømmen til afbryderen eller sikringsboksen før installation eller service.
• Brug ikke ventilatoren med beskadigede dele.
• Undgå at placere genstande i vejen for blæserbladene.
• Denne ventilator er kun designet til indendørs brug.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Motorhus
• Ventilatorblade (3)
• Downrod (various lengths for adjustable height)
• Baldakin
• Monteringsbeslag
• Fjernbetjening
• Hardwarepakke (skruer, skiver, trådmøtrikker)
• Instruktionsmanual

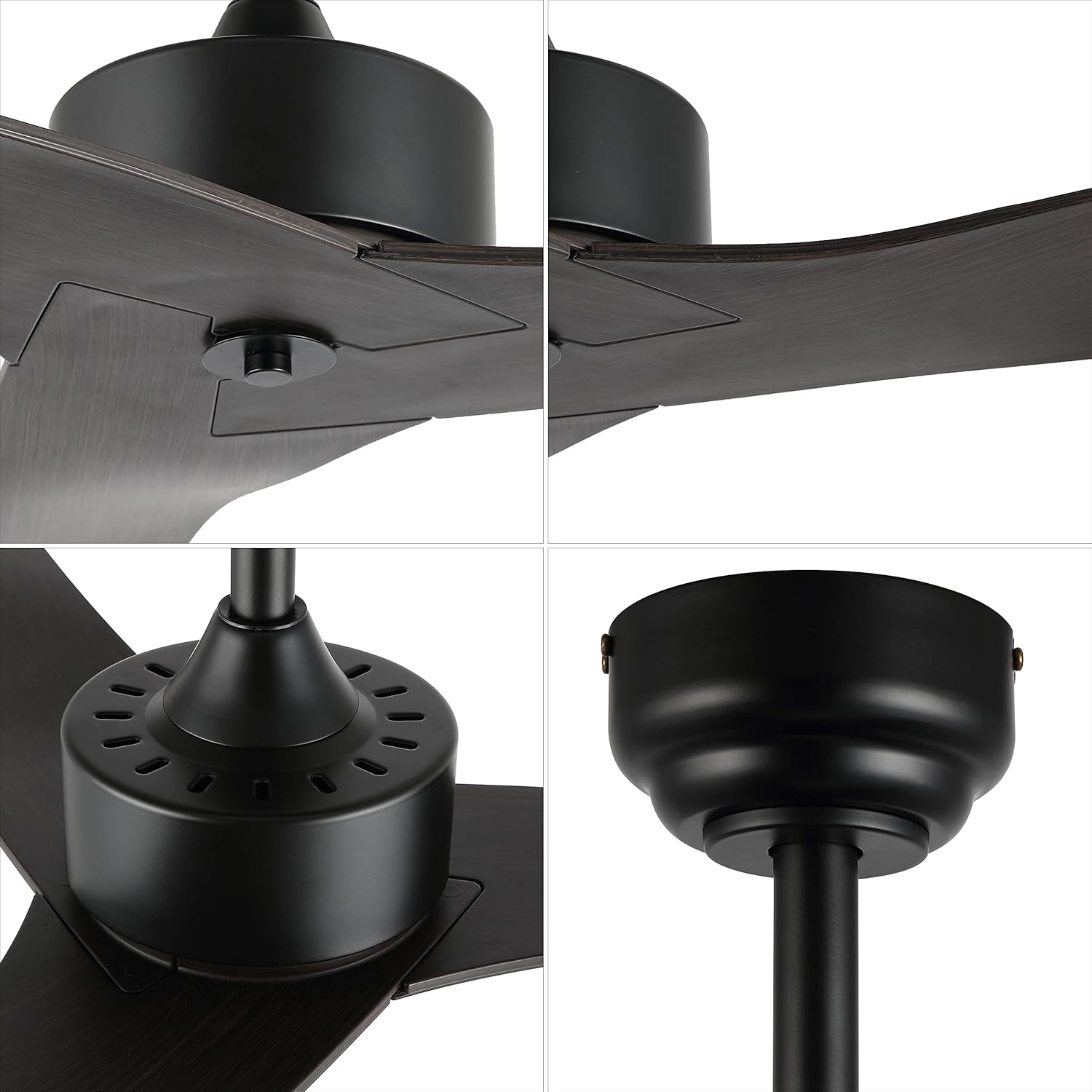

Billede: Detaljeret view of the fan's central motor housing and blade attachment points, showing the robust construction.

Installationsvejledning

1. Forinstallation

• Sluk for strømmen ved afbryderen.
• Sørg for, at el-boksen er sikkert monteret og godkendt til loftsventilatorens støtte.
• Saml de nødvendige værktøjer: skruetrækker, afisoleringstang, elektrikertape, stige.

2. Monteringsmuligheder

The fan supports standard downrod mounting and sloped ceiling installation.

Image: Illustration of the fan's compatibility with sloped ceilings, highlighting the adjustable canopy for proper alignment.

3. Monteringstrin

Refer to the following visual guide for assembly. The image displays a sequence of steps for fan assembly and installation.

Image: A composite image showing nine distinct steps for the fan's assembly, from attaching blades to the motor to securing the downrod and canopy.

1. Attach Blades to Motor: Secure each fan blade to the motor housing using the provided screws and washers. Ensure they are firmly attached.
2. Saml nedstangen: Insert the downrod through the canopy and secure it to the motor assembly. Pass the electrical wires through the downrod.
3. Monteringsbeslag: Fastgør monteringsbeslaget til loftets el-dåse.
4. Hængende blæser: Løft forsigtigt ventilatorenheden op, og hæng den på monteringsbeslaget.
5. Ledningsforbindelser: Connect the fan's electrical wires to the household wiring according to the wiring diagram (typically black to black, white to white, ground to ground). Use wire nuts to secure connections.
6. Sikker baldakin: Skub baldakinen op til loftet og fastgør den til monteringsbeslaget med skruer.
7. Afsluttende kontrol: Ensure all connections are secure and the fan is stable.

Betjeningsvejledning

Your JONATHAN Y Aldrin ceiling fan can be controlled via the included remote control or a mobile application.

Fjernbetjeningsfunktioner

• Tænd/sluk: Tryk på tænd/sluk-knappen for at tænde eller slukke for ventilatoren.
• Blæserhastighed: Use the speed buttons to cycle through 6 available fan speeds.
• Vendbar motor: Press the reverse button to change the blade direction for summer (downward airflow) or winter (upward airflow) operation.
• Timer: Set an automatic shutoff timer (specific timer options may vary by model).

Mobil app kontrol

The JONATHAN Y Aldrin fan is compatible with a mobile application for enhanced control. Download the official JONATHAN Y app from your device's app store. Follow the in-app instructions to pair your fan. The app allows for remote control, speed adjustment, direction change, and potentially scheduling features.

Image: Visual representation of key features including app control, sloped ceiling compatibility, adjustable height, and remote operation.

Image: Diagram explaining the reversible motor function, showing downward airflow for summer cooling and upward airflow for winter heating.

Opretholdelse

• Rensning: Rengør ventilatorbladene og motorhuset regelmæssigt med en blød klud.amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Stram fastgørelsesanordninger: Check all screws and fasteners annually to ensure they are secure.
• Ingen smøring nødvendig: Ventilatormotoren er permanent smurt og kræver ikke oliering.

Fejlfinding

Specifikationer

Image: Technical drawing illustrating the fan's dimensions, including overall width (50 inches) and various height options (6.25 to 16.25 inches).

Image: Visual guide for room size suitability, indicating the fan's effective coverage for different room dimensions.

Garantioplysninger

JONATHAN Y. leverer en 30 dages producentgaranti for defects only. This warranty covers manufacturing defects and does not cover normal wear and tear. Visible damages not noted upon delivery will be determined to be customer damage and will not be warranted. All products are inspected upon arrival, and worn, dirty, or stained merchandise will not be accepted for warranty claims.

For warranty information on this product, please contact the internet customer service center.

Kundesupport

For further assistance, technical support, or inquiries regarding your JONATHAN Y Aldrin ceiling fan, please refer to the contact information provided with your purchase or visit the official JONATHAN Y webwebsted.
