1. Vigtige sikkerhedsoplysninger
Please read these instructions carefully before installing or operating your ARTIKA Aristo LED Flush Mount. Retain this manual for future reference.
- Elektrisk sikkerhed: Always turn off the main power supply at the circuit breaker before beginning installation or performing any maintenance.
- Uddannet elektriker: Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical wiring.
- Jording: Sørg for, at armaturet er korrekt jordforbundet for at undgå potentielt elektrisk stød.
- Voltage: This fixture is designed for 120V AC power supply.
- Dæmpbarhed: Compatible with most LED dimmers. Consult a qualified electrician if unsure about dimmer compatibility.
- Kun indendørs brug: Dette produkt er beregnet til indendørs brug på tørre steder. Må ikke udsættes for vand eller fugt.
- Integreret LED: The LED light source is integrated and not replaceable. Do not attempt to disassemble the LED module.
2. Pakkens indhold
Verify that all components are present before installation.
- ARTIKA Aristo LED Flush Mount Fixture
- Monteringshardware (skruer, trådmøtrikker, monteringsbeslag)
- Instruktionsmanual

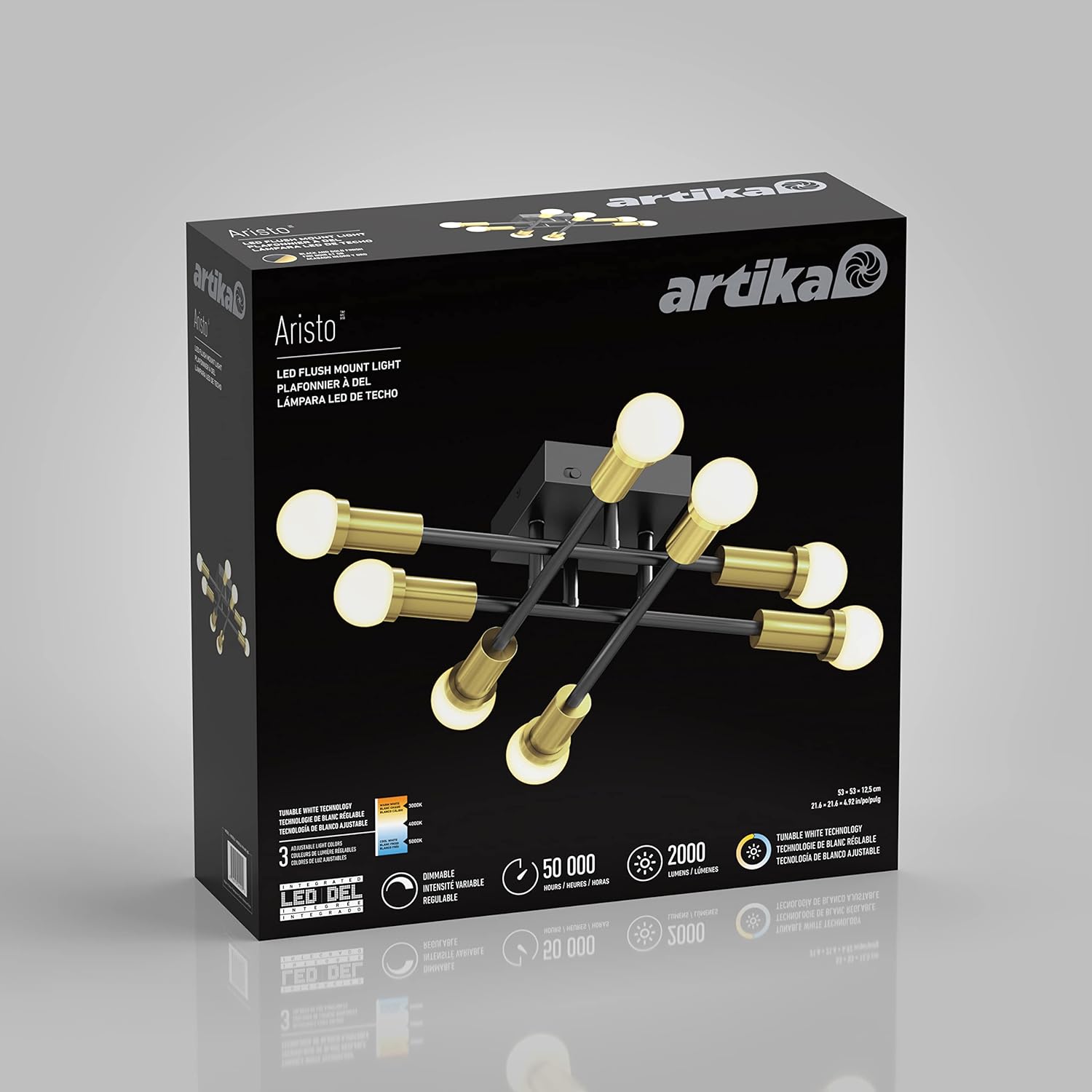

Image 2.1: ARTIKA Aristo LED Flush Mount Fixture. This image displays the complete flush mount fixture with its black base and gold-accented arms holding the LED light sources.
3. Nødvendigt værktøj (medfølger ikke)
- Phillips hovedskruetrækker
- Fladhovedskruetrækker
- Trådstrippere
- Elektrisk tape
- Sikkerhedsbriller
- Stige
4. Opsætning og installation
Follow these steps carefully to install your ARTIKA Aristo LED Flush Mount.
- Sluk for strømmen: Før du starter, skal du sørge for, at strømmen til samledåsen er slukket ved afbryderen.
- Forbered monteringsbeslag: Fastgør monteringsbeslaget til samledåsen med de medfølgende skruer. Sørg for, at det er sikkert fastgjort.
- Ledningsforbindelser:
- Tilslut sort ledningen fra armaturet til sort (Live) wire from the junction box using a wire nut.
- Tilslut hvid ledningen fra armaturet til hvid (Neutral) wire from the junction box using a wire nut.
- Tilslut grøn or bart kobber ground wire from the fixture to the ground wire from the junction box (or to the green ground screw on the mounting bracket).
- Stik forsigtigt alle ledninger ind i samledåsen.
- Monter armaturet: Align the fixture with the mounting bracket and secure it with the provided screws. Ensure the fixture is flush against the ceiling.
- Gendan strøm: Når armaturet er sikkert installeret, skal du tænde for strømmen igen ved afbryderen.
Image 4.1: Dimensions of the ARTIKA Aristo LED Flush Mount. The image shows the fixture with measurements: 53.5 cm (21.06 inches) in length and width, and 12.5 cm (4.92 inches) in height.
5. Betjeningsvejledning
The ARTIKA Aristo LED Flush Mount offers adjustable lighting features.
- Tænd/sluk: Brug din almindelige vægkontakt til at tænde eller slukke lysarmaturet.
- Dæmpbar funktion: This fixture is compatible with most LED dimmers. When connected to a compatible dimmer switch, you can adjust the brightness level to your preference.
- Adjustable Color Temperature (CCT): The fixture allows you to select between three color temperatures: 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight White). This is typically controlled by cycling the wall switch quickly (off-on-off-on) to change the CCT. Refer to the specific instructions provided with your fixture or consult the manufacturer's website for detailed CCT adjustment methods if not immediately apparent.
Image 5.1: Illustration of the ARTIKA Aristo LED Flush Mount's selectable white light feature. The image shows the fixture emitting light at 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight White) color temperatures.
6. Vedligeholdelse
To ensure the longevity and optimal performance of your ARTIKA Aristo LED Flush Mount, follow these simple maintenance guidelines:
- Rensning: Always turn off the power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the fixture. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- Ingen pæreudskiftning: This fixture uses integrated LED technology. The LED light source is designed to last for 50,000 hours and is not user-replaceable. Do not attempt to replace any bulbs.
- Inspektion: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off the power and consult a qualified electrician.
7. Fejlfinding
If you encounter issues with your ARTIKA Aristo LED Flush Mount, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. |
|
|
| Lyset flimrer eller dæmpes ujævnt. |
|
|
| Farvetemperaturen ændrer sig ikke. |
|
|
If the problem persists after trying these solutions, please contact ARTIKA customer support.
8. Specifikationer
| Mærke | ARTIKA |
| Modelnavn | Aristo |
| Modelnummer | FM-ARC-BG |
| Strømkilde | AC |
| Voltage | 120 volt |
| Wattage | 22 watt |
| Lysstyrke | 2000 lumen |
| Farvetemperatur | 3000K, 4000K, 5000K (Selectable) |
| Gennemsnitligt liv | 50,000 timer |
| Dæmpbar | Yes (Compatible with most LED dimmers) |
| Color Rendering Index (CRI) | 80.00 |
| Materiale | Legeret stål, plast |
| Finish Type | Painted (Matte Black with Gold Accent) |
| Produktdimensioner | 53.5 cm L x 12.5 cm B x 53.5 cm H (21.06" L x 4.92" B x 21.06" H) |
| Varens vægt | 3.46 pund (1.57 kg) |
| Indendørs/Udendørs brug | Indendørs |
| UPC | 846979040902 |
9. Garanti og support
Garanti: This ARTIKA product comes with a Limited Warranty. Please refer to the warranty card included with your purchase or visit the official ARTIKA webhjemmeside for detaljerede garantivilkår.
Fabrikant: Artika For Living inc.
Kundesupport: For technical assistance, missing parts, or warranty claims, please contact ARTIKA customer support. Contact information can typically be found on the ARTIKA webwebstedet eller på produktemballagen.
Online ressourcer: For additional information, FAQs, or to register your product, visit the official ARTIKA webwebsted: www.artika.com
