Imex Monza Series BDM039-5 Børstet Guld Etgrebs Brusearmatur med Håndbruser Brugermanual

1. Introduktion

This manual provides essential information for the installation, operation, and maintenance of your Imex Monza Series BDM039-5 Single-Lever Shower Mixer with Hand Shower. Designed with curved and round lines, this product offers both functionality and aesthetic appeal to your bathroom. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.

2. Produktet er slutview

The Imex Monza Series shower mixer is a single-lever unit crafted from brass with a brushed gold (PVD) finish. It includes a flexible hand shower for versatile use.

Nøglefunktioner:

• Single-lever shower mixer from the Monza series.
• Includes a 1.8-meter flexible hand shower.
• Equipped with a 35mm ceramic cartridge for smooth operation.
• Flexible hose made of PVC.
• Round hand shower handle with a single position.
• Average flow rate of 12 liters per minute.
• Features G 1/2 type threading.
• Constructed from brass with a brushed gold (PVD) finish.

Figur 1: The Imex Monza Series single-lever shower mixer and hand shower in brushed gold finish.

3. Opsætning og installation

Installation of this shower mixer requires plumbing knowledge. It is highly recommended that installation be performed by a qualified professional to ensure correct setup and to prevent damage or leaks.

Generelle installationsretningslinjer (professionel installation anbefales):

1. Forberedelse: Ensure water supply is turned off at the main valve before beginning any installation work. Clear the installation area.
2. Montering: Securely mount the mixer unit to the wall using appropriate fasteners and seals. Ensure the connections are aligned with the existing plumbing.
3. Forbindelser: Connect the hot and cold water lines to the corresponding inlets on the mixer. The mixer uses G 1/2 type threading.
4. Tilslutning af håndbruser: Attach the 1.8-meter flexible hose to the mixer's outlet and then to the hand shower.
5. Test: Once all connections are secure, slowly turn on the main water supply and check for any leaks. Test the mixer's function.

Figur 2: Technical drawing illustrating the dimensions and connection points of the shower mixer and hand shower.

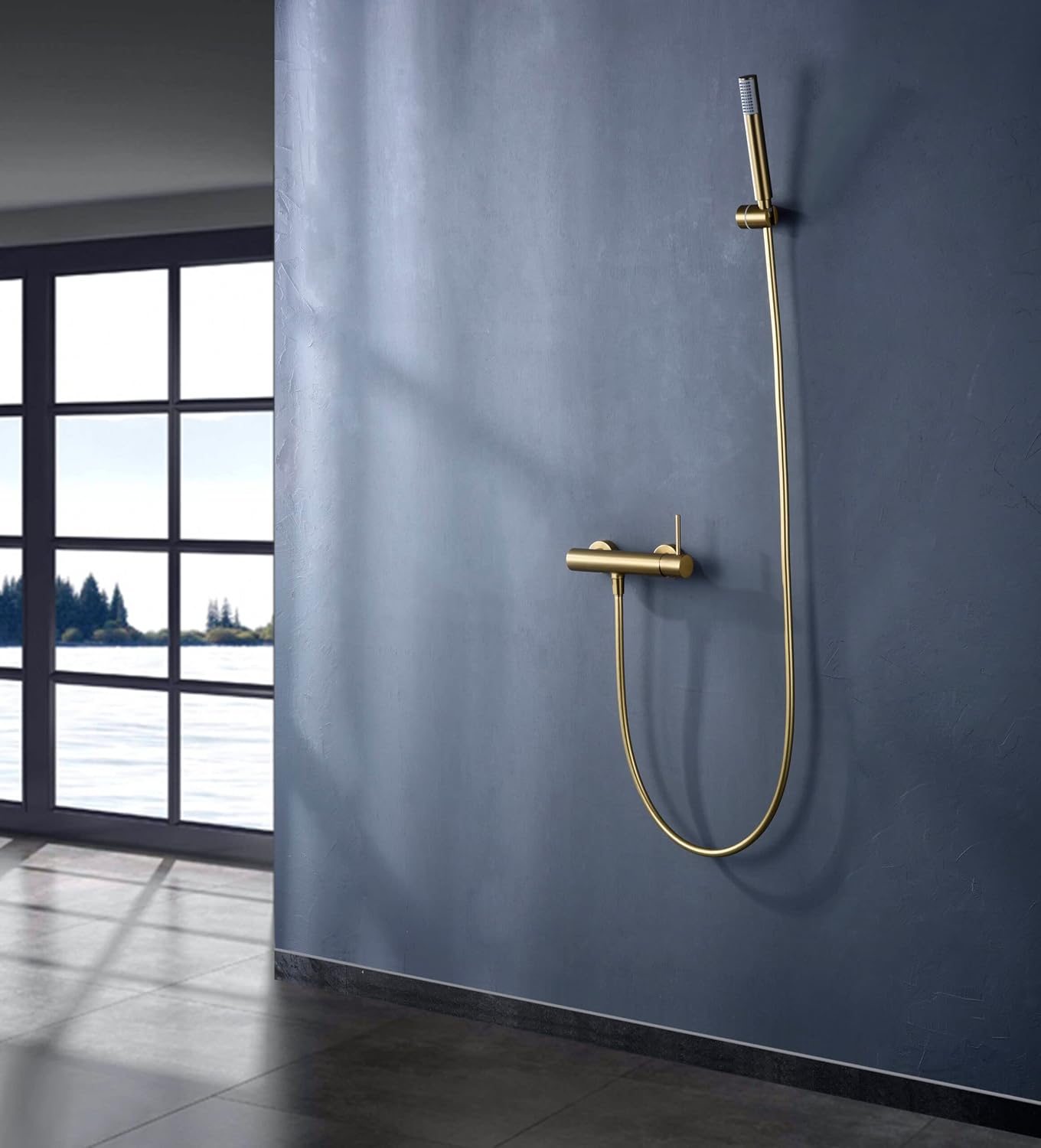

Figur 3: En eksample of the Imex Monza Series shower mixer and hand shower installed in a bathroom setting.

4. Betjeningsvejledning

The Imex Monza Series shower mixer features a single lever for controlling both water flow and temperature.

Brug af mixeren:

• Vandflow: Lift the single lever upwards to increase water flow. Push it downwards to decrease or stop the flow.
• Temperaturkontrol: Move the lever to the left for hot water and to the right for cold water. Adjust the position to achieve your desired temperature.

Using the Hand Shower:

The hand shower provides a focused spray for targeted rinsing. It can be removed from its holder for flexible use.

Figur 4: The hand shower delivering a steady spray of water.

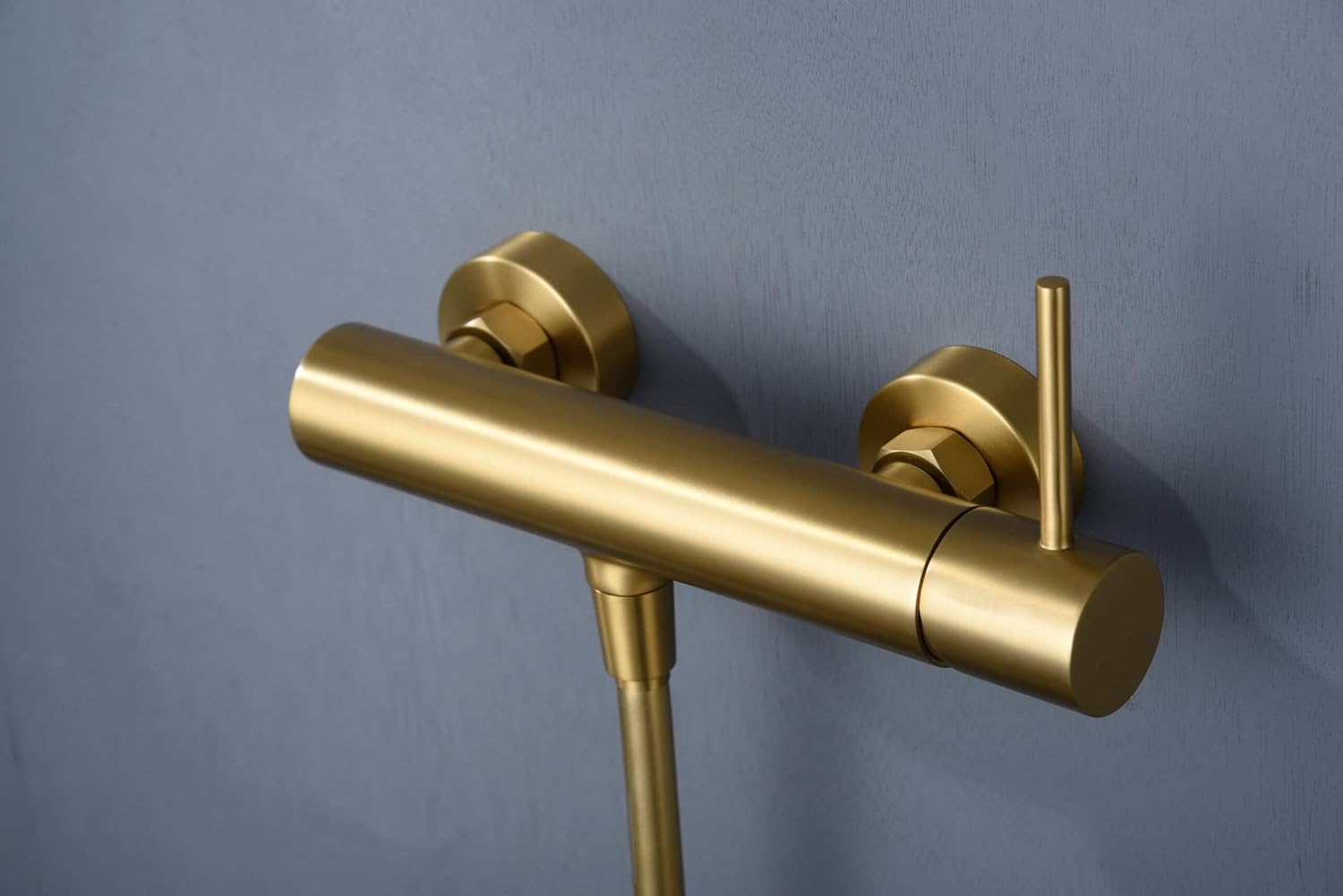

Figur 5: En detaljeret view of the single-lever mixer, showing the control handle.

5. Vedligeholdelse og rengøring

Regular cleaning and proper maintenance will ensure the longevity and appearance of your Imex shower mixer. Avoid harsh chemicals and abrasive materials.

Anbefalet rengøringsprocedure:

1. Trin 1: Indledende rengøring
   For general surface cleaning, use a soft cotton cloth. If necessary, slightly dampen the cloth with water. Gently wipe away most dirt without damaging the material. Brug ikke slibende svampe eller børster.
2. Step 2: Limescale Removal
   Limescale residues often accumulate in corners and joints. Use a mild cleaner based on citric acid. Do not spray the concentrated cleaner directly onto the faucet. Instead, apply it to a cloth first.
3. Step 3: Aerator Cleaning
   The aerator can be easily removed for cleaning. Submerge it in warm water with a small amount of cleaner. Deposits should dissolve after approximately ten minutes.
4. Trin 4: Skylning
   Thoroughly rinse the faucet with clear water to remove any cleaning product residue.
5. Step 5: Final Polish
   Repeat Step 1 to completely remove any remaining cleaning product residues and to give the surface a brilliant finish.

Yderligere tip: Clean the sink and spout at the same time for a consistently sparkling bathroom. We recommend using mild, citric acid-based cleaning products, as strong chemical cleaners can irritate skin and eyes, cause allergies, and may damage the faucet's material over time.

6. Fejlfinding

This section addresses common issues you might encounter with your shower mixer. For problems not listed here, please contact customer support.

• Lav vandgennemstrømning:
  • Kontroller om hovedvandforsyningen er helt åben.
  • Inspect the aerator for limescale buildup or debris. Clean as described in Section 5.
  • Ensure there are no kinks in the flexible hose.
• Temperatursvingninger:
  • Verify that both hot and cold water supplies are functioning correctly.
  • If the issue persists, the ceramic cartridge might need inspection or replacement by a professional.
• Leaks from Mixer or Connections:
  • Immediately turn off the water supply.
  • Kontrollér alle forbindelser for tæthed. Spænd dem ikke for hårdt.
  • Inspect seals and O-rings for damage. Replace if necessary.
  • If the leak is from within the mixer body, the ceramic cartridge may be faulty and require professional replacement.

7. Specifikationer

8. Garanti og support

Information regarding specific warranty terms for the Imex Monza Series BDM039-5 is not provided in this document. Please refer to your purchase documentation or contact the retailer for warranty details.

For technical support, spare parts inquiries, or any other assistance, please contact the manufacturer or your authorized dealer. Spare parts availability information is currently unavailable through standard product listings.

Fabrikant: IMEX PRODUCTS

For further assistance, please visit the official Imex webwebsted eller kontakt deres kundeserviceafdeling.
