Alpena CyberGlow bilinteriørbeklædning RGB LED-lys brugermanual

1. Introduktion

The Alpena CyberGlow Automotive Interior Trim RGB LED Lights are designed to provide customizable ambient lighting for your vehicle's interior. This kit includes two flexible LED strips, a control unit, a wireless remote, and a 12V power adapter, allowing for easy installation and personalized lighting effects.

2. Pakkens indhold

Kontroller venligst, at alle komponenter er til stede, før installationen påbegyndes:

• 2 x CyberGlow RGB LED Light Strips (7 ft each)
• 1 x Control Unit with Wiring Harness
• 1 x trådløs fjernbetjening
• 1 x 12V Power Adapter (Cigarette Lighter Plug)
• Selvklæbende monteringsstrimler
• Instruktionsmanual

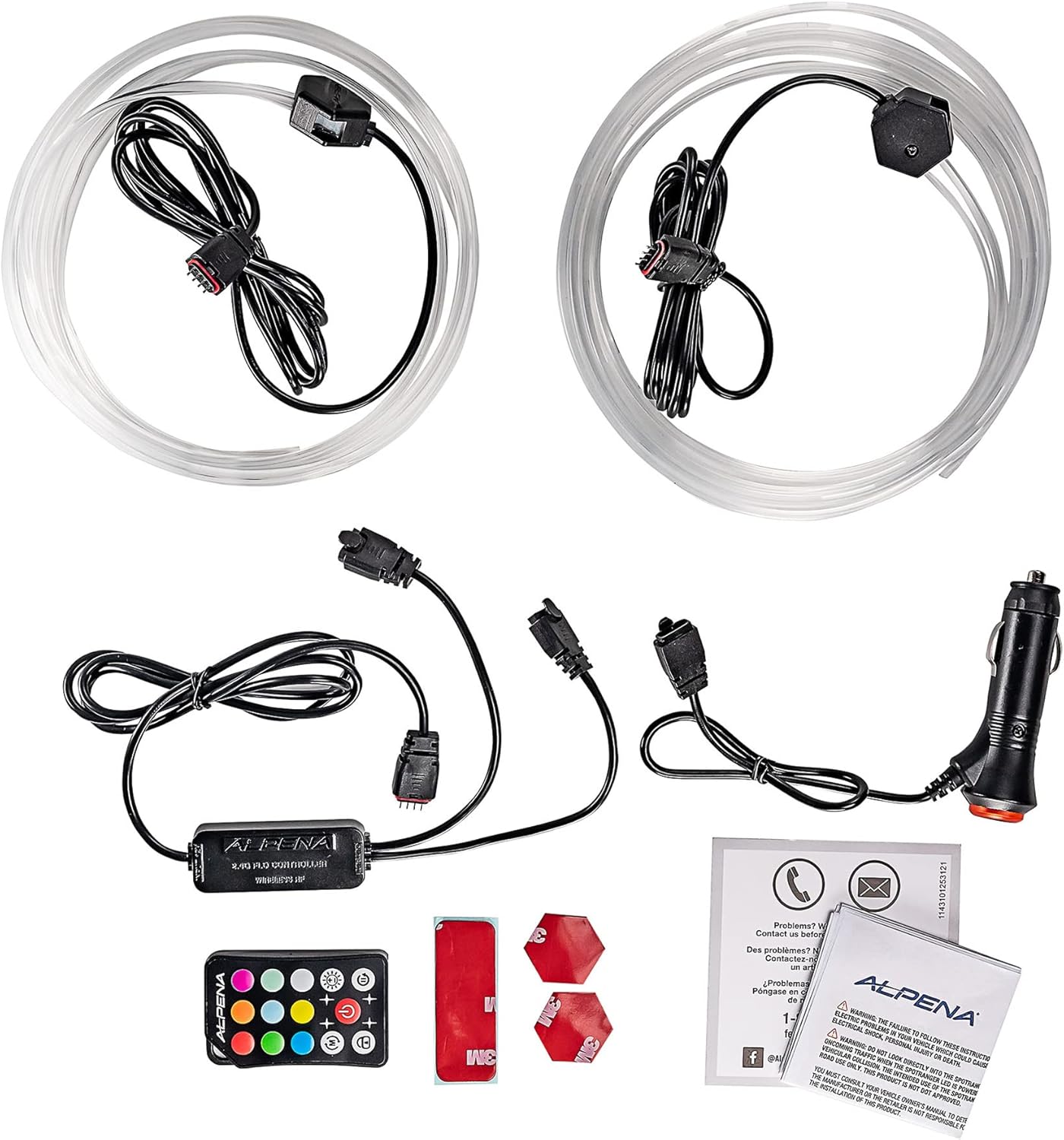

Image 2.1: All components included in the Alpena CyberGlow LED Light Kit. This includes two light strips, a control unit, a remote, a 12V power adapter, and adhesive strips.

3. Sikkerhedsoplysninger

• Ensure the vehicle's power is off before installation.
• Do not cut or modify the LED strips or wiring harness.
• This product is designed for 12V automotive systems only.
• Avoid installing in areas that obstruct driver visibility or vehicle controls.
• This product is not water resistant. Avoid exposure to moisture.
• Opbevares utilgængeligt for børn.

4. Opsætning og installation

1. Planplacering: Determine the desired locations for the LED strips within your vehicle's interior trim. Ensure the strips can reach the control unit and the control unit can reach the 12V power adapter.
2. Rene overflader: Thoroughly clean and dry the surfaces where the LED strips will be mounted. Use an alcohol wipe if necessary to remove any grease or dirt, ensuring optimal adhesion.
3. Fastgør klæbemiddel: Peel the backing from the adhesive mounting strips and firmly press them onto the back of the LED light strips.
4. Mount LED Strips: Carefully peel the remaining backing from the adhesive strips and press the LED strips firmly onto the chosen interior trim surfaces. Apply pressure for several seconds to ensure a secure bond.
5. Connect to Control Unit: Connect the ends of the LED light strips to the corresponding ports on the control unit. Ensure connections are secure.
6. Tilslut strøm: Plug the 12V power adapter into your vehicle's cigarette lighter socket.
7. Sikker ledningsføring: Route and secure all wiring to prevent interference with vehicle operation and to maintain a tidy appearance. Use cable ties or clips if needed (not included).

5. Betjeningsvejledning

The Alpena CyberGlow LED lights are operated using the included wireless remote control.

• Power knap: Tryk på ON/OFF knappen til at tænde eller slukke lyset.
• Farvevalg: Use the dedicated color buttons (e.g., Rød, Grøn, Blå, Hvid) to select a static color.
• Justering af lysstyrke: Brug Brightness Up (+) og Brightness Down (-) buttons to adjust the intensity of the selected color or mode.
• Valg af tilstand: Cycle through various dynamic lighting modes (e.g., flash, fade, strobe, smooth) using the MODE button or specific mode buttons if available on your remote.
• Hastighedstilpasning: For dynamic modes, use the Sæt fart på og Hastighed ned buttons to control the speed of the effect.

Ensure the remote control has a clear line of sight to the control unit for optimal performance.

6. Vedligeholdelse

• Rensning: Gently wipe the LED strips and control unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Tilslutningskontrol: Periodically inspect all connections (LED strips to control unit, control unit to power adapter) to ensure they are secure and free from corrosion.
• Fjernbetjenings batteri: If the remote control's range or responsiveness decreases, replace its battery (typically a CR2025 or CR2032 coin cell, refer to remote for specific type).

7. Fejlfinding

8. Specifikationer

• Mærke: Alpena
• Model: CyberGlow (78192E)
• Input bindtage: 12V DC
• Lystype: RGB LED Strips
• Striplængde: 7 ft per strip (2 strips included)
• Kontrollere: Trådløs fjernbetjening
• Tilpasningstype: Universal Fit (Automotive Interior)
• Vandtæthed: Ikke vandafvisende
• UPC: 084902781922

9. Garanti og support

For warranty information or technical support, please refer to the documentation included with your product or visit the official Alpena webwebsted. Gem din købsbevis til garantikrav.

Fabrikant: Alpena

Dato først tilgængelig: 6. marts 2023
