Nexgrill 820-0084B 12-tommer bærbar propangas pizzaovn brugsanvisning

Indledning

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Nexgrill 820-0084B 12-inch Portable Propane Gas Pizza Oven. Please read this manual thoroughly before assembly or operation and retain it for future reference.

Vigtige sikkerhedsoplysninger

Always follow basic safety precautions when using gas appliances to reduce the risk of fire, explosion, or injury.

• Kun til udendørs brug. Må ikke anvendes indendørs.
• Hold apparatets område klart og fri for brændbare materialer, benzin og andre brændbare dampe og væsker.
• Bloker ikke strømmen af ​​forbrændings- og ventilationsluft.
• Always connect the propane tank outdoors in a well-ventilated area.
• Tjek for gaslækager før hver brug.
• Hold børn og kæledyr væk fra den varme ovn.
• Bær beskyttelseshandsker ved håndtering af varme overflader.

Produktkomponenter

Familiarize yourself with the main components of your pizza oven:

• Stainless Steel Oven Body
• Temperaturmåler
• Main Burner with 15,000 BTUs
• Quick-Start Ignition System
• Cordierite Pizza Stone (12-inch, rotating)
• Rotation Knob for Pizza Stone
• Varmekontrolskive
• Rear Access Smoker Box
• Propanslange og regulator
• Skridsikre gummifødder

Figur 1: Overview of the Nexgrill 12-inch Portable Propane Gas Pizza Oven, showing the main unit and connected propane hose.

Opsætningsinstruktioner

1. Udpakning: Fjern forsigtigt alle komponenter fra emballagen. Sørg for, at alle dele, der er anført i afsnittet "Produktkomponenter", er til stede.
2. Placering: Place the pizza oven on a stable, level, non-combustible surface outdoors. Ensure adequate clearance from combustible materials (at least 3 feet from sides and back, 10 feet from overhead). The non-slip rubber feet will help secure the unit.
3. Tilslutning af propantank:
   • Ensure the heat control dial on the oven is in the "OFF" position.
   • Connect the regulator to a standard 20 lb. liquid propane (LP) tank. Hand-tighten firmly.
   • Open the LP tank valve slowly.
   • Perform a leak test: Apply a soapy water solution to all connections. Bubbles indicate a leak. If a leak is detected, close the LP tank valve and tighten connections. Repeat the test. If the leak persists, do not use the oven and contact customer support.

   Video 1: Demonstrates the connection of the propane tank to the Nexgrill pizza oven and the quick-start ignition process. This video highlights the ease of setting up the gas supply and igniting the burner.

Betjeningsvejledning

Tænding og forvarmning

1. Sørg for, at LP-tankens ventil er åben.
2. Push and turn the heat control dial to the "HIGH" position.
3. Immediately press and hold the igniter button until the burner ignites. You should hear a click and see flames.
4. Once ignited, continue holding the dial for a few seconds to ensure the flame is stable, then release.
5. Allow the oven to preheat for approximately 15-20 minutes to reach optimal cooking temperatures (up to 900°F), as indicated by the built-in temperature gauge.

Figur 2: The powerful 15,000 BTU burner in operation, heating the oven to high temperatures for quick pizza cooking.

Madlavning Pizza

1. Prepare your 12-inch pizza on a pizza peel.
2. Carefully slide the pizza onto the preheated cordierite pizza stone inside the oven.
3. Monitor the pizza closely. Cooking times are typically 3-5 minutes due to high temperatures.
4. Use the rotation knob to manually turn the pizza stone 360 degrees for even cooking and a perfectly crispy crust.
5. Once cooked to your preference, carefully remove the pizza using a pizza peel.

Figur 3: The manual rotation function of the 12-inch cordierite pizza stone, ensuring even cooking from all sides.

Brug af rygerboksen

The integrated rear access smoker box allows you to add wood-fired flavor to your pizzas or other dishes.

1. Open the rear access smoker box cover.
2. Fill the smoker box with a small amount of wood chips (not included). Do not overfill.
3. Close the smoker box cover. The heat from the oven will cause the wood chips to smoke, infusing your food with flavor.

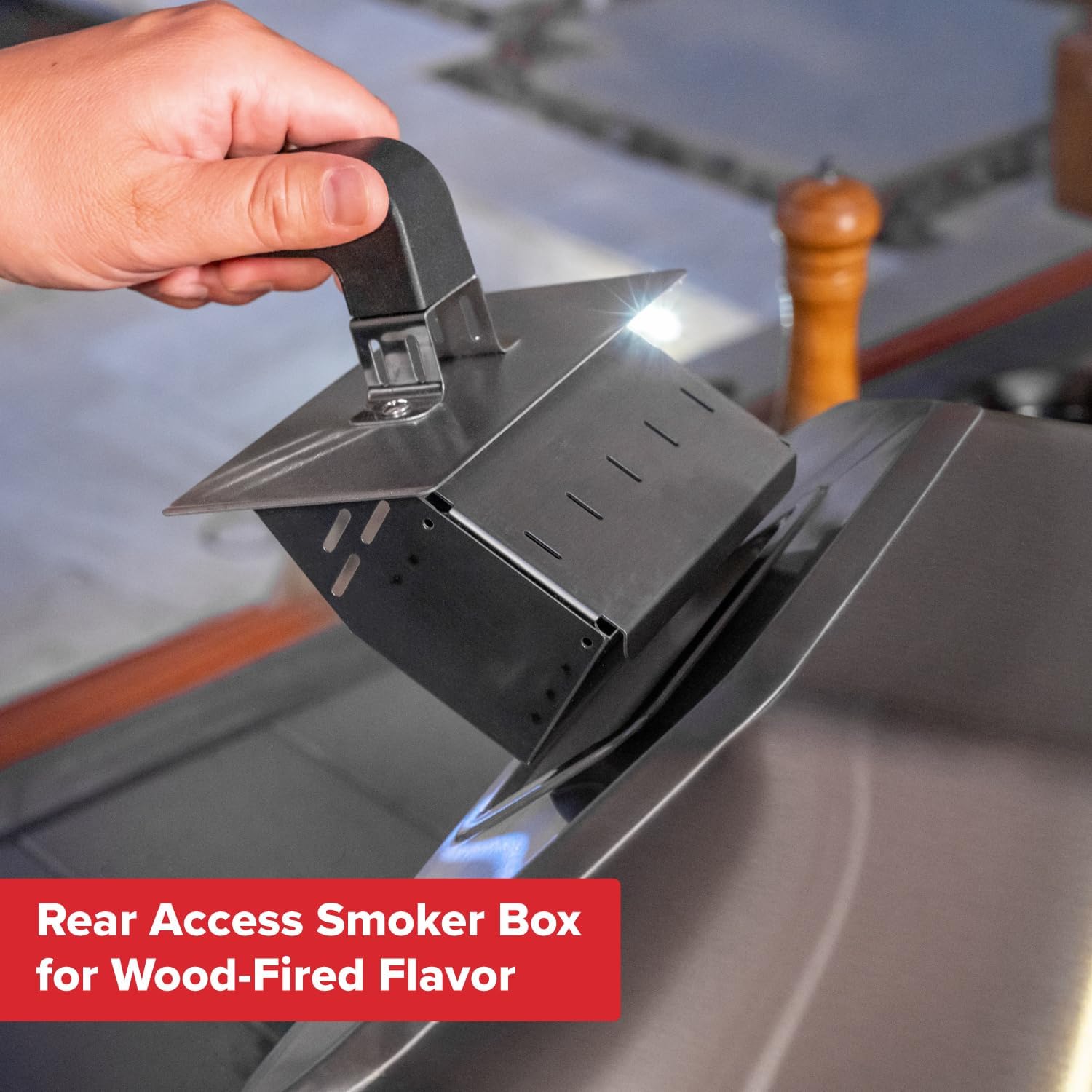

Figur 4: A hand demonstrating how to add wood chips to the rear access smoker box for enhanced flavor.

Vedligeholdelse og pleje

Rensning

• Lad ovnen køle helt af før rengøring.
• Pizzasten: Scrape off any excess food with a spatula. For stubborn residue, heat the stone in the oven for an hour after cooking to burn off food, then brush clean. Do not use soap or water on the cordierite stone as it is porous and will absorb liquids.
• Ydre: Wipe down stainless steel surfaces with a damp klud og mildt rengøringsmiddel. Tør grundigt.
• Brænder: Periodically inspect the burner ports for blockages. Use a wire brush to clean if necessary.

Opbevaring

When not in use, store the pizza oven in a dry, protected area. Disconnect the propane tank and store it separately in a well-ventilated outdoor space.

Fejlfinding

Specifikationer

• Model: 820-0084B
• Mærke: Nexgrill
• Brændstoftype: Propangas
• Total Cooking Power: 15,000 BTU'er
• Madlavningsområde: 182 sq. inches (accommodates 12-inch pizza)
• Max temperatur: Op til 900°F
• Dimensioner (D x B x H): 22.44 cm x 20.08 cm x 17.13 cm
• Varens vægt: 27 pund
• Materiale: Rustfrit stål
• Særlige funktioner: Adjustable Heat Control, Built-in Temperature Gauge, Cordierite Baking Stone, Rear Access Smoker Box, Manual Rotation System

Figur 5: Detailed product dimensions for the Nexgrill 820-0084B pizza oven.

Garantioplysninger

The Nexgrill 820-0084B Portable Propane Gas Pizza Oven comes with a 5 års garanti på hovedbrænderen, ensuring long-lasting performance. For detailed warranty terms and conditions, please refer to the documentation included with your product or visit the official Nexgrill webwebsted.

Kundesupport

For assistance with assembly, operation, parts, or warranty claims, please contact Nexgrill Customer Support. You can typically find contact information on the Nexgrill webstedet eller i emballagematerialerne.
