Produkt overview
The revolt Crank Dynamo Power Station with 21 Watt Solar Panel is a versatile portable power solution designed to provide power for your mobile devices anywhere, even off-grid. It features multiple charging methods including a hand crank dynamo, a foldable solar panel, and traditional USB-C/Micro USB input. With a large internal battery and various output ports, it can charge multiple devices simultaneously.
Image: The revolt Portable Generator (power station) and the foldable 21W solar panel, along with charging cables and carabiners.
Billede: En detaljeret view of the revolt Portable Generator, highlighting its various output ports (USB-A, USB-C PD) and the integrated LED light panel. The hand crank is visible on the side.
Pakkens indhold
- revolt Crank Dynamo Power Station
- 21 Watt Foldable Solar Panel (USB solar bag)
- Charging Cables (USB-C, Micro USB)
- Carabiners (for solar panel)
- Brugervejledning (dette dokument)
Opsætning
Indledende opladning
Before first use, it is recommended to fully charge the power station. You can do this via:
- USB-C strømforsyning (PD): Connect a compatible USB-C PD charger to the USB-C input port. This is the fastest charging method.
- Micro USB: Connect a standard Micro USB charger to the Micro USB input port.
- Solpanel: Unfold the solar panel and place it in direct sunlight. Connect the solar panel's output to the power station's input.
- Hand Crank Dynamo: Rotate the hand crank clockwise at a steady pace (approx. 180 rpm) to generate power.
The charge level indicator on the power station will show the current battery status.
Image: The revolt Portable Generator being charged via its USB-C port, connected to a smartphone. This illustrates the input charging capability.
Solar Panel Deployment
To use the solar panel, unfold it completely and position it directly facing the sun. For optimal performance, ensure no shadows fall on the panel. Use the integrated stand or carabiners to secure it in place.
Image: The foldable solar panel fully deployed with its integrated stand, positioned to capture sunlight. A small display on the panel shows output readings.
Betjeningsvejledning
Opladningsenheder
The power station offers multiple output ports for charging various devices:
- USB-A-porte (x2): Connect your device's USB charging cable to either of the two USB-A ports. These ports feature automatic current regulation and support Quick Charge 3.0 for compatible devices.
- USB-C PD-port: For devices supporting USB Power Delivery, use the USB-C PD port for fast charging.
You can charge up to three devices simultaneously. The power station supports pass-through charging, allowing it to be charged while also charging other devices.
Image: The revolt Portable Generator connected to a smartphone, illustrating the fast charging capabilities (Quick Charge 3.0) compared to standard charging.
Using the LED Panel and Flashlight
The power station includes an integrated LED panel and a flashlight:
- LED panel: Press the dedicated button to cycle through three brightness levels (28, 55, 86 lumens). This provides broad area illumination.
- Lommelygte: The integrated flashlight offers two brightness levels (25, 37 lumens) and an SOS signal function for emergencies.
Opretholdelse
- Rensning: Wipe the power station and solar panel with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Opbevaring: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, ensure the battery is charged to approximately 50-70% to preserve battery life.
- Vandtæthed: The solar panel features an ETFE coating, making it resistant to salt water. However, the power station itself is not waterproof; avoid exposing it to moisture.
Fejlfinding
- Enheden oplader ikke:
- Ensure the power station has sufficient charge. Check the charge level indicator.
- Kontroller, at opladningskablet er korrekt tilsluttet til både strømforsyningen og din enhed.
- Prøv et andet opladningskabel eller -port.
- Ensure your device is compatible with the power station's output specifications.
- Solpanel oplader ikke:
- Ensure the solar panel is unfolded and placed in direct sunlight without any obstructions or shadows.
- Clean the surface of the solar panel if it is dirty.
- Verify the connection between the solar panel and the power station.
- Crank dynamo not generating power:
- Ensure you are rotating the crank at a consistent speed (approximately 180 rpm).
- Check for any physical obstructions or damage to the crank mechanism.
- Overophedning: The power station has built-in protection against overheating. If it becomes excessively hot, disconnect all devices and allow it to cool down before resuming use.
Specifikationer
| Model | ZX3376-944 |
| Batterikapacitet | 22,500 mAh (83.25 Wh) Li-ion |
| Solpanel output | 21 watt (maks.) |
| Crank Dynamo Output | Approx. 5 Watt at 180 rpm |
| Input (Power Bank) | USB-C PD 3.0 (5V/2A, 9V/2A, 12V/1.5A), Micro USB (5V/2A, 9V/2A) |
| Output (Power Bank) |
|
| LED Panel Brightness | 28 / 55 / 86 lumens |
| Lommelygtens lysstyrke | 25 / 37 lumens (with SOS function) |
| Kraftværkets dimensioner | 11 x 18.1 x 6.4 cm |
| Kraftværkets vægt | 820 g |
| Solpanels vægt | 730 g |
| Materiale | Plastic or plastic composite |
| Beskyttelser | Short circuit, overcharge, discharge, overload, overheating |

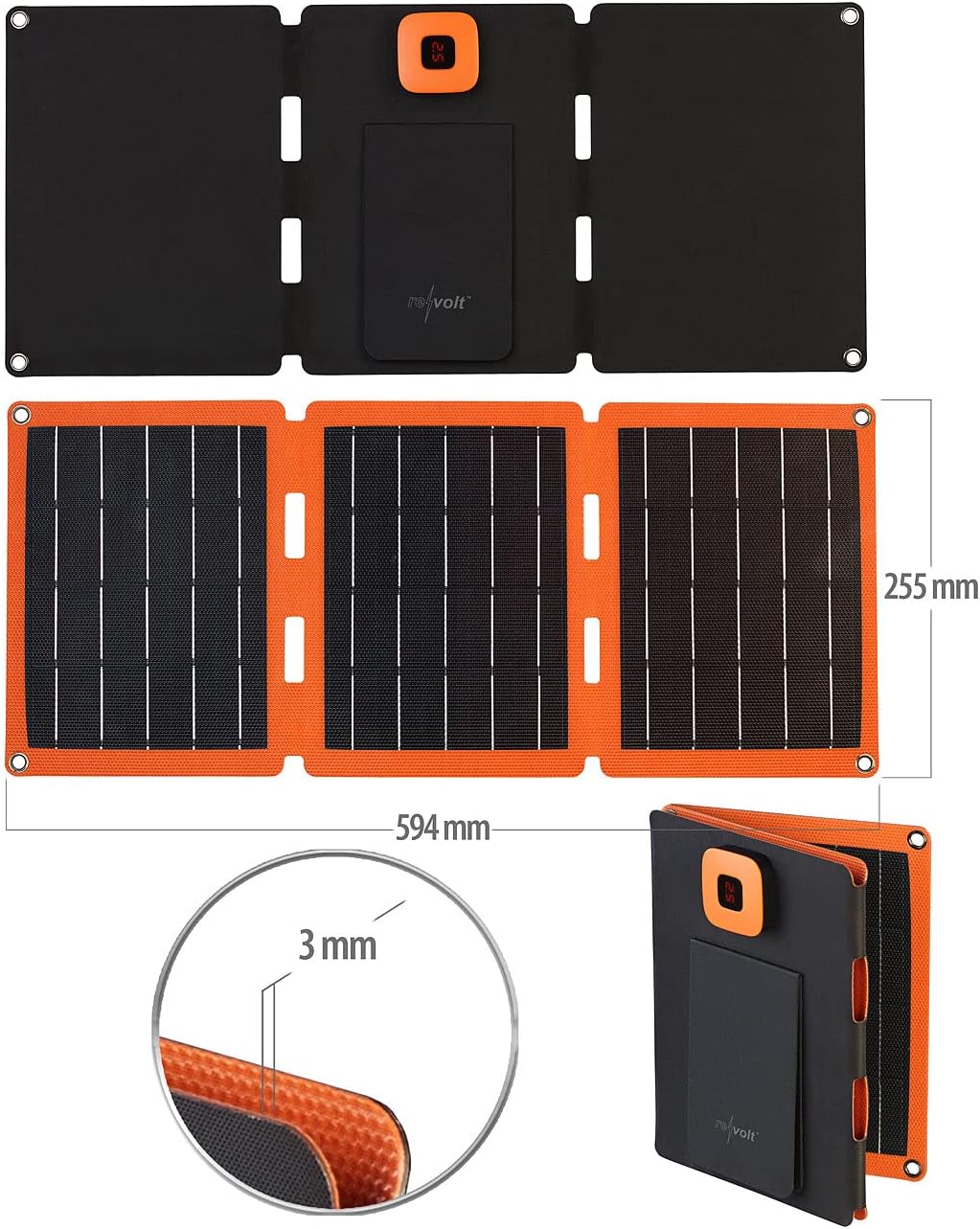

Image: Technical drawing showing the dimensions of the foldable solar panel (594mm x 255mm unfolded, 3mm thickness).
Garanti og support
Specific warranty information is typically provided with your purchase documentation. Please refer to the warranty card or contact the retailer for details regarding warranty coverage and claims.
For technical support or further assistance, please contact revolt customer service through their official webwebstedet eller kontaktoplysningerne på din produktemballage.
