Brugsanvisning til Global Industrial Nexel 3-lags poly-grøn trådreol

1. Introduktion

Thank you for choosing the Global Industrial Nexel 3-Tier Poly-Green Wire Shelving Unit. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new shelving unit. Please read all instructions carefully before assembly and retain this manual for future reference.

This shelving unit is designed for versatile storage, featuring a durable poly-green epoxy finish suitable for both wet and dry environments. Its open wire design promotes air circulation and minimizes dust accumulation, making it ideal for various applications.

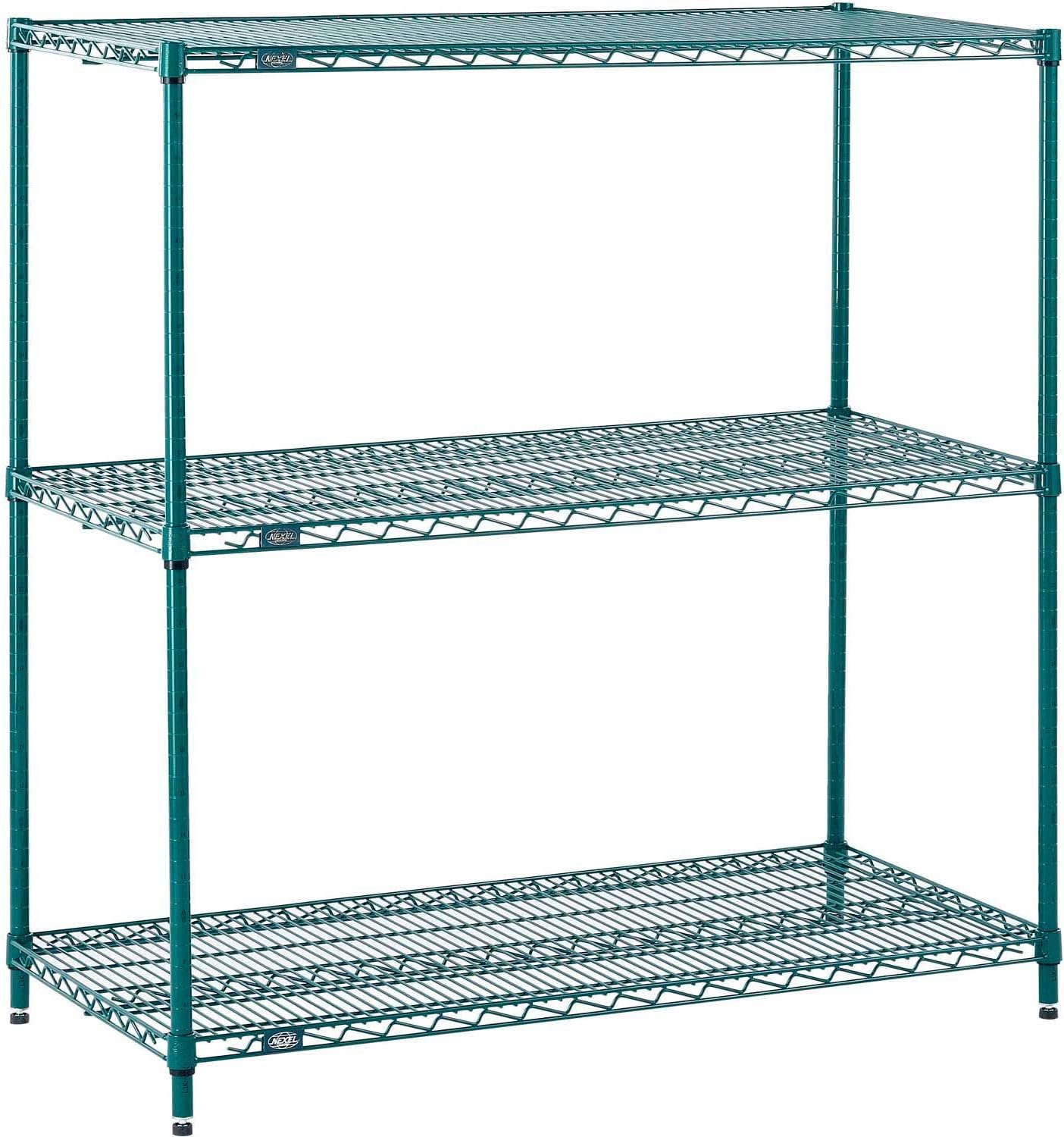

Image 1.1: Fully assembled Global Industrial Nexel 3-Tier Poly-Green Wire Shelving Unit, showcasing its three shelves and green finish.

2. Sikkerhedsoplysninger

• Always assemble the unit on a flat, stable surface.
• Ensure all components are securely fastened before placing items on the shelves.
• Do not exceed the maximum weight capacity per shelf or for the entire unit. Distribute weight evenly.
• Avoid climbing on the shelving unit.
• Keep small children and pets away from the unit during assembly.
• Periodically check the unit for stability and tighten any loose connections.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:

• 4 x Posts with Leveling Feet
• 3 x trådhylder
• Plastic Snap-on Sleeves (enough for 3 shelves, 4 pairs per shelf)

Billede 3.1: Et nærbillede view of a black plastic snap-on sleeve, which secures the shelves to the posts.

4. Opsætnings- og monteringsvejledning

Assembly of this unit is tool-free and straightforward. Follow these steps:

1. Monter nivelleringsfødder: Screw the leveling feet into the bottom of each of the four posts. Ensure they are securely tightened.

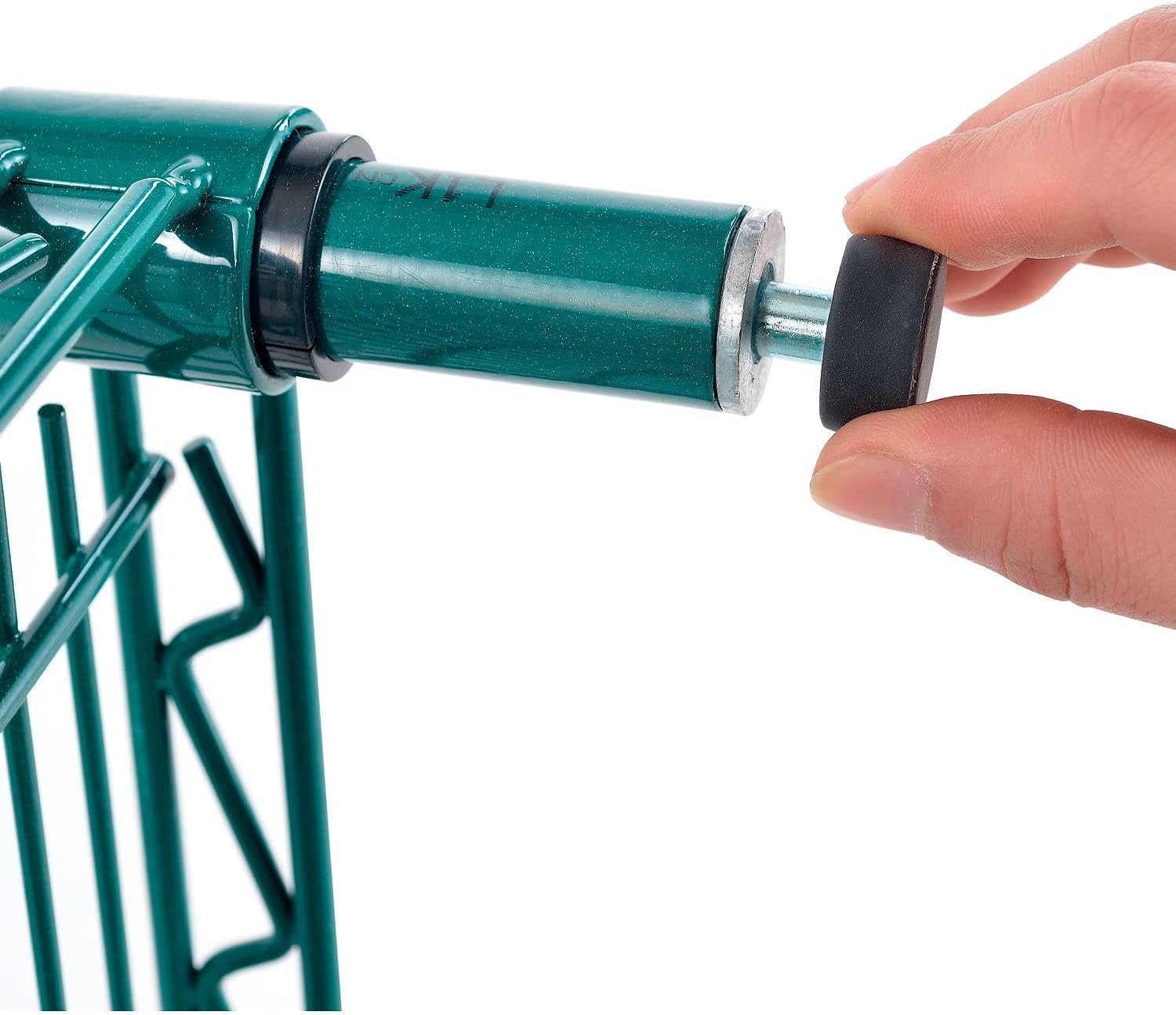

Image 4.1: A hand demonstrates screwing a leveling foot into the base of a green shelving post.
2. Position Snap-on Sleeves: Determine the desired height for your first shelf. Each post has grooves at 1-inch increments. Take two halves of a plastic snap-on sleeve and snap them together around a post at the desired groove. Repeat this for all four posts at the same height. These sleeves will support the shelf.


Image 4.2: Hands are shown attaching a black plastic snap-on sleeve around a green shelving post, aligning it with a groove.

3. Installer første hylde: Carefully lower a wire shelf over the four posts, ensuring that the corners of the shelf slide down over the snap-on sleeves. Apply gentle downward pressure until the shelf is firmly seated on the sleeves. The shelf should be level and stable.


Image 4.3: A hand demonstrates how to properly seat a wire shelf onto the snap-on sleeves, ensuring a secure fit.

4. Installer resterende hylder: Repeat step 2 and 3 for the remaining two shelves, positioning them at your desired heights. Remember that shelves are adjustable in 1-inch increments.
5. Endelig kontrol: Once all shelves are installed, gently rock the unit to ensure it is stable. Adjust the leveling feet at the bottom of the posts if necessary to compensate for uneven floors.

5. Betjeningsvejledning

Your Nexel shelving unit is designed for efficient and organized storage. Here are some operational guidelines:

• Hyldejustering: To adjust a shelf's height, remove all items from the shelf. Lift the shelf off the snap-on sleeves. Remove the sleeves, reposition them at the desired 1-inch increment groove on the posts, and then re-seat the shelf.
• Vægtfordeling: Distribute items evenly across the shelves to maintain stability and prevent overloading any single area.
• Miljø: The poly-green epoxy finish and NSF approval make this unit suitable for both wet and dry environments, including kitchens, pantries, and storage rooms.

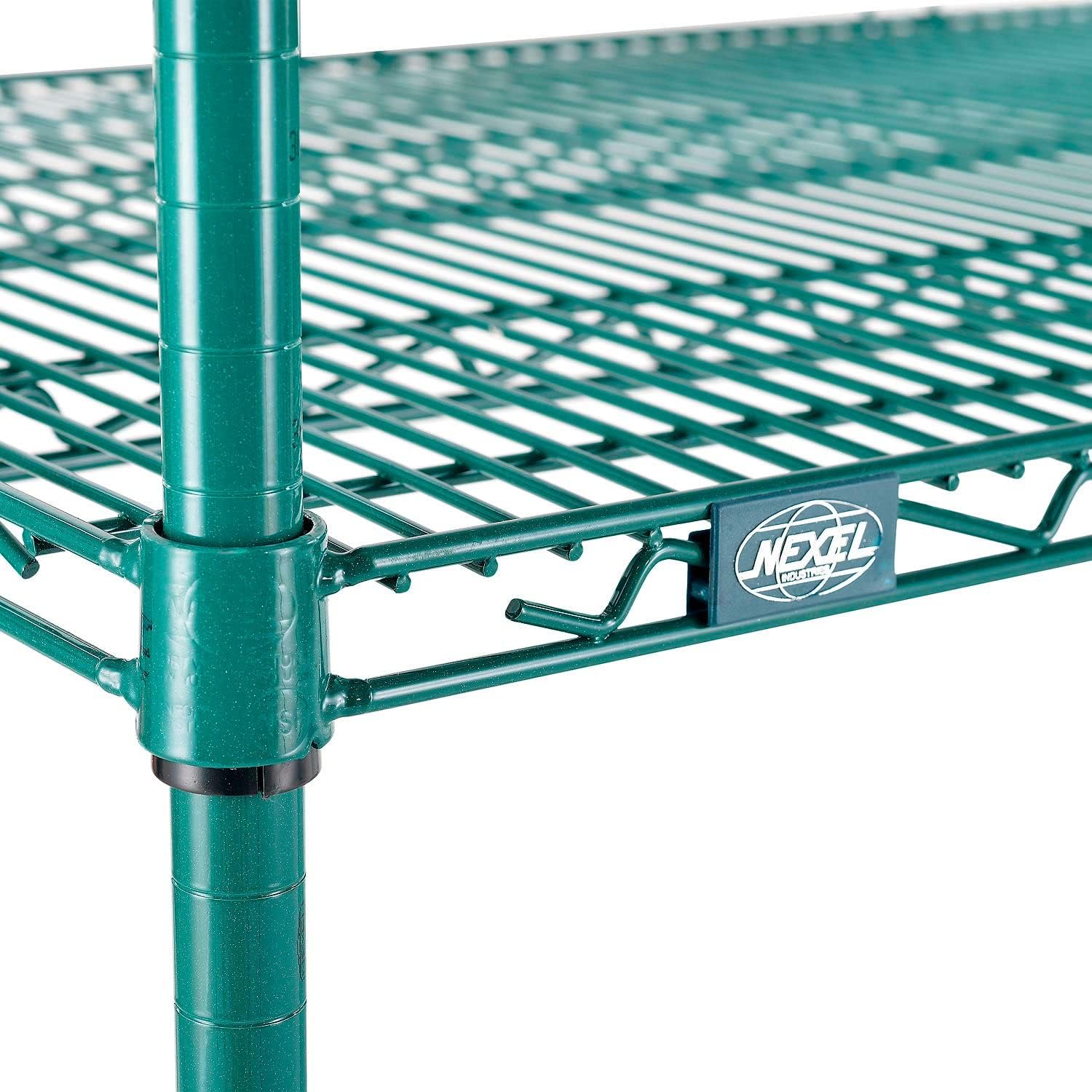

Billede 5.1: Et nærbillede view of the Nexel brand logo tag attached to a wire shelf, indicating product authenticity.

6. Vedligeholdelse

For at sikre din reols levetid og udseende:

• Rensning: Wipe down the shelves and posts with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the epoxy finish.
• Inspektion: Periodically inspect the unit for any signs of wear, damage, or instability. Ensure all snap-on sleeves are securely in place and leveling feet are properly adjusted.
• Rustforebyggelse: While the poly-green epoxy finish is designed for moisture resistance, promptly wipe away any standing water to further prevent potential rust, especially in high-humidity environments.

7. Fejlfinding

• Enheden er ustabil:
  • Ensure all snap-on sleeves are correctly seated in the grooves and the shelves are firmly resting on them.
  • Adjust the leveling feet at the bottom of each post to stabilize the unit on uneven surfaces.
• Vanskeligheder med at justere hylder:
  • Remove all items from the shelf before attempting to adjust its height.
  • Ensure the snap-on sleeves are fully separated before attempting to remove them from the post.
• Manglende dele:
  • Refer to the 'Package Contents' section. If parts are missing, contact Global Industrial customer support.

8. Specifikationer

9. Garanti og support

For warranty information or technical assistance, please contact Global Industrial customer support directly. Refer to your purchase documentation or the Global Industrial webwebsted for kontaktoplysninger.
