Brugermanual til AULA F2028 kablet USB-membran-gamingtastatur

1. Introduktion

The AULA F2028 is a wired USB membrane gaming keyboard designed for an enhanced gaming and typing experience. It features a durable metal panel, customizable rainbow backlighting, a multifunctional control knob, and anti-ghosting technology for precise input.

Billede 1.1: Samlet set view of the AULA F2028 Wired USB Membrane Gaming Keyboard.

Image 1.2: The AULA F2028 Membrane Keyboard highlighting its model name.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i pakken:

• 1 x AULA F2028 Wired USB Membrane Gaming Keyboard with Integrated USB Cable

3. Opsætningsvejledning

To set up your AULA F2028 keyboard, follow these simple steps:

1. Find en ledig USB-port på din computer.
2. Connect the integrated USB cable from the AULA F2028 keyboard to the chosen USB port.
3. The keyboard is plug-and-play and does not require additional driver installation for basic functionality. Your operating system should automatically detect and configure the device.

The keyboard is compatible with various operating systems including Windows, macOS, Linux, Android, and iOS.

4. Betjening af tastaturet

4.1 Multimedia & Backlight Control Knob

The keyboard features a multifunctional knob and dedicated media keys for quick access to various controls:

• Dedikerede medietaster: Control media volume, play/pause, and track switching.
• Multifunktionel knap:
  • Rotate the knob to adjust backlight brightness or sound volume, depending on the current mode.
  • Long press the knob to switch between different modes (e.g., backlight adjustment mode, volume adjustment mode).
  • Short press the knob to mute/unmute audio or cycle through backlight effects.

Billede 4.1: Nærbillede view of the multifunctional knob and dedicated media keys.

Image 4.2: Diagram illustrating the functions of the multifunctional knob: 1. Previous song, 2. Play/pause, 3. Next song, 4. Light effect/sound effect adjustment (rotate), Long press to switch modes.

Image 4.3: The multifunctional knob provides intuitive control over keyboard settings.

4.2 Tilpasning af baggrundsbelysning

The keyboard offers 25 different rainbow backlight effects. Use the multifunctional knob or dedicated keys to cycle through these effects, adjust brightness levels, and modify lighting speed to suit your preference.

4.3 26-Key Rollover and Anti-Ghosting

The 26-key rollover anti-ghosting technology ensures that up to 26 key presses are registered simultaneously and accurately, which is crucial for fast-paced gaming and complex commands.

Image 4.4: The 26-key rollover feature allows for smooth and conflict-free simultaneous key presses.

4.4 Win Lock Function

Activate the Win Lock function to disable the Windows key, preventing accidental interruptions during gaming sessions. Refer to the keyboard layout for the specific key combination to toggle this feature.

4.5 Ergonomisk design

The keyboard features a high-low key layout and ABS high-elastic suspended keycaps designed for comfortable and prolonged use, reducing typing fatigue and enhancing accessibility.

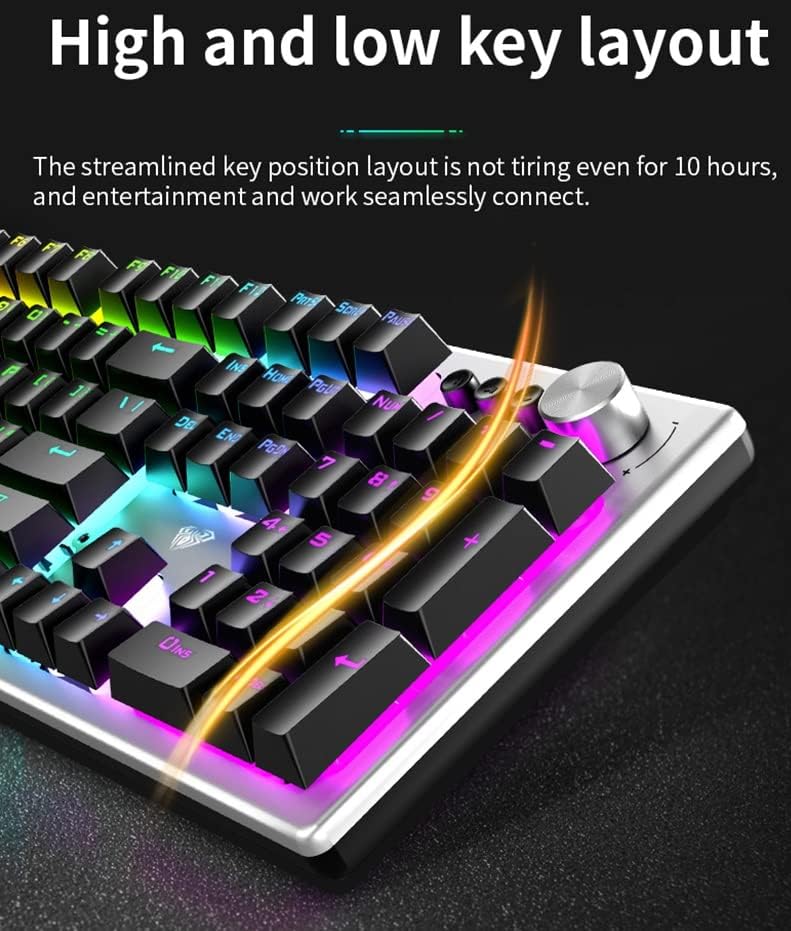

Image 4.5: The high and low key layout is designed for ergonomic comfort during extended use.

Image 4.6: The streamlined key position layout is designed to reduce fatigue during long periods of use.

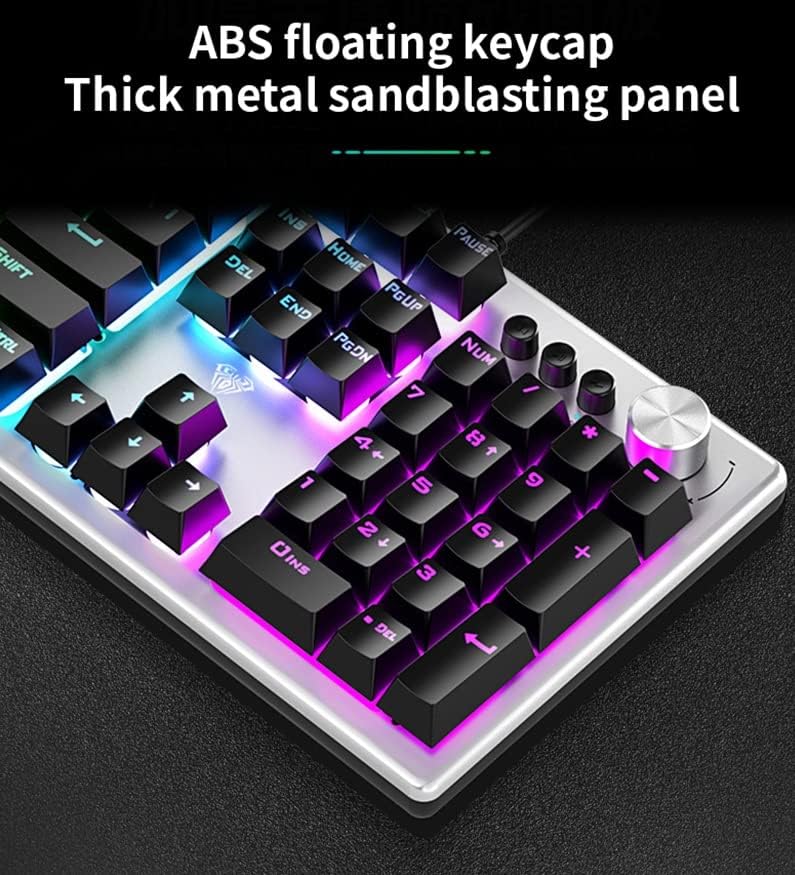

Image 4.7: The keyboard features ABS floating keycaps and a thick metal sandblasting panel for durability and tactile feedback.

Image 4.8: The ABS high-elastic suspended keycaps contribute to an elevated typing experience.

5. Vedligeholdelse

For at sikre dit AULA F2028-tastaturs levetid og optimale ydeevne, skal du følge disse vedligeholdelsesretningslinjer:

• Rengøring af taster: Regularly clean the keycaps and the spaces between them using a soft brush or compressed air to remove dust, crumbs, and debris.
• Overflade rengøring: For stubborn dirt or smudges, gently wipe the keycaps and the keyboard's metal panel with a slightly damp, blød klud.
• Undgå barske kemikalier: Brug ikke skrappe kemikalier, slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige tastaturets overflade og komponenter.
• Væskespild: In case of a liquid spill, immediately disconnect the keyboard from your computer and allow it to dry completely before reconnecting.

6. Fejlfinding

If you encounter issues with your AULA F2028 keyboard, refer to the following common problems and solutions:

6.1 Tastaturet reagerer ikke

• Tjek USB-forbindelse: Ensure the USB cable is securely connected to both the keyboard and a functional USB port on your computer.
• Prøv en anden USB-port: Connect the keyboard to a different USB port on your computer to rule out a faulty port.
• Test på en anden computer: If possible, test the keyboard on another computer to determine if the issue is with the keyboard itself or your computer's setup.

6.2 Baggrundsbelysning virker ikke eller er forkert

• Juster lysstyrke: Use the multifunctional knob to increase the backlight brightness. It might be set to the lowest level or turned off.
• Cyklustilstande: Short press the multifunctional knob or use the dedicated backlight controls to cycle through different backlight effects.

6.3 Nøgler registreres ikke

• Rengør under tastaturerne: Ensure no debris is lodged under the affected keycaps. Gently remove the keycap (if designed to be removable) and clean underneath with compressed air.
• Genopret forbindelse til tastaturet: Disconnect and reconnect the keyboard's USB cable.

7. Specifikationer

8. Garanti og support

AULA F2028-tastaturet leveres med en 1 års garanti from the date of purchase. This warranty covers manufacturing defects only. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear.

For warranty claims, technical assistance, or any product-related inquiries not covered in this manual, please contact your retailer or the official AULA support channels. Please retain your proof of purchase for warranty validation.
