1. Introduktion
Tak for købetasing the Shanrya Digital Mirror Alarm Clock. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read these instructions carefully before use and retain them for future reference.
Figur 1: Forside view of the Shanrya Digital Mirror Alarm Clock displaying 4:30 in red LED digits.
2. Opsætning
2.1 Pakkens indhold
- Shanrya Digital Mirror Alarm Clock
- USB strømkabel
- Brugervejledning (dette dokument)
Figure 2: The alarm clock shown with its USB power cable, ready for connection.
2.2 Strømtilslutning
- Connect the small end of the provided USB power cable to the DC 5V input port on the back of the alarm clock.
- Connect the standard USB end of the cable to a USB power adapter (not included) or a powered USB port.
- The display will light up, indicating the clock is powered on.
Note: This clock requires continuous power via USB. It does not operate on batteries for primary function, but may have a small internal battery for time memory during power outages (not user-replaceable).
3. Betjeningsvejledning
3.1 Knapfunktioner
The clock features several buttons, typically located on the top or side. Refer to Figure 3 for button identification.
Figur 3: Detaljeret view of the clock's control buttons and examples of different display brightness levels.
- MODE knap: Used to switch between time display, alarm setting, and other modes.
- OP/NED knapper: Used to adjust values (time, alarm) or brightness levels.
- SNOOZE knap: Activates the snooze function when the alarm sounds.
3.2 Indstilling af klokkeslæt
- Tryk på MODE knappen, indtil tidsvisningen blinker.
- Brug UP og NED knapper for at justere timen.
- Trykke MODE again to switch to minute adjustment.
- Brug UP og NED knapper for at justere minutterne.
- Trykke MODE to confirm and exit time setting mode.
3.3 Indstilling af alarmen
- Tryk på MODE button repeatedly until the alarm icon (e.g., a bell) appears and the alarm time flashes.
- Brug UP og NED knapperne for at indstille den ønskede alarmtime.
- Trykke MODE again to switch to minute adjustment.
- Brug UP og NED knapperne til at indstille de ønskede alarmminutter.
- Trykke MODE to confirm and activate the alarm. The alarm icon will remain displayed.
- To deactivate the alarm, repeat the steps and press MODE indtil alarmikonet forsvinder.
3.4 Snooze -funktion
Når alarmen lyder, skal du trykke på SLUM button (usually located on top of the clock) to temporarily silence the alarm. The alarm will sound again after a preset interval (e.g., 5-10 minutes). To turn off the alarm completely, press any other button or let it ring for its full duration.
3.5 Justering af lysstyrke
The clock offers multiple brightness levels for its LED display, including manual adjustment, automatic adjustment, and a night mode. This allows for optimal visibility in various lighting conditions.
- Manuel justering: I tidsvisningstilstand skal du trykke på UP or NED buttons to cycle through different brightness levels (e.g., Dark, Mid Gear, Bright).
- Automatisk justering: Some models may feature an ambient light sensor that automatically adjusts display brightness based on room lighting. Refer to Figure 3 for visual representation of brightness levels.
- Nattilstand: A specific setting that dims the display significantly during predefined night hours to prevent disturbance. Consult the specific button sequence for your model to activate/deactivate night mode.
4. Vedligeholdelse
4.1 Rengøring
To clean the clock, gently wipe the surface with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the mirror finish and electronic components.
4.2 Opbevaring
If storing the clock for an extended period, disconnect it from the power source and store it in a cool, dry place away from direct sunlight and extreme temperatures.
5. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Displayet er tomt eller lyser ikke. | Ingen strøm eller løs forbindelse. | Ensure the USB cable is securely connected to both the clock and a powered USB port/adapter. Try a different USB port or adapter. |
| Alarmen lyder ikke. | Alarm not set or deactivated. Volume too low (if applicable). | Verify the alarm is set and the alarm icon is displayed. Check if there's a volume setting (though most digital clocks have fixed alarm volume). |
| Tidspunktet er forkert. | Time not set correctly or power interruption. | Reset the time according to section 3.2. If power was interrupted, the clock may need to be reset. |
| Skærmen er for lys eller for svag. | Lysstyrkeindstillingen skal justeres. | Adjust the brightness manually using the UP/DOWN buttons as described in section 3.5. |
6. Specifikationer
- Modelnummer: Shanrya1am475rqfe-12
- ASIN: B0BVC2VWF3
- Mærke: Shanrya
- Skærmtype: Digital LED (rød)
- Funktioner: Alarm, Snooze, Dimmable Display (Manual, Auto, Night Mode)
- Strømkilde: DC 5V via USB cable
- Dimensioner: Approximately 15.8 cm (6.2 in) x 8.7 cm (3.4 in) (Width x Height)
- Første tilgængelige dato: 25. marts 2023

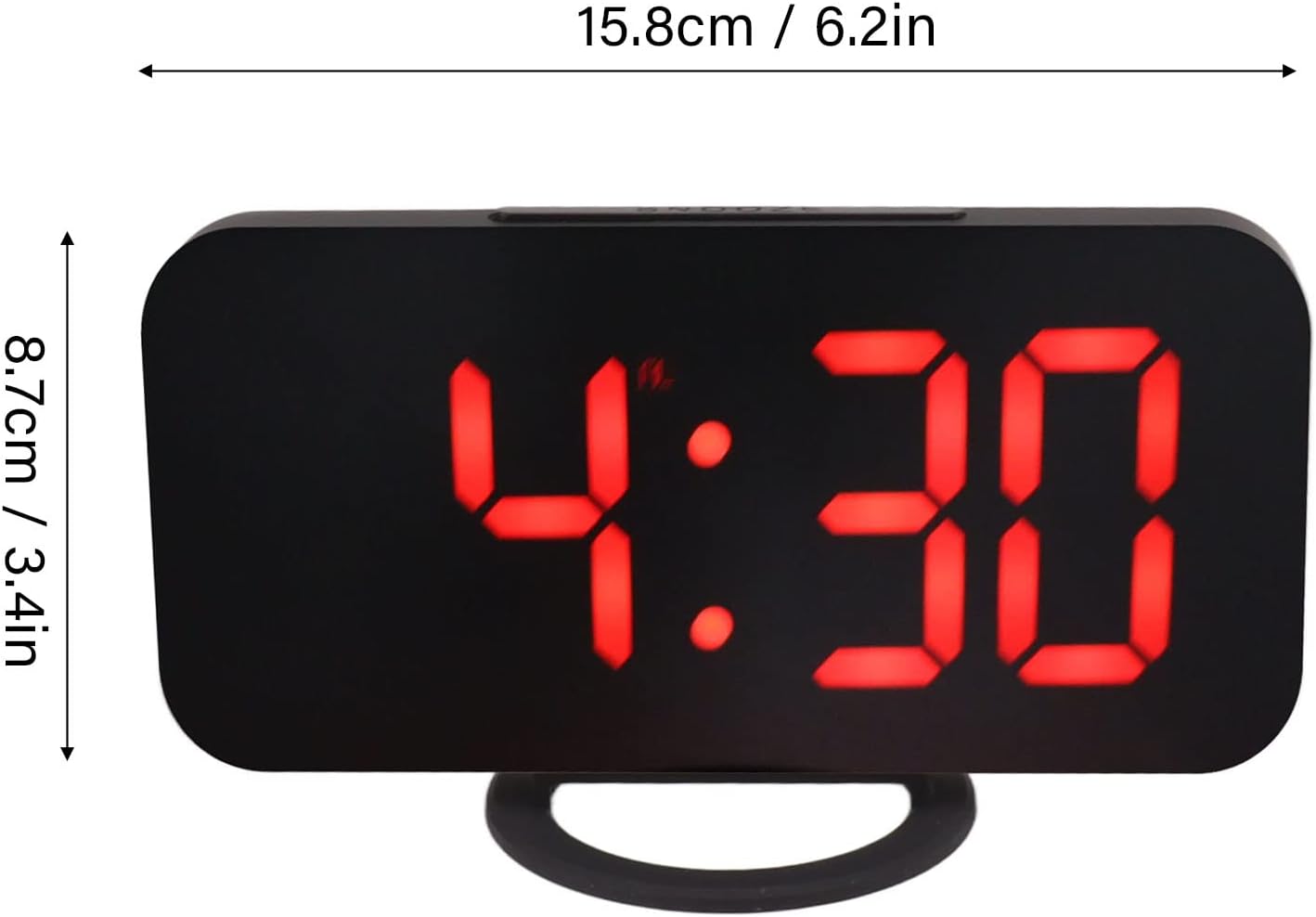

Figure 4: Diagram illustrating the approximate dimensions of the alarm clock.
7. Garanti og support
This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer.
For technical support or inquiries, please contact the seller or manufacturer through the platform where the product was purchased. Please have your model number (Shanrya1am475rqfe-12) and ASIN (B0BVC2VWF3) ready when contacting support.
