Indledning
Thank you for choosing the PPLEE 5-in-1 White Noise Machine. This versatile device combines a white noise machine with 42 soothing sounds, a high-fidelity Bluetooth speaker, a dual digital alarm clock, a multi-color night light, and a convenient charging station. Designed to enhance your sleep quality, relaxation, and daily routine, this manual provides detailed instructions for setup, operation, and maintenance.
Figure 1: PPLEE 5-in-1 White Noise Machine Overview
Hvad er der i æsken
- 1 x PPLEE Bluetooth Noise Machine Alarm Clock
- 1 x 5V 2A Power Adapter and Cord
- 1 x brugermanual
Opsætningsvejledning
1. Strømtilslutning
Connect the provided 5V 2A power adapter to the DC jack on the back of the device and plug it into a standard electrical outlet. The device will power on automatically.
2. Battery Installation (Memory Function)
For memory function and to retain time/alarm settings during power outages, install 1 CR2032 battery (not included) into the battery compartment on the bottom of the unit. This battery does not power the main functions of the device, only the memory backup.
3. Indstilling af tid
- Press and hold the 'TIME SET' button (usually labeled 'HOUR' or 'MIN' with a clock icon) until the hour display flashes.
- Use the 'HOUR' and 'MIN' buttons to adjust the time.
- Press 'TIME SET' again to confirm and exit time setting mode.
- To switch between 12-hour and 24-hour format, press the '12/24H' button.
Betjeningsvejledning
Sound Machine Operation
The device offers 42 natural soothing sounds across four categories: white noise, fan sounds, lullabies, and nature sounds.
- Valg af lyde: Press the 'SOUND' button (often represented by a music note or sound wave icon) to cycle through the available sound categories and individual sounds.
- Lydstyrkejustering: Use the 'VOL+' and 'VOL-' buttons to adjust the volume across 16 levels.
- Sleep timer: Press the 'TIMER' button repeatedly to set an automatic shut-off timer for 15, 30, 60, 90, 120, 180, or 480 minutes. The display will show the selected time. To cancel the timer, press the 'TIMER' button until 'OFF' or no timer duration is displayed.
Figure 2: Sound Selection and Timer Functions

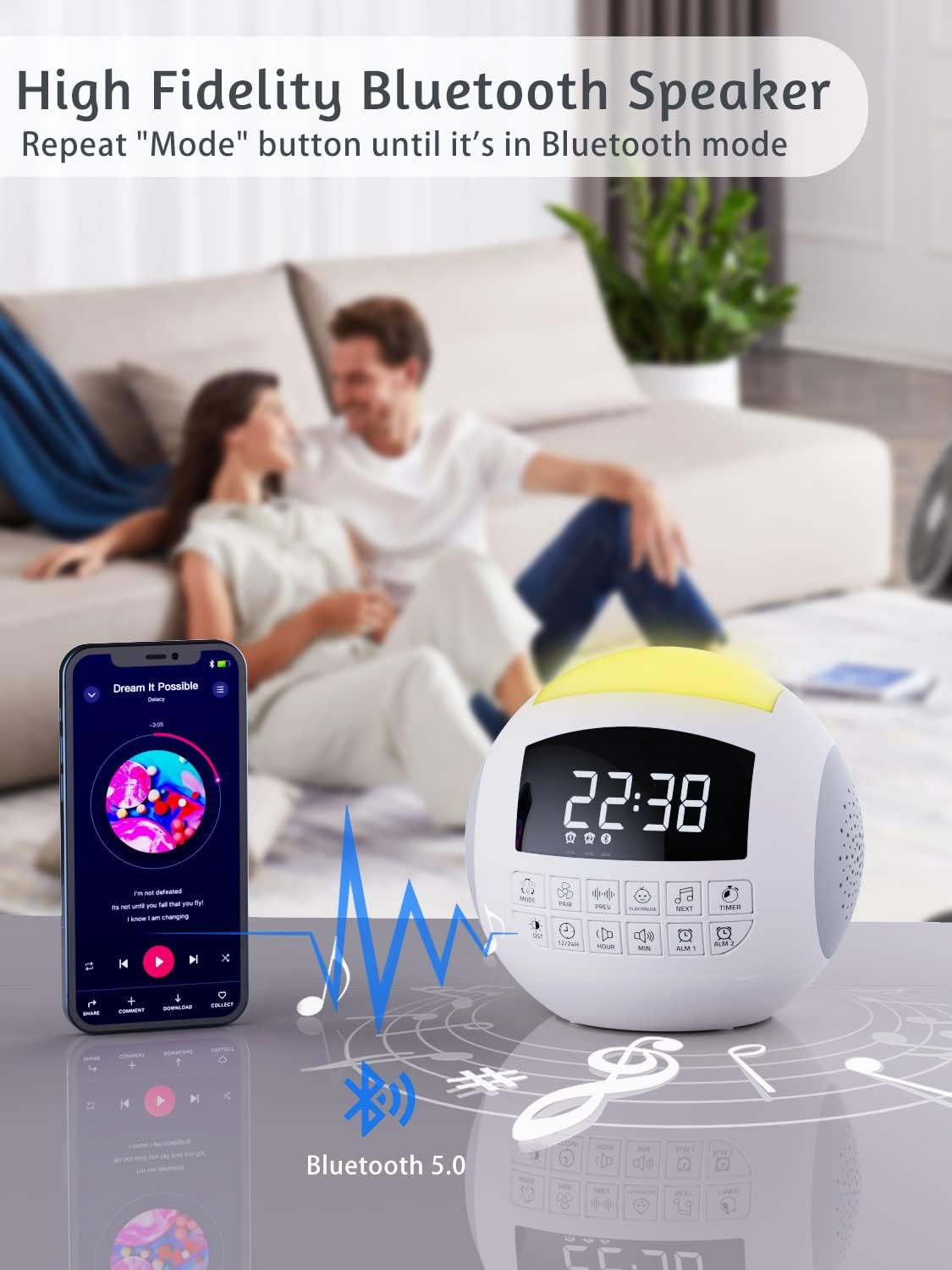

Betjening af Bluetooth-højttaler
Connect your smartphone or tablet wirelessly to play your favorite audio.
- Parring: Press the 'MODE' button until the Bluetooth icon appears on the display and starts flashing. On your device, enable Bluetooth and select 'CR1002M' (or similar) from the list of available devices. The icon will become solid when paired.
- Afspilning af lyd: Once paired, play audio from your connected device. Use the 'PREV', 'PLAY/PAUSE', and 'NEXT' buttons on the machine to control playback, or control directly from your device.
Figur 3: Bluetooth-forbindelse
Alarm Clock Operation
The device features dual alarms with customizable sounds and snooze functionality.
- Indstilling af alarmer: Press and hold 'ALARM 1' or 'ALARM 2' button until the alarm time flashes. Use 'HOUR' and 'MIN' buttons to set the desired alarm time. Press the alarm button again to confirm.
- Valg af alarmlyd: After setting the time, press the alarm button again to select from 9 different alarm sounds.
- Aktivering/deaktivering af alarm: Press the 'ALARM 1' or 'ALARM 2' button briefly to toggle the alarm on or off. An alarm icon will appear on the display when active.
- Snooze-funktion: When the alarm sounds, press the large 'SNOOZE' button on top to temporarily silence it for 9 minutes.
Figure 4: Dual Alarm Clock Settings
Natlysdrift
The integrated night light offers 7 colors and adjustable brightness.
- Ændring af farver: Press the 'LIGHT' button (often represented by a light bulb icon) to cycle through the 7 solid colors and a gradient color mode.
- Justering af lysstyrke: Press and hold the 'LIGHT' button to adjust the brightness level (5 levels available).
Figure 5: 7-Color Night Light with Brightness Control
Opladningsfunktion
The device includes a Type-C charging port for the unit itself and dual USB-A ports for charging external devices.
- Opladning af enhed: The unit is powered via its Type-C port using the provided adapter.
- External Device Charging: Connect your smartphone, tablet, or other USB-powered devices to the dual USB-A ports on the back of the unit to charge them.
Figure 6: Charging Ports for External Devices
Hukommelsesfunktion
The memory function ensures that your time and alarm settings are retained even if the main power is interrupted, thanks to the installed CR2032 battery.
Figure 7: Memory Function with Battery Backup
Opretholdelse
- Rensning: Tør enheden af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Opbevaring: Opbevar enheden et køligt og tørt sted, når den ikke er i brug i længere perioder.
- Udskiftning af batteri: Replace the CR2032 battery annually or if memory function fails.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Strømadapteren er ikke tilsluttet, eller der er en defekt stikkontakt. | Ensure adapter is securely plugged into device and a working outlet. |
| Ingen lyd eller lav lydstyrke. | Volume too low or incorrect sound selected. | Increase volume using 'VOL+' button. Cycle through sounds to ensure one is playing. |
| Bluetooth opretter ikke forbindelse. | Device not in pairing mode or too far from source. | Ensure device is in Bluetooth pairing mode (flashing icon). Move source closer. Try re-pairing. |
| Alarmen lyder ikke. | Alarmen er ikke aktiveret, eller lydstyrken er for lav. | Check if alarm icon is displayed. Increase alarm volume. Verify alarm time is set correctly. |
| Tid/indstillinger nulstilles efter strømafbrydelsetage. | CR2032 battery is dead or not installed. | Install or replace the CR2032 battery. |
Specifikationer
| Feature | Detalje |
|---|---|
| Produktdimensioner | 5.32 x 5.95 x 6.1 tommer |
| Varens vægt | 1.39 pund |
| Modelnummer | CR1002M |
| Farve | Hvid |
| Strømkilde | AC Powered (with CR2032 battery backup for memory) |
| Musiknumre | 42 (White Noise, Fan, Lullabies, Nature Sounds) |
| Nattelys farver | 7 Colors + Gradient |
| Lydstyrkeniveauer | 16 |
| Lysstyrkeniveauer | 5 |
| Timere | 15, 30, 60, 90, 120, 180, 480 minutter |
| Alarm lyder | 9 |
| Opladningsporte | Dual USB-A |
Garanti og support
PPLEE products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official PPLEE website. A digital version of this user manual is also available for download at https://manuals.plus/m/f23b430e063d58de8cd25ce8d0ed17a6ff4bc5a117e3aca8867779d575e1b4e3.
