Carrera GO!!! Sonic the Hedgehog Slot Car Race Track Instruction Manual

1. Introduktion

Welcome to the world of high-speed racing with your Carrera GO!!! Sonic the Hedgehog slot car race track set. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your new race track, ensuring a thrilling and enjoyable experience.

Image 1.1: The complete Carrera GO!!! Sonic the Hedgehog slot car race track set, featuring the track layout, Sonic's "Speed Star" car, and Shadow's "Dark Reaper" car.

2. Opsætning og montering

2.1. Pakkens indhold

Before beginning assembly, verify that all components are present in the package. Refer to the image below for a visual guide to the contents.

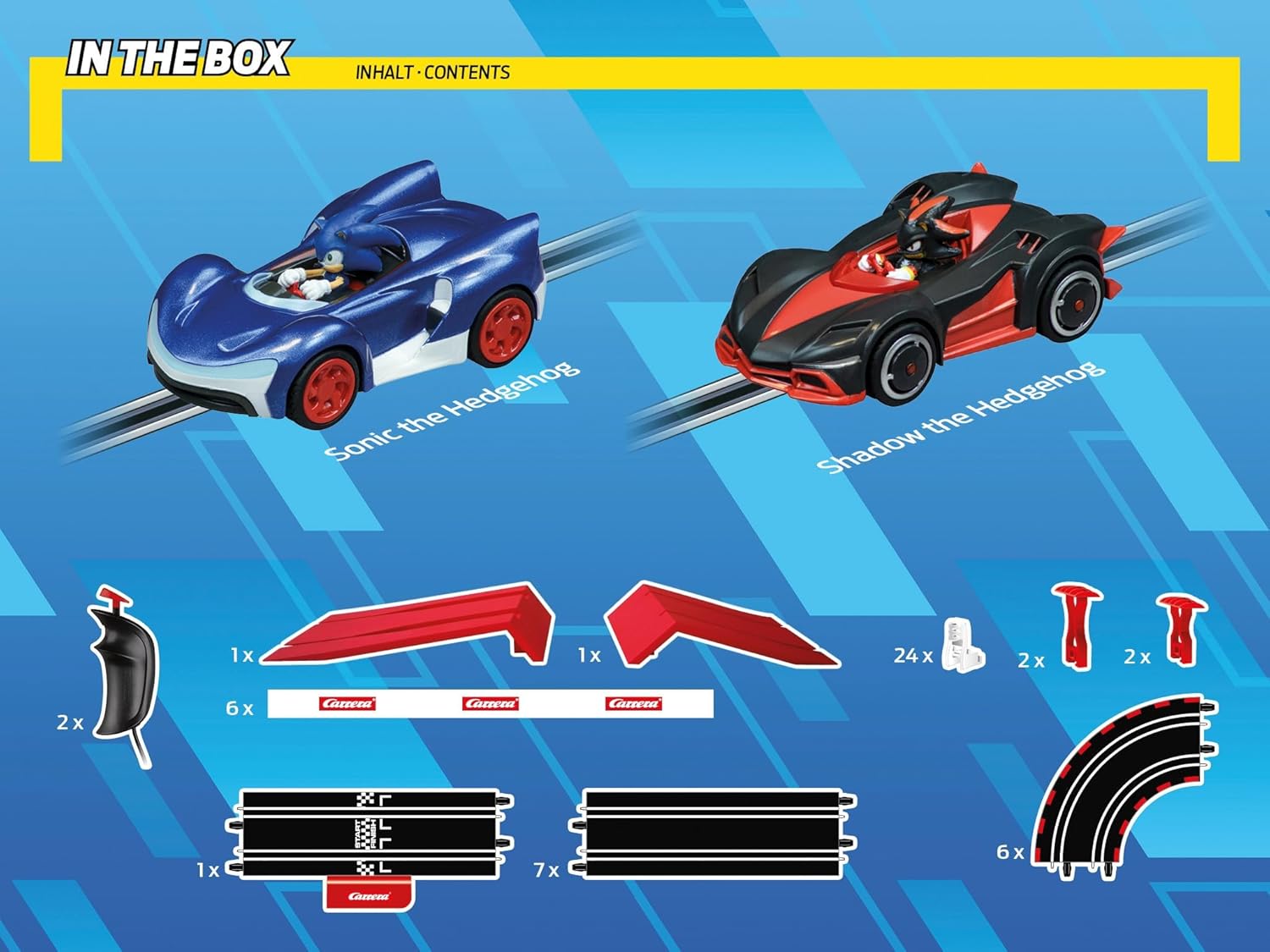

Billede 2.1: Detaljeret view of the Carrera GO!!! Sonic the Hedgehog set contents, including cars, controllers, track pieces, and accessories.

• 2 x hastighedsregulatorer
• 1 x Sonic the Hedgehog "Speed Star" Car
• 1 x Shadow the Hedgehog "Dark Reaper" Car
• 1 x Start/Finish Straight Track Piece
• 7 x Standard Straight Track Pieces
• 6 x Curve Track Pieces
• 2 x Jump Ramp Sporstykker
• 24 x Track Clips
• 2 x Track Supports

2.2. Samling af skinner

Assemble the track pieces by firmly connecting them. Ensure all connections are secure to prevent power interruptions during racing. The track can be configured as shown in the diagram below. The assembled track measures approximately 4.3 meters (14.10 feet) in length and has dimensions of 147 x 120 cm (4.82 x 3.94 feet).

Image 2.2: Assembly diagram showing the recommended track layout and overall dimensions. Note that the electrical transformer is sold separately.

This set is battery-powered. An optional electrical transformer is available separately for continuous power. For more information on compatible accessories and power options, please visit www.carrera-toys.com.

3. Betjeningsvejledning

3.1. Placing Cars on Track

Carefully place the Sonic "Speed Star" and Shadow "Dark Reaper" cars onto the track. Ensure the guide pins on the underside of each car are correctly seated within the track slot.

Billede 3.1: Nærbillede view of the Sonic and Shadow cars, along with the two speed controllers.

3.2. Using the Speed Controllers

Each player uses one speed controller. Press the trigger on the controller to accelerate your car. Release the trigger to slow down. Practice controlling your speed to navigate turns and the ski jump effectively without derailing.

4. Vedligeholdelse

Regular maintenance will extend the life and performance of your Carrera GO!!! set.

• Sporrensning: Periodically wipe down the track rails with a clean, dry cloth to remove dust and debris, ensuring good electrical contact.
• Bilbørster: Check the contact brushes on the underside of the cars. If they become worn or frayed, they may need to be replaced to maintain consistent power flow.
• Dæktilstand: Inspect the car tires for wear. Worn tires can affect grip and handling.
• Opbevaring: Når banen og bilerne ikke er i brug, skal de opbevares et rent og tørt sted, væk fra direkte sollys og ekstreme temperaturer.

5. Fejlfinding

If you encounter issues with your race track, consult the following common troubleshooting tips:

6. Specifikationer

7. Garanti og support

For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact Carrera Toys GmbH directly.

For further assistance, technical support, or to inquire about spare parts and accessories, please visit the official Carrera webwebsted: www.carrera-toys.com.
