Yaheetech Full Size Upholstered Bed Frame Instruction Manual

1. Introduktion

Thank you for choosing the Yaheetech Full Size Upholstered Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.

Vigtige sikkerhedsoplysninger

• Overskrid ikke den maksimale vægtkapacitet på 705 lb.
• Exercise caution with sharp edges during assembly to prevent injury.
• Ensure the adjustable headboard is securely fastened before use.
• The bed frame is shipped in two packages. The arrival time of the packages may vary.

2. Pakkens indhold

Før montering skal du kontrollere, at alle nedenstående komponenter er til stede og ubeskadigede. Hvis der mangler eller er beskadigede dele, bedes du kontakte kundesupport.

• Sengegavl (polstret)
• Bed Frame Rails (Metal)
• Trælameller
• 4 Storage Drawers (Wire Netting with Faux Leather exterior)
• Installationsmanual
• Hardware Pack (Screws, bolts, plastic parts, power adapter, power cord)

Figur 2.1: Overview of bed frame dimensions and components.

This diagram illustrates the overall structure and key measurements of the bed frame, including the headboard, frame, and a single storage drawer. Please refer to this for component identification.

3. Opsætning og montering

Assembly typically requires two adults. Please follow these steps carefully. Tools required are generally included in the hardware pack.

1. Udpak komponenter: Tag forsigtigt alle dele ud af emballagen. Læg dem på en ren, blød overflade for at undgå ridser.
2. Saml hovedgærde: Attach the headboard supports to the upholstered headboard section using the provided hardware. Ensure all connections are tight.
3. Tilslut sideskinner: Attach the side rails to the headboard and footboard using the designated bolts. Do not fully tighten until all frame components are aligned.
4. Installationscentersupport: Secure the center support beam(s) to the frame.
5. Installer lameller:

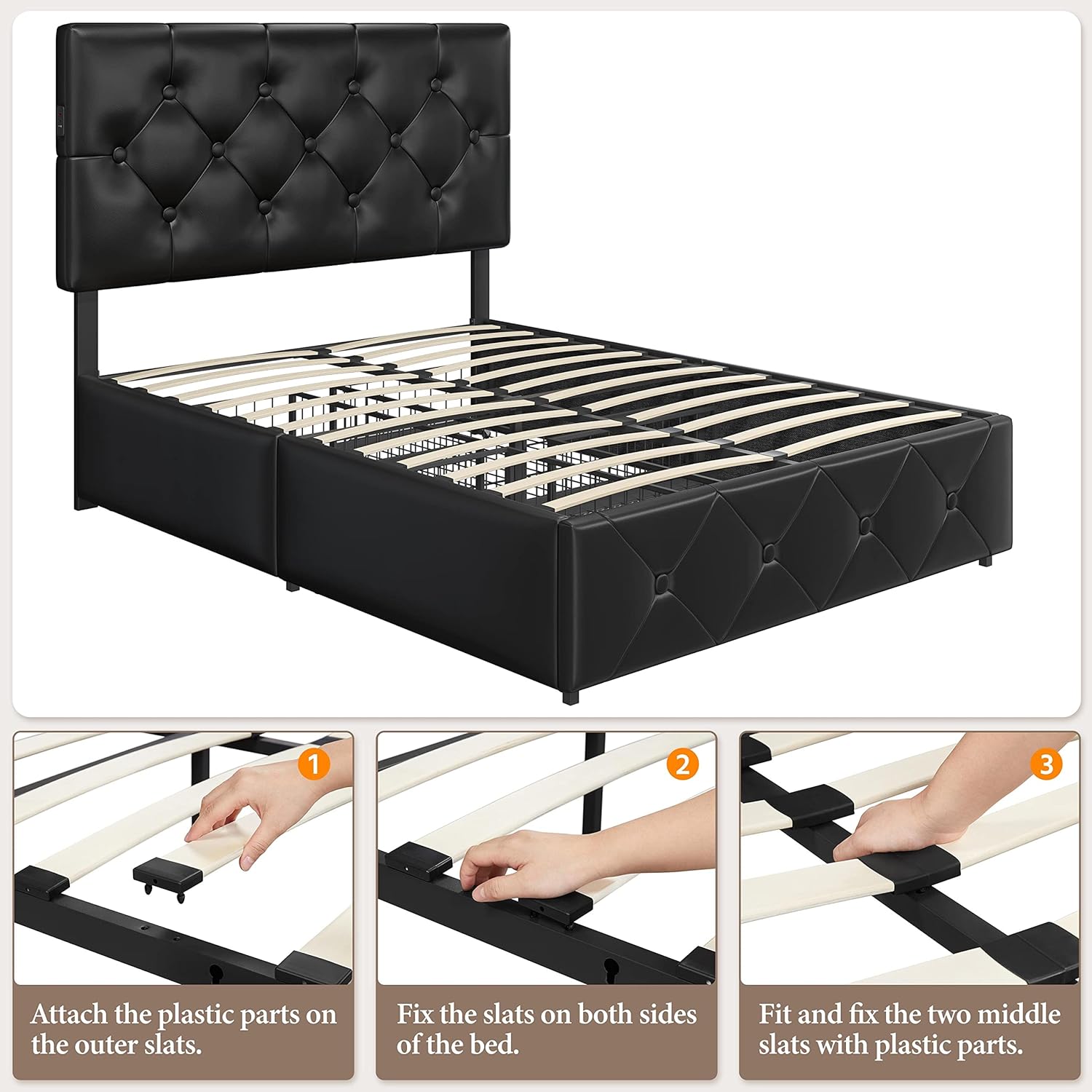

   Figur 3.1: Slat Installation Steps.

   This image illustrates the process of installing the wooden slats. First, attach the plastic end caps to the outer slats. Next, fix the slats onto both sides of the bed frame. Finally, fit and secure the two middle slats with their respective plastic parts. Ensure all slats are evenly spaced and securely seated.
6. Endelig stramning: Once all frame components and slats are in place, fully tighten all bolts and screws.
7. Indsæt opbevaringsskuffer: Place the four wire netting storage drawers into their designated positions under the bed frame.
8. Tilslut USB-strøm: Plug the provided power adapter into the bed frame's power input and then into a wall outlet.

4. Betjeningsvejledning

4.1 USB Charging Stations

Figur 4.1: USB Charging Ports on Headboard.

The headboard features two built-in USB charging ports: one Type-A and one Type-C. These ports are designed to keep your electronic devices charged conveniently. Simply plug your device's charging cable into the appropriate port. Ensure the bed frame's power adapter is connected to a live electrical outlet for the USB ports to function.

4.2 opbevaringsskuffer

Figur 4.2: Under-bed Storage Drawers.

The bed frame includes four wire netting storage drawers, each measuring approximately 31.5"L x 19.7"W x 6"H. These drawers provide ample space for storing bedding items, clothing, or other personal belongings. The drawers are designed to slide smoothly under the bed for easy access and discreet storage.

4.3 Adjustable Headboard

Figur 4.3: Adjustable Headboard Height.

The upholstered headboard's height can be adjusted to suit your preference or mattress thickness, ranging from 39.5" to 44". To adjust, loosen the bolts connecting the headboard to the frame, slide the headboard to the desired height, and then securely tighten the bolts. Ensure the headboard is stable after adjustment.

5. Vedligeholdelse

Proper care and maintenance will extend the life of your Yaheetech bed frame.

• Rensning: Clean the faux leather upholstery with a dry or slightly damp cloth. Avoid harsh chemicals or abrasive cleaners, as these may damage the material.
• Hardwarekontrol: Periodically check all bolts and screws to ensure they remain tight. Loose connections can affect the stability and longevity of the bed frame.
• Lamelleinspektion: Inspect the wooden slats regularly for any signs of wear or damage. Replace any broken slats promptly to maintain mattress support.
• Skuffepleje: Keep the storage drawers free of excessive weight to ensure smooth operation and prevent damage to the wire netting.

Figur 5.1: Faux Leather and Foam Detail.

The faux leather upholstery is designed for durability and easy cleaning. Regular dusting and occasional wiping with a damp cloth are sufficient to maintain its appearance.

6. Fejlfinding

Hvis du støder på problemer med din sengeramme, kan du se følgende almindelige problemer og løsninger:

• Bed Frame is Wobbling:
  Ensure all bolts and screws are securely tightened. Check that the center support legs are firmly on the floor and properly aligned.
• USB-porte fungerer ikke:
  Verify that the bed frame's power adapter is correctly plugged into both the bed frame and a working wall outlet. Check the power cord for any visible damage. If the issue persists, the power cable or USB module may require replacement.
• Storage Drawers Do Not Slide Smoothly:
  Check for any obstructions under the bed or within the drawer tracks. Ensure the drawer wheels are clean and free of debris. Verify that the drawers are not overloaded.
• Slats Breaking or Sagging:
  Ensure the mattress weight does not exceed the bed frame's capacity (705 lb). Verify that the slats are correctly installed and evenly distributed. If individual slats are damaged, they may need to be replaced.

7. Specifikationer

8. Garanti og support

For specific warranty information or to obtain support for your Yaheetech Full Size Upholstered Bed Frame, please refer to the warranty card included with your product or visit the official Yaheetech website. If you require assistance with assembly, missing parts, or troubleshooting beyond this manual, please contact Yaheetech customer service directly.

Du kan finde mere information og kontaktoplysninger på Yaheetech-butik på Amazon.
