1. Introduktion
This manual provides essential information for the safe and effective use of your HMF Small Furniture Safe. Please read these instructions carefully before setup and operation to ensure proper functionality and security.
Figure 1: HMF Small Furniture Safe (Model 49216-02) with the door open and key inserted.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsretningslinjer:
- Keep keys in a secure location away from the safe. Do not store keys inside the safe.
- Sørg for, at pengeskabet er sikkert monteret på en væg eller et gulv for at forhindre uautoriseret fjernelse.
- Do not attempt to force the lock or door.
- Keep the safe away from extreme temperatures and moisture.
- This safe is designed for storing valuables and documents; it is not fireproof or waterproof unless explicitly stated.
3. Pakkens indhold
Bekræft at alle komponenter er til stede i pakken:
- 1 x HMF Small Furniture Safe
- 2 x Double Point Keys
- 2 x Metal Dowels
- 2 x fastgørelsesskruer
Figure 2: Included accessories: two double point keys and two metal dowels for secure mounting.
4. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 49216-02 |
| Mærke | HMF |
| Udvendige mål (B x H x D) | 23 x 17 x 17 cm |
| Indvendige mål (B x H x D) | 22.5 x 16.5 x 16.5 cm (suitable for DIN A5 documents) |
| Vægt | 2.35 kg |
| Materiale | Legeret stål |
| Vægtykkelse | 1 mm (body), 3 mm (door) |
| Låsetype | Mechanical double-bit lock with three-bolt lock |
| Montering | Prepared holes for wall or floor mounting |

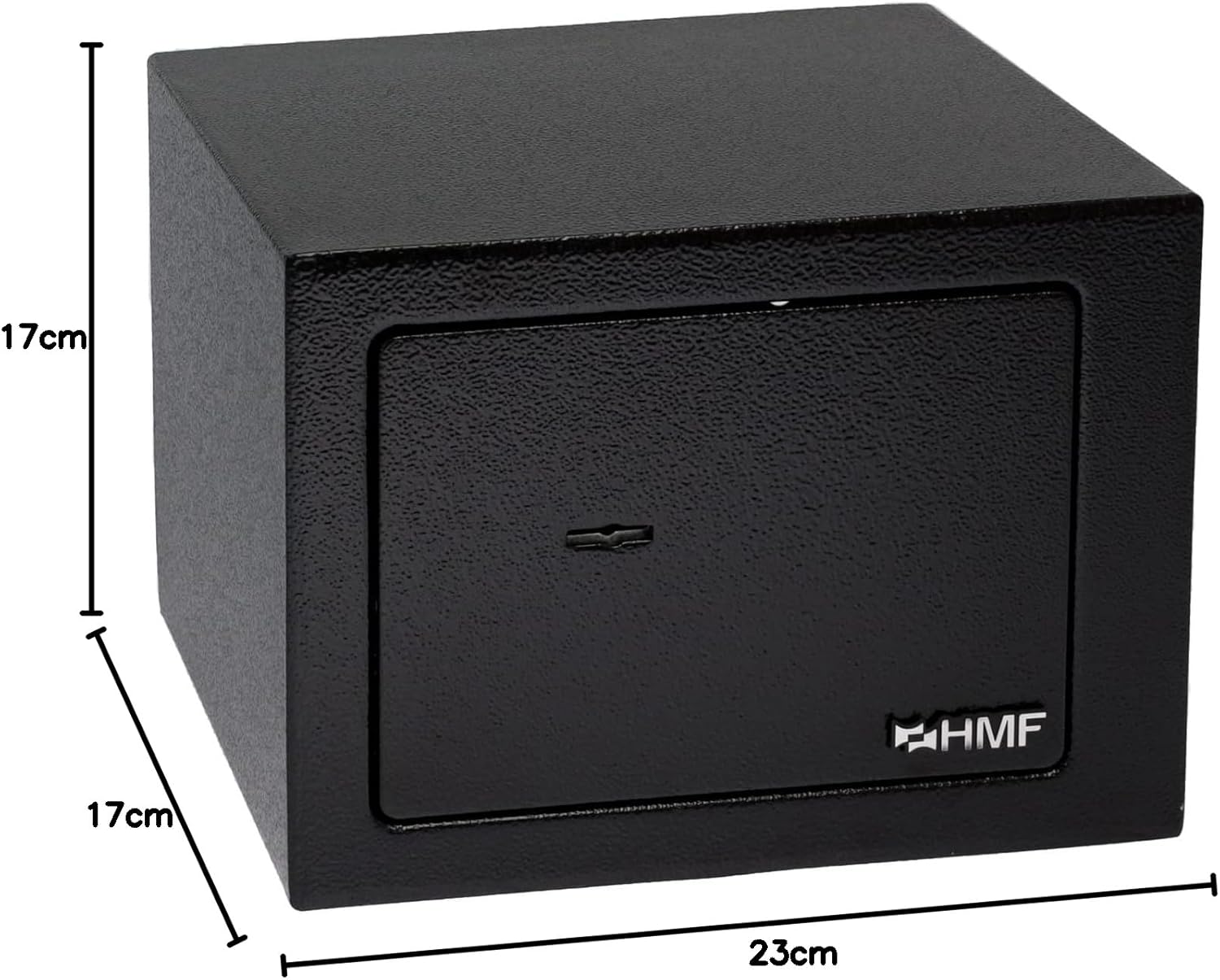

Figure 3: External dimensions of the HMF safe.
5. Opsætning og installation
5.1 Udpakning
Carefully remove the safe and all accessories from the packaging. Inspect for any damage. Retain packaging for future transport or storage if needed.
5.2 Åbning af pengeskabet for første gang
- Locate one of the two double-bit keys provided.
- Insert the key into the keyhole on the safe door.
- Drej nøglen med uret for at låse pengeskabet op.
- Træk døren op.
Figure 4: Safe door open, revealing the three-bolt locking mechanism.
5.3 Montering af pengeskabet
The safe is equipped with pre-drilled holes for secure mounting to a wall or floor. This significantly enhances security.
- Choose a suitable location for the safe, considering both accessibility and concealment.
- Mark the drilling points on the wall or floor using the safe's pre-drilled holes as a template. The safe has two holes on the back and two on the bottom.
- Bor huller på de markerede punkter med et passende bor til dit væg-/gulvmateriale.
- Insert the provided metal dowels into the drilled holes.
- Align the safe with the dowels and secure it using the provided fixing screws. Ensure the safe is firmly attached and does not wobble.
Figur 5: Bagside view af pengeskabet, med fremhævelse af de forborede monteringshuller.
6. Betjening af pengeskabet
6.1 Locking the Safe
- Ensure the safe door is fully closed.
- Insert the double-bit key into the keyhole.
- Turn the key counter-clockwise until it stops. The three bolts will extend, securing the door.
- Remove the key and store it in a secure, separate location.
Figure 6: The safe in a closed and locked position.
6.2 Oplåsning af pengeskabet
- Insert the double-bit key into the keyhole.
- Turn the key clockwise until it stops. The three bolts will retract.
- Træk døren op.
- You can now access the contents of your safe.
Figur 7: Interiør view of the safe, suitable for storing various small valuables.
7. Vedligeholdelse
- Rensning: Tør ydersiden af pengeskabet af med en blød, tør klud.amp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
- Låsemekanisme: The mechanical lock requires minimal maintenance. If the key turns stiffly, a small amount of graphite lubricant (not oil) can be applied to the key and inserted into the lock.
- Inspektion: Periodically check the mounting screws to ensure they remain tight.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Key does not turn or turns stiffly. | Obstruction in keyhole, worn key, or dry lock mechanism. | Ensure no debris is in the keyhole. Try the second key. Apply a small amount of graphite lubricant to the key and insert into the lock. |
| Safe door does not open after unlocking. | Bolts not fully retracted, door stuck. | Ensure the key is turned fully clockwise. Gently pull the door. Do not force. |
| Safe feels loose after mounting. | Mounting screws are loose or not properly installed. | Tighten all mounting screws. If necessary, re-install the safe ensuring proper dowel and screw placement. |
9. Garantioplysninger
HMF products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or visit the official HMF webwebsted. Gem din købsbevis til garantikrav.
10. Kundesupport
If you encounter any issues not covered in this manual or require further assistance, please contact HMF customer support:
- Webwebsted: www.hmf.de (Please note: This is a general placeholder. Refer to your product packaging or purchase details for specific regional support contacts.)
- E-mail: support@hmf.de
