Nanlite Forza 300 II LED-spotlight brugermanual

Indledning

The Nanlite Forza 300 II is a powerful and versatile LED spotlight designed for professional photography and videography. It features a 5600K daylight-balanced output, advanced control options including Bluetooth app control and DMX, and built-in special effects. Its compact design and AC/battery power capabilities make it suitable for various production environments.

Sikkerhedsoplysninger

Please read this manual carefully before using the product to ensure proper operation and to prevent damage or injury. Keep this manual for future reference.

• Se ikke direkte ind i lyskilden, når armaturet er tændt.
• Do not operate the fixture in wet or damp forhold.
• Sørg for korrekt ventilation for at forhindre overophedning.
• Brug kun godkendte strømadaptere og tilbehør.
• Opbevares utilgængeligt for børn.
• Afbryd strømmen før rengøring eller vedligeholdelse.

Pakkens indhold

Bekræft at alle varer er inkluderet i din pakke:

• Forza 300 II LED Spotlight Fixture
• Kontrolenhed
• Tilslutningskabel
• Strømkabel
• Refleks
• Bæretaske
• Brugermanual

Produkt overview

Familiarize yourself with the main components of the Nanlite Forza 300 II.

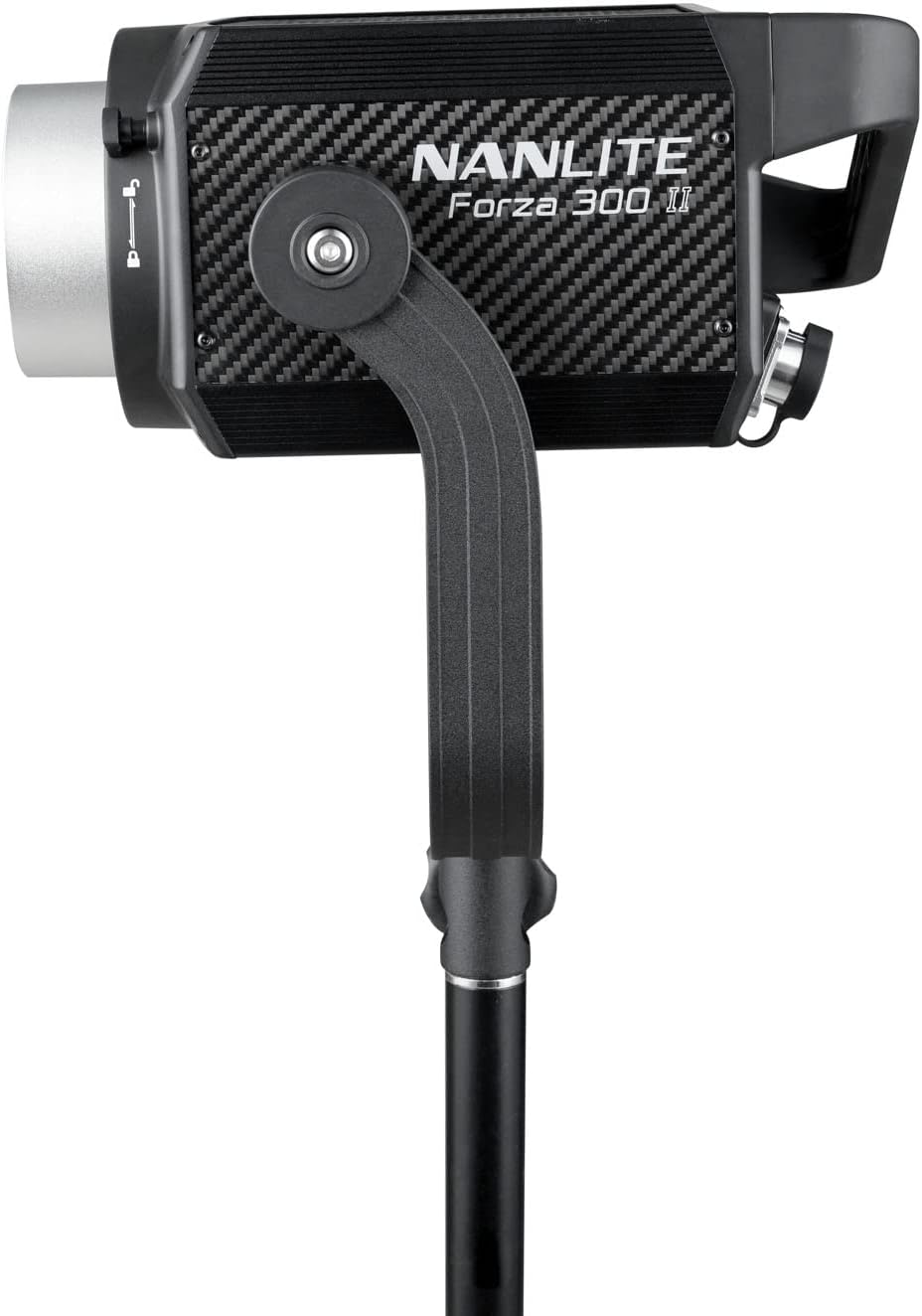

Figur 1: Forside view of the Forza 300 II LED Spotlight, showing the light head with its yoke and stand mounting bracket.

Figure 2: The Forza 300 II Control Unit, featuring a display screen, control knobs for brightness and effects, and function buttons.

Figur 3: Bagside view of the Forza 300 II Control Unit, highlighting the DMX input/output ports, power input, and output connections to the light fixture.

Nøglekomponenter:

• Lysarmatur: The main LED light source with Bowens mount for accessories.
• Kontrolenhed: External unit housing the power supply, display, and control interface.
• Åg: Adjustable bracket for mounting the light fixture onto a light stand.
• Quick-Release Clamp: Durable and versatile clamp til sikker montering.

Opsætning

Follow these steps for initial setup of your Forza 300 II.

1. Monter lysarmaturen: Attach the Forza 300 II light fixture to a sturdy light stand using the integrated yoke and quick-release clamp. Ensure it is securely tightened.
2. Tilslut styreenheden: Connect the light fixture to the control unit using the provided connecting cable. Align the connectors and twist to lock them securely.
3. Strømtilslutning:
   • AC strøm: Connect the power cable to the control unit's AC input and then to a suitable power outlet (100-240V AC).
   • Batteristrøm: For portable operation, insert compatible V-mount batteries into the battery plates on the control unit. The unit can run on one battery for extended life.
4. Fastgør reflektor: Align the reflector with the Bowens mount on the front of the light fixture and twist clockwise until it locks into place.

Figure 4: The Forza 300 II light fixture connected to its control unit, demonstrating the power and data cable connections.

Betjeningsvejledning

Learn how to operate your Forza 300 II for optimal performance.

1. Tænd/sluk

Locate the power switch on the control unit and flip it to the "ON" position to power on the light. Flip to "OFF" to power down.

2. Grundlæggende betjening

• Justering af lysstyrke: Use the dedicated knob on the control unit to adjust the light intensity from 0% to 100%.
• G/M Adjustment: The W(RG) LED light source allows for Green-to-Magenta shift adjustment by +/- 80. Access this setting via the menu.

3. Kontroltilstande

• On-Board Control: Use the display and knobs on the control unit for direct adjustments.
• Bluetooth app kontrol: Download the free NANLINK app for iOS & Android. Pair your device via Bluetooth for comprehensive control over settings, effects, and firmware updates.
• DMX/RDM: Connect to a DMX console using the locking DMX ports for professional studio integration. Refer to the DMX chart in the appendix (not included in this manual) for channel assignments.
• 2.4G trådløs kontrol: Compatible with the optional WS-RC-C2 Remote Control and WS-TB-1 Transmitter Box (sold separately).

4. Special Effects

The Forza 300 II includes built-in practical effects. Press the "EFFECT" button on the control unit to cycle through or select effects such as:

• Blitz
• Puls
• Storm
• TV
• Paparazzi
• Defekt pære
• Lys
• Brand
• Eksplosion
• Svejsning

Adjust parameters for each effect using the control knobs.

Opretholdelse

Proper maintenance ensures the longevity and optimal performance of your Forza 300 II.

• Rensning: Use a soft, dry cloth to clean the exterior of the light fixture and control unit. Do not use harsh chemicals or abrasive materials.
• Ventilation: Ensure the fan vents are clear of dust and obstructions to maintain efficient cooling. The Forza 300 II features a quieter fan design.
• Opbevaring: When not in use, store the light in its carrying bag in a cool, dry place, away from direct sunlight and excessive humidity.
• Kabelpleje: Avoid sharp bends or kinks in the power and connecting cables. The included cables are substantially longer and designed for durability.

Fejlfinding

If you encounter issues with your Forza 300 II, refer to the following common problems and solutions.

Specifikationer

Garanti og support

Nanlite products typically come with a limited warranty. Please refer to the warranty card included with your product or visit the official Nanlite webhjemmeside for detaljerede garantivilkår.

For technical support, service, or inquiries, please contact Nanlite customer service through their official webwebstedet eller autoriserede distributører. Gem din købskvittering som købsbevis i tilfælde af garantikrav.

Officiel Nanlite Webwebsted: www.nanlite.com
