1. Introduktion
This manual provides instructions for the safe and efficient use of your Displays2go D2G52039 Battery-Powered LED Display Case Accent Lights. These lights are designed to illuminate display cases, curio cabinets, and retail showcases, highlighting items with 120-lumen white LED light. Please read this manual thoroughly before use and retain it for future reference.
2. Pakkens indhold
- (2) Displays2go D2G52039 Display Case Accent Lights (Silver)
- Brugermanual
Note: 3 AAA batteries per light are required and not included.
3. Sikkerhedsoplysninger
- Bland ikke gamle og nye batterier.
- Bland ikke alkaliske, standard (kul-zink) eller genopladelige (nikkel-cadmium) batterier.
- Indsæt batterier med korrekt polaritet (+ og -).
- Fjern batterierne, hvis produktet ikke bruges i en længere periode.
- Opbevar batterier utilgængeligt for børn.
- Do not expose the lights to water or excessive moisture. This product is for indoor use only.
- Do not attempt to disassemble or modify the lights.
4. Opsætning
4.1 Batteriinstallation
- Locate the battery compartment cover on the underside of the light base.
- Drej eller skub dækslet for at åbne rummet.
- Insert three (3) AAA batteries into the compartment, ensuring correct polarity (+ and -) as indicated inside.
- Sæt batterirummets dæksel på igen.
Figure 1: Underside of the light base, indicating the battery compartment for AAA batteries.
4.2 Placering
Place the accent lights on a flat, stable surface within your display case or desired area. The light head is adjustable, allowing you to tilt it to direct the light beam onto specific items.
Figure 2: The accent light with its adjustable head, ready for placement.

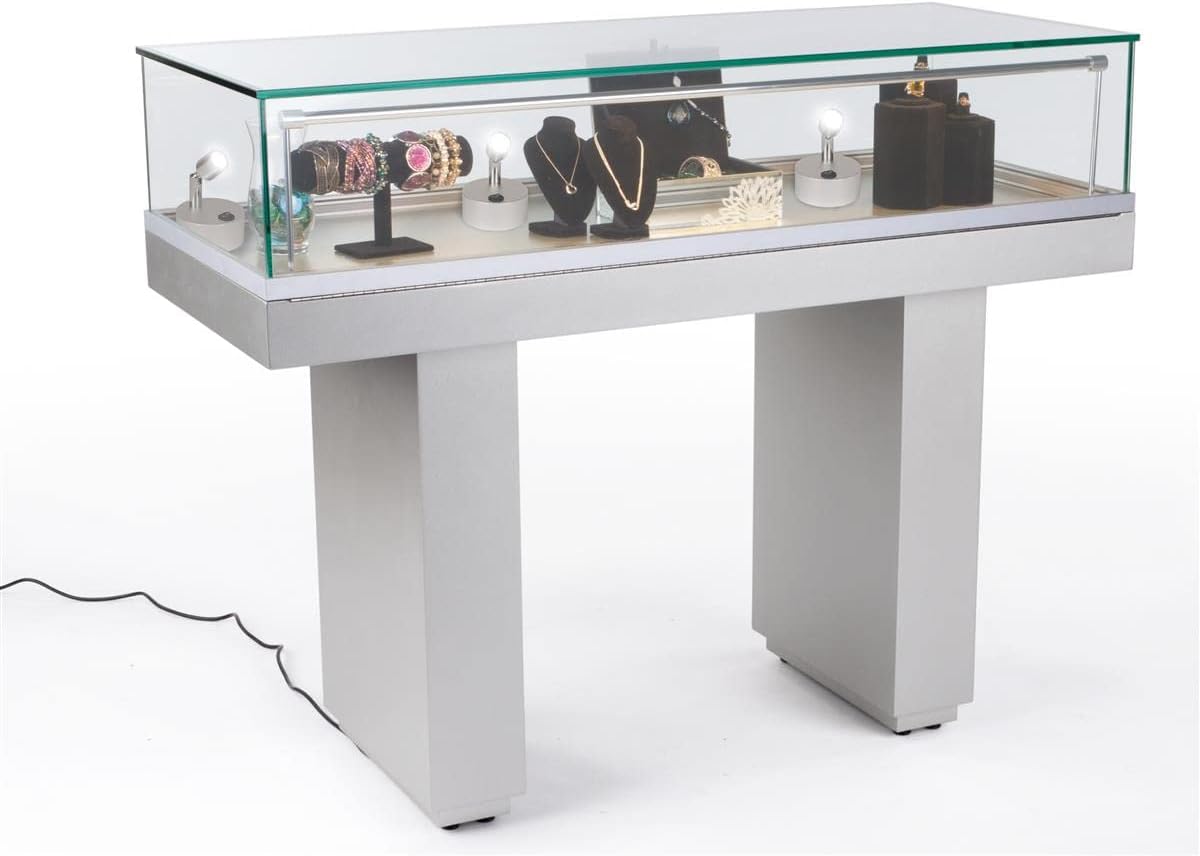

Figur 3: Eksample of accent lights used within a display case to highlight various items.
5. Betjeningsvejledning
Each accent light features a simple on/off switch located on its base.
- To turn the light ON, press the "I" side of the rocker switch.
- To turn the light OFF, press the "O" side of the rocker switch.
Figur 4: Nærbillede view of the rocker switch for turning the light on or off.
6. Vedligeholdelse
6.1 Rengøring
Wipe the lights with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or electronic components.
6.2 Udskiftning af batteri
When the light output diminishes, it is time to replace the batteries. Follow the battery installation steps in Section 4.1 to replace the three (3) AAA batteries. Dispose of used batteries responsibly according to local regulations.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Batterierne er brugt op eller forkert installeret. | Kontroller batteripolariteten. Udskift med nye AAA-batterier. |
| Lyset er svagt. | Batterierne er lave. | Udskift med friske AAA-batterier. |
| Lyse flimrer. | Løs batteriforbindelse eller lave batterier. | Ensure batteries are securely seated. Replace with fresh AAA batteries. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | D2G52039 |
| Mærke | Viser 2go |
| Lys type | LED |
| Lysudgang | 120 lumen |
| Farvetemperatur | 6000-6500K (hvidt lys) |
| Strømkilde | 3 x AAA-batterier (medfølger ikke) |
| Wattage | 1W |
| Voltage | 3.7V |
| Materiale | Aluminium |
| Farve | Sølv |
| Dimensioner (samlet) | 3.0" L x 3.0" B x 3.9" H |
| Vægt (hver) | 0.28 lbs (ca. 4.5 oz) |
| Funktioner | Tilting head, Portable, Touch switch |
| Indendørs/Udendørs brug | Kun indendørs |
9. Garanti og support
For warranty information or technical support, please contact Displays2go customer service. Refer to your purchase documentation for specific warranty terms and contact details.
You can also visit the official Displays2go website for additional resources and support information.
