ZIPRO Jacked

ZIPRO Jacked Multifunktionel Sammenklappelig Vægtbænk Brugermanual

Model: Jacked

1. Introduktion

The ZIPRO Jacked Multi-Purpose Foldable Weight Bench is an essential piece of equipment for effective home workouts. Designed for versatility, it allows you to perform a wide range of exercises, including bench presses, abdominal workouts, and dumbbell exercises, without needing to visit a gym. This high-quality bench is built to support your fitness journey with its robust construction and adjustable features.

Note: Long barbells and weight sets are not included with this product.

2. Vigtige sikkerhedsoplysninger

Please read all safety instructions carefully before assembling or using the ZIPRO Jacked Weight Bench. Failure to follow these instructions may result in injury or damage to the product.

3. Pakkens indhold

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

4. Monteringsvejledning

Assembly typically requires two people. Please follow these steps carefully. Refer to the diagrams for visual guidance.

  1. Udpak og identificer dele: Carefully remove all components from the packaging. Lay them out on a clean, flat surface. Identify each part using the provided parts list and diagrams.
    ZIPRO Jacked Weight Bench components

    Figur 4.1: Overview of the ZIPRO Jacked Weight Bench.

  2. Fastgør stabilisatorer: Secure the front and rear stabilizer bars to the main frame using the appropriate bolts and nuts. Ensure they are tightly fastened for stability. The triangular construction and 50x50mm profiles contribute to enhanced stability.
    Weight bench stability features and adjustment points

    Figure 4.2: Highlighted stability points and adjustment mechanisms.

  3. Install Backrest and Seat Pads: Attach the backrest and seat pads to their respective frame sections using the provided screws. Ensure the pads are aligned correctly and securely fastened. The bench features a 6 cm thick seat for comfort during long workouts.
    Close-up of bench padding and footrest

    Figure 4.3: Detail of the comfortable padding and footrest.

  4. Assemble Footrest/Leg Developer: Attach the footrest or leg developer assembly to the designated point on the main frame. This component can be fully folded away when not in use.
  5. Insert Adjustment Pins: Insert the quick-release adjustment pins into the designated holes for the backrest, seat, and footrest. These pins allow for quick and easy adjustments.
  6. Endelig kontrol: Before first use, double-check all connections to ensure they are tight and secure. Wiggle the bench gently to confirm stability.

5. Betjeningsvejledning

The ZIPRO Jacked bench offers multiple adjustment options for a customized workout experience.

5.1 Justering af ryglænet

The backrest can be adjusted to various incline, flat, and decline positions. To adjust:

  1. Find justeringsstiften eller håndtaget ved bunden af ​​ryglænet.
  2. Pull the pin out or release the lever.
  3. Flyt ryglænet til den ønskede vinkel.
  4. Release the pin/lever, ensuring it locks securely into one of the adjustment notches.

5.2 Justering af sædet

The seat also offers multiple angle adjustments to complement the backrest position.

  1. Locate the adjustment mechanism beneath the seat.
  2. Pull the pin or release the lever.
  3. Adjust the seat to the desired angle.
  4. Ensure the pin/lever locks firmly into place.

5.3 Adjusting the Footrest/Leg Developer

The footrest can be adjusted for different leg exercises or folded away.

  1. Locate the adjustment pin near the footrest.
  2. Pull the pin to release the footrest.
  3. Adjust to the desired height or fold it completely.
  4. Secure the pin back into position.

5.4 Foldning til opbevaring

The ZIPRO Jacked bench is designed for easy folding and storage, thanks to its locking bolt construction.

  1. Sørg for, at ryglænet og sædet er i deres laveste eller mest kompakte position.
  2. Locate the folding mechanism (usually a locking bolt or pin) on the main frame.
  3. Frigør låsemekanismen.
  4. Carefully fold the bench until it reaches its compact storage dimensions.
  5. Secure any locking pins to prevent accidental unfolding.

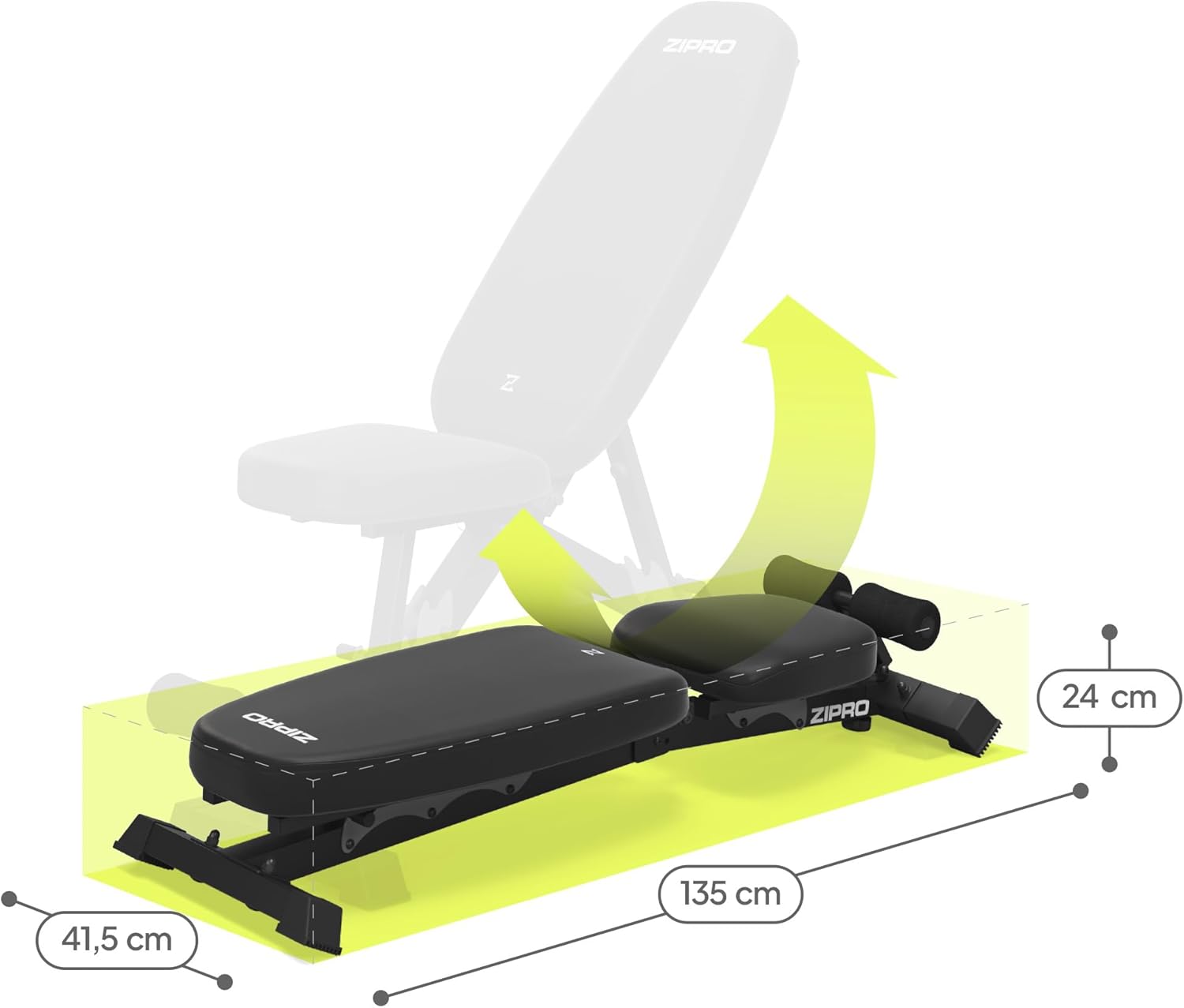

Folded dimensions of the weight bench

Figure 5.1: The bench in its folded state, highlighting compact storage.

6. Vedligeholdelse

Regular maintenance will ensure the longevity and safe operation of your ZIPRO Jacked Weight Bench.

7. Fejlfinding

Her er nogle almindelige problemer og deres potentielle løsninger:

Problem Mulig årsag Løsning
Bænken føles ustabil eller vaklende. Løse bolte eller ujævn overflade. Ensure all assembly bolts are tightened. Move the bench to a flat, level surface.
Difficulty adjusting backrest/seat. Adjustment pin not fully disengaged or mechanism is stiff. Ensure the pin is pulled out completely. Apply a small amount of silicone lubricant to the mechanism.
Bench does not fold easily. Locking bolt/pin not fully released or mechanism is stiff. Ensure the folding locking mechanism is fully disengaged. Lubricate moving parts if necessary.
Knirkende lyde under brug. Løse forbindelser eller friktion mellem metaldele. Tighten all bolts. Apply lubricant to pivot points and joints.

If you encounter issues not listed here or if the problem persists, please contact ZIPRO customer support.

8. Specifikationer

Feature Detalje
Modelnavn Jacked
Modelnummer 11926648
Mærke ZIPRO
Materiale Carbon Steel Frame, Metal, Polyethylene
Farve Jacked (Black)
Maksimal vægtkapacitet 230 kilogram (ca. 507 lbs)
Produktmål (L x B x H) 135 x 41 x 24 cm (foldet)
Varens vægt 14 kilogram (ca. 30.8 lbs)
Sædetykkelse 6 cm
Detailed dimensions of the weight bench

Figure 8.1: Detailed dimensions of the ZIPRO Jacked Weight Bench.

9. Garanti og support

The ZIPRO Jacked Multi-Purpose Foldable Weight Bench comes with a 2 års tilgængelighed af reservedele from the date of purchase. This ensures that essential components can be replaced if needed within this period.

For warranty claims, technical support, or inquiries about spare parts, please contact ZIPRO customer service. Please have your purchase receipt and product model number (11926648) ready when contacting support.

For the most up-to-date contact information, please refer to the official ZIPRO webwebstedet eller den forhandler, hvorfra du købte produktet.
