DEYE SUN-12K-SG04LP3-EU trefaset hybridinverter brugermanual

1. Introduktion

This manual provides essential instructions for the installation, operation, and maintenance of the DEYE SUN-12K-SG04LP3-EU Three-Phase Hybrid Inverter. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage to the device or injury to personnel. Keep this manual for future reference.

Figur 1: DEYE SUN-12K-SG04LP3-EU Hybrid Inverter and included accessories. This image displays the main inverter unit along with various cables, connectors, and current transformers that are part of the product package.

2. Sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at mindske risikoen for elektrisk stød, brand eller personskade:

• Installation og vedligeholdelse må kun udføres af kvalificeret personale.
• Ensure the inverter is disconnected from all power sources (PV array, battery, grid) before performing any service or maintenance.
• Brug ikke inverteren, hvis den er beskadiget eller ser ud til at fungere forkert.
• Do not attempt to repair the inverter yourself. Contact authorized service personnel.
• Hold børn væk fra inverteren.
• The inverter can reach high temperatures during operation. Avoid touching it directly.
• Sørg for korrekt ventilation omkring inverteren for at forhindre overophedning.

3. Produktet er slutview

The DEYE SUN-12K-SG04LP3-EU is a three-phase hybrid inverter designed for solar energy systems. It features two Maximum Power Point Trackers (MPPTs), a WLAN module for monitoring, and an IP65 rating for outdoor installation. It supports low-voltage 48V batteries and offers flexible DC/AC coupling options.

3.1 Nøglefunktioner

• 12 kW Three-Phase Hybrid Inverter
• 48 V lavvolumentage Battery Compatibility (Lead-Acid or Lithium-Ion)
• Two MPPTs for optimized solar energy harvesting
• Integrated WLAN module for remote monitoring
• IP65 protection rating for outdoor use
• Supports three-phase unbalanced output
• Equipped with CAN (x2) and RS485 (x1) ports for BMS and parallel communication
• Smart Load application and Grid-Peak-Shave function

3.2 Leveringsomfang

Figur 2: Components included in the DEYE SUN-12K-SG04LP3-EU package. This image shows the various accessories such as communication cables, DC connectors, current transformers, and the user manual that come with the inverter.

Bekræft, at alle nedenstående komponenter er til stede i pakken:

• DEYE SUN-12K-SG04LP3-EU Hybrid Inverter Unit
• WLAN-modul
• Brugermanual
• Monteringsbeslag
• Communication Cables (e.g., Ethernet, RS485)
• DC -stik
• Strømtransformere (CT'er)
• Temperatursensor

4. Opsætning og installation

Proper installation is crucial for the safe and efficient operation of the inverter. Follow these steps carefully.

4.1 Valg af sted

• Install the inverter in a well-ventilated area, away from direct sunlight, rain, and dust.
• Ensure the ambient temperature is within the operating range (-40 °C to 60 °C).
• Maintain adequate clearance around the inverter for heat dissipation.
• The inverter is IP65 rated, allowing for outdoor installation, but protection from extreme weather is recommended.

4.2 Montering af inverteren

The inverter is designed for wall mounting.

1. Use the provided mounting bracket as a template to mark drilling points on the wall.
2. Bor huller og isæt passende vægdyvler.
3. Fastgør monteringsbeslaget til væggen.
4. Carefully lift the inverter and hang it onto the mounting bracket.
5. Secure the inverter to the bracket using the provided screws.

Figur 3: Top view of the inverter showing mounting points for wall installation. This image highlights the design features that facilitate easy and flexible installation of the unit on a wall.

4.3 Elektriske forbindelser

All electrical connections must comply with local electrical codes and standards.

Figur 4: Bund view of the DEYE inverter, illustrating all connection ports. This includes battery connections, communication ports (CAN, RS485), PV input, grid connection, load connection, and generator/smart load ports.

1. PV-indgangsforbindelse: Connect the DC cables from the solar array to the PV input terminals (DC1, DC2). Ensure correct polarity. The inverter has 2 MPPTs.
2. Batteriforbindelse: Connect the battery cables to the BATTERY terminals. The inverter supports 48V low-voltage batteries (Lead-Acid or Lithium-Ion). Ensure correct polarity.
3. AC-nettilslutning: Connect the AC grid cables to the GRID terminals. This is a three-phase inverter.
4. Belastningsforbindelse: Connect the load cables to the LOAD terminals.
5. Generator/Smart Load Connection: If applicable, connect the generator or smart load to the GEN terminals.
6. Kommunikationsporte: Connect BMS (Battery Management System) via CAN (COM1, COM2) or RS485 (COM3) ports. An RS232 port is also available for remote control.
7. WLAN-modul: Insert the WLAN module into its designated port for remote monitoring capabilities.
8. Temperatursensor: Connect the external temperature sensor.

Note: The inverter supports parallel connection of up to 10 units for increased capacity.

5. Betjeningsvejledning

This section details the startup procedure and basic operation of the DEYE Hybrid Inverter.

5.1 Første opstart

1. After all electrical connections are securely made, switch on the DC switch located on the side of the inverter.
2. Switch on the AC breaker from the grid side.
3. Inverteren vil udføre en selvtest og derefter begynde driften.

Figur 5: A hand operating the ON/OFF and DC switch on the side of the inverter. This switch controls the power flow and is essential for safe startup and shutdown procedures.

5.2 Skærm og grænseflade

The inverter features an intuitive touchscreen interface for monitoring and configuration.

Figur 6: Nærbillede view of the inverter's touchscreen display. This interface provides real-time operational data, status indicators (AC, DC, Normal, Alarm), and navigation buttons (Up, Down, Esc, Enter) for system control and monitoring.

• Statusindikatorer: AC, DC, Normal, Alarm LEDs indicate the current operational status.
• Navigationsknapper: Use "Up", "Down", "Esc", and "Enter" buttons to navigate through menus and adjust settings.
• Realtidsdata: The display shows real-time power flow, battery status, and grid interaction.

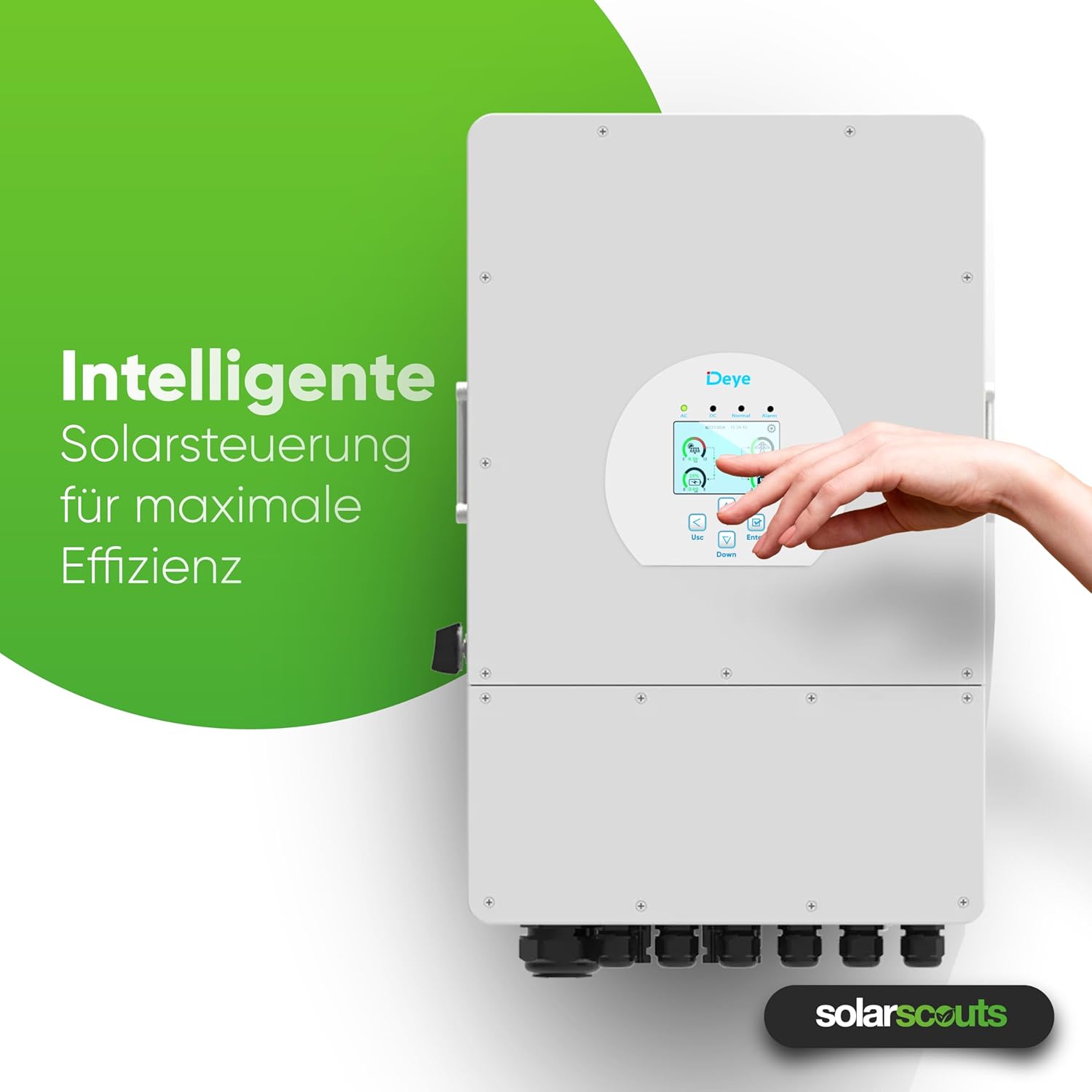

Figur 7: A hand interacting with the inverter's intelligent solar control display. This demonstrates the user-friendly interface for managing solar power and maximizing system efficiency.

5.3 Driftstilstande og indstillinger

The inverter offers various operating modes and configurable settings, including:

• Battery Charge/Discharge: Configure up to 6 periods for charging and discharging the battery.
• Grid-Tie Mode: Injects excess solar power into the grid.
• Off-grid tilstand: Provides power to loads from PV and battery during grid outages.
• Smart Load Function: Manages connected loads intelligently.
• Grid-Peak-Shave Function: Optimizes energy usage to reduce peak demand from the grid.

Refer to the detailed sections in the full user manual for specific parameter settings and advanced configurations.

5.4 Smart Monitoring Platform

The integrated WLAN module allows connection to the Deye intelligent monitoring platform. This platform enables:

• Remote shutdown in case of emergencies.
• Remote parameter adjustment.
• Remote firmware updates.
• Real-time performance monitoring of the PV system.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din inverters levetid og optimale ydeevne.

• Rensning: Periodically clean the inverter's exterior to remove dust and debris. Ensure ventilation openings are clear. Use a soft, dry cloth. Do not use liquid cleaners.
• Inspektioner: Regularly check all electrical connections for tightness and signs of corrosion or damage. Inspect cables for wear and tear.
• Ventilation: Ensure that the area around the inverter remains clear to allow for proper airflow and cooling.
• Firmwareopdateringer: Keep the inverter's firmware updated through the smart monitoring platform to benefit from performance improvements and new features.

Advarsel: Afbryd alle strømkilder, før du udfører vedligeholdelse eller rengøring.

7. Fejlfinding

This section provides solutions for common issues you might encounter. For more complex problems, contact technical support.

8. Tekniske specifikationer

The following table provides detailed technical specifications for the DEYE SUN-12K-SG04LP3-EU Hybrid Inverter.

Figur 8: A detailed table outlining the technical specifications of the DEYE Hybrid Inverter. This includes data on battery input, PV input, AC output, efficiency, protection, and general characteristics.

9. Garanti og support

DEYE provides a comprehensive warranty for its products.

Figur 9: The DEYE Hybrid Inverter displayed with a badge indicating a 10-year warranty, signifying product quality and reliability.

• Garantiperiode: The DEYE SUN-12K-SG04LP3-EU Hybrid Inverter comes with a 10-year warranty. Please refer to the official warranty document for detailed terms and conditions.
• Teknisk support: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your local DEYE distributor or visit the official DEYE webwebsted for supportkontaktoplysninger.
• Softwareopdateringer: Guaranteed software updates are available for the product.
