Indledning
This manual provides essential information for the safe operation, maintenance, and setup of your RIDGID R8657B 18V Brushless Cordless 7-1/4 inch Circular Saw. Please read and understand all instructions before using the tool to ensure proper function and prevent injury.
The RIDGID R8657B is a powerful cordless circular saw designed for efficient cutting. Key features include:
- Brushless motor for extended runtime and motor life.
- 5400 RPM for fast and efficient cutting.
- 2-9/16 inch depth of cut.
- 56° bevel capacity for versatile angle cuts.
- Heavy-duty aluminum base for durability.
Note: This product is sold as a bare tool. Battery and charger are sold separately.

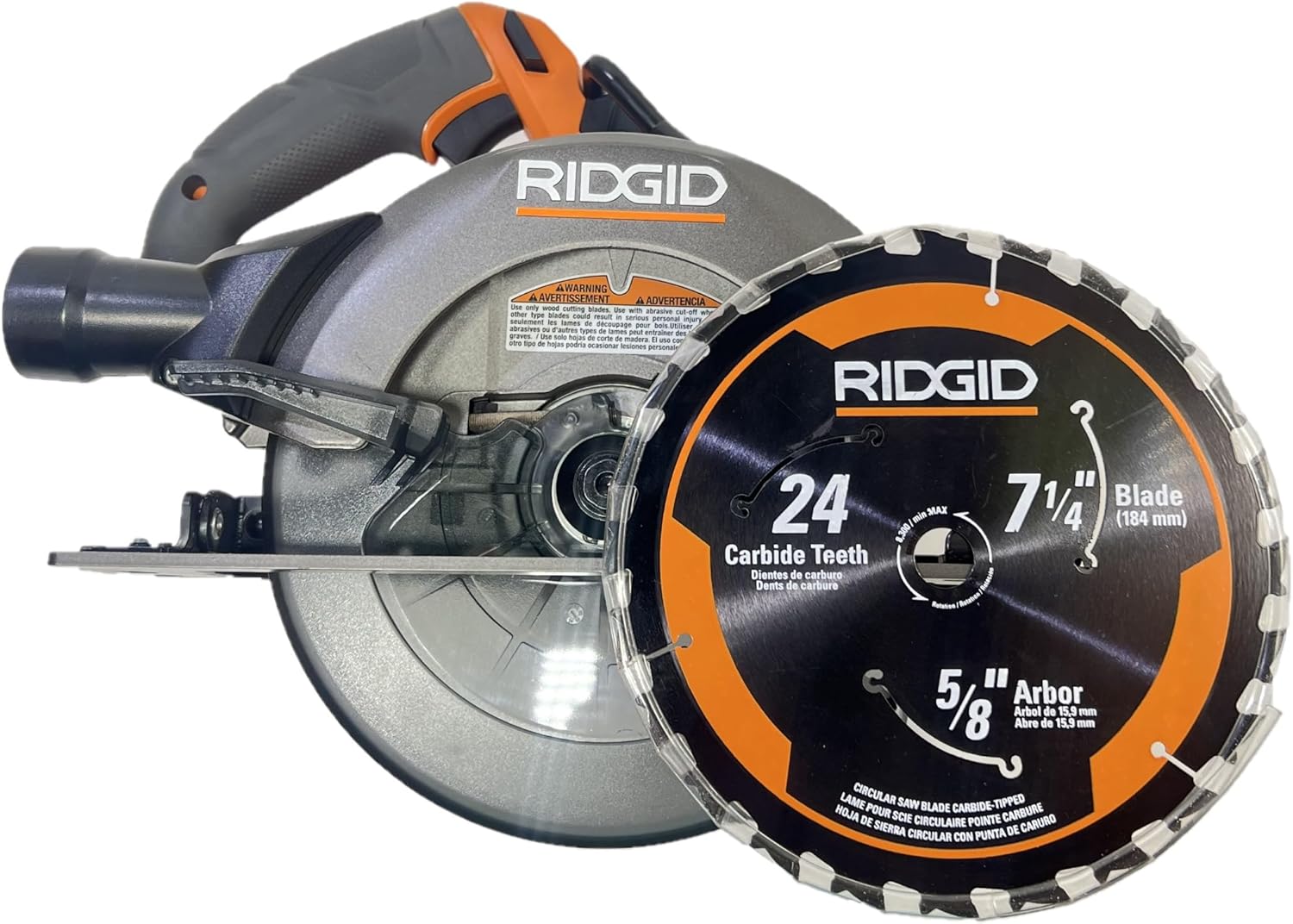

Image: The RIDGID R8657B 18V Brushless Cordless 7-1/4 inch Circular Saw, shown with a 7-1/4 inch blade. The saw features an orange and gray housing with a black handle.
Generelle sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elværktøj, for at reducere risikoen for brand, elektrisk stød og alvorlig personskade. Gem denne manual til senere brug.
- Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af brandfarlige væsker, gasser eller støv.
- Elektrisk sikkerhed: Undgå kropskontakt med jordforbundne overflader. Udsæt ikke elværktøj for regn eller våde forhold.
- Personlig sikkerhed: Always wear eye protection. Use hearing protection when operating power tools for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
- Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din opgave. Frakobl batteriet fra elværktøjet, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøjet.
- Forebyggelse af tilbageslag: Maintain a firm grip on the saw with both hands. Ensure the blade is clear of the workpiece before starting the saw. Avoid cutting small pieces that cannot be securely clampudg.
Produkt overview
Familiarize yourself with the components of your RIDGID R8657B Circular Saw:
- Klinge: 7-1/4 inch diameter, 24 carbide teeth, 5/8 inch arbor.
- Bladbeskytter: Upper and lower guards protect the blade.
- Håndtag: Ergonomisk greb for komfortabel betjening.
- Bundplade: Heavy-duty aluminum for stability and durability.
- Skråjustering: Allows for angled cuts up to 56 degrees.
- Dybdejustering: Controls the cutting depth up to 2-9/16 inches.
- Børsteløs motor: Provides efficient power and longer tool life.
Billede: Side view of the RIDGID R8657B Circular Saw, highlighting the blade guard and motor housing.

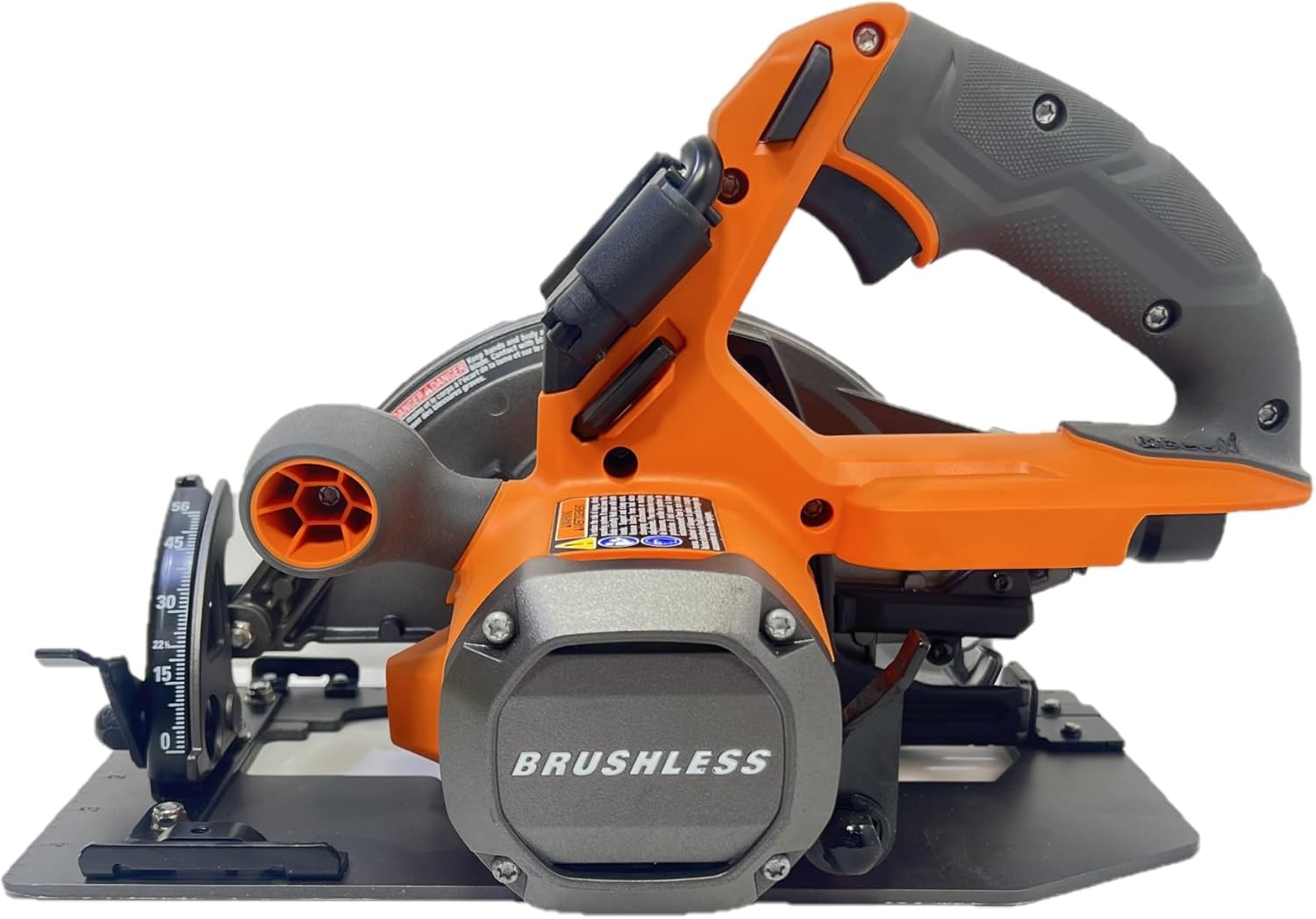

Image: The RIDGID R8657B Circular Saw showing the bevel adjustment mechanism on the front of the base plate.
Billede: Top view of the RIDGID R8657B Circular Saw, showing the main handle, auxiliary handle, and motor housing.
Opsætning
Installation af batteri
- Ensure the saw is turned off and the trigger lock is engaged.
- Juster batteripakken med batteriporten på savhåndtaget.
- Skub batteripakken ind i porten, indtil den klikker sikkert på plads.
- For at fjerne det skal du trykke på batteriets udløserknap og skubbe batteripakken ud.
Vigtig: This tool requires an 18V RIDGID battery and compatible charger, which are sold separately.
Image: A graphic stating "BATTERY & CHARGER SOLD SEPARATELY" in green text on a white background.
Blade Installation/Removal
- Frakobl batteripakken before performing any adjustments or maintenance.
- Locate the arbor lock button and press it to secure the blade.
- Brug den medfølgende knivnøgle til at løsne spindelmøtrikken ved at dreje den mod uret.
- Træk den nederste klingebeskyttelse tilbage, og fjern forsigtigt den gamle klinge.
- Install the new 7-1/4 inch blade, ensuring the teeth are pointing in the direction of rotation indicated on the saw.
- Tighten the arbor nut clockwise with the blade wrench while holding the arbor lock button. Do not overtighten.
Billede: Et nærbillede view of the 7-1/4 inch circular saw blade, showing the 24 carbide teeth and 5/8 inch arbor size markings.
Betjeningsvejledning
Justering af skæredybde
To adjust the cutting depth, loosen the depth adjustment lever, move the base plate up or down to the desired depth (up to 2-9/16 inches), and then securely tighten the lever. For optimal performance and safety, set the blade depth so that the blade extends approximately 1/8 inch below the workpiece.
Justering af skråvinkel
For angled cuts, loosen the bevel adjustment lever, tilt the saw base to the desired angle (up to 56 degrees), and then securely tighten the lever. Always ensure the bevel scale is clearly visible and set accurately.
At lave et snit
- Sørg for, at arbejdsemnet er sikkert klampog stabil.
- Position the saw with the front of the base plate resting on the workpiece, ensuring the blade is not touching the material.
- Engage the trigger lock and press the trigger to start the saw. Allow the blade to reach full speed (5400 RPM) before beginning the cut.
- Slowly and steadily guide the saw through the material, maintaining a firm grip with both hands.
- Når snittet er færdigt, slippes aftrækkeren og klingen stopper helt, før saven løftes fra emnet.
Opretholdelse
Rensning
Regularly clean the saw's ventilation openings to prevent overheating. Use a soft brush or compressed air to remove dust and debris. Do not use solvents or harsh chemicals, as they may damage plastic parts.
Bladpleje
Inspect the blade before each use for sharpness, cracks, or missing teeth. A dull or damaged blade can cause kickback and reduce cutting efficiency. Replace damaged blades immediately. Keep blades clean and free of pitch buildup.
Generel inspektion
Periodically check all screws and fasteners for tightness. Ensure the blade guards operate freely and return to their closed position automatically. Inspect the base plate for any damage or warping.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Saven starter ikke | Battery not charged or improperly installed; trigger lock engaged. | Ensure battery is fully charged and correctly seated. Disengage trigger lock. |
| Klingen binder eller skærer langsomt | Dull or damaged blade; incorrect cutting depth; workpiece not supported. | Replace blade. Adjust cutting depth. Securely clamp arbejdsemnet. |
| Overdreven vibration | Loose blade; damaged blade; worn bearings. | Tighten blade. Replace damaged blade. If problem persists, seek professional service. |
| Nederste klingebeskyttelsespinde | Accumulation of sawdust or debris; damaged guard mechanism. | Clean the guard area. Ensure the guard moves freely. |
Specifikationer
- Model: R8657B
- Voltage: 18 volt
- Bladets diameter: 7-1/4 tommer
- Arbor størrelse: 5/8 tommer
- Hastighed uden belastning: 5400 RPM
- Max. Depth of Cut (90°): 2-9/16 tommer
- Max. Bevel Capacity: 56 grader
- Bladmateriale: High Speed Steel (Carbide Tipped)
- Varens vægt: 9.35 pund
- Produktdimensioner: 15.5 cm L x 8.98 cm B x 9.13 cm H
- UPC: 715450445225
Garanti og support
This RIDGID R8657B Circular Saw is covered by a limited warranty. Please refer to the warranty documentation provided with your purchase for specific terms and conditions.
Vigtig bemærkning: Dette produkt er not eligible for the Lifetime Service Agreement.
Image: A graphic stating "NOT ELIGIBLE FOR THE LIFETIME SERVICE AGREEMENT" in red text on a white background.
For technical assistance, replacement parts, or warranty claims, please contact RIDGID customer support. Visit the official RIDGID webwebstedet for de seneste kontaktoplysninger og supportressourcer.
Bulk Packaging: This product may come in bulk packaging and not retail packaging.
Image: A graphic stating "COMES IN BULK PACKAGING, NO RETAIL PACKAGING" in red text on a white background.
