Ingenuity InLighten 2-in-1 Soothing Baby Swing & Rocker User Manual

1. Introduktion

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Ingenuity InLighten 2-in-1 Soothing Baby Swing & Rocker. Please read all instructions carefully before use and retain this manual for future reference.

The Ingenuity InLighten 2-in-1 Soothing Baby Swing & Rocker, designed for infant comfort and entertainment.

2. Sikkerhedsoplysninger

ADVARSEL: Manglende overholdelse af disse advarsler og instruktioner kan resultere i alvorlig personskade eller død.

• Brug altid fastholdelsessystemet. Sørg for, at det er korrekt monteret og justeret.
• Efterlad aldrig barnet uden opsyn.
• Brug ikke dette produkt, når dit barn kan sidde oprejst uden hjælp eller vejer mere end 9 kg, alt efter hvad der kommer først.
• Dette produkt er ikke beregnet til længere perioder med søvn.
• Brug aldrig dette produkt på en hævet overflade (f.eks. et bord).
• Always check that the product is stable and securely assembled before each use.
• Hold børn væk fra produktet under montering og afmontering.
• Brug ikke andet tilbehør eller reservedele end dem, der er godkendt af producenten.
• Keep the product away from open flames and other strong heat sources.

Ensure the 5-point harness is securely fastened for your child's safety.

3. Opsætning og montering

Assembly of the Ingenuity InLighten Swing & Rocker is designed to be straightforward. Follow the instructions provided in the packaging for detailed steps. Ensure all components are securely connected before use.

• Unpack all components and verify against the parts list (refer to your product packaging).
• Assemble the frame according to the visual instructions.
• Attach the seat pad and ensure the harness is correctly threaded.
• Install the mobile arm and toys.
• For vibration function, insert 1 C battery (not included) into the designated compartment.
• Power the swing using the included USB cord. A wall AC adapter is not included and must be supplied separately.

4. Betjeningsvejledning

4.1. 2-in-1 Functionality: Swing to Rocker

The product easily transitions between a swing and a portable rocker. To convert:

1. Ensure the child is removed from the seat.
2. Locate the release buttons on the sides of the seat where it connects to the swing frame.
3. Press the buttons and lift the plush seat off the swing frame.
4. Place the seat on a flat, stable surface to use as a rocker.

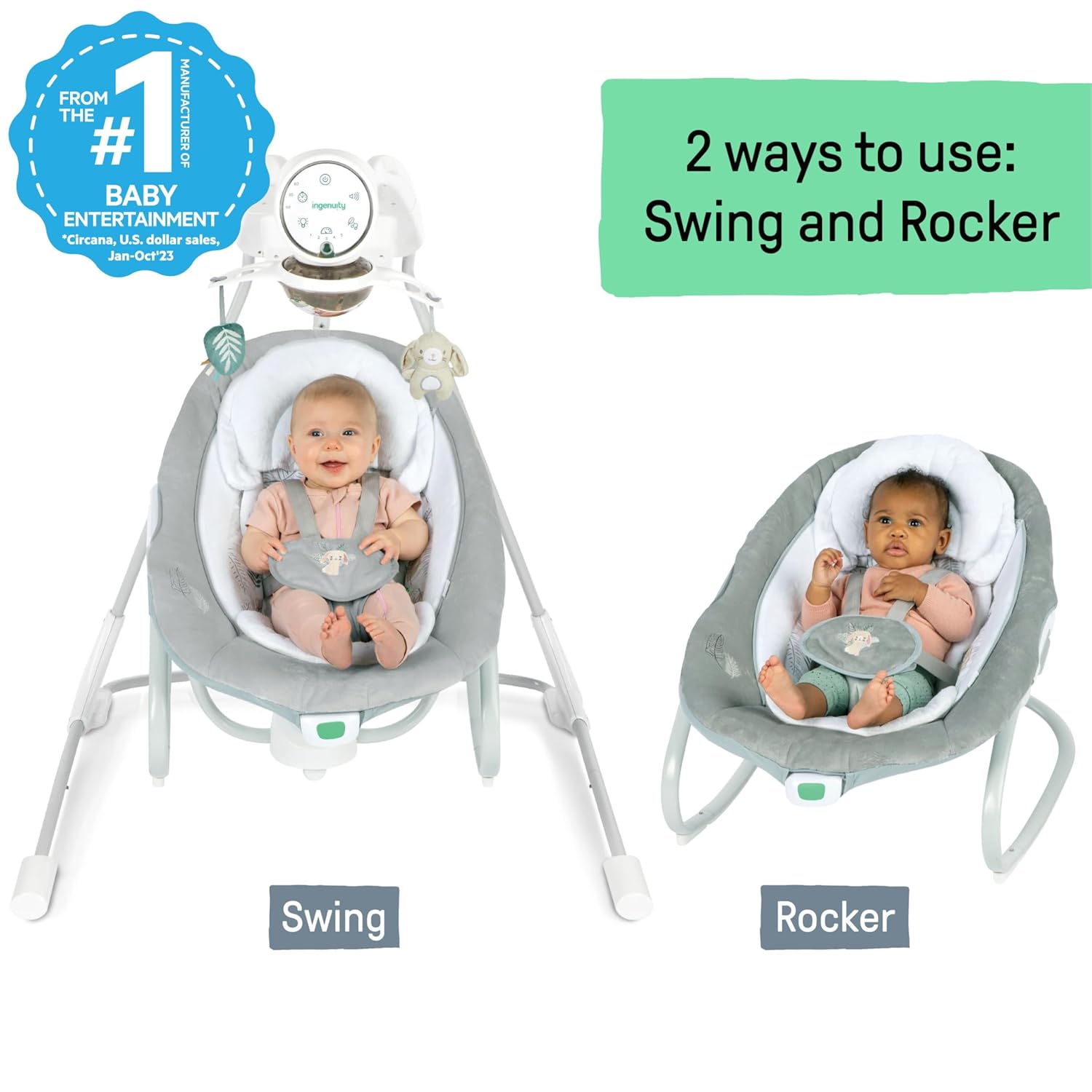

The versatile design allows for use as a swing or a portable rocker.

4.2. Kontrolpanel og fjernbetjening

The GentleTouch control pad and remote control allow you to manage all functions.

Overview of the control panel features for easy operation.

• Power knap: Tryk for at tænde eller slukke for enheden.
• Svinghastigheder: Select from 5 automatic swing speeds.
• Swing Directions: The seat rotates 180 degrees and swings in 3 directions. Adjust as desired.
• Timerindstillinger: Indstil gyngen til at køre i 30, 60 eller 90 minutter.
• Vibrationer: Activate soothing vibrations. Requires 1 C battery (not included).
• Melodier og lyde: Choose from 20 preloaded soothing melodies, white noise, or nature sounds. Adjust volume as needed.
• Light-Up Mobile: Activate the mobile for a light show and spinning toys.
• Lænepositioner: Adjust the seat to one of 2 recline positions for comfort or playtime.

The light-up mobile provides engaging visual stimulation for the baby.

4.3. Bærbarhed

The swing features an easy folding frame, incorporated handle, and wheels for convenient movement around the house.

Easily move the swing from room to room with its integrated handle and wheels.

5. Vedligeholdelse og pleje

Proper care ensures the longevity and hygiene of your product.

• Ramme: Tør metalrammen af ​​med en blød, ren klud og mild sæbe.
• Sædepude: Fjern fra rammen. Fastgør spænderne på sædestøtten og sædepuden. Fastgør alle krog-og-løkke-lapper til det tilsvarende plaster. Maskinvask med koldt vand, skånsom cyklus. Ingen blegemiddel. Tørretumles ved lav varme.
• Opbevaring: When storing the swing, always keep it in a dry location, away from any heat sources, and out of direct sunlight.
• Legetøjsbar og legetøj: Tør af med annonceamp klud og mild sæbe. Lufttør. Må ikke nedsænkes i vand.

The seat pad features machine-washable fabrics for easy cleaning.

6. Fejlfinding

If you encounter issues with your Ingenuity InLighten Swing & Rocker, refer to the following common solutions:

7. Specifikationer

• Modelnummer: 13101
• Produktdimensioner: 91.01 cm D x 83.01 cm B x 99.49 cm H (35.83 cm D x 32.68 cm B x 39.17 cm H)
• Varens vægt: 9.53 pund (4.32 kg)
• Maksimal vægtanbefaling: 20 pund (9 kg)
• Anbefaling af maksimal alder: 9 måneder
• Materiale sammensætning: 64% metal, 31% plastik, 5% stof
• Batterier påkrævet: 1 C battery for vibration (not included)
• Strømkilde: USB cord (included), wall AC adapter not included
• Funktioner: 5 swing speeds, 3 timer options, 2 recline positions, 20 melodies/sounds/white noise, light-up mobile with 2 toys, soothing vibrations, 5-point harness, portable folding frame with handle and wheels, remote control.

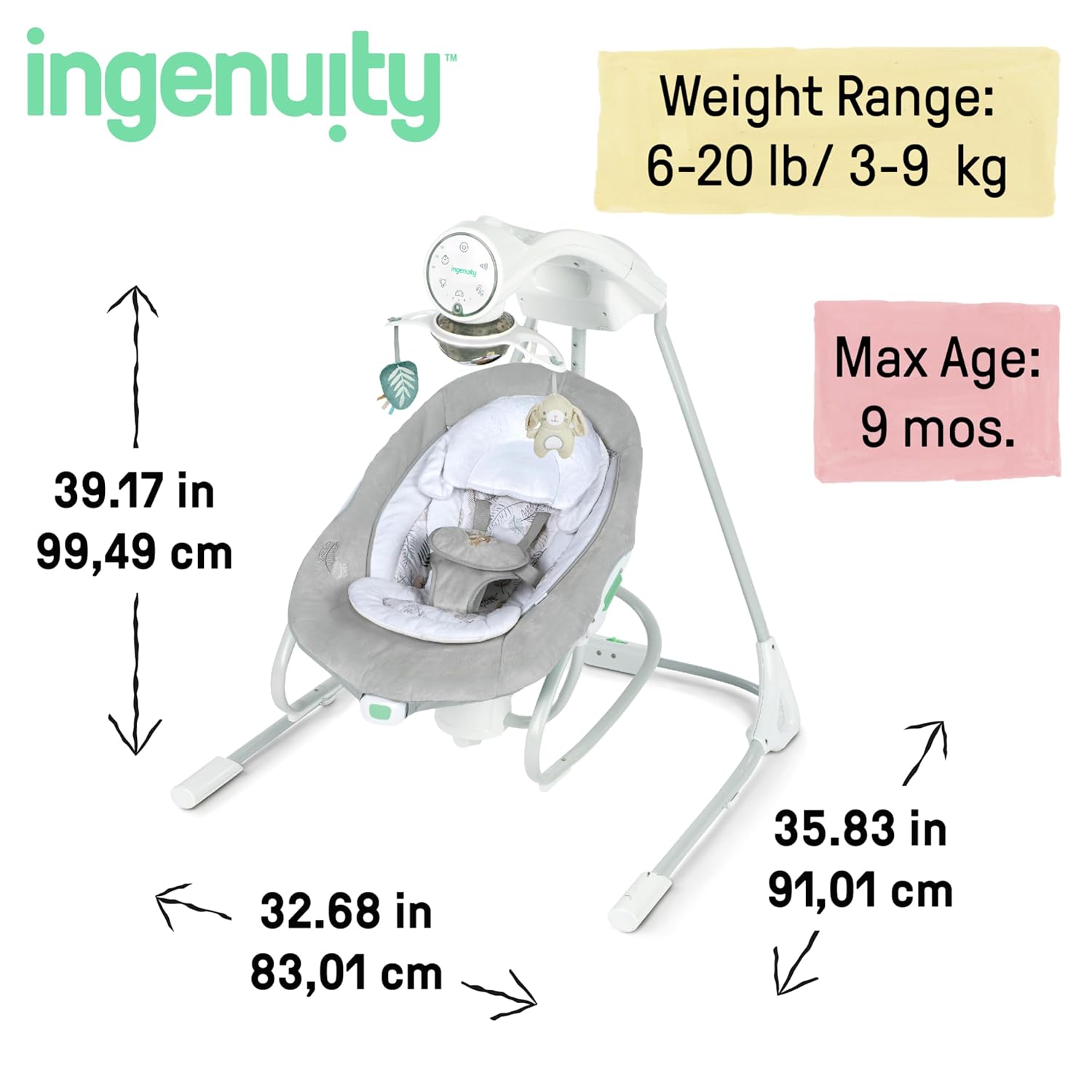

Key dimensions and weight/age limits for the Ingenuity InLighten Swing & Rocker.

8. Garanti og support

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Ingenuity website. Contact their customer service for assistance with product issues, replacement parts, or further inquiries.

Online support: www.kids2.com/ingenuity
