1. Introduktion

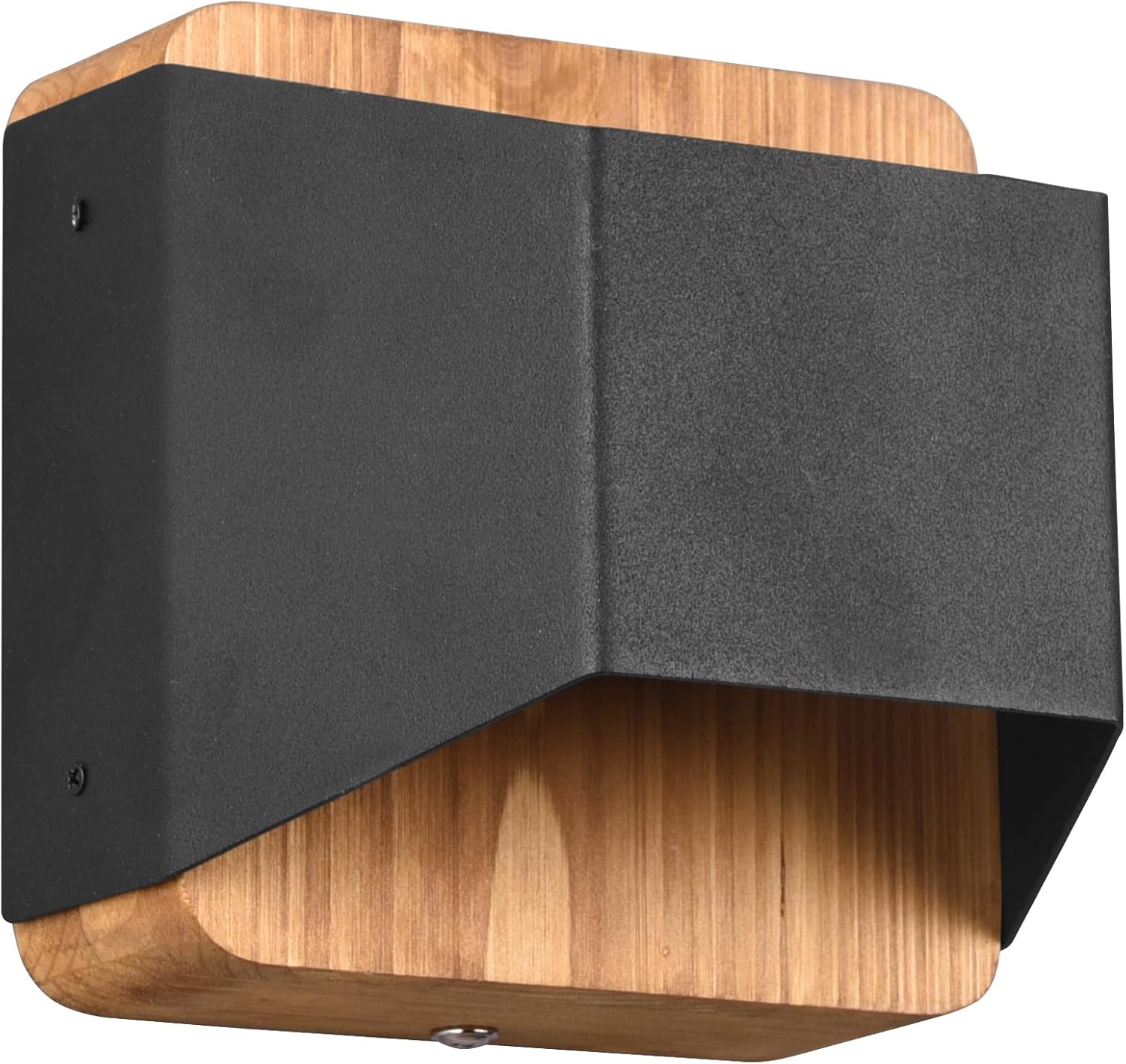

Thank you for choosing the TRIO Arino LED Wall Light. This modern luminaire combines matte black metal with natural wood, creating a warm and inviting atmosphere. Featuring integrated energy-efficient LED technology and a convenient switch dimmer function, this wall light is designed for optimal illumination and ease of use in indoor environments.
2. Sikkerhedsinstruktioner
- Elektrisk sikkerhed: Always disconnect the power supply at the main circuit breaker before installation, maintenance, or cleaning. Installation should be performed by a qualified electrician to ensure safety and compliance with local regulations.
- Kun indendørs brug: This product has an IP20 rating, indicating it is protected against solid objects larger than 12.5mm but has no protection against water. It is suitable for dry indoor locations only.
- Ikke-udskiftelig LED: The LED light source in this luminaire is not replaceable. When the light source reaches its end of life, the entire luminaire should be replaced.
- Håndtering: Handle the product with care to avoid damage to the light source or housing.
3. Pakkens indhold
Kontroller venligst, at alle komponenter er til stede og ubeskadigede:
- 1 x TRIO Arino LED Wall Light
- 1 x Set of Mounting Material (screws, wall plugs)
- 1 x Brugsanvisning (dette dokument)
4. Opsætning og installation
Vigtig: Sørg for, at hovedstrømforsyningen er afbrudt, før installationen påbegyndes.
- Forberedelse: Choose a suitable indoor location for the wall light. Mark the drilling points on the wall according to the luminaire's mounting plate.
- Boring: Drill holes at the marked positions and insert the provided wall plugs.
- Ledningsføring: Connect the electrical wires from the wall to the terminal block of the luminaire. Ensure correct polarity (Live, Neutral, Earth) as per local electrical codes. Secure the connections.
- Montering: Attach the luminaire's mounting plate to the wall using the screws. Carefully secure the light fixture to the mounting plate.
- Endelig kontrol: Ensure all connections are secure and the luminaire is firmly mounted.
5. Betjeningsvejledning
The TRIO Arino LED Wall Light features an integrated Switch Dimmer function, allowing you to adjust the brightness using your existing conventional wall switch. No external dimmer is required.
- Turning On (100% Brightness): Flip your wall switch ON. The light will illuminate at 100% brightness.
- Dimming to 50%: To reduce brightness, quickly flip the wall switch OFF and then ON again within 1-2 seconds. The light will now operate at 50% brightness.
- Dimming to 25%: To further reduce brightness, quickly flip the wall switch OFF and then ON again within 1-2 seconds. The light will now operate at 25% brightness.
- Slukker: Flip the wall switch OFF.
- Cyklus: The light cycles through 100% > 50% > 25% > OFF with each quick OFF/ON sequence. If the light is left OFF for more than 5 seconds, it will reset to 100% brightness when turned ON again.
6. Vedligeholdelse
To maintain the appearance and functionality of your TRIO Arino LED Wall Light:
- Rensning: Sørg for, at strømmen er slukket, inden rengøring. Tør overfladen af med en blød, tør eller let fugtet klud.amp klæde.
- Undgå kemikalier: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish of the metal and wood.
- Fjernelse af støv: Regularly dust the luminaire to prevent accumulation that could affect light output.
7. Fejlfinding
If you encounter issues with your TRIO Arino LED Wall Light, please refer to the following common problems and solutions:
- Lyset tændes ikke:
- Check if the main power supply is switched ON.
- Kontroller, at vægkontakten er i ON-positionen.
- Ensure all electrical connections are secure (consult a qualified electrician if unsure).
- Dimmer Function Not Working:
- Ensure you are performing the quick OFF/ON sequence correctly within 1-2 seconds to cycle through brightness levels.
- If the light was OFF for an extended period, it will reset to 100% brightness upon the first ON. Try the OFF/ON sequence again.
- Flimrende lys:
- Tjek for løse ledningsforbindelser.
- Sørg for, at voltagForsyningen er stabil og inden for det angivne område.
If these steps do not resolve the issue, please contact customer support or a qualified electrician.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | TRIO |
| Modelnummer | 224810132 |
| Produktmål (L x B x H) | 12.2 cm x 11.5 cm x 12.0 cm |
| Varens vægt | 400 g |
| Materiale | Metal, træ |
| Farve | Mat sort |
| Stil | Moderne |
| Pære type | Integreret LED |
| Antal pærer | 1 |
| Magt | 4.3 watt |
| Lysstrøm | 430 Lumen |
| Farvetemperatur | 3000 Kelvin (varm hvid) |
| Gennemsnitlig levetid | 50,000 timer |
| Voltage | 230 volt |
| Skift stil | Integrated Switch Dimmer (3-step) |
| Installationstype | Vægmontering |
| Certificering | IP20 |
| Energieffektivitetsklasse | F |
| Indendørs/Udendørs brug | Kun indendørs brug |
9. Garanti
This product is covered by the manufacturer's standard warranty. Please refer to the terms and conditions provided at the point of purchase or contact your retailer for specific warranty details. Keep your proof of purchase for any warranty claims.
10. Support
For technical assistance, troubleshooting beyond this manual, or inquiries regarding spare parts, please contact your retailer or the TRIO Lighting customer service. Contact information can typically be found on the product packaging or the manufacturer's official webwebsted.
