1. Introduktion
This manual provides essential information for the safe installation, operation, and maintenance of your Zephyr ZMD-M90B Modena Island Range Hood. Please read all instructions carefully before installation and use to ensure optimal performance and safety.
The Zephyr Modena island range hood features a sleek design with LumiLight LED lighting and ICON Touch controls. It is engineered to effectively remove cooking fumes and odors from your kitchen environment.

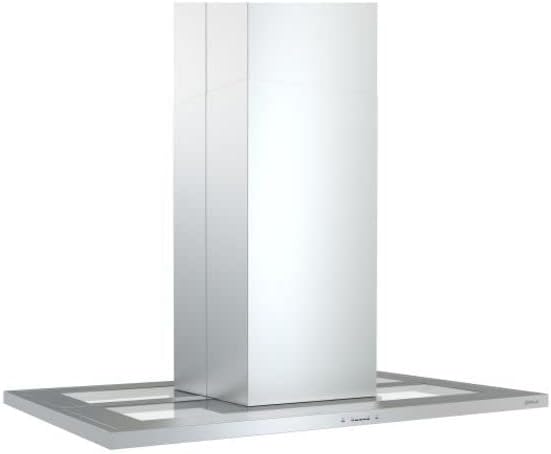

Billede 1.1: Forside view of the Zephyr ZMD-M90B Modena Island Range Hood.
2. Vigtige sikkerhedsoplysninger
For at mindske risikoen for brand, elektrisk stød eller personskade skal du overholde følgende:
- Read all instructions thoroughly before operating the range hood.
- Installationsarbejde og elektriske ledninger skal udføres af kvalificeret(e) person(er) i overensstemmelse med alle gældende regler og standarder, inklusive brandklassificeret konstruktion.
- Betjen ikke en ventilator med en beskadiget ledning eller stik. Kassér blæseren eller returner til et autoriseret serviceværksted til undersøgelse og/eller reparation.
- Tilstrækkelig luft er nødvendig til korrekt forbrænding og udstødning af gasser gennem aftrækket (skorstenen) på brændstofforbrændingsudstyr for at forhindre tilbagetrækning. Følg varmeudstyrsproducentens retningslinjer og sikkerhedsstandarder, såsom dem, der er offentliggjort af National Fire Protection Association (NFPA), og American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) og de lokale myndigheder.
- Når du skærer eller borer i væg eller loft, må du ikke beskadige elektriske ledninger og andre skjulte værktøjer.
- Kanalventilatorer skal altid udluftes til det fri.
- Rengør fedtfiltre ofte. Der må ikke samle sig fedt på ventilator eller filter.
- Efterlad aldrig overfladebeholdere uden opsyn ved høje indstillinger. Overkogninger forårsager rygning og fedtholdige spild, der kan antændes.
- Tænd altid emhætten, når du laver mad ved høj varme, eller når du flamberer mad.
- Use appropriate pan size for each surface unit.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Zephyr ZMD-M90B Modena Island Range Hood Unit
- Duct Cover Sections (Upper and Lower)
- Monteringsbeslag og hardware
- Grease Filters (Mesh Type)
- LumiLight LED Lights (Pre-installed or separate)
- Instruktionsmanual
4. Opsætning og installation
The Zephyr Modena range hood features a Quick-Lock Installation System designed for a streamlined setup process. Professional installation is recommended.
4.1 Trin før installation
- Udpakning: Carefully remove all packaging materials and inspect the hood for any shipping damage.
- Beliggenhed: Ensure the installation location provides adequate clearance above the cooking surface and structural support for the hood's weight (approximately 234 lbs).
- Kanalisering: Plan for proper ducting to the outdoors. This model is designed for ducted ventilation. An extension duct cover kit is available to accommodate ceiling heights up to 12 feet.
- Elektrisk: Ensure a dedicated 120V electrical supply is available at the installation point.
4.2 Quick-Lock Installation System
The Quick-Lock system simplifies the installation of island range hoods. The process generally involves:
- Assemble the mounting frame securely to the ceiling structure.
- Lift the main hood unit and engage it with the Quick-Lock mechanism on the frame.
- Fastgør hætten på plads.
- Connect the electrical wiring according to local codes.
- Install the ducting to the exhaust outlet.
- Assemble and attach the 4-piece duct covers, ensuring they are properly aligned and secured.

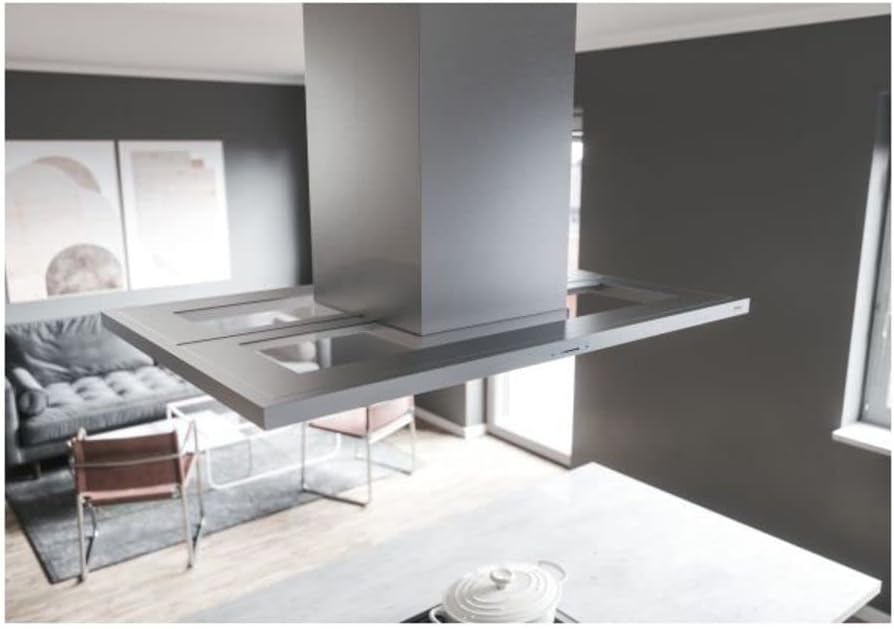

Image 4.1: The Zephyr Modena range hood installed above an island cooktop.
4.3 Airflow Control Technology (ACT)
Your range hood is equipped with Airflow Control Technology (ACT), which allows installers to set the maximum CFM levels to comply with local code requirements. This setting is typically configured during installation by a qualified technician.
5. Betjeningsvejledning
The Zephyr Modena range hood features intuitive ICON Touch™ controls for easy operation.
5.1 ICON Touch™ Controls
The ICON Touch™ controls are seamlessly integrated into the stainless steel canopy. These controls allow you to manage the fan speed, lighting, and other functions.
Image 5.1: Detail of the ICON Touch controls and LumiLight LED lights.
- Tænd/sluk: Tryk på tænd/sluk-knappen for at tænde eller slukke emhætten.
- Blæserhastighed: The hood offers 5 fan speeds. Use the fan speed controls to adjust the blower output from 200 CFM to 600 CFM, depending on your cooking needs. Higher speeds are recommended for heavy cooking or strong odors.
- LumiLight LED Lighting: Activate the LumiLight LED lights to illuminate your cooking area. These lights are multi-level dimmable. Press the light button repeatedly to cycle through brightness settings.
- Forsinket slukning-funktion: This feature allows the hood to continue running for a set period after cooking, then automatically shut off. Consult the full manual for specific delay-off programming.
- Auto Reminders: The ICON Touch controls may include auto reminders for filter cleaning or other maintenance tasks.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din emhættes levetid og optimale ydeevne.
6.1 Rengøring af ydersiden
- Clean the stainless steel surfaces regularly with a soft cloth and a non-abrasive stainless steel cleaner.
- Always wipe in the direction of the grain to prevent scratching.
- Avoid using abrasive cleaners, steel wool, or scouring pads, as these can damage the finish.
6.2 Rengøring af fedtfiltre
The mesh grease filters should be cleaned frequently to prevent grease buildup, which can affect performance and pose a fire hazard.
Image 6.1: Underside of the hood with mesh filters visible.
- Turn off the range hood and disconnect power before cleaning.
- Remove the mesh filters by disengaging their locking mechanisms.
- Wash the filters in hot, soapy water or in a dishwasher. For stubborn grease, a degreasing-middel kan anvendes.
- Skyl grundigt og lad det tørre helt, før det monteres igen.
- Reinstall the filters, ensuring they are securely locked in place.
6.3 LumiLight LED Lighting
The LumiLight LED lights are designed for long life (over 25,000 hours) and typically do not require frequent replacement. If a light needs replacement, contact Zephyr customer support for assistance or refer to the detailed service manual.
7. Fejlfinding
Inden du kontakter kundeservice, vedrview følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Emhætten tændes ikke | Ingen strømforsyning; afbryder udløst; løse ledninger. | Check power connection; reset circuit breaker; ensure wiring is secure (consult technician). |
| Poor ventilation performance | Clogged grease filters; restricted ducting; incorrect fan speed. | Clean or replace filters; check ductwork for obstructions; increase fan speed. |
| Lys virker ikke | LED light failure; loose connection. | Ensure power is on; contact customer support for light replacement. |
| Overdreven støj | Loose components; motor issue; ducting obstruction. | Check for loose parts; inspect ducting; contact customer support if motor noise persists. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Model | ZMD-M90B |
| Monteringstype | Ø-bjerget |
| Materiale | Rustfrit stål |
| Dimensioner (produkt) | 27.5 x 35.5 x 50 tommer |
| Varens vægt | 234 pund |
| Luftmængde kapacitet | 200-600 CFM (Adjustable via ACT) |
| Antal hastigheder | 5 |
| Kontroltype | ICON Touch™ |
| Lyskildetype | LumiLight LED |
| Voltage | 120 volt |
| Wattage | 480 watt |
| Filtertype | Mesh |
| Ventilationstype | Ducted (Ductless/Recirculating option may be available with separate kit) |
9. Garanti og support
Your Zephyr ZMD-M90B Modena Island Range Hood is covered under a 1-year labor warranty og en 3 års reservedelsgaranti fra købsdatoen.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Zephyr customer support. Ensure you have your model number (ZMD-M90B) and proof of purchase available when contacting support.
For the most current support information, please visit the official Zephyr webwebstedet eller se de kontaktoplysninger, der findes i din produktdokumentation.
