Indledning
This manual provides detailed instructions for the safe and effective use of your Acebeam W30 Long Range LED Flashlight. Please read this manual thoroughly before operating the device and retain it for future reference.
Image: The Acebeam W30 Long Range LED Flashlight, a black cylindrical device with a wide head and a narrower body, featuring a pocket clip.
Produktegenskaber
- Max 500 lumens brightness output.
- Max beam distance up to 2408 meters.
- Depth of diving related 100 meters.
- Powered by 1 x Micro-USB rechargeable Li-ion battery (ACEBEAM IMR NP-510A/USB), compatible with 1 x 18650 Li-ion battery using an adapter.
- Stainless steel tail switch for fast and convenient operation.
- Digitally regulated output maintains constant brightness.
- Strømindikator viser batteri voltage.
- Lav voltage warning reminds when battery charging is needed.
- Used Convex lens and Toughened ultra-clear glass lens with anti-reflective coating.
- Standard tripod socket compatibility.
- Made of durable aerospace-grade aluminum alloy with a premium type hard-anodized anti-abrasive finish.
- Includes a white diffuser for versatility.
Image: An illustration highlighting the key features of the Acebeam W30, including its 500 lumens output, 2408-meter beam distance, 100-meter diving depth, and compatible battery types.
Image: A diagram illustrating the difference in light beam formation between a standard LED flashlight and an LEP (Laser Excited Phosphor) flashlight with a convex lens, showing how the convex lens focuses the beam for longer throw.
Pakkens indhold
Tjek venligst pakken for følgende varer:
- 1x Acebeam W30 Flashlight Head
- 1x Acebeam W30 Flashlight Body
- 1x ACEBEAM IMR21700NP-510A USB Rechargeable Battery
- 1x Tailcap
- 1x hvid diffuser
- 1x Battery Adapter (for 18650 battery compatibility)

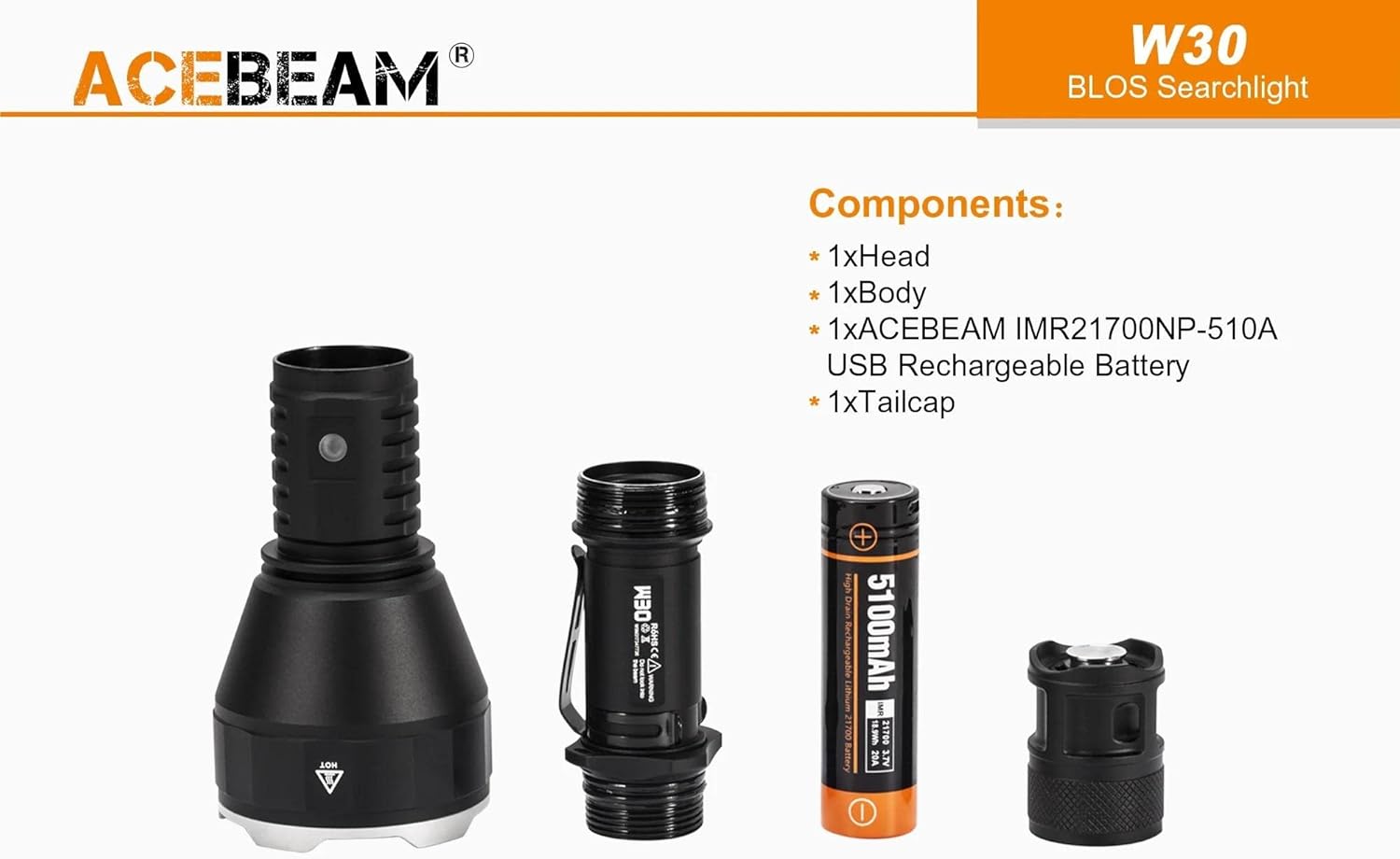

Billede: En adskilt view of the Acebeam W30 flashlight, showing its main components: the head, body, 5100mAh 21700 rechargeable battery, and tailcap.
Opsætning
1. Batteriinstallation
- Skru lommelygtens bagdæksel af.
- Insert the provided ACEBEAM IMR21700NP-510A battery with the positive (+) end facing towards the head of the flashlight.
- If using an 18650 battery, place it inside the included battery adapter first, then insert it into the flashlight with the positive (+) end towards the head.
- Skru endehætten godt på igen for at sikre korrekt kontakt og vandtæthed.
2. Første opladning
The included ACEBEAM IMR21700NP-510A battery features a built-in Micro-USB charging port.
- Connect the Micro-USB cable to the battery's charging port.
- Connect the other end of the USB cable to any 5V/1A output USB power source (e.g., computer, wall adapter, power bank).
- The indicator light on the battery will show rød under opladning og tænding grøn når den er fuldt opladet.
- The battery can also function as a power bank, providing 5V/1A output to charge other mobile devices.
Image: The Acebeam IMR21700NP-510A battery being charged via a Micro-USB cable connected to a smartphone, demonstrating its dual function as a power bank.
Image: The Acebeam IMR21700NP-510A battery connected to a laptop via a Micro-USB cable for charging, illustrating the charging process.
Betjeningsvejledning
1. Tænd/sluk
- To turn the flashlight on or off, press the stainless steel tail switch.
- The W30 features a single, highly concentrated output.
2. Strømindikator
The flashlight includes a power indicator to display the battery voltage status:
- Green constant-on: Voltage ≥ 3V (Sufficient power)
- Red constant-on: Voltage < 3V (Low power, charging needed)
Billede: Et nærbillede view of the Acebeam W30 flashlight, highlighting the location of the power indicator light on the body and the stainless steel tail switch for operation.
3. Diving Use
The Acebeam W30 is designed to be waterproof up to a depth of 100 meters.
- Ensure the tailcap is screwed on tightly before submerging the flashlight.
- After diving, rinse the flashlight with fresh water and dry it thoroughly.
Image: The Acebeam W30 flashlight being used underwater by a diver, demonstrating its waterproof capability and wide beam angle of 1.8 degrees.
4. Using the White Diffuser
The included white diffuser can be attached to the head of the flashlight to soften the beam and provide a wider, more even light spread, useful for close-range illumination or as a signal light.
Opretholdelse
- Rensning: Rengør lommelygtehuset med en blød,amp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- O-ringe: Periodically inspect and lubricate the O-rings with silicone grease to maintain water resistance. Replace damaged O-rings.
- Tråde: Keep the threads clean and lightly lubricated.
- Batteripleje:
- Oplad batteriet helt inden første brug.
- Recharge the battery when the power indicator shows red.
- If storing the flashlight for an extended period, remove the battery and store it separately in a cool, dry place. Recharge the battery every 3-6 months to prolong its lifespan.
- Opbevaring: Opbevar lommelygten på et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lommelygten tænder ikke. |
|
|
| Lysudbyttet er svagt. | Batteriet er lavt. | Oplad batteriet. |
| Batteriet oplades ikke. |
|
|
Specifikationer
| Feature | Detalje |
|---|---|
| Model | Acebeam W30 |
| Lyskilde | LEP (Laser Excited Phosphor) |
| Lysstyrke | 500 lumen |
| Stråleafstand | 2408 meters (7,900ft, 1.5 miles) |
| Farvetemperatur | Cool White 6500K |
| Strømkilde | 1x ACEBEAM IMR21700NP-510A USB Rechargeable Li-ion Battery (included) or 1x 18650 Li-ion Battery (with adapter) |
| Batterikapacitet | 5100mAh (21700 batteri) |
| Runtime | 1 hour 45 minutes (with 5100mAh battery) |
| Vandmodstand | Waterproof to 100 meters (diving depth) |
| Materiale | Aerospace-grade aluminum alloy with hard-anodized anti-abrasive finish |
| Dimensioner | Length: 199.1mm (7.84"), Head Diameter: 61mm (2.4"), Body Diameter: 30mm (1.18") |
| Vægt | 248g (8.74 oz) (uden batteri) |
| Særlige funktioner | Long Range, Rechargeable, Power Indicator, Low-voltage Warning, Tripod Socket, White Diffuser Included |
Image: An illustration detailing the physical dimensions of the Acebeam W30 flashlight, including its length (199.1mm), head diameter (61mm), body diameter (30mm), and weight (248g).
Garantioplysninger
The Acebeam W30 Long Range LED Flashlight comes with a limited warranty. Please refer to the official Acebeam website or your purchase documentation for specific warranty terms and conditions. This warranty typically covers manufacturing defects under normal use.
Kundesupport
For technical assistance, warranty claims, or any questions regarding your Acebeam W30 flashlight, please contact Acebeam customer support through their official webwebstedet eller den forhandler, hvorfra du købte produktet.
Sikkerhedsadvarsler
- GØR IKKE look directly into the beam or point it into the eyes of any person or animal. The intense light can cause temporary vision impairment or permanent eye damage.
- Opbevares utilgængeligt for børn.
- Do not disassemble the sealed head of the flashlight, as this may damage the LEP module and void the warranty.
- Use only recommended batteries. Improper battery use may result in fire, explosion, or leakage.
- Do not expose the flashlight to extreme heat or open flames.
