Cecotec Sprint Silver City Electric Bike User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Sprint Silver City Electric Bike. Please read this manual thoroughly before your first ride and retain it for future reference. Proper understanding and adherence to these instructions will ensure a safe and enjoyable experience with your electric bike.

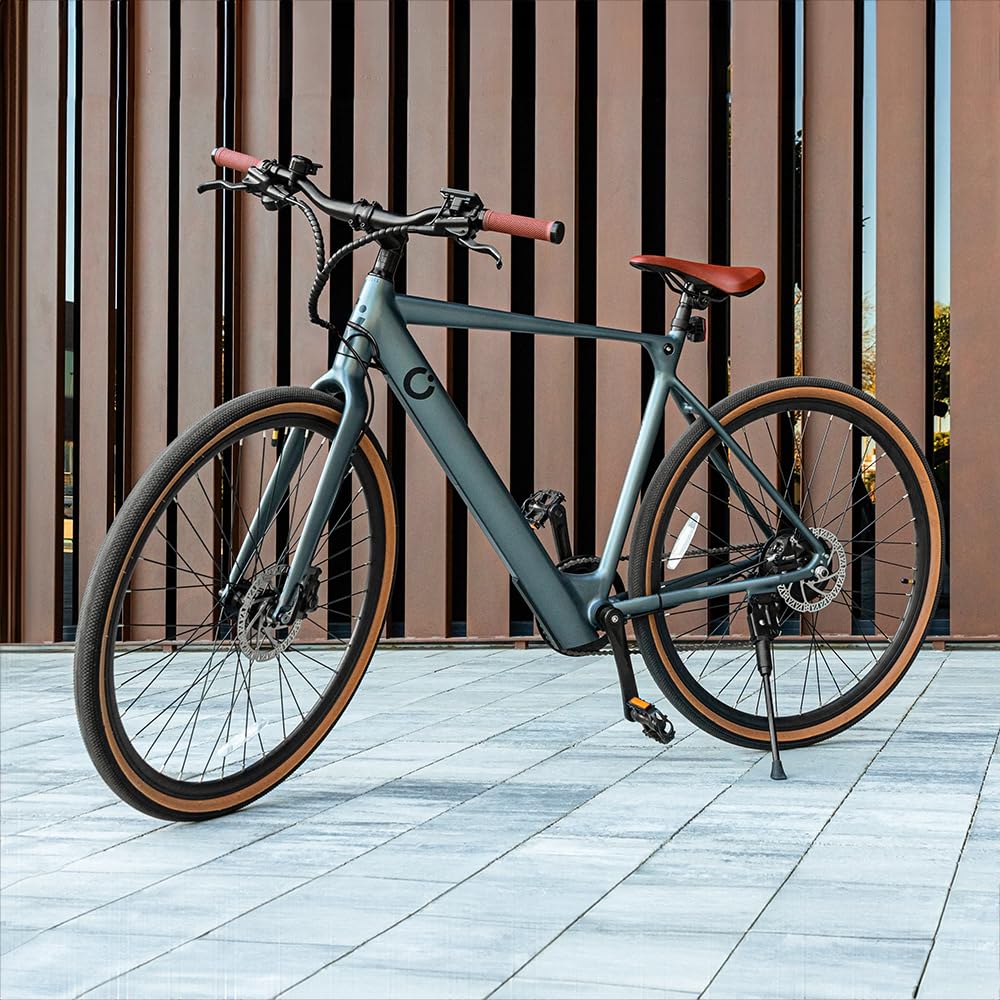

Billede 1.1: Forside view of the Cecotec Sprint Silver City Electric Bike.

2. Sikkerhedsinstruktioner

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local traffic laws and regulations for electric bicycles. Regular inspection and maintenance are crucial for safe operation.

• Tjek før kørsel: Before each ride, inspect tires, brakes, lights, and ensure all bolts and quick releases are securely fastened.
• Bremsning: Practice using both front and rear hydraulic disc brakes to understand their responsiveness. Always brake smoothly and anticipate stops.
• Sigtbarhed: Use the integrated lights during low light conditions and consider wearing reflective clothing.
• Batteripleje: Do not expose the battery to extreme temperatures or moisture. Use only the provided charger.
• Vægtgrænse: Do not exceed the maximum recommended weight of 150 kg (including rider and cargo).

3. Pakkens indhold

Carefully unpack your electric bike and verify that all components are present. If any items are missing or damaged, contact customer support immediately.

• 1 x Cecotec Sprint Silver City Electric Bike
• 1 x Brugsanvisning (dette dokument)
• Monteringsværktøjer
• 1 x Batterioplader

4. Opsætning

4.1 Første samling

While the bike is largely pre-assembled, some components require attachment and adjustment. Use the included mounting tools for these steps.

1. Montering af styr: Attach the handlebar to the stem, ensuring it is centered and tightened securely. Adjust the angle for comfortable riding posture.
2. Pedalfastgørelse: Identificér venstre (V) og højre (H) pedal. Skru 'V'-pedalen mod uret ind i venstre pedalarm og 'R'-pedalen med uret ind i højre pedalarm. Spænd godt fast med en skruenøgle.
3. Justering af sadelpind: Insert the seat post into the frame and adjust the saddle height so your leg has a slight bend at the knee when the pedal is at its lowest point. Secure the quick-release lever or bolt.
4. Montering af forhjul (hvis afmonteret): Align the front wheel into the fork dropouts. Ensure the disc brake rotor is correctly seated within the caliper. Secure the quick-release skewer or axle nuts.

4.2 Batteriopladning

Before your first ride, fully charge the 360Wh (36V 10Ah) battery. The battery is integrated into the frame.

1. Locate the charging port on the bike frame.
2. Tilslut opladeren til en almindelig stikkontakt.
3. Connect the charging cable to the bike's charging port.
4. The charger's indicator light will show the charging status (e.g., red for charging, green for fully charged).
5. Once fully charged, disconnect the charger from the bike and then from the outlet.

A full charge typically takes several hours. Avoid overcharging by disconnecting the charger once the battery is full.

Image 4.1: The LCD display provides information on battery level, speed, and assist level.

5. Betjeningsvejledning

5.1 Tænd/sluk

To power on the electric system, press and hold the power button on the LCD display unit. To power off, press and hold the same button until the display turns off.

5.2 Brug af LCD-skærmen

The LCD display provides real-time information and control over your bike's electric functions.

• Hastighed: Viser den aktuelle kørehastighed.
• Kilometers: Displays trip distance or total odometer reading.
• Assist niveau: Indicates the current level of motor assistance. Use the '+' and '-' buttons to cycle through assistance levels (typically 0-5). Level 0 provides no motor assistance.
• Batteriniveau: Viser den resterende batteriopladning.
• Lys: Press the light button to turn the integrated front and rear lights on or off.

Image 5.1: Integrated front headlight for enhanced visibility.

5.3 Gear Shifting (Shimano Altus 8-Speed)

Your bike is equipped with a Shimano Altus 8-speed gear system for efficient pedaling across various terrains.

• Use the shifter on the right handlebar to change gears.
• Shift to a lower gear (larger cog) for easier pedaling on inclines.
• Shift to a higher gear (smaller cog) for faster speeds on flat terrain or descents.
• Træd altid let i pedalerne, når du skifter gear, for at sikre jævne gearskift og forhindre skader på drivlinjen.

Image 5.2: Shimano Altus 8-speed gear system for versatile riding.

5.4 Braking (Double Hydraulic Disc Brakes)

The bike features double hydraulic disc brakes for reliable stopping power in various conditions.

• The right lever controls the rear brake, and the left lever controls the front brake.
• Brug begge bremser samtidigt for optimal bremsekraft og kontrol.
• Undgå pludselig, hård opbremsning, især med forbremsen, da dette kan føre til tab af kontrol.
• Regularly check brake pads for wear and hydraulic fluid levels.

Image 5.3: Hydraulic disc brake system for effective stopping.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din elcykels levetid og sikre drift.

• Rensning: Rengør cyklen regelmæssigt med reklameamp klud og mild sæbe. Undgå højtryksspuling, især i nærheden af ​​elektriske komponenter.
• Dæktryk: Check tire pressure before each ride. Maintain the recommended pressure (usually indicated on the tire sidewall) for optimal performance and puncture resistance. The 28-inch wheels require specific pressure.
• Kædesmøring: Lubricate the chain every 100-200 km or after riding in wet conditions to ensure smooth gear changes and prevent wear.
• Bremseinspektion: Regularly check brake pads for wear and replace them when necessary. Ensure brake levers feel firm and responsive.
• Boltspænding: Periodically check and tighten all bolts and fasteners, especially on the handlebars, stem, seat post, and wheels.
• Batteriopbevaring: Hvis cyklen opbevares i længere tid, skal batteriet oplades til 50-70% og opbevares køligt og tørt. Genoplad hver 2.-3. måned for at forhindre dyb afladning.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på. Kontakt kundesupport, hvis du har problemer, der ikke er nævnt her.

8. Specifikationer

Detailed technical specifications for the Cecotec Sprint Silver City Electric Bike.

9. Garanti og support

Cecotec provides a commitment to quality and support for its products.

• Reservedelstilgængelighed: EU spare parts are available for a duration of 10 years from the date of purchase.
• Kundesupport: For warranty claims, technical assistance, or any questions regarding your Cecotec Sprint Silver City Electric Bike, please contact Cecotec customer service through their official website or the contact information provided at the point of purchase.
